Eaton

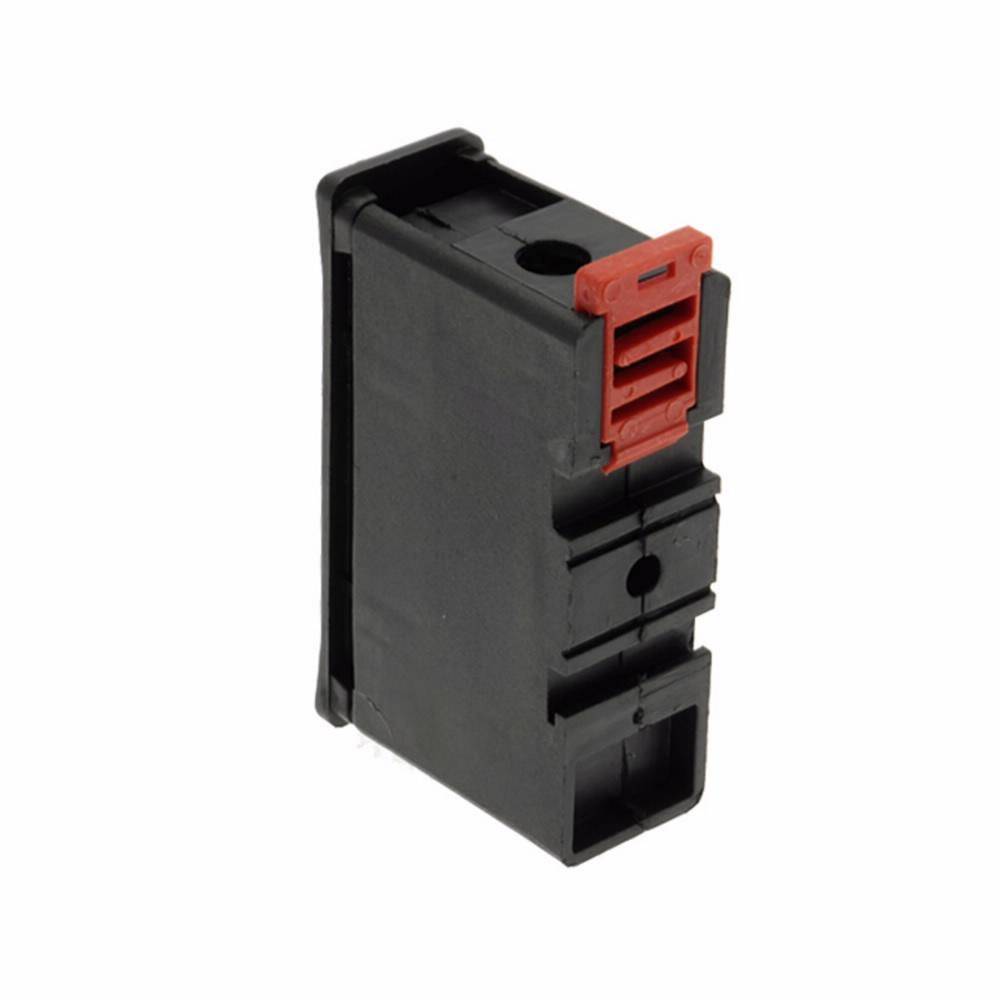

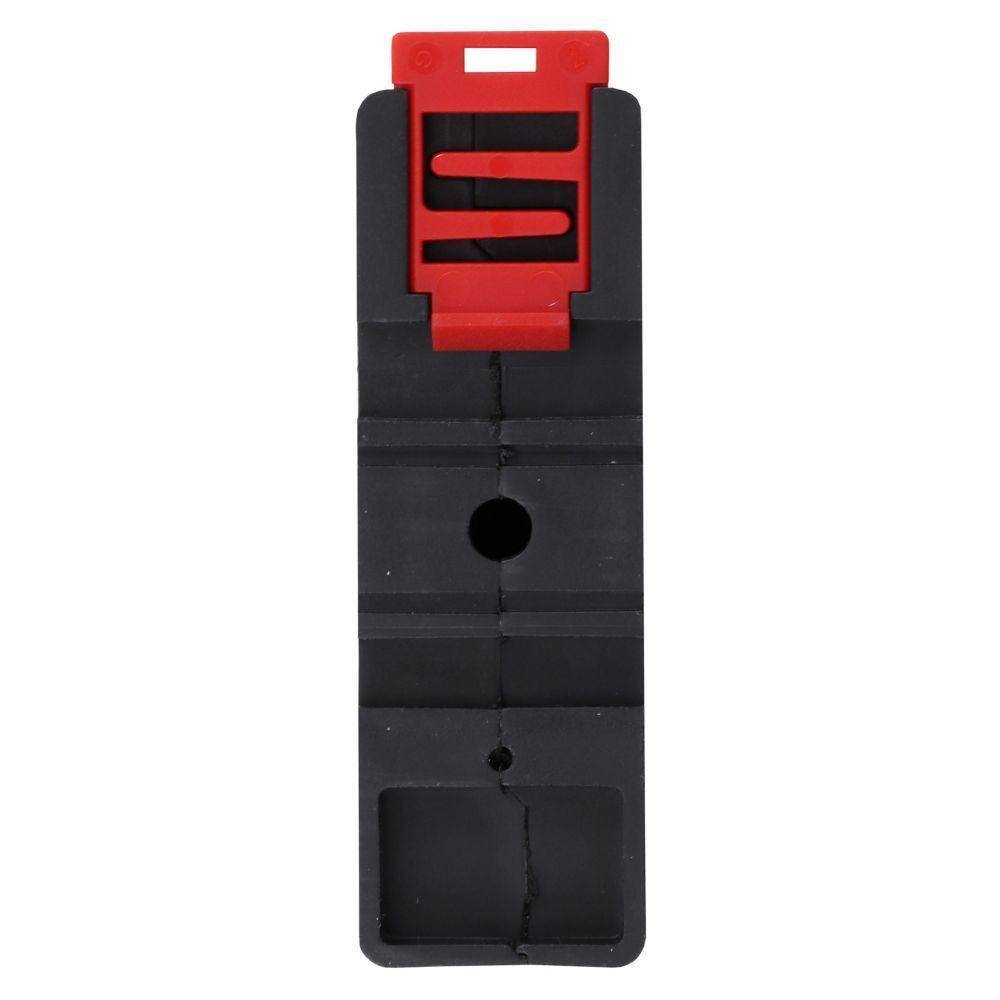

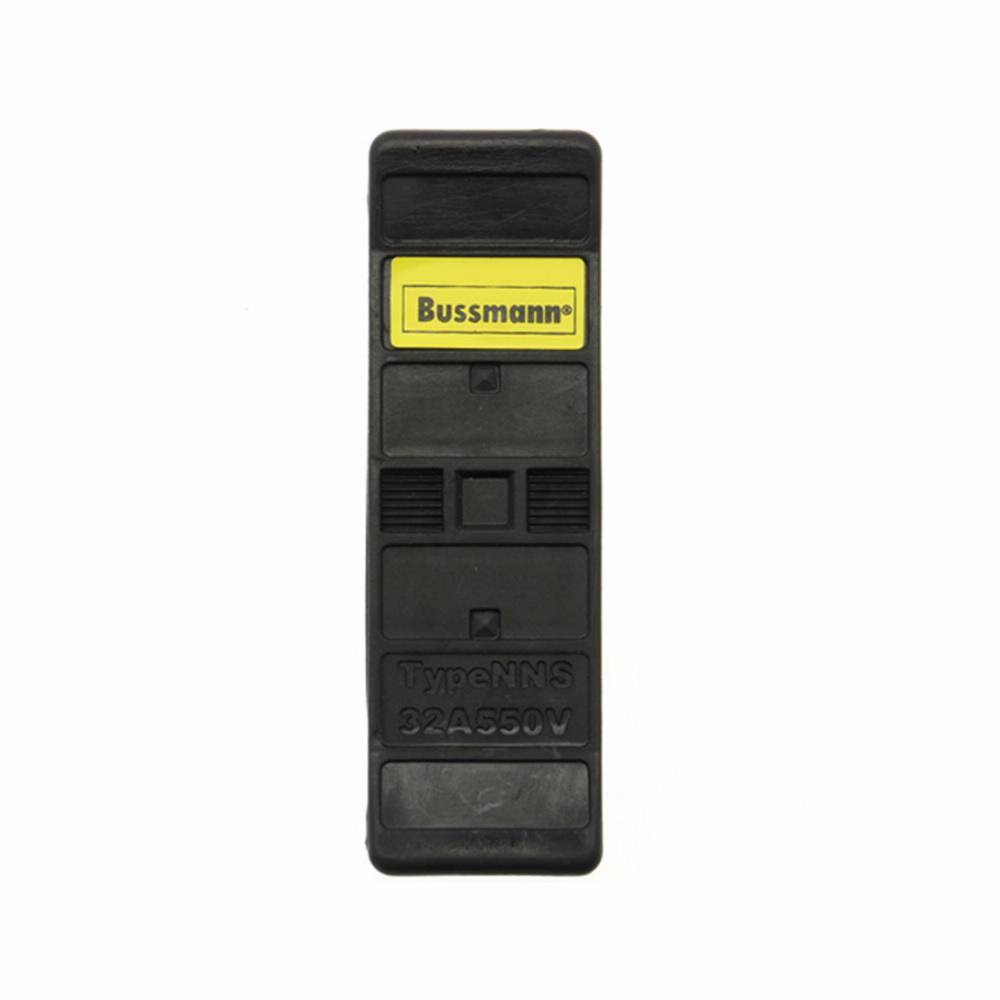

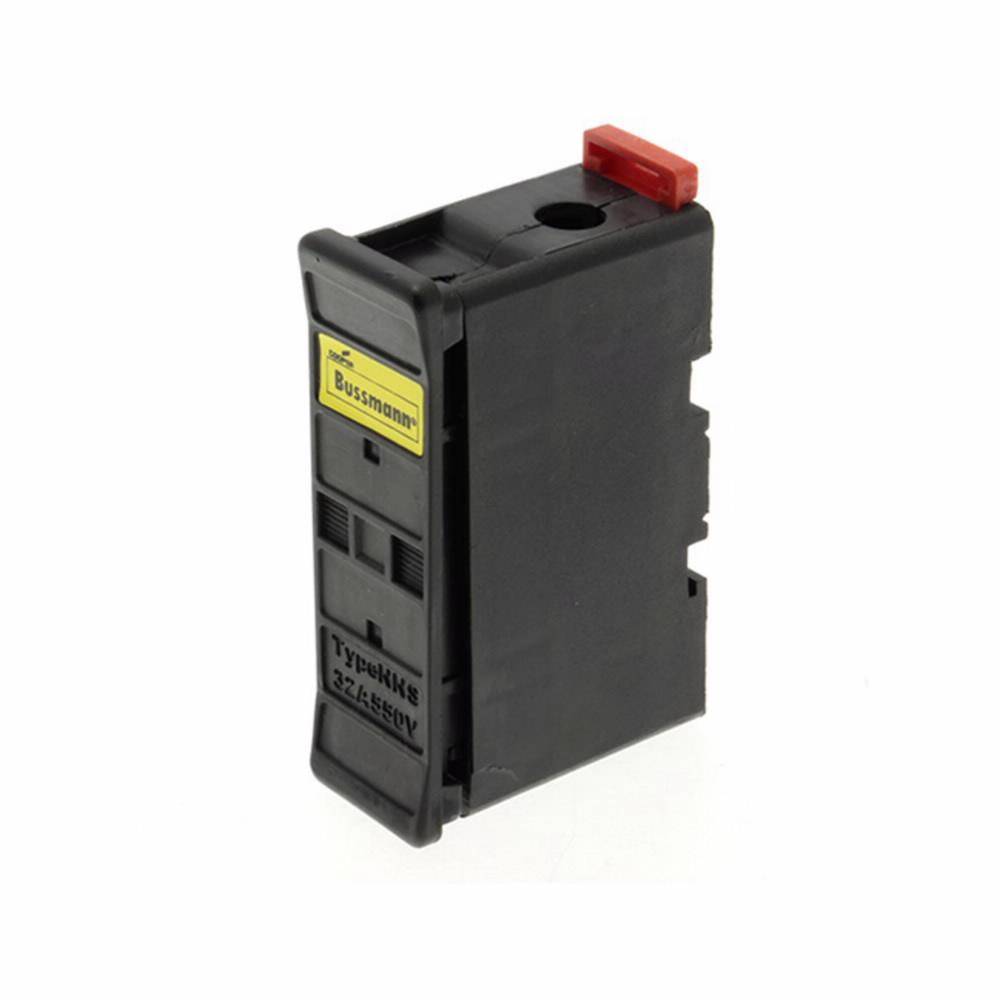

Edison 32NNSF Type F1/F2 Fuse Holder, 550 VAC, 32 A, 10 sq-mm Wire

Short Description

Eaton's Bussmann series British standard BS88 fuse holders offer an extremely robust and reliable circuit protection solutions for your industrial applications. Full range of rated current and voltage available as well as connection types.

Edison Fuse Holder, Type F1/F2, 550 VAC, 32 A, 10 sq-mm Wire, DIN Rail/Threaded Mount, For Use With: BS88 Fuse Links, NSD Fuses, Thermoplastic, 80.3 in H x 25.4 in W x 48.5 mm D
MFG #: 32NNSF

EECO #: BU32NNSF

Brand: Edison
UPC #: 051712834049
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121626
Material
Thermoplastic
Wire Size
10
Application
Lighting Equipment and Circuit Protection, Heating Equipment and Circuit Protection, Motor Protection, Control Equipment and Circuit Protection Applications
Mounting Type
DIN Rail/Threaded
Voltage Rating
550
Connection Type
Bolt Down
Type
Type F1/F2
Series
NNS
Dimensions
80.3 in H x 25.4 in W x 48.5 mm D
Amperage Rating
32
Suitable For Use With
BS88 Fuse Links, NSD Fuses
Features
  • Unique slide/snap action carrier which eliminates the need for fuse carrier contacts
  • Low power loss and increased reliability due to the design of the carrier that provides positive stress free fitting of fuse and locates position of the fuse
  • Protection against electrical shock
  • Easy and fast access to the contact terminal screw due to simple sliding retained shrouds
  • Base contacts are fully shrouded
Bussmann_32NNSF_Specification_Sheet
32NNSF_Specification_Sheet_01
32NNSBS_RoHS_01
