Eaton

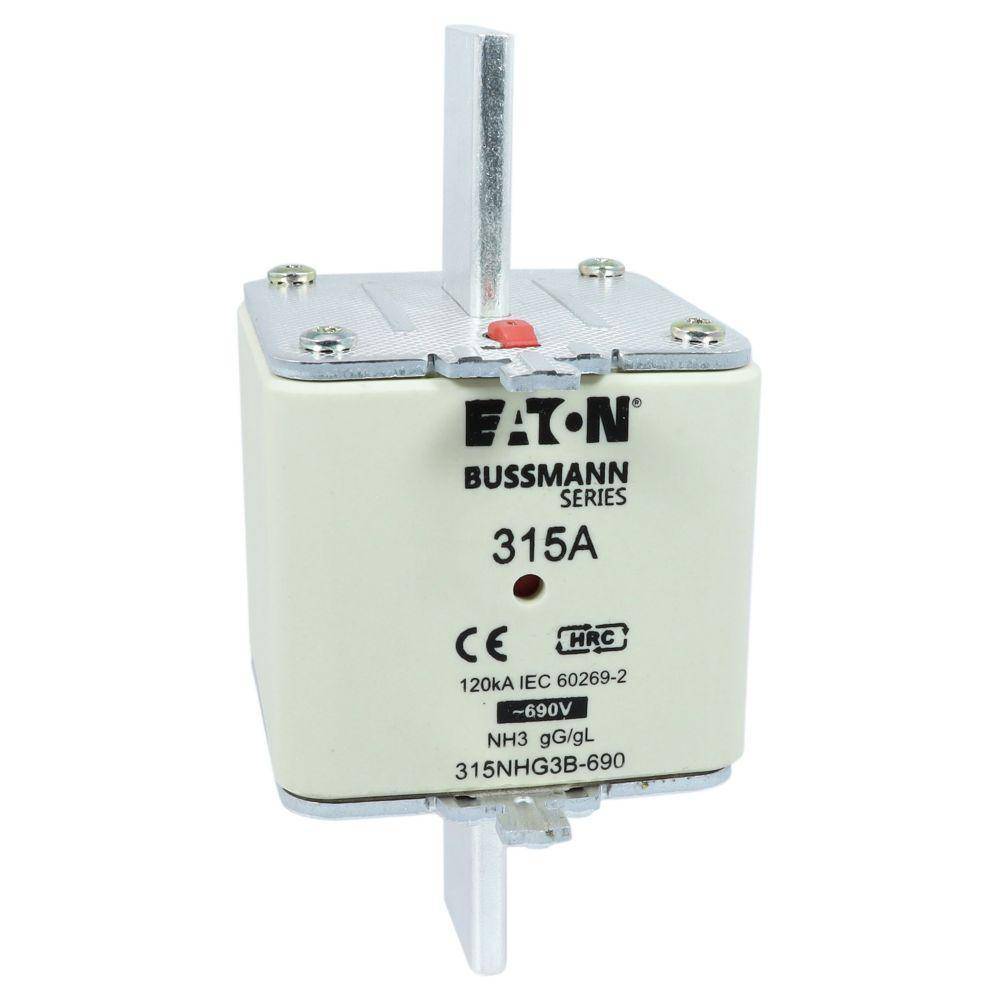

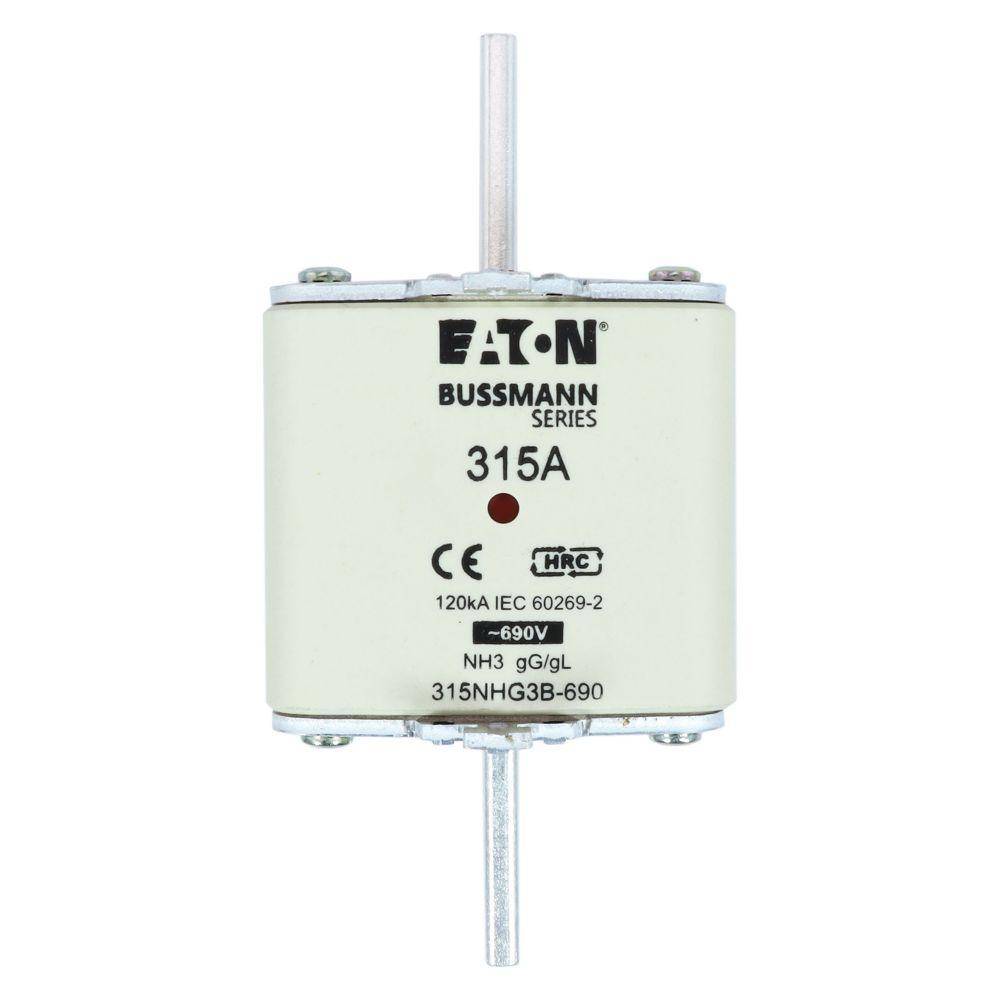

Bussmann 315NHG3B-690 Dual Indicator Low Voltage Size 03 NH Fuse Link, 690 V, 315 A, For Use With Class C/gG/gL Fuse, Ceramic

Short Description

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.

Bussmann NH Fuse Link, Dual Indicator Low Voltage Size 03, Series: NHG, 690 V, 315 A, 45 to 62 Hz, Rated Breaking Capacity: 120 kAIC, Holder Mount, For Use With: Class C/gG/gL Fuse, Ceramic, 150 mm L x 71 mm W x 86 mm H
MFG #: 315NHG3B-690

EECO #: BU315NHG3B690

Brand: Bussmann
UPC #: 051712193023
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121627
Material
Ceramic
Application
Electrical Assemblies, Panels, EOEMs, Control Panels for Machines, Panel Builders, Industrial Facilities and Factories, Power Distribution and Control, Safety and Security Systems
Mounting Type
Holder
Voltage Rating
690
Frequency Rating
45 to 62
Type
Dual Indicator Low Voltage Size 03
Series
NHG
Dimensions
150 mm L x 71 mm W x 86 mm H
Amperage Rating
315
Suitable For Use With
Class C/gG/gL Fuse
Features
  • Square body with knife blade contact
