Eaton

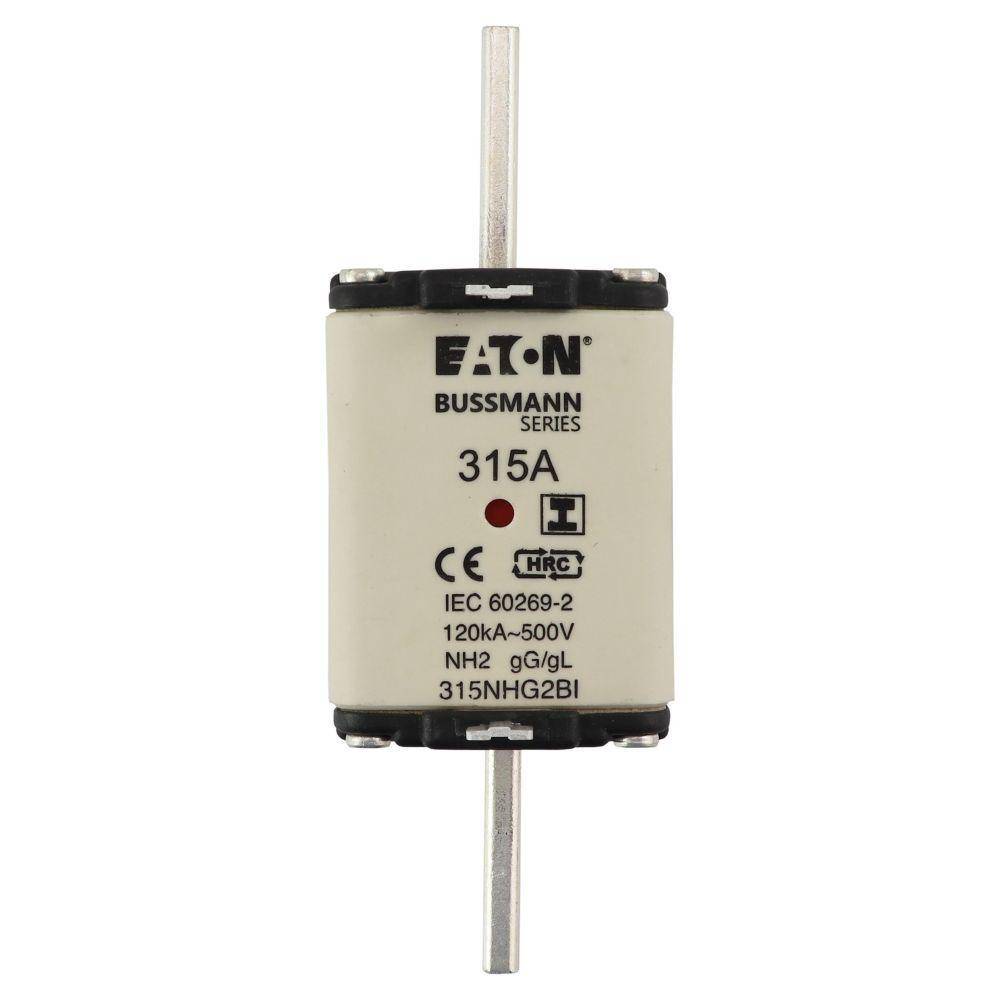

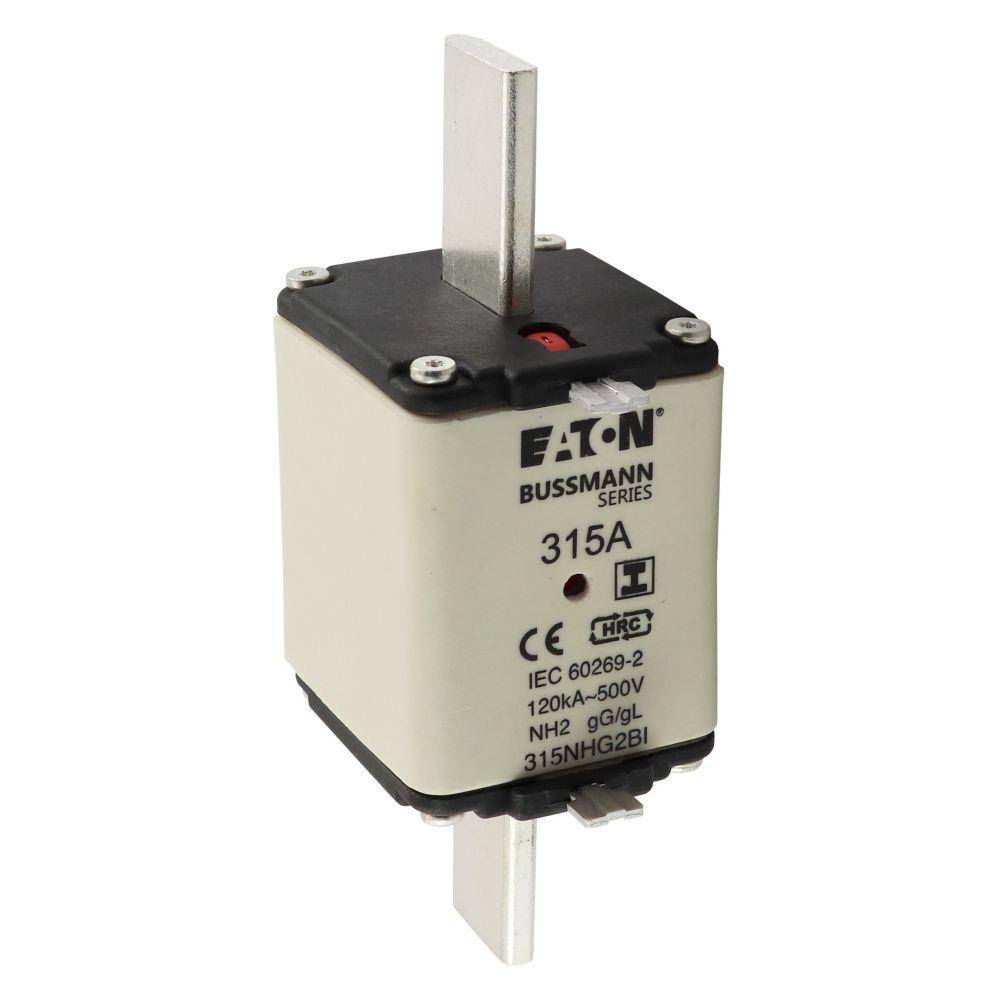

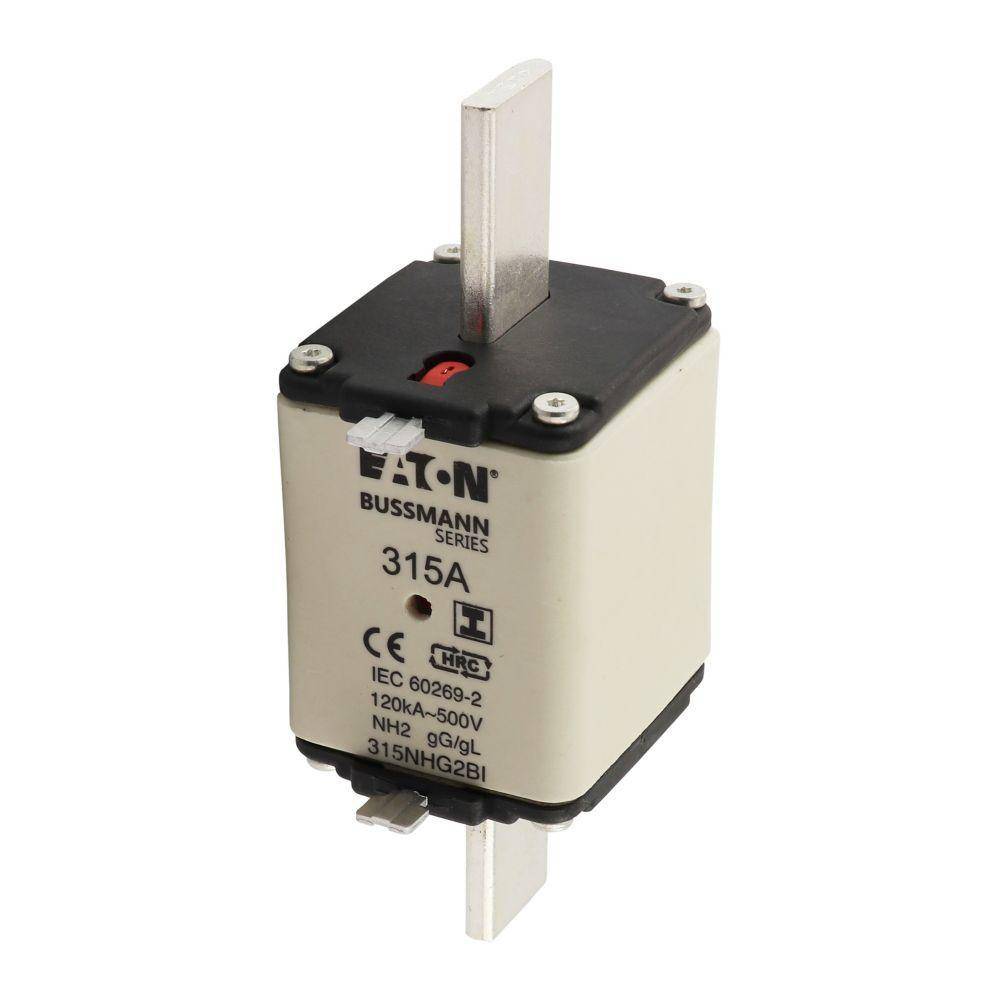

Bussmann 315NHG2BI Dual Indicator Low Voltage Size 2 NH Fuse Link, 500 V, 315 A, For Use With Class C/gG/gL Fuse, Ceramic

Short Description

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.

Bussmann NH Fuse Link, Dual Indicator Low Voltage Size 2, Series: NHG, 500 V, 315 A, 45 to 62 Hz, Rated Breaking Capacity: 120 kAIC, Holder Mount, For Use With: Class C/gG/gL Fuse, Ceramic
MFG #: 315NHG2BI

EECO #: BU315NHG2BI

Brand: Bussmann
UPC #: 051712233323
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121627
Material
Ceramic
Application
Electrical Assemblies, Panels, EOEMs, Control Panels for Machines, Panel Builders, Industrial Facilities and Factories, Power Distribution and Control, Safety and Security Systems
Mounting Type
Holder
Voltage Rating
500
Frequency Rating
45 to 62
Type
Dual Indicator Low Voltage Size 2
Series
NHG
Amperage Rating
315
Suitable For Use With
Class C/gG/gL Fuse
Features
  • Type: Dual Indicator Low Voltage Size 2 NH Fuse Link
  • Series: NHG
  • Voltage Rating: 500 V
  • Current Rating: 315 A
  • Frequency: 45 to 62 Hz
  • Rated Breaking Capacity: 120 kAIC
  • Mounting: Holder Mount
  • Compatibility: For Use With Class C/gG/gL Fuse
  • Material: Ceramic

Enhanced by AI
