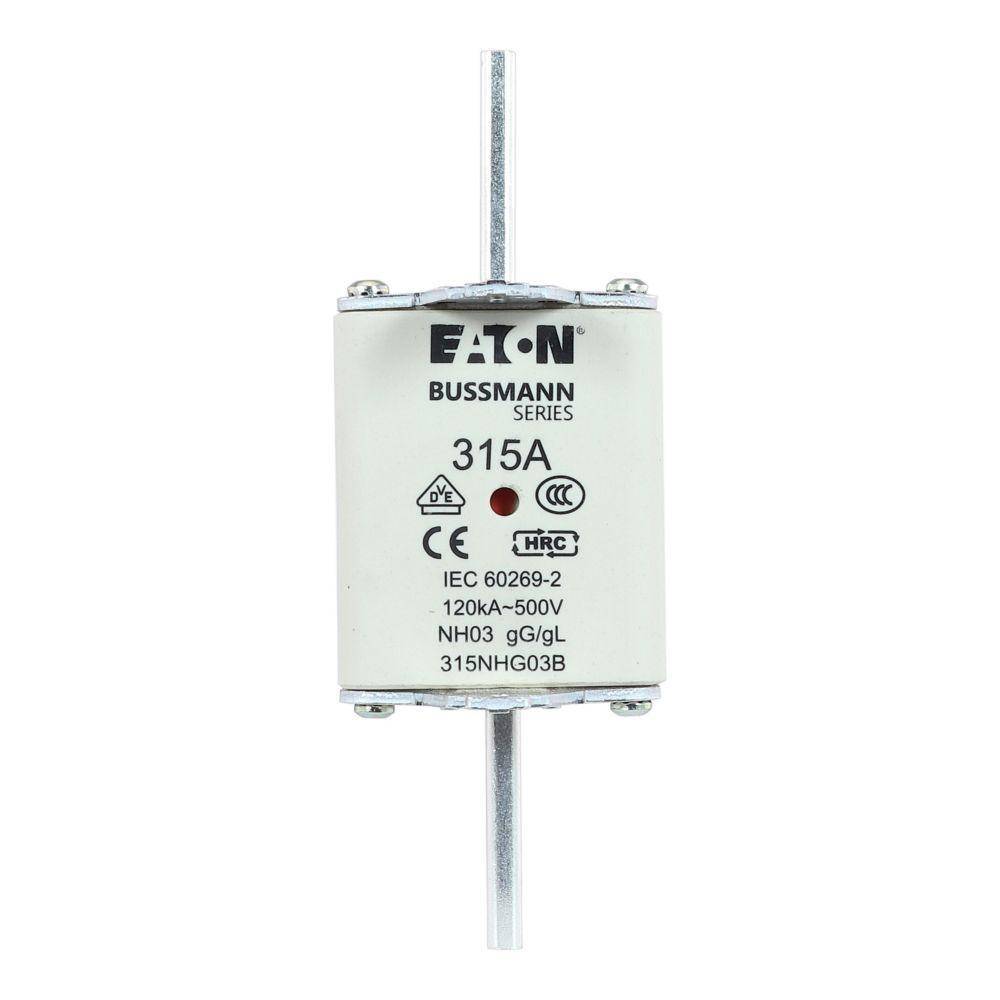

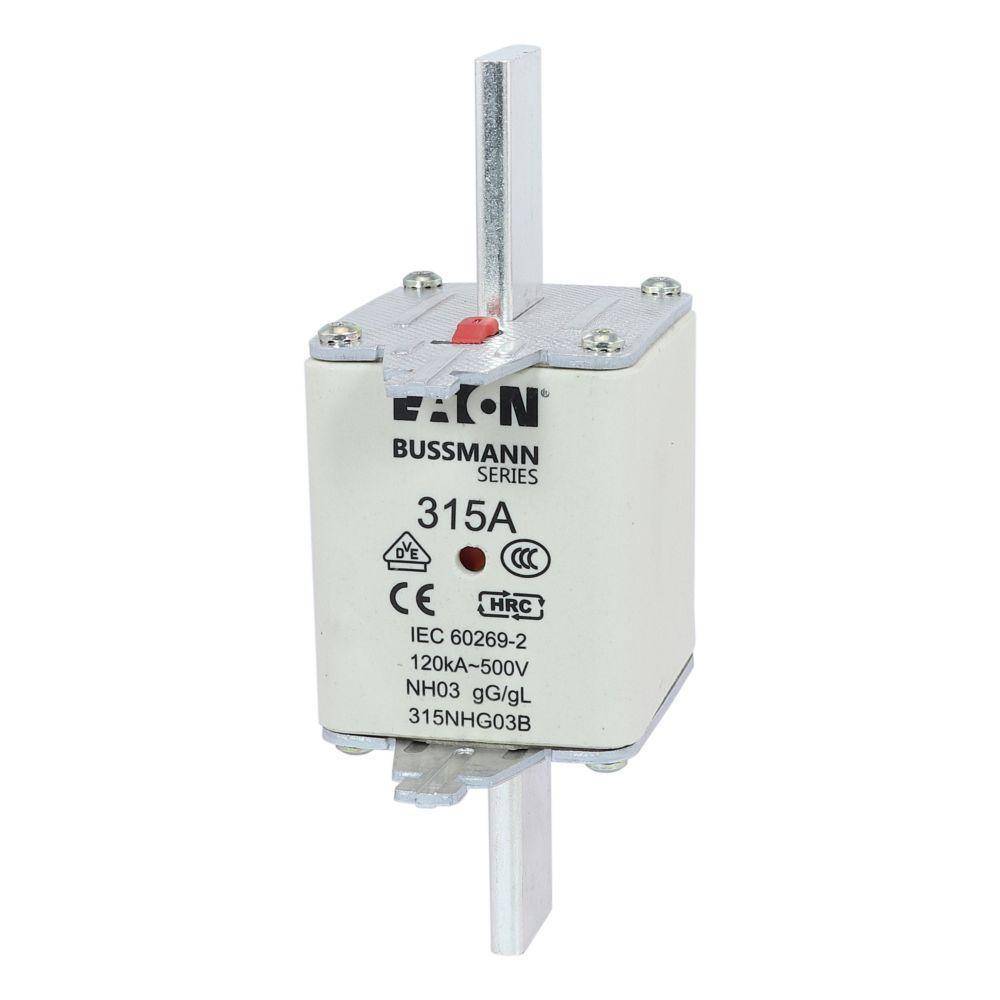

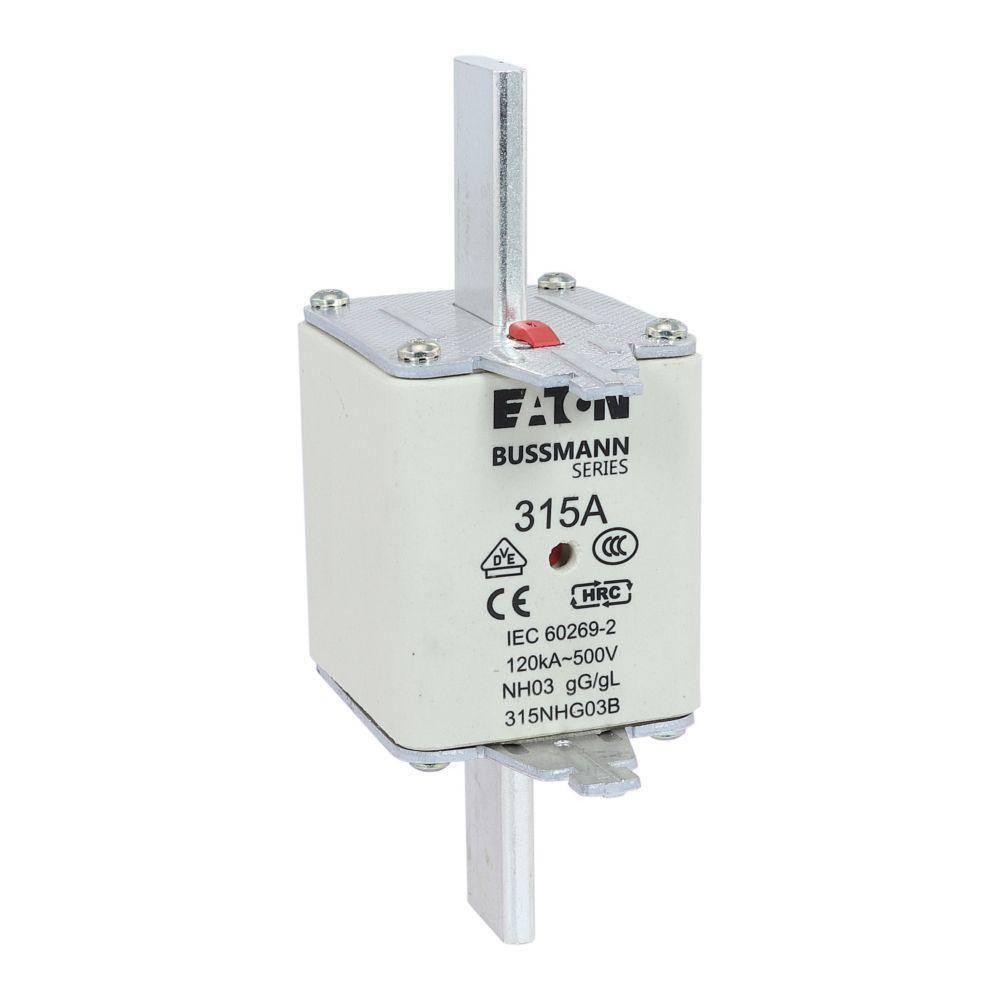

Edison 315NHG03B Fuse Link With Metal Gripping Lug, 500 VAC, 315 A

Short Description

Bussmann's range of 500 V NH square bodied industrial fuse links is suitable for a wide variety of applications.

Edison Fuse Link, 500 VAC, 315 A, 45 to 62 Hz, Rated Breaking Capacity: 120 kA, 53.9 mm D x 150 mm H
MFG #: 315NHG03B

EECO #: BU315NHG03B

Brand: Edison
UPC #: 051712626217
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121626
Material
Ceramic
Application
Electrical Assemblies, Panels and EOEMs, Control Panels for Machines, Aftermarket, Panel Builders, Industrial Facilities and Factories, Power Distribution and Control, Safety and Security Systems Applications
Mounting Type
Holder
Voltage Rating
500
Frequency Rating
45 to 62
Type
Dual Indicator Low Voltage Size 03
Series
NHG
Dimensions
53.9 mm D x 150 mm H
Amperage Rating
315
Suitable For Use With
Class C gG/gL Fuse
Features
  • Reliable dual indicator system
  • Low temperature rise
  • Compatible with Eaton's Bussmann® series NH fuse bases and NH fuse gear
  • 03 size NH fuse body
  • gG/gL class of operation
