Eaton

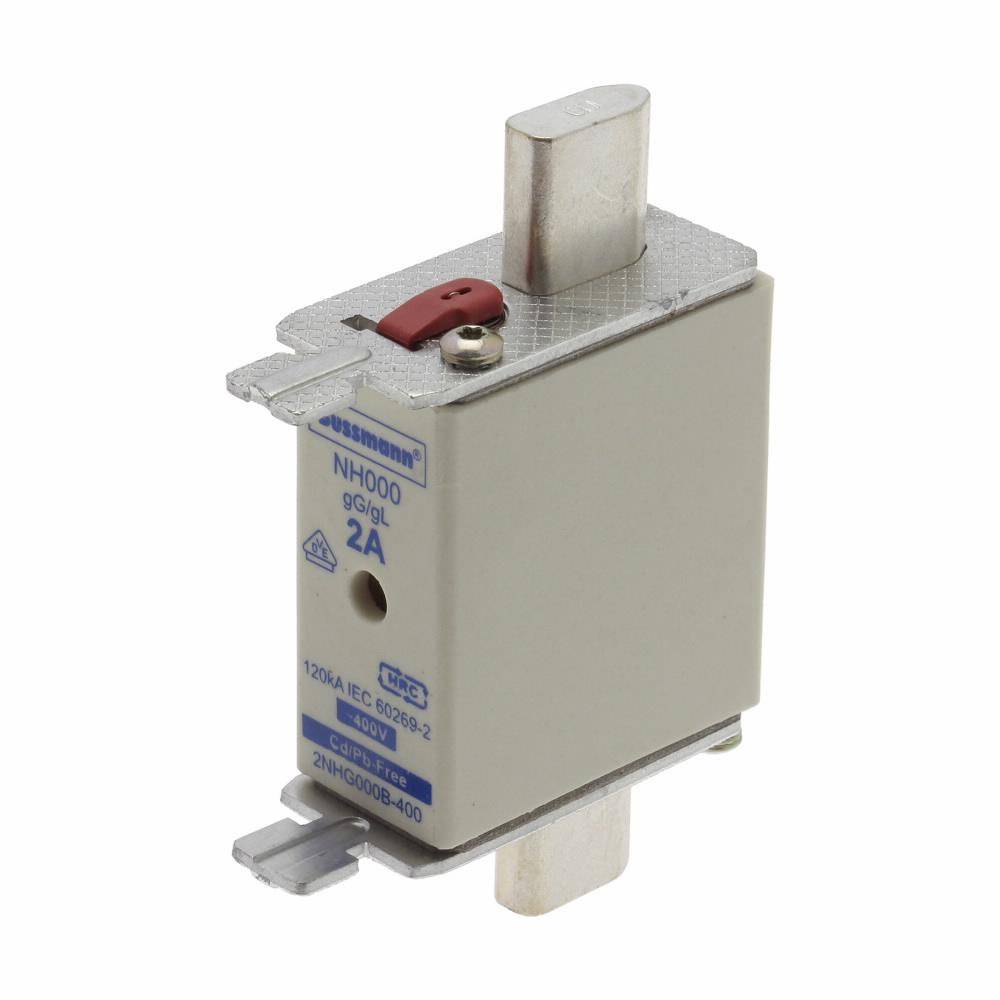

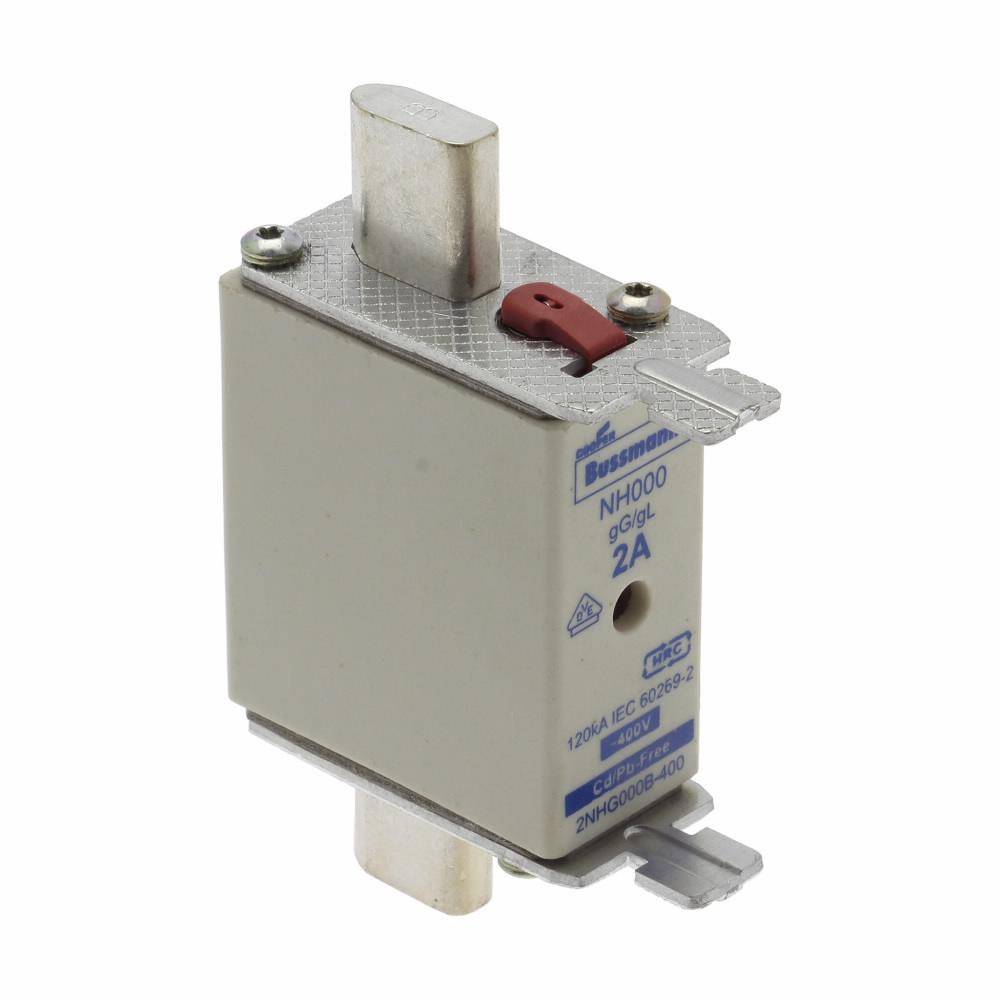

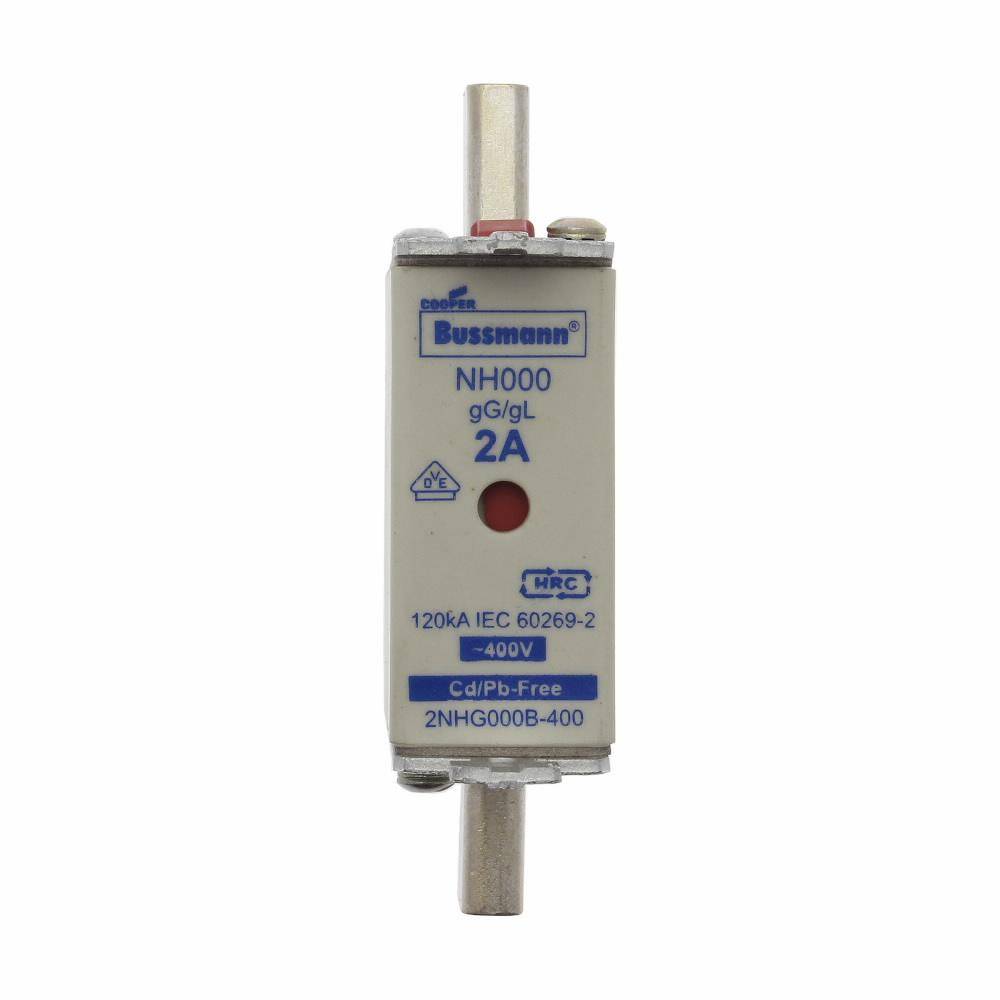

Edison 2NHG000B-400 Fuse Link With Metal Gripping Lug, 400 VAC, 2 A, For Use With Class gG/gL 000 Size Fuse

Short Description

Class gL/gG DIN square body, dual indication industrial fuses compliant with IEC60269-2-1, accepted throughout the world. Construction, Steatite insulator, corrosion-proof (aluminum), metal parts with full-contact, silver-plated copper blades.

Edison Fuse Link, 400 VAC, 2 A, 50 Hz, Rated Breaking Capacity: 120 kA, For Use With: Class gG/gL 000 Size Fuse, 78.5 mm L x 21 mm W
MFG #: 2NHG000B-400

EECO #: BU2NHG000B400

Brand: Edison
UPC #: 051712241946
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121627
Material
Ceramic
Application
Electrical Assemblies, Panels, EOEMs, Control Panels for Machines, Panel Builders, Industrial Facilities and Factories, Safety and Security Systems, Power Distribution and Control Applications
Mounting Type
Holder
Voltage Rating
400
Frequency Rating
50
Type
Size 000 Dual Indicator Low Voltage
Series
NHG
Dimensions
78.5 mm L x 21 mm W
Amperage Rating
2
Suitable For Use With
Class gG/gL 000 Size Fuse
Features
  • Worldwide acceptance - Ideal for electrical equipment manufacturers that export - one design, one fuse, all markets
  • Lowest energy consumption - 400 V NH fuses have the lowest watts loss in the industry
  • Cooler operation - Square body design provides greater surface area, compared to ferrule or cylindrical fuses, for superior heat dissipation and cooler operation
  • Fuse holders and fuse gear - Cooper Bussmann® offers a complete line of IEC approved fuse blocks, rails and accessories for using NH fuses, all can be configured for IP-20 finger-safe requirements
Bussmann_2NHG000B_400_Specification_Sheet
2NHG000B_400_Specification_Sheet
63NHG000BI_400_RoHS_02
