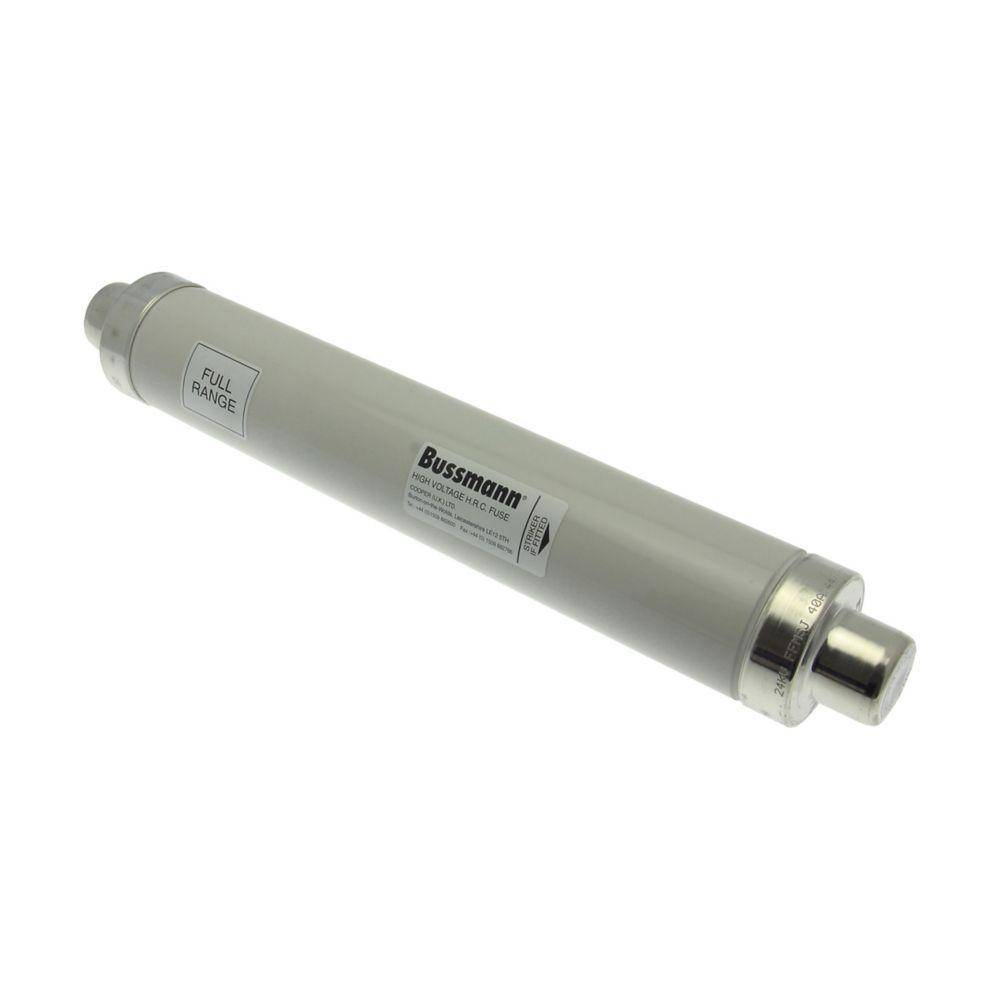

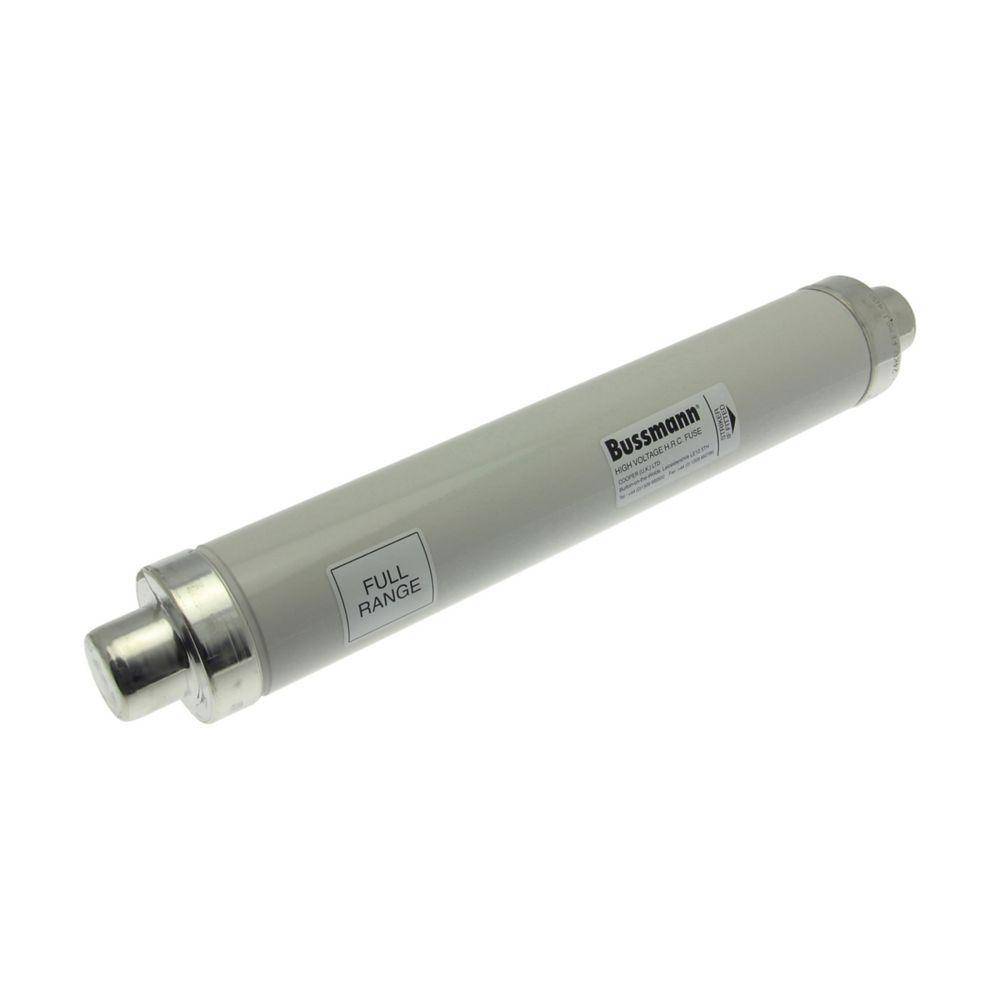

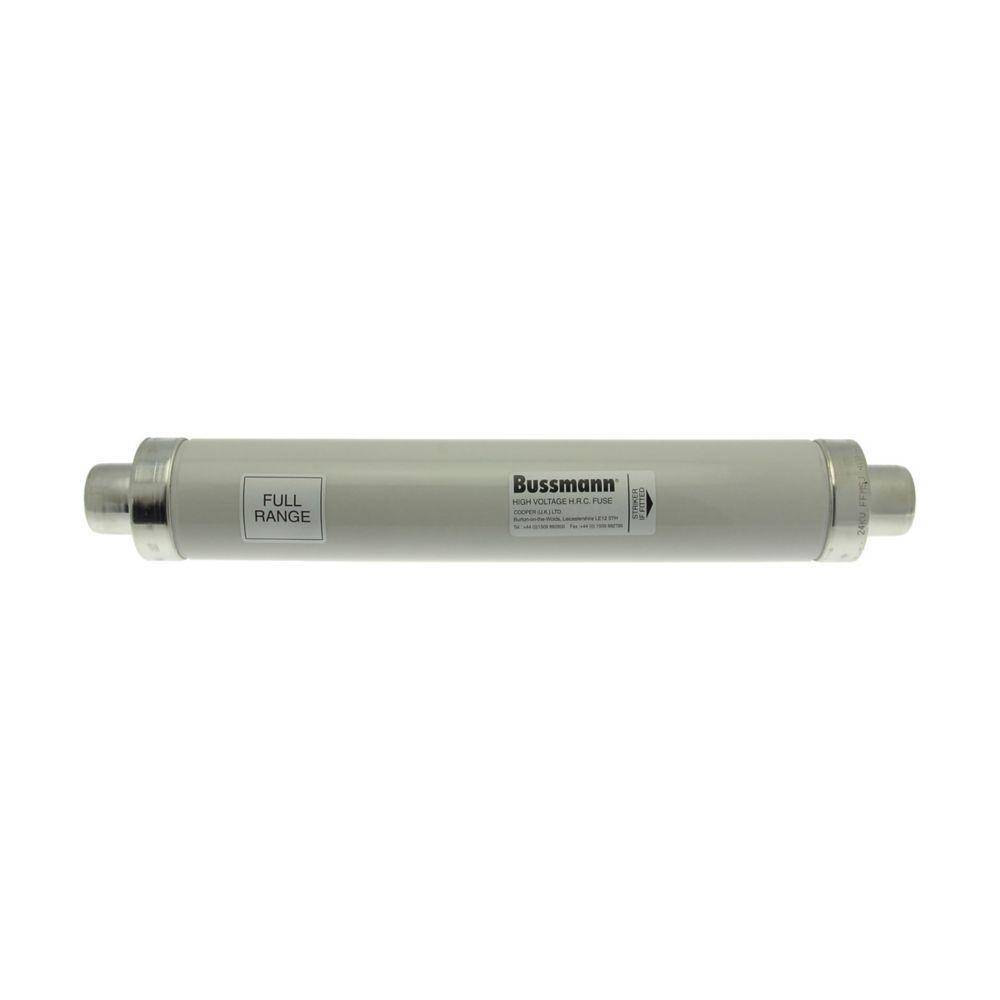

Edison 24FFMSJ40 Full Range Current Limiting Fuse Link, 24 kV, 40 A

Short Description

A range of medium voltage DIN Fuse links, complete with sealed striker, suitable for transformer protection. Eaton's 'F' range provide Full range protection.

Edison Current Limiting Fuse Link, Full Range, 24 kV, 40 A, Rated Breaking Capacity: 35.5 kA, 76.2 mm Dia x 442 mm L
MFG #: 24FFMSJ40

EECO #: BU24FFMSJ40

Brand: Edison
UPC #: 051712843652
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121626
Application
For used with primary side transformer protection, fuse switch combination unit, fuse bases without instantaneous striker tripping, fuse switches and indoor applications
Voltage Rating
24
Type
Full Range
Series
FFMSJ
Dimensions
76.2 mm Dia x 442 mm L
Amperage Rating
40
Features
  • Cool running, low watts loss and power dissipation thanks to the m-effect ensuring high levels of substation utilization
  • Silver elements ensuring high conductivity and low power (revenue) loss
  • 100% X-Ray, all our medium voltage fuse links are X-Rayed ensuring the highest possible standards are maintained
  • Our full range of MV fuse links can interrupt any current below the rated breaking capacity
