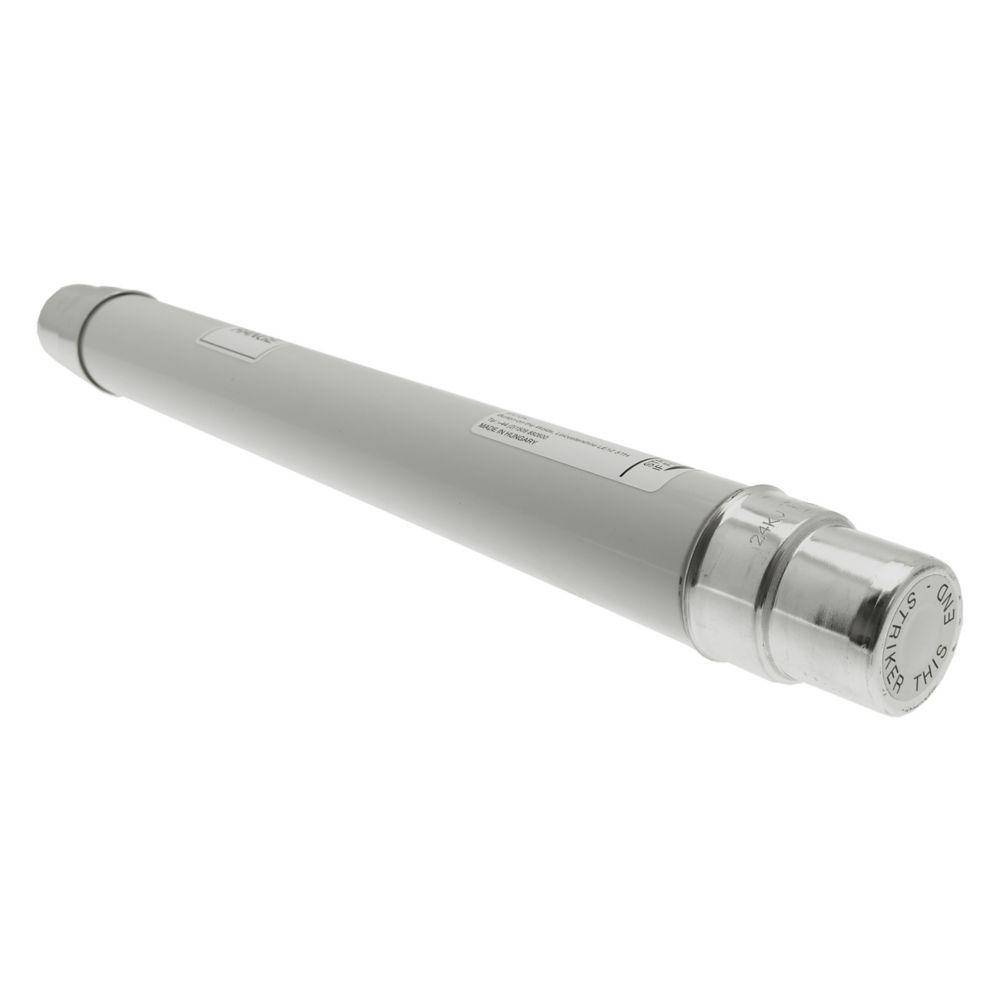

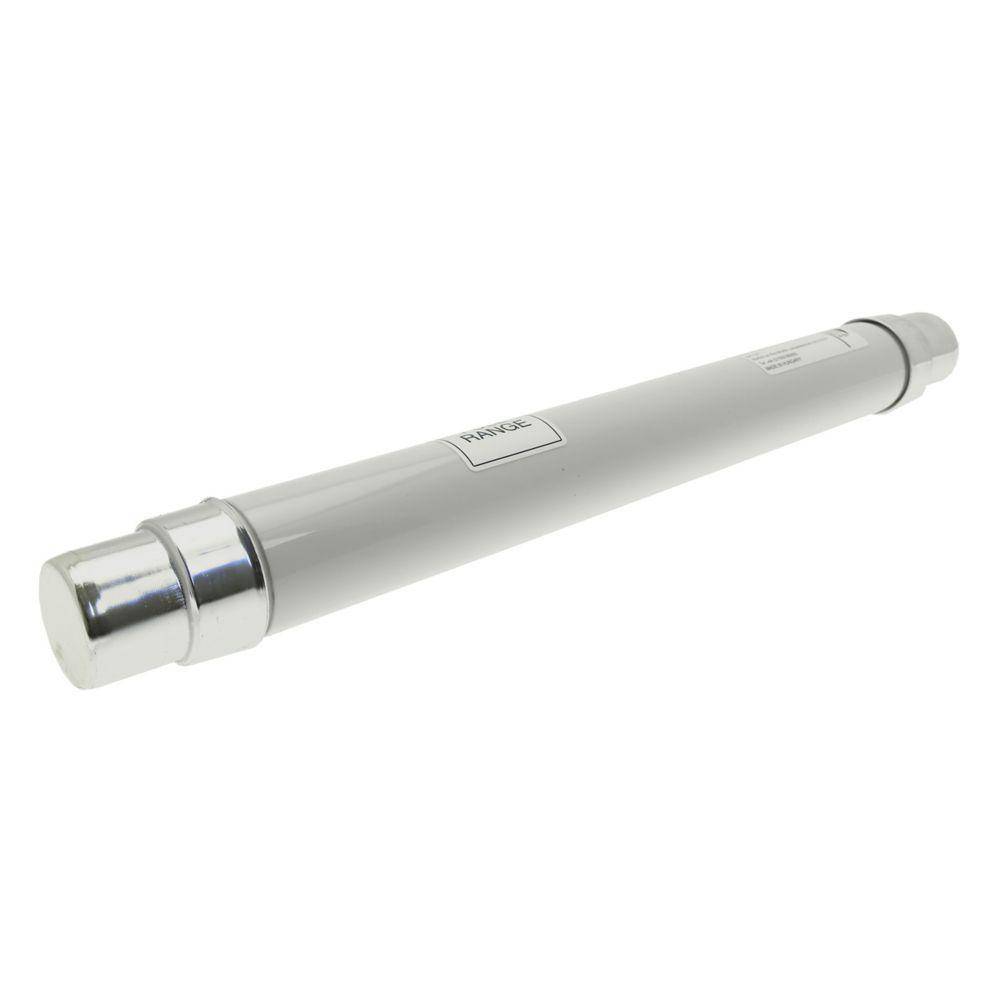

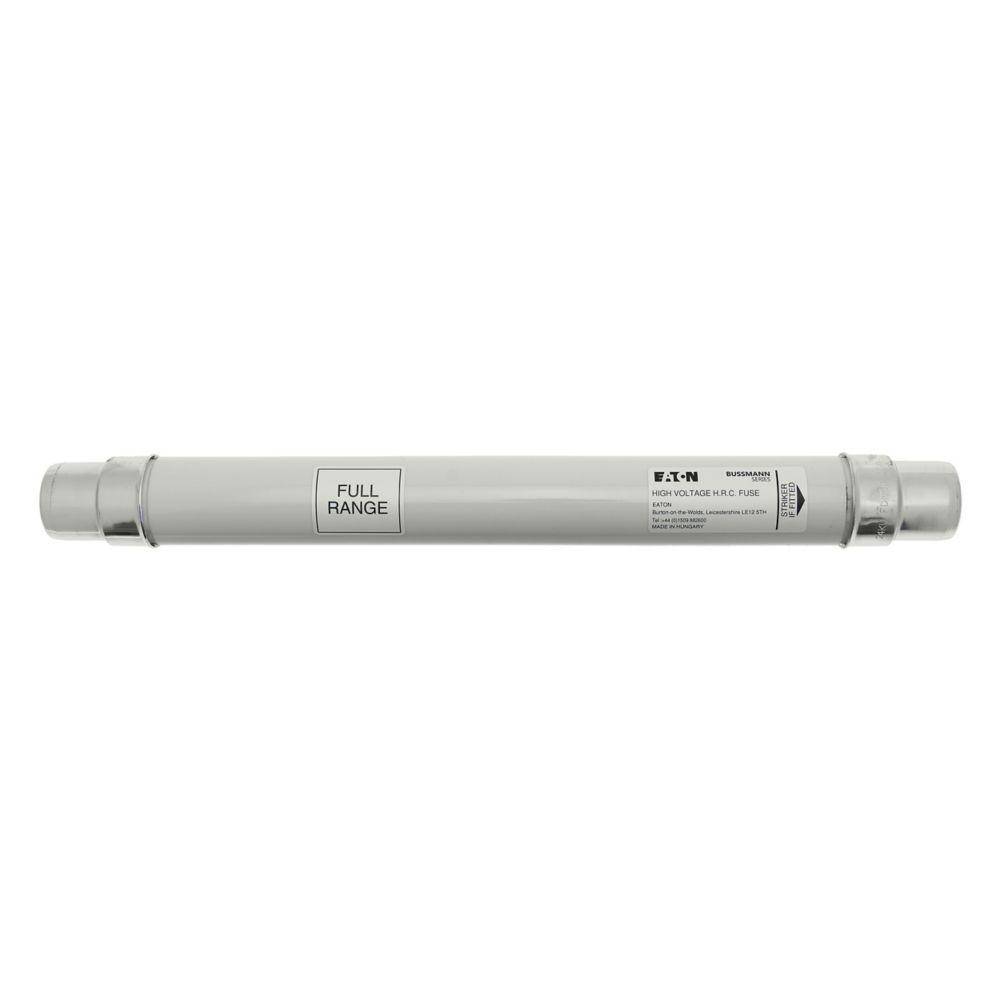

Edison 24FDMSJ16 Full Range Current Limiting Fuse Link, 24 kV, 16 A

Name: Edison 24FDMSJ16 Full Range Current Limiting Fuse Link, 24 kV, 16 A
Brand: Eaton
SKU: BU24FDMSJ16
Availability: InStock

Short Description

A range of medium voltage DIN Fuse links, complete with sealed striker, suitable for transformer protection. Eaton's 'F' range provide Full range protection.

Edison Current Limiting Fuse Link, Full Range, 24 kV, 16 A, Rated Breaking Capacity: 35.5 kA, 51 mm Dia x 442 mm L

MFG #: 24FDMSJ16

EECO #: BU24FDMSJ16 BU24FDMSJ16

Brand: Edison

UPC #: 051712844338

Attributes

Features

Documents

Product Information

Attributes

UNSPSC

39121626

Application

For used with primary side transformer protection, fuse switch combination unit, fuse bases without instantaneous striker tripping, fuse switches and indoor applications

Voltage Rating

Type

Full Range

Dimensions

51 mm Dia x 442 mm L

Amperage Rating

Features

Cool running, low watts loss and power dissipation thanks to the m-effect ensuring high levels of substation utilization
Silver elements ensuring high conductivity and low power (revenue) loss
100% X-Ray, all our medium voltage fuse links are X-Rayed ensuring the highest possible standards are maintained
Our full range of MV fuse links can interrupt any current below the rated breaking capacity

Bussmann_24FDMSJ16_Specification_Sheet

24FDMSJ16_Specification_Sheet_01
