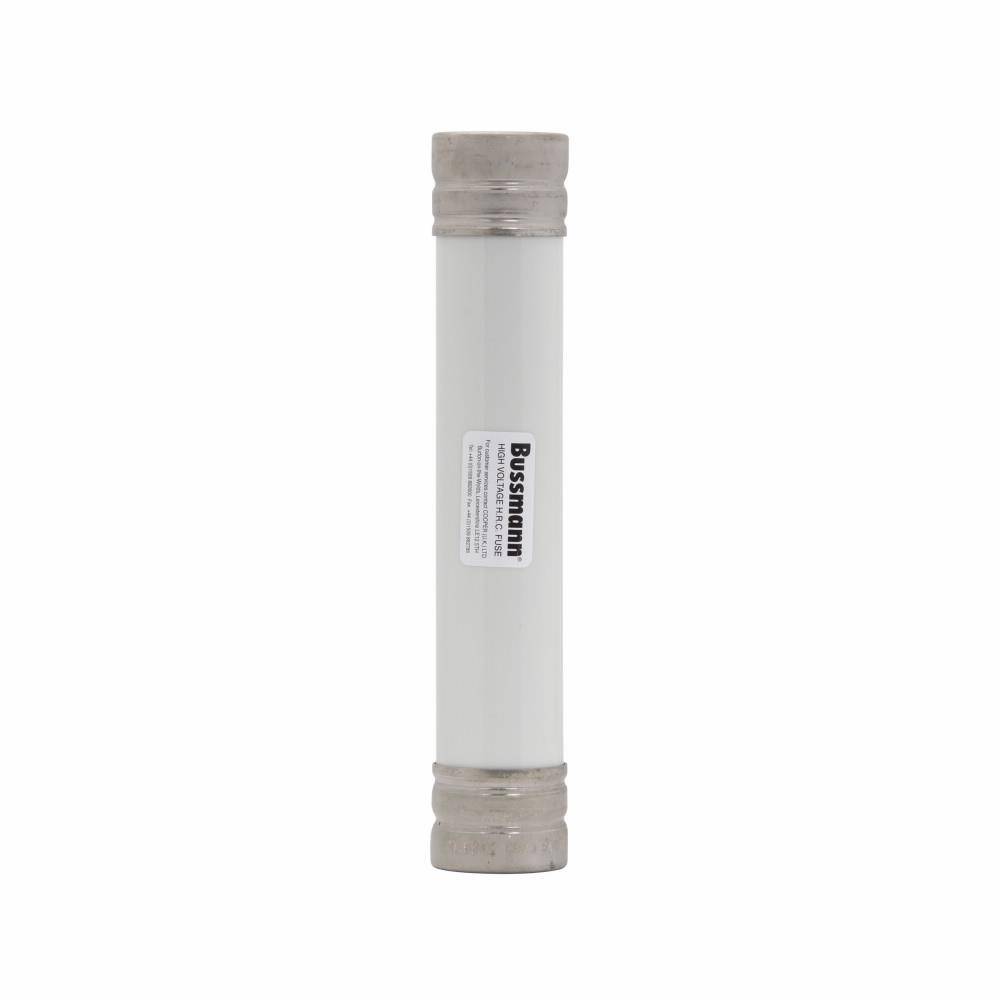

Edison 24CAV2 Type CAV Potential Transformer Fuse, 2 A, 24 kV, 40 kA Interrupt
Share Share Print Print
Eaton

Edison 24CAV2 Type CAV Potential Transformer Fuse, 2 A, 24 kV, 40 kA Interrupt

Short Description

These are a range of fuses with low current rating, for use with voltage transformers or operating transformers to provide isolation of the associated system in the event of faults in the transformer circuit. Most fuses have two elements in parallel, ensuring satisfactory operation at much smaller values of overcurrent than is possible with single element fuse. The elements are wound on a ceramic former, thus ensuring correct spacing of the elements from the body wall and from each other and hence giving assurance of correct operation in service.

Edison Potential Transformer Fuse, Type CAV, 2 A, 24 kV, 40 kA Interrupt, 1.63 in Dia x 13.39 in L Body Size
MFG #: 24CAV2

EECO #: BU24CAV2

Brand: Edison
UPC #: 051712832915
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121626
Application
Medium Voltage Potential Transformers, Small Medium Voltage Service Transformers and Small Medium Voltage Control Transformers
Mounting Type
Bolted-On
Terminal Type
Ferrule
Voltage Rating
24
Type
Type CAV
Series
CAV
Amperage Rating
2
Features
  • PT fuses are physically dimensioned for easy installation in existing hardware
  • Space saving size eases design considerations for new installations
  • Current limiting fuses provide positive interruption even on low fault currents
  • The fuse limits the magnitude of electromechanical stresses in the protected apparatus
  • These fuses are in a self-contained, non-venting package for installation indoors or outdoors in an enclosure
24CAV2_Specification_Sheet
