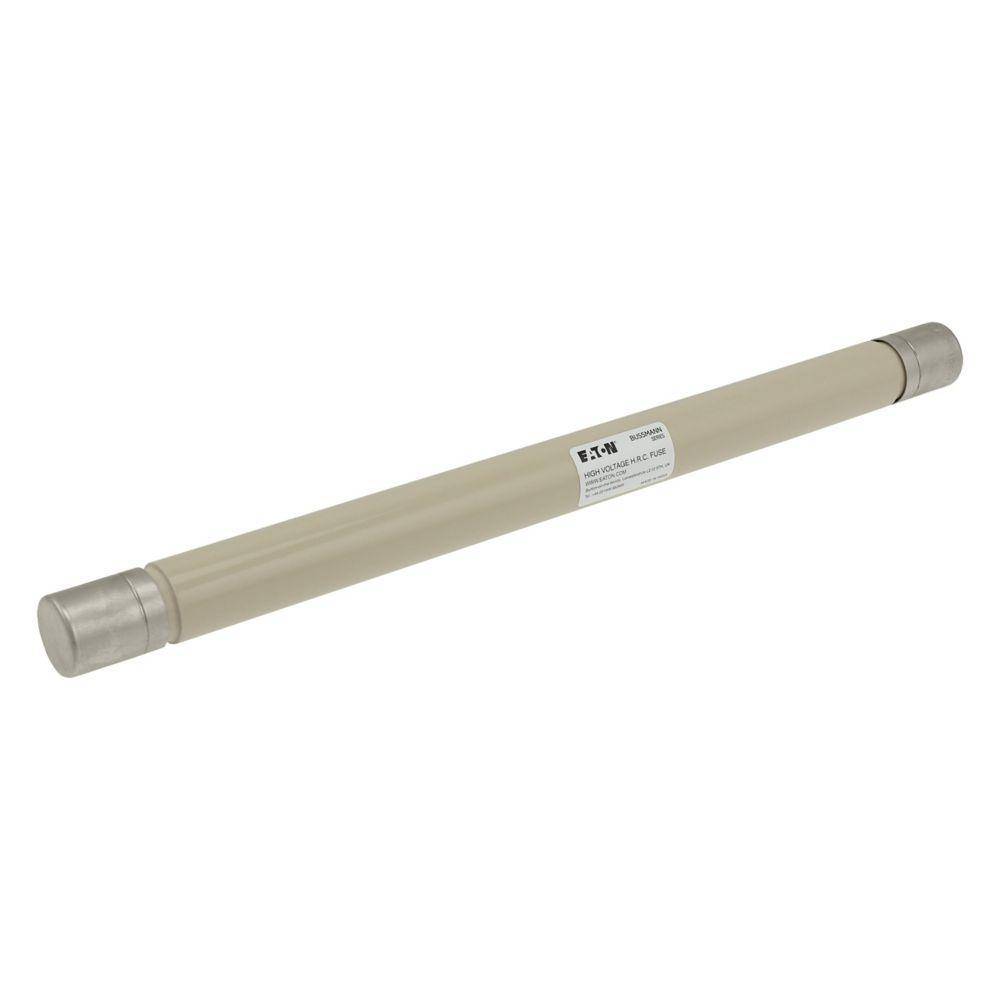

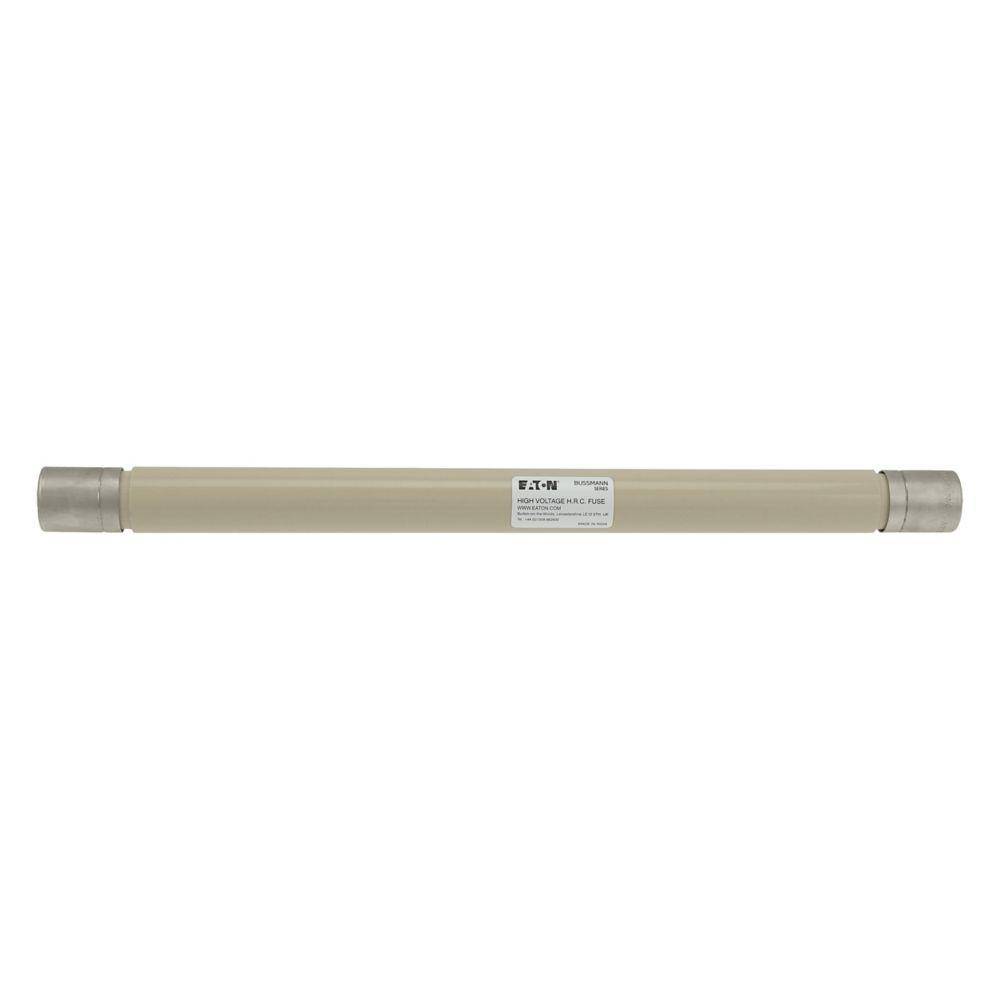

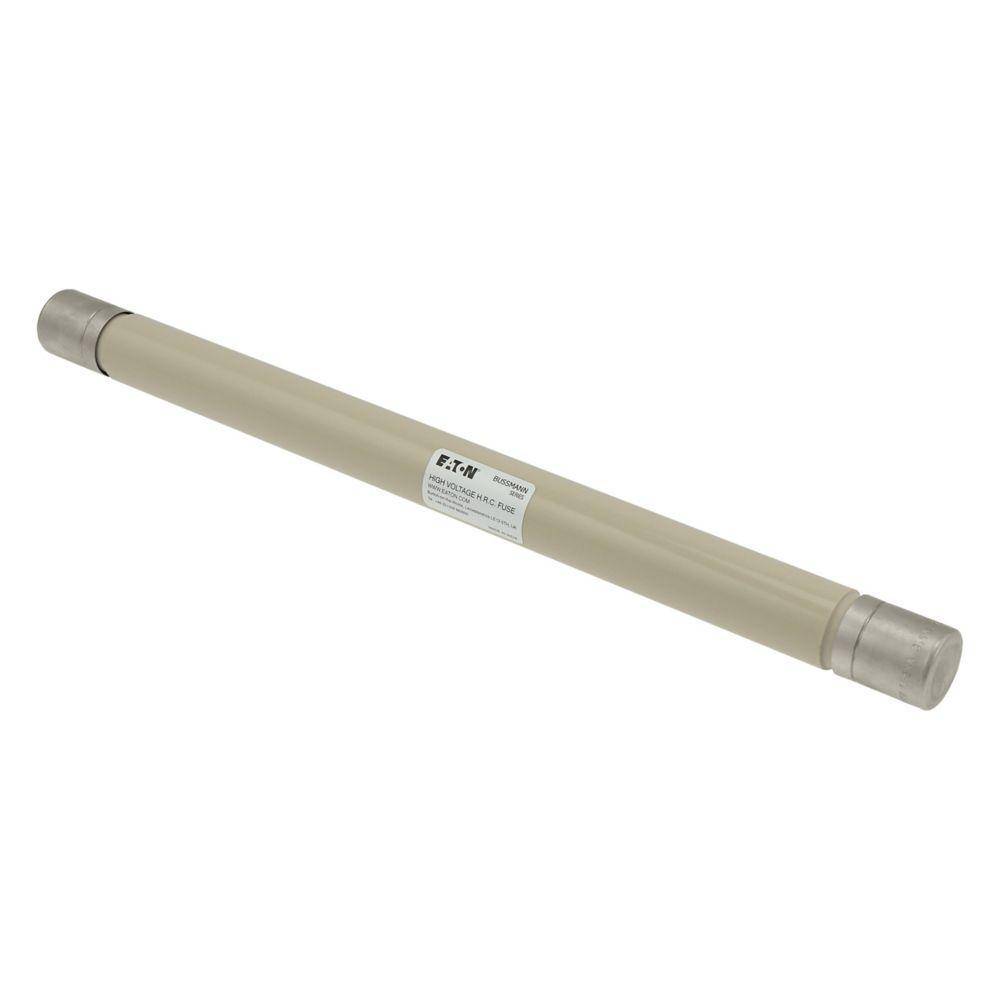

Edison 24ABGNA3.15 AB Series Single Barrel Medium Voltage Fuse, 3.15 A, 24 kV, 25 kA Interrupt, Cartridge Body

Short Description

Eaton's Bussmann series medium voltage auxiliary transformers fuses are specifically designed for use in the primary side of voltage transformers. They comply with BS 2692-1 and IEC 60282-1 standards.

Edison Medium Voltage Fuse, Single Barrel, Series: AB Series, Non-Indicating, 3.15 A, 24 kV, 25 kA Interrupt, Ferrule Terminal, Bolted-On Mounting, Cartridge Body, 14.13in Dia x 1 in L Body
MFG #: 24ABGNA3.15

EECO #: BU24ABGNA3.15

Brand: Edison
UPC #: 051712832861
Attributes
Features
Documents
Product Information
Attributes
Class
Back-Up
UNSPSC
39121626
Application
For primary protection of medium voltage potential transformers and small medium voltage service/control transformers
Mounting Type
Bolted-On
Terminal Type
Ferrule
Voltage Rating
24
Type
Single Barrel
Series
AB Series
Amperage Rating
3.15
Features
  • PT fuses are physically dimensioned for easy installation in existing hardware
  • Current limiting fuses provide positive interruption even on low fault currents
  • The fuse limits the magnitude of electromechanical stresses in the protected apparatus
  • These fuses are in a self-contained, non-venting package for installation indoors or outdoors in an enclosure
