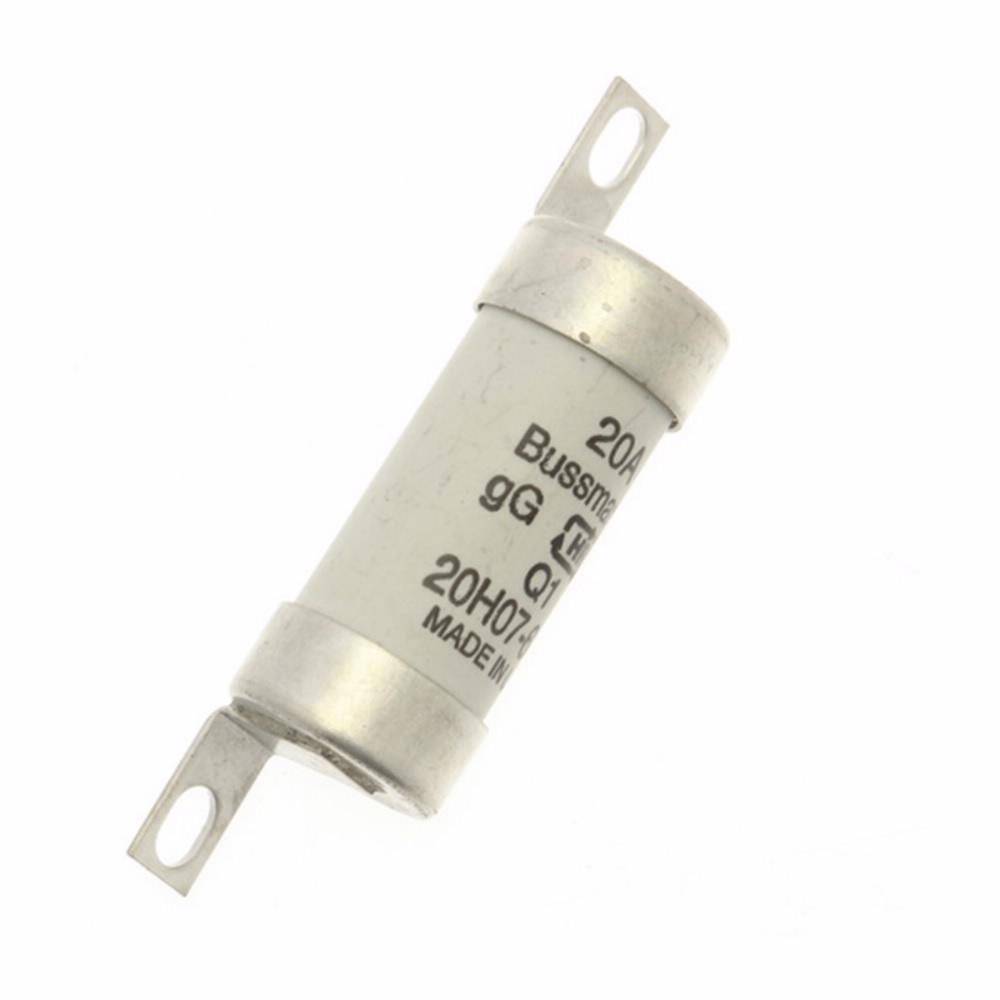

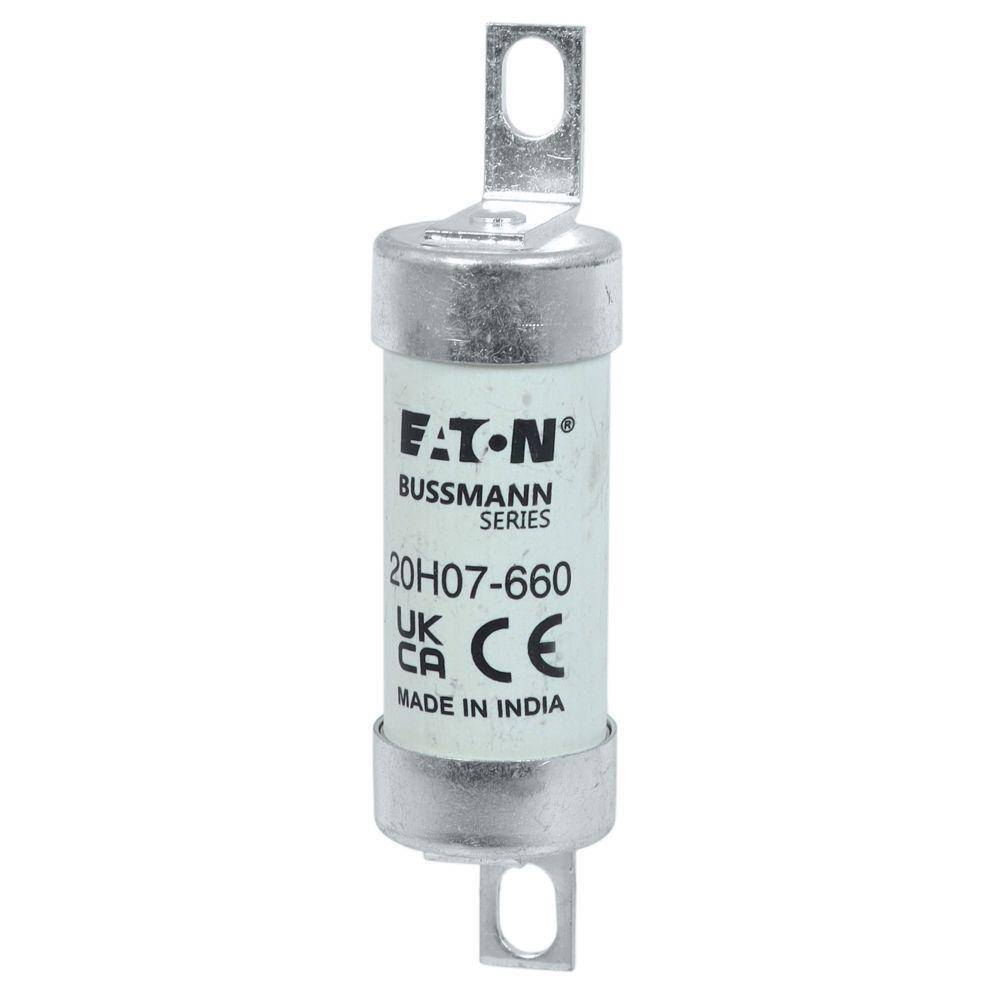

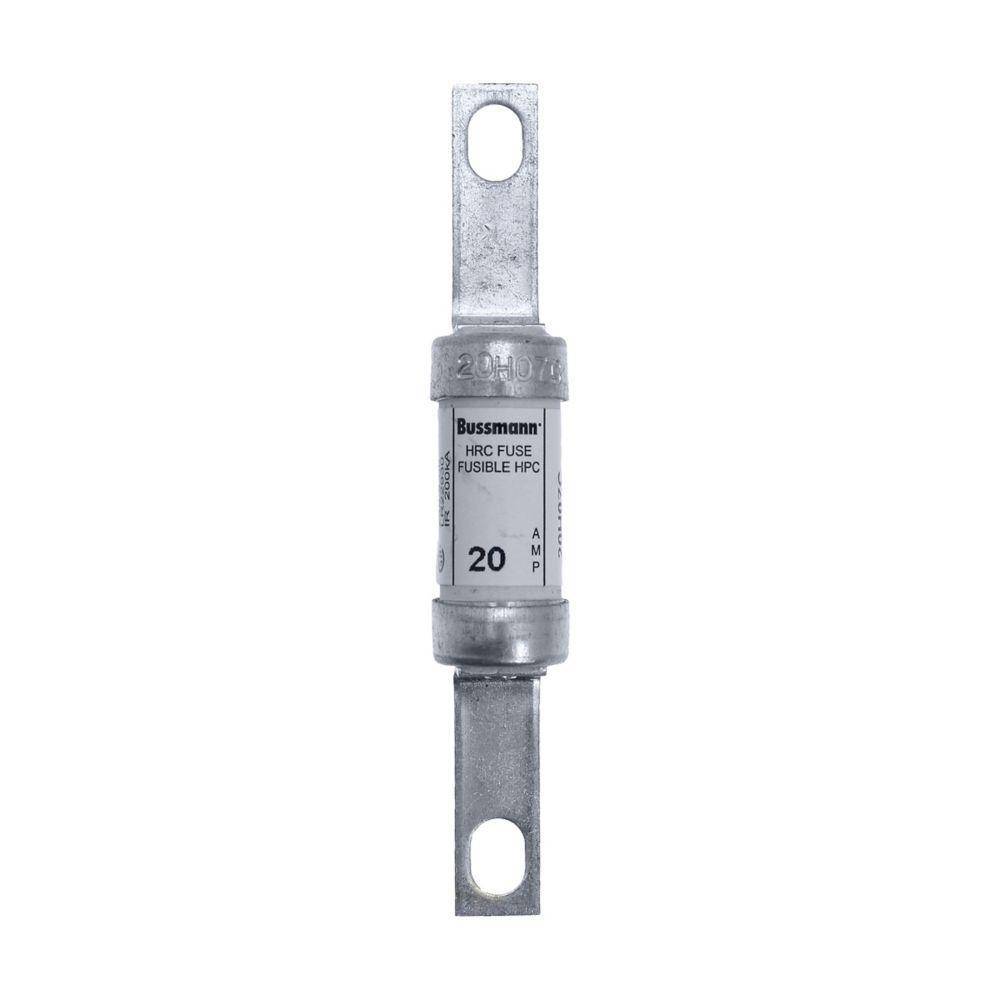

Bussmann 20H07C HRC Form II Canadian Current Limiting Fuse, 20 A, 600 VAC/250 VDC, 200 kA Interrupt, Cartridge Body
Bussmann 20H07C HRC Form II Canadian Current Limiting Fuse, 20 A, 600 VAC/250 VDC, 200 kA Interrupt, Cartridge Body
Bussmann 20H07C HRC Form II Canadian Current Limiting Fuse, 20 A, 600 VAC/250 VDC, 200 kA Interrupt, Cartridge Body
Bussmann 20H07C HRC Form II Canadian Current Limiting Fuse, 20 A, 600 VAC/250 VDC, 200 kA Interrupt, Cartridge Body
Bussmann 20H07C HRC Form II Canadian Current Limiting Fuse, 20 A, 600 VAC/250 VDC, 200 kA Interrupt, Cartridge Body
Bussmann 20H07C HRC Form II Canadian Current Limiting Fuse, 20 A, 600 VAC/250 VDC, 200 kA Interrupt, Cartridge Body
Bussmann 20H07C HRC Form II Canadian Current Limiting Fuse, 20 A, 600 VAC/250 VDC, 200 kA Interrupt, Cartridge Body
Bussmann 20H07C HRC Form II Canadian Current Limiting Fuse, 20 A, 600 VAC/250 VDC, 200 kA Interrupt, Cartridge Body
Share Share Print Print
Eaton

Bussmann 20H07C HRC Form II Canadian Current Limiting Fuse, 20 A, 600 VAC/250 VDC, 200 kA Interrupt, Cartridge Body

Short Description

Eaton's Bussmann British standard fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current, voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.

Bussmann Fuse, HRC Form II Canadian Current Limiting, Series: H07C, 20 A, 600 VAC/250 VDC, 200 kA Interrupt, Offset Blade Terminal, Stud Mounting, Cartridge Body, Ceramic, 0.56 in Dia x 3.38 in L Body
MFG #: 20H07C

EECO #: BU20H07C

Brand: Bussmann
UPC #: 051712577144
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121627
Material
Ceramic
Application
Protect motor control circuits, together with contactors and overload protection relays
Mounting Type
Stud
Terminal Type
Offset Blade
Voltage Rating
600 VAC/250 VDC
Type
HRC Form II Canadian Current Limiting
Series
H07C
Amperage Rating
20
Features
  • Package Type: Standard
  • Contact Material: HRC Form II
  • Width: 0.56 in
  • Weight: 0.1 lbs
  • Dimensions: 0.56 in Dia x 3.38 in L
  • Length: 3.38 in
  • Height: 0.56 in
  • Indicator: Non-Indicating
Bussmann_20H07C_Specification_Sheet_CA
