Eaton

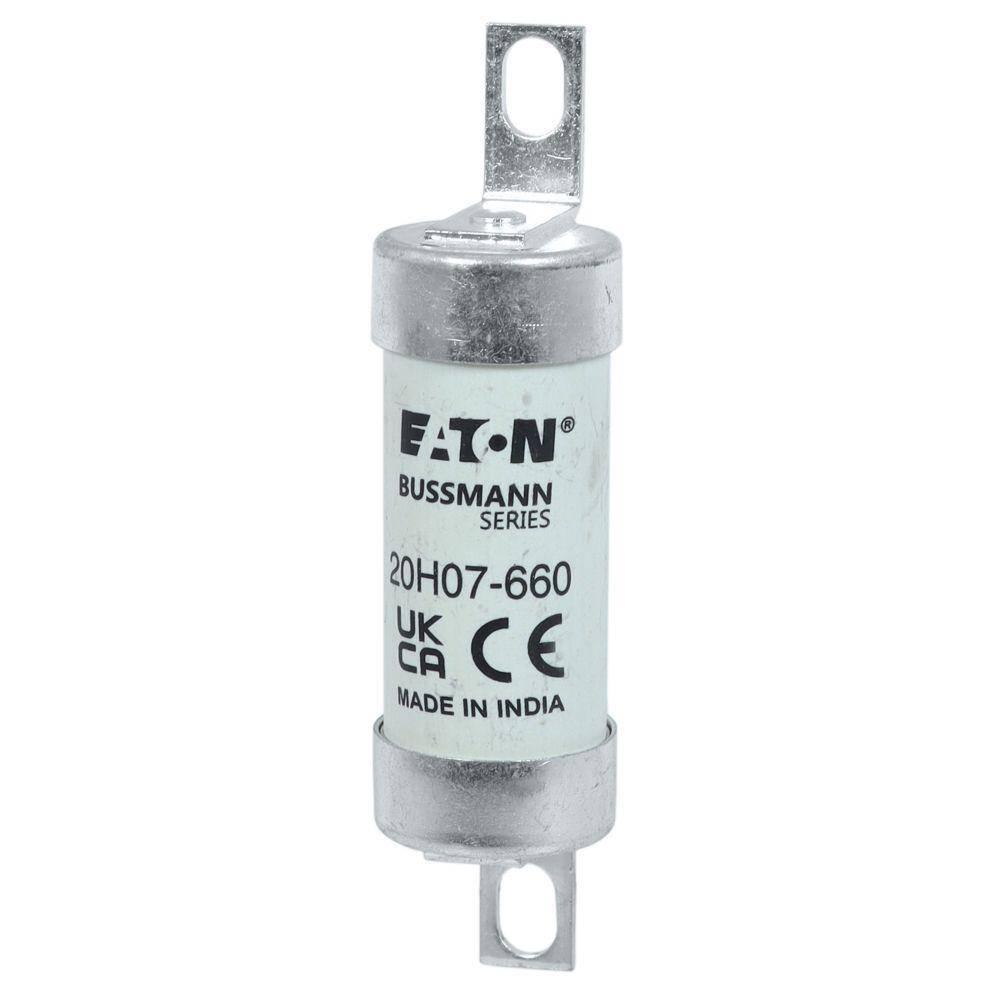

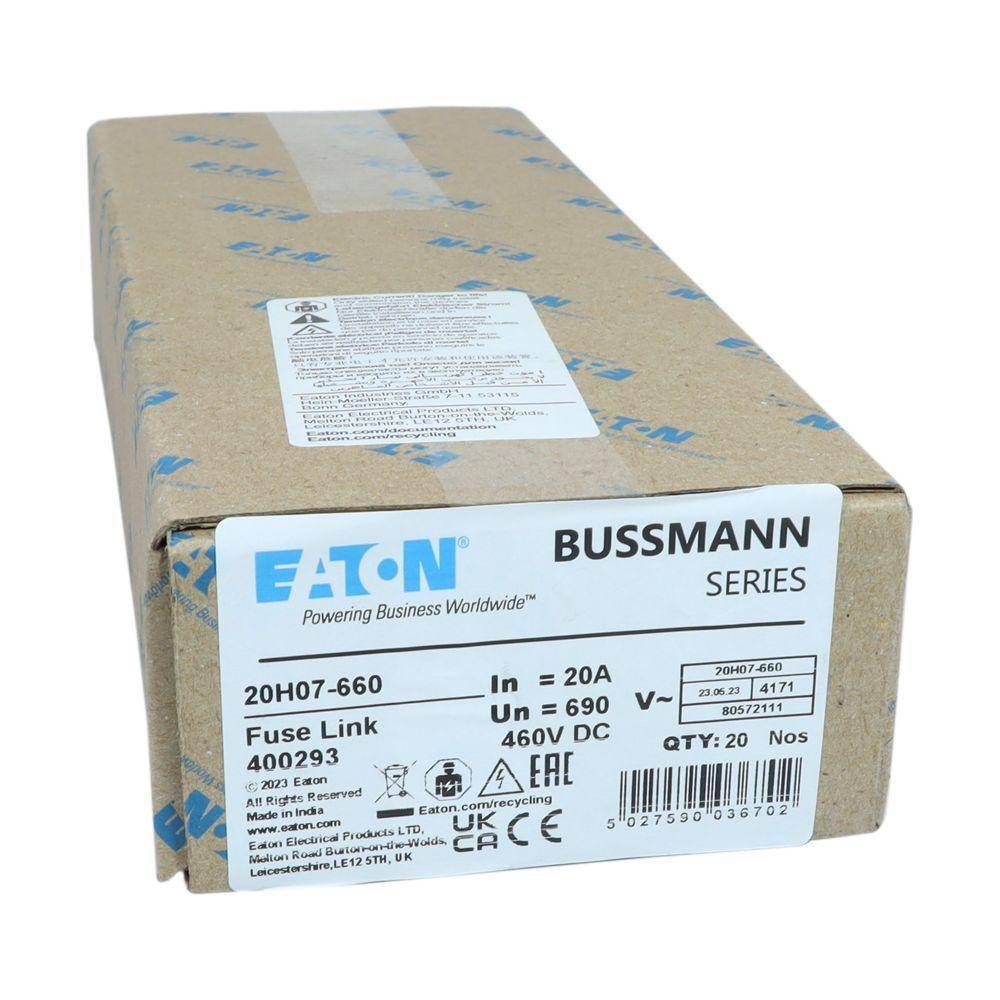

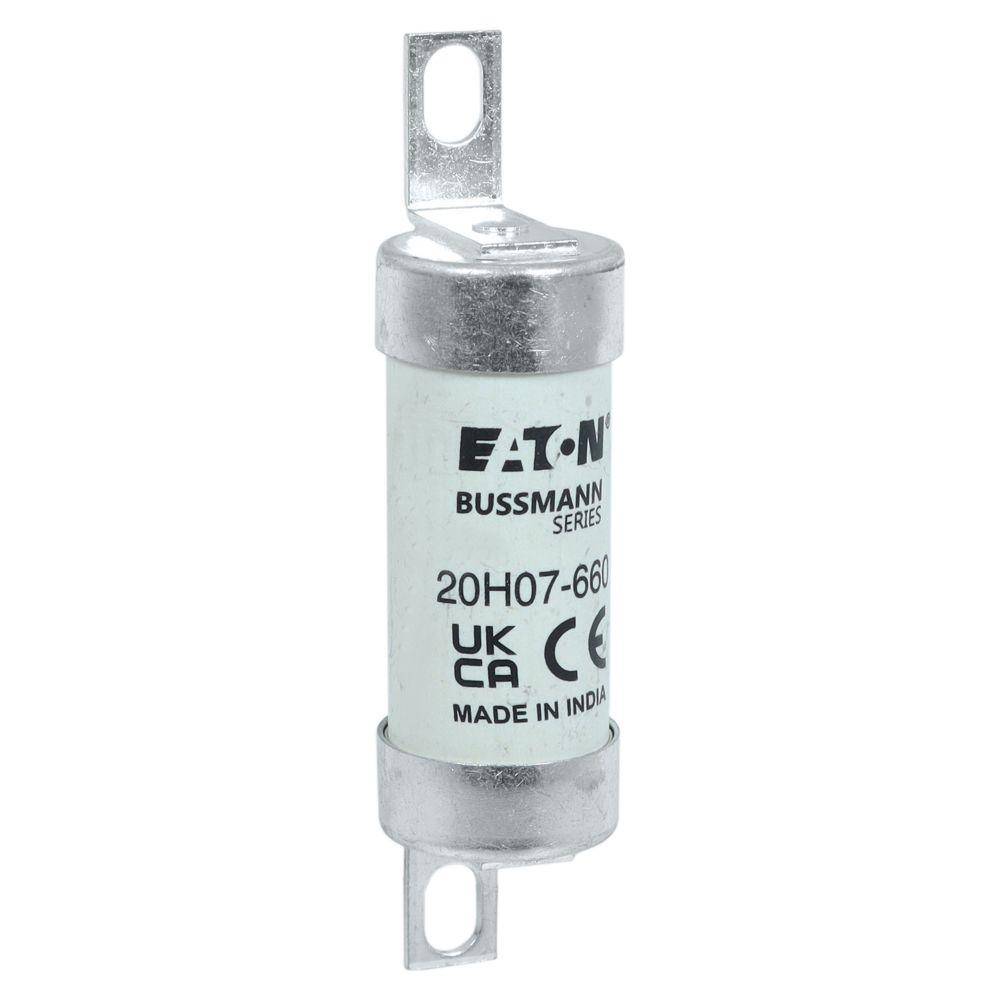

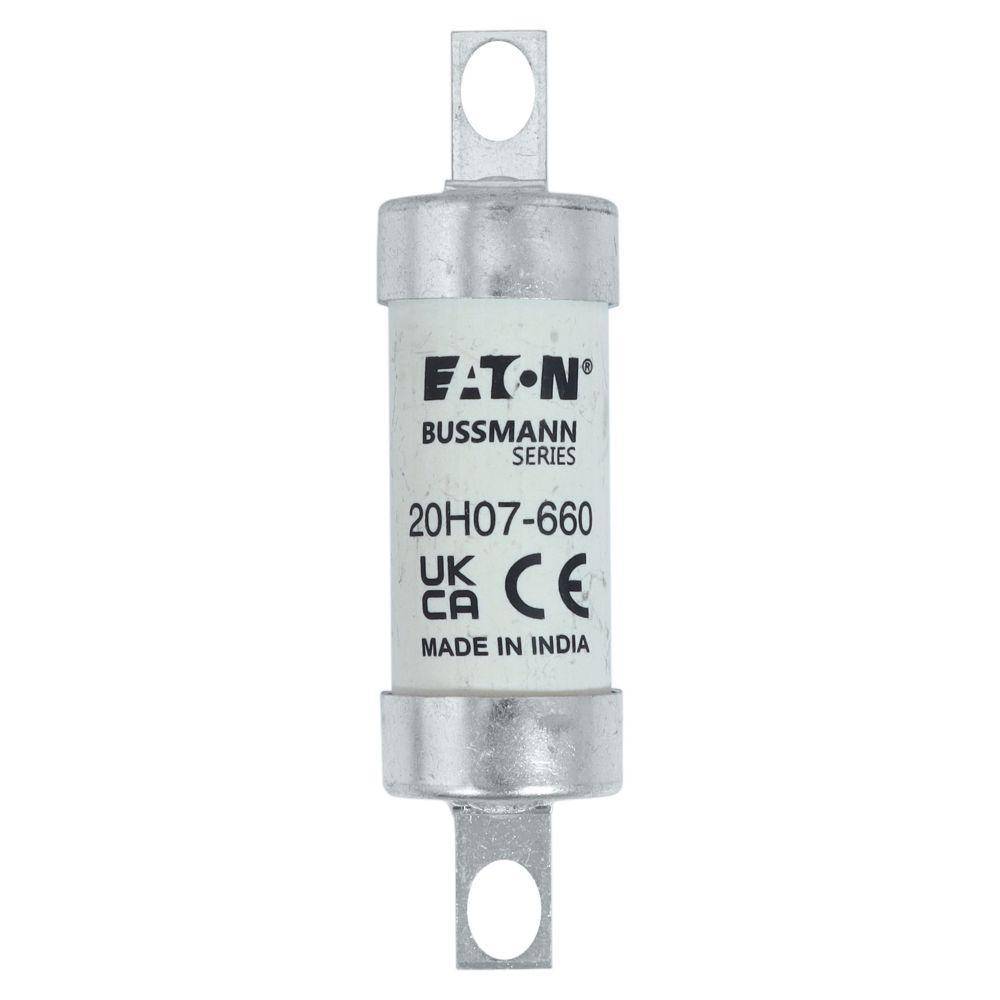

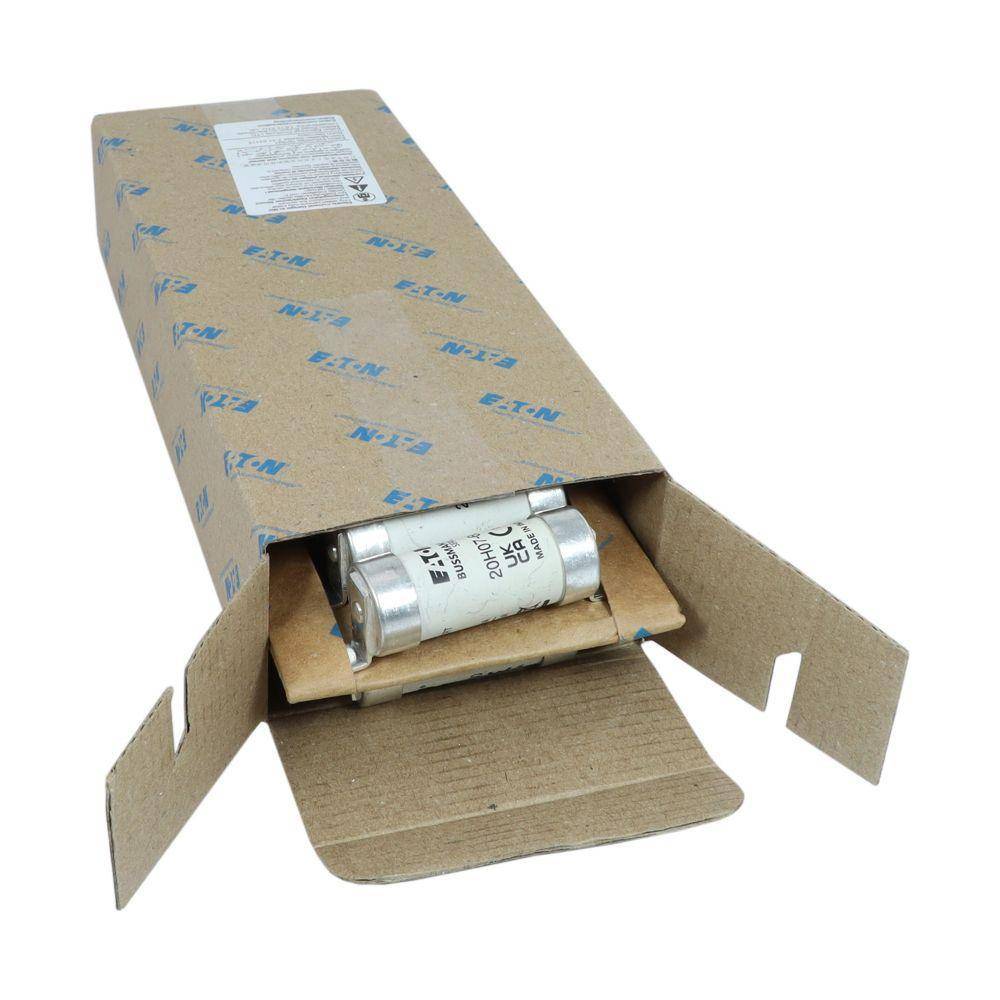

Bussmann 20H07-660 H07-660 British Standard Low Voltage HRC Fuse Link, 20 A, 690 VAC/250 VDC, 80 kA Interrupt, Class: GL/GG, Cartridge Body

Short Description

Eaton's Bussmann British standard fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current, voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.

Bussmann HRC Fuse Link, British Standard Low Voltage, Series: H07-660, Indicating/Non-Indicating: Non-Indicating, 20 A, 690 VAC/250 VDC, 80 kA Interrupt, Class: GL/GG, Blade Terminal, Stud Mount, Body Type: Cartridge, Ceramic
MFG #: 20H07-660

EECO #: BU20H07660

Brand: Bussmann
UPC #: 051712674379
Attributes
Features
Documents
Product Information
Attributes
Class
GL/GG
UNSPSC
39121626
Material
Ceramic
Application
For protection of large industrial installations up to 690 VAC
Mounting Type
Stud
Terminal Type
Blade
Voltage Rating
690 VAC/250 VDC
Type
British Standard Low Voltage
Series
H07-660
Amperage Rating
20
Features
  • Good peak let through current limitation
  • 1:1:6 selective coordination ratio between minor and major fuse
  • GG characteristics for cable protection and general purpose applications
  • Power loss values within the limits of IEC 60269
20H07_660_Specification_Sheet_01
Bussmann_20H07_660_Specification_Sheet
