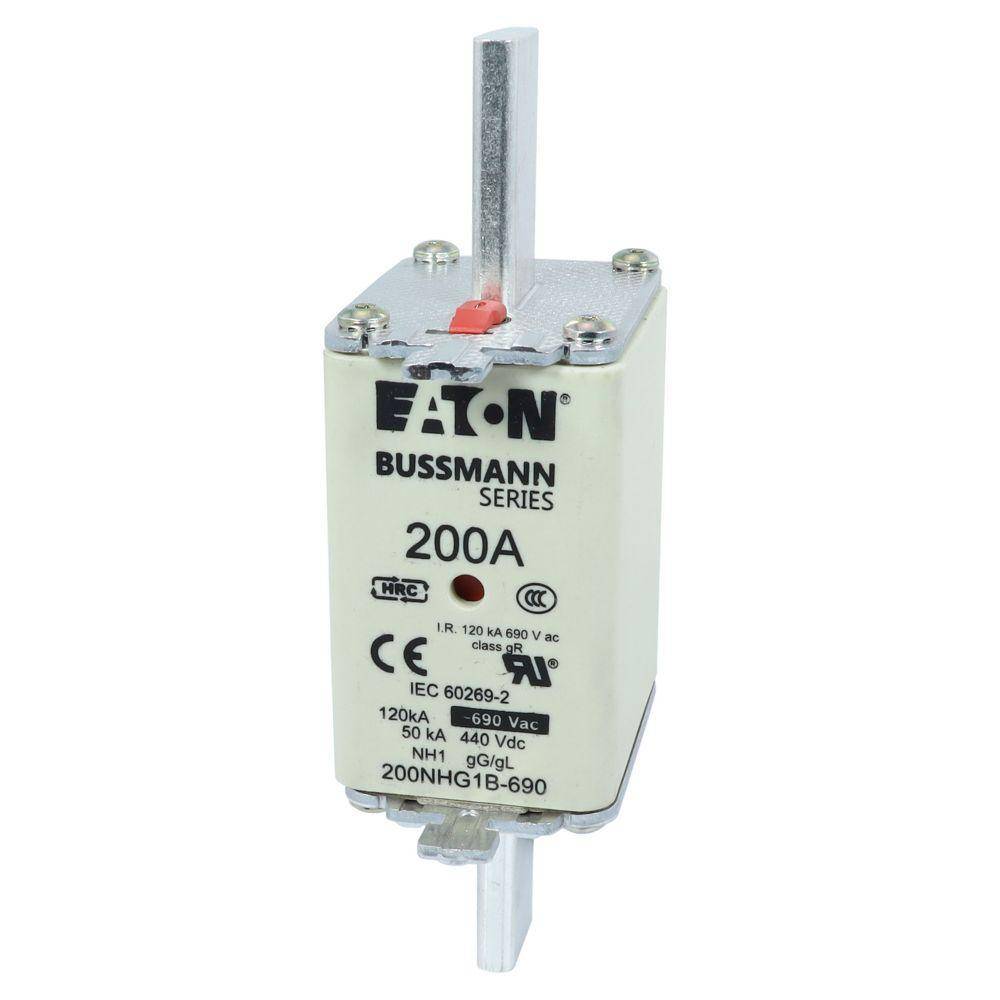

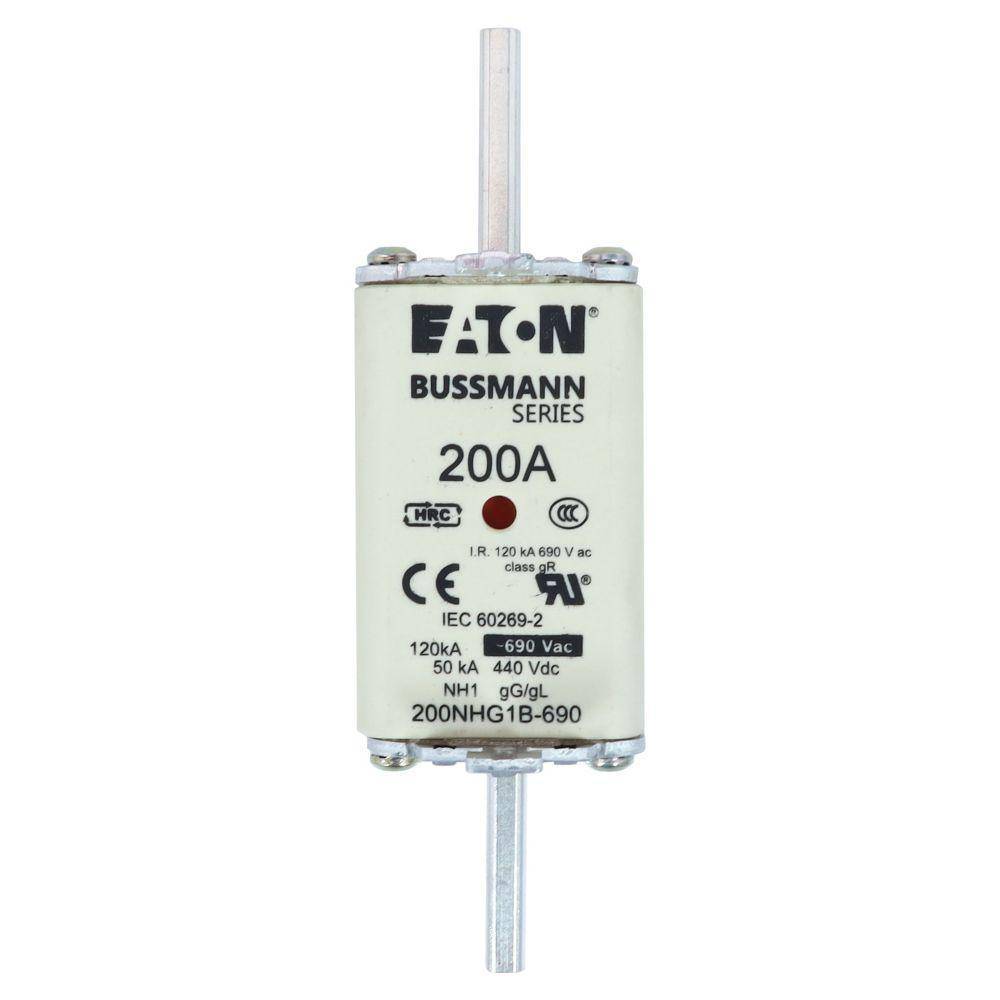

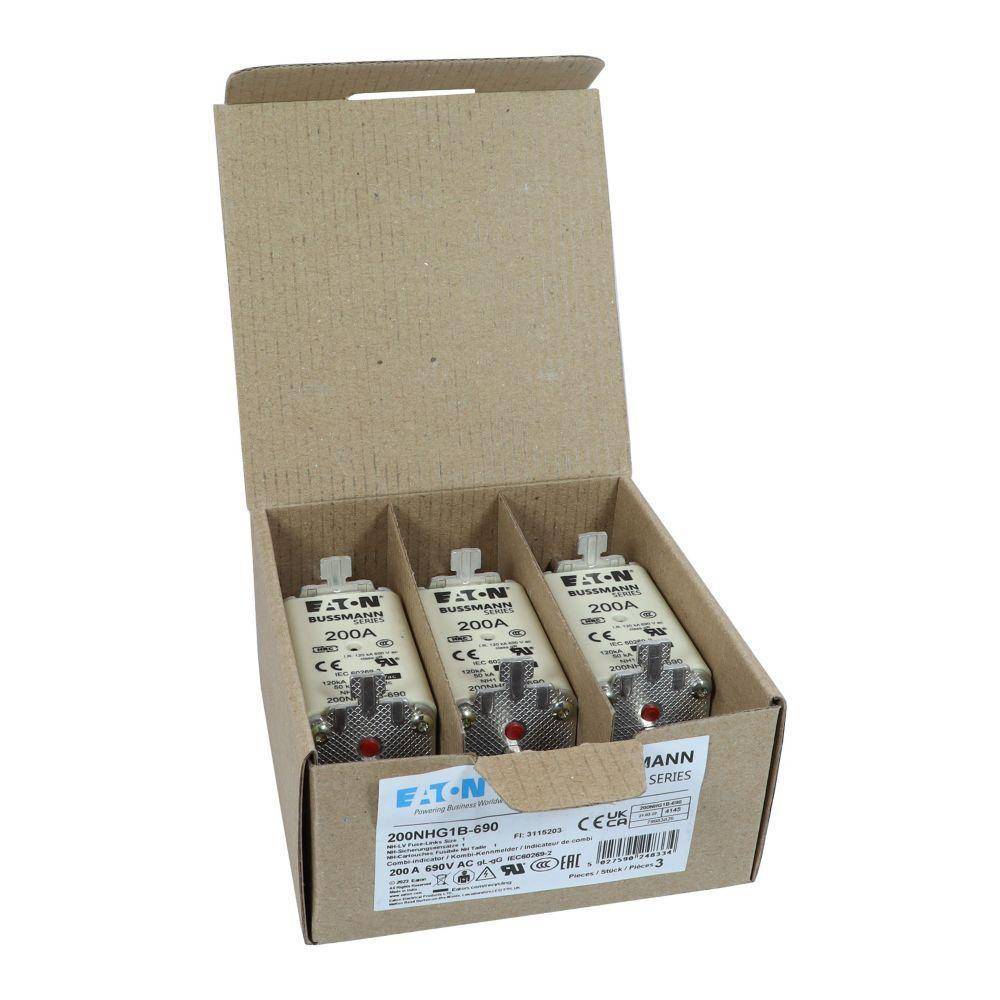

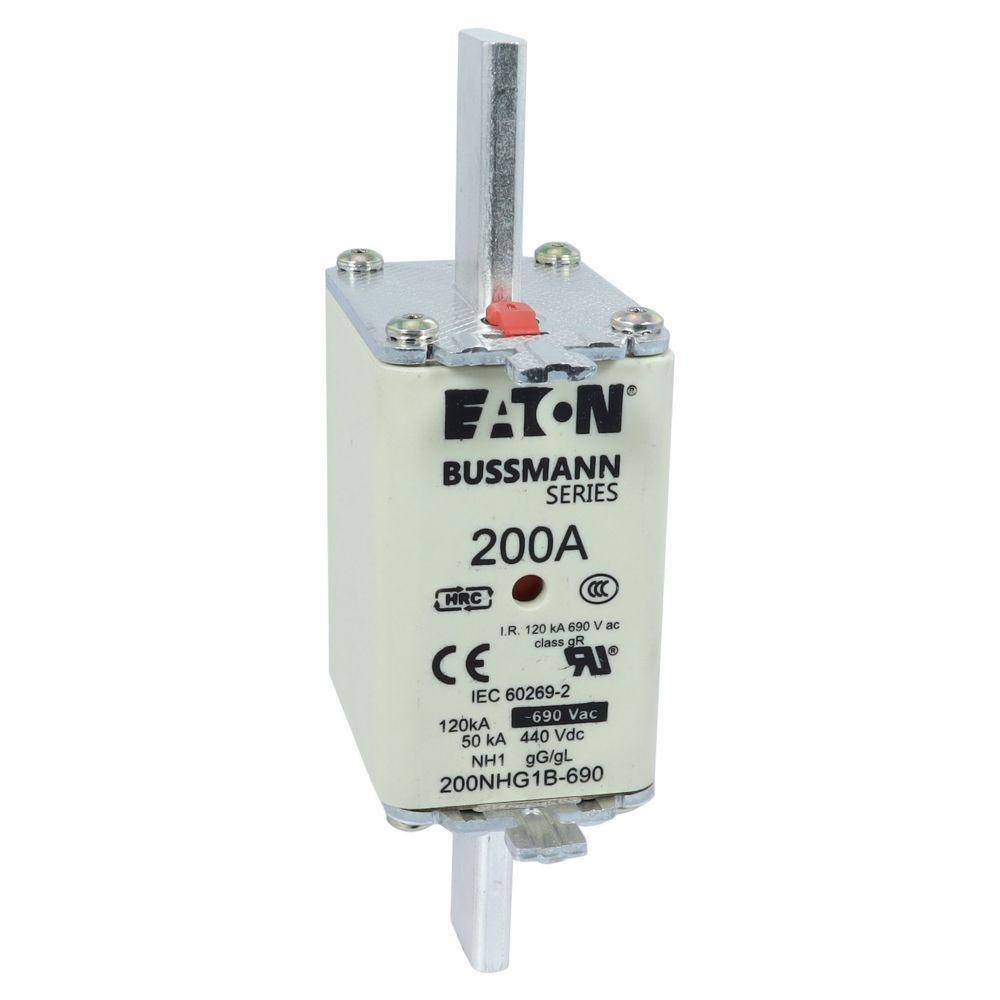

Bussmann 200NHG1B-690 Size 1 Dual Indicator Low Voltage NH Fuse Link, 690 VAC, 200 A, For Use With NH Series Photovoltaic Fuse, Class C gG/gL Fuse, Ceramic

Short Description

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.

Bussmann NH Fuse Link, Size 1 Dual Indicator Low Voltage, Series: NH Series, 690 VAC, 200 A, 45 to 62 Hz Frequency, Rated Breaking Capacity: 120 kA, Holder Mounting, For Use With: NH Series Photovoltaic Fuse, Class C gG/gL Fuse, Ceramic, 135 mm L x 40 mm W x 63 mm H Dimensions
MFG #: 200NHG1B-690

EECO #: BU200NHG1B690

Brand: Bussmann
UPC #: 051712188739
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121627
Material
Ceramic
Application
Electrical Assemblies, Panels and EOEMs, Control Panels for Machines, Aftermarket, Panel Builders, Industrial Facilities and Factories, Power Distribution and Control, Safety and Security Systems Applications
Mounting Type
Holder
Voltage Rating
690
Frequency Rating
45 to 62
Type
Size 1 Dual Indicator Low Voltage
Series
NH Series
Dimensions
135 mm L x 40 mm W x 63 mm H
Amperage Rating
200
Suitable For Use With
NH Series Photovoltaic Fuse, Class C gG/gL Fuse
Features
  • Eaton's Bussmann® series 690 VAC NH square bodied industrial fuse links are suitable for a wide variety of applications
  • Reliable dual indicator system
  • Low temperature rise
  • Live gripping lugs
