Eaton

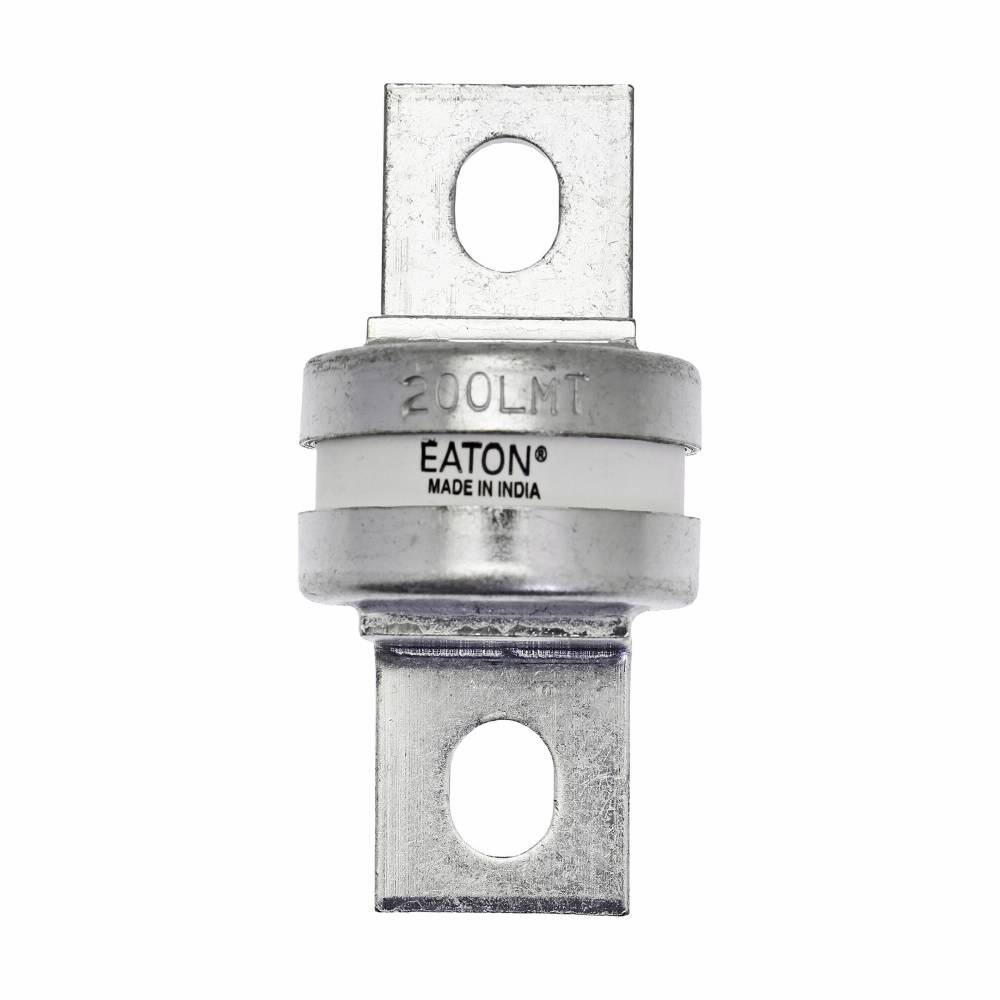

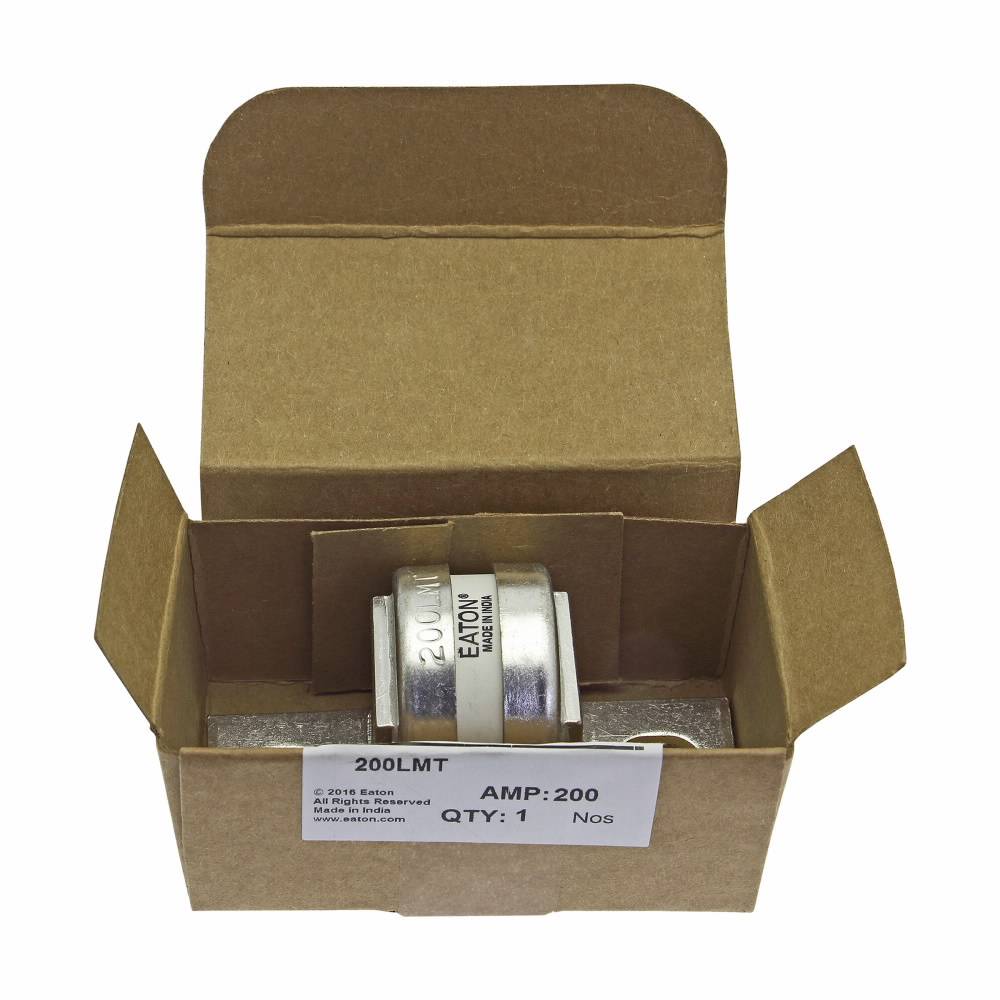

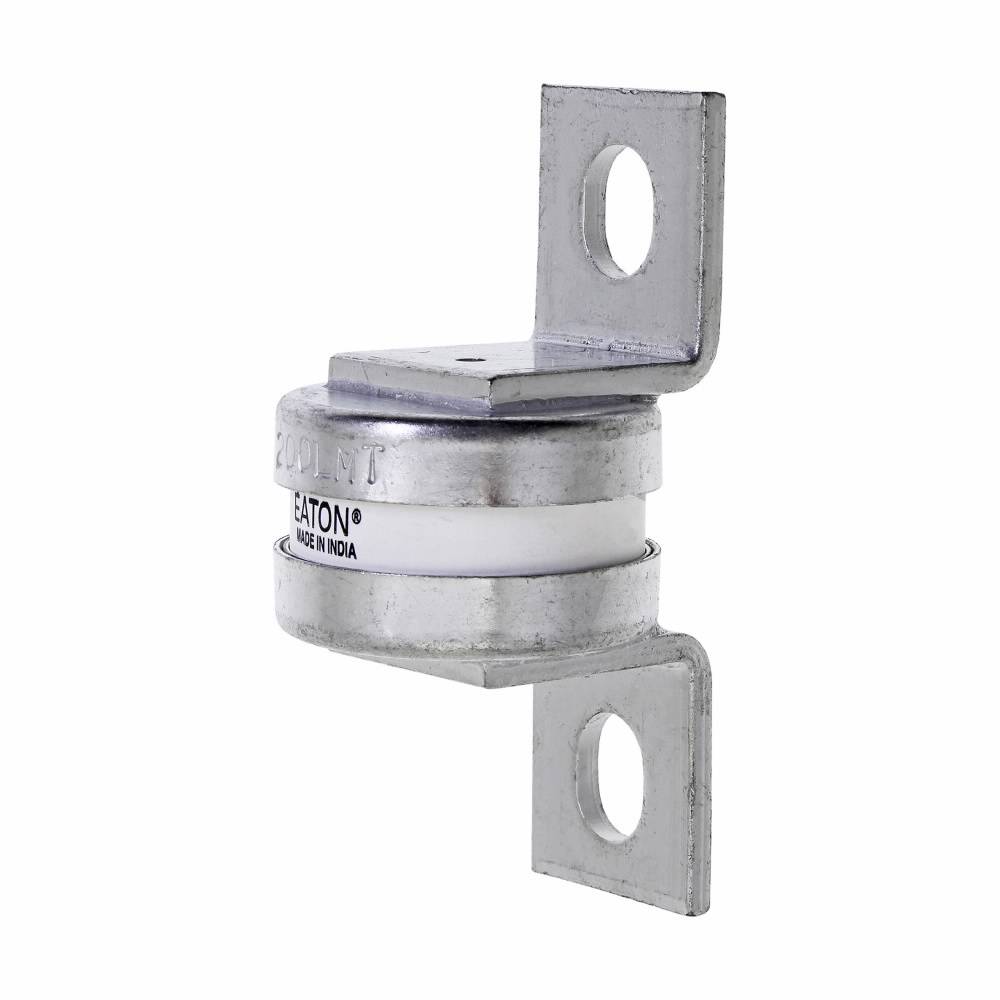

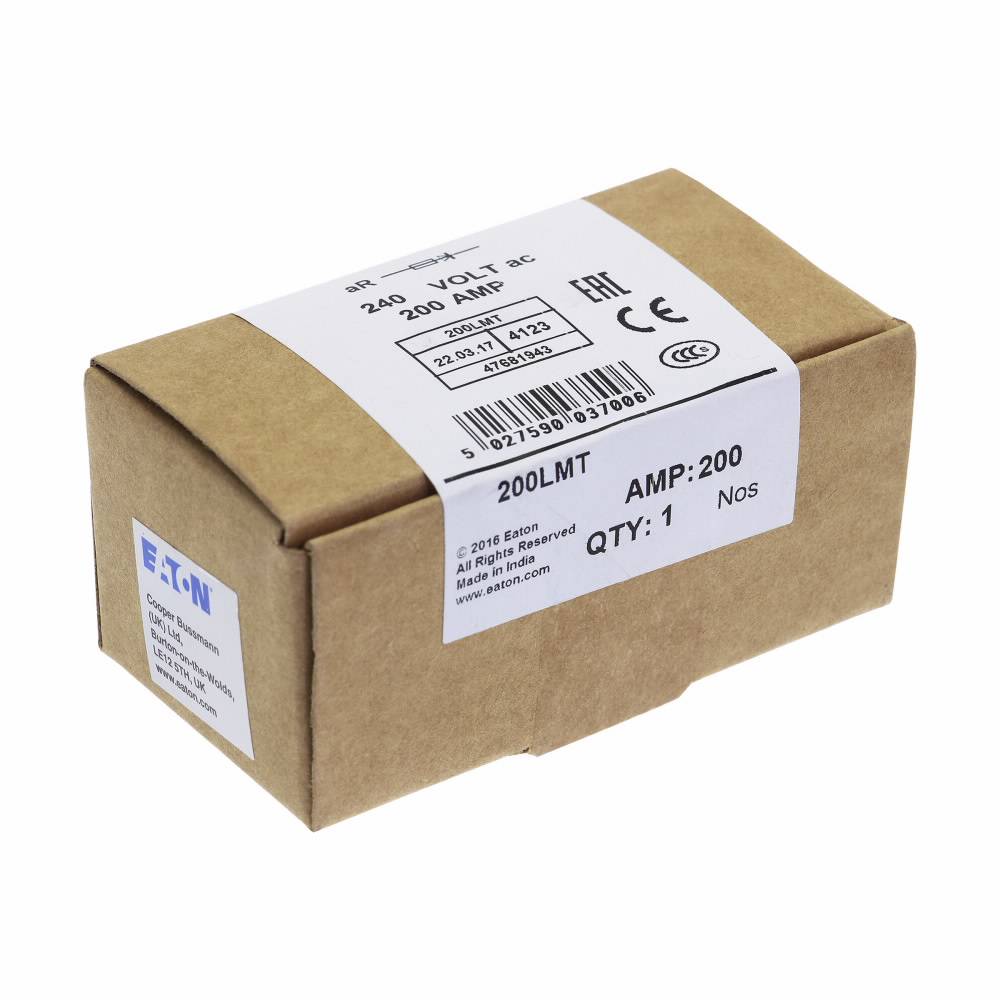

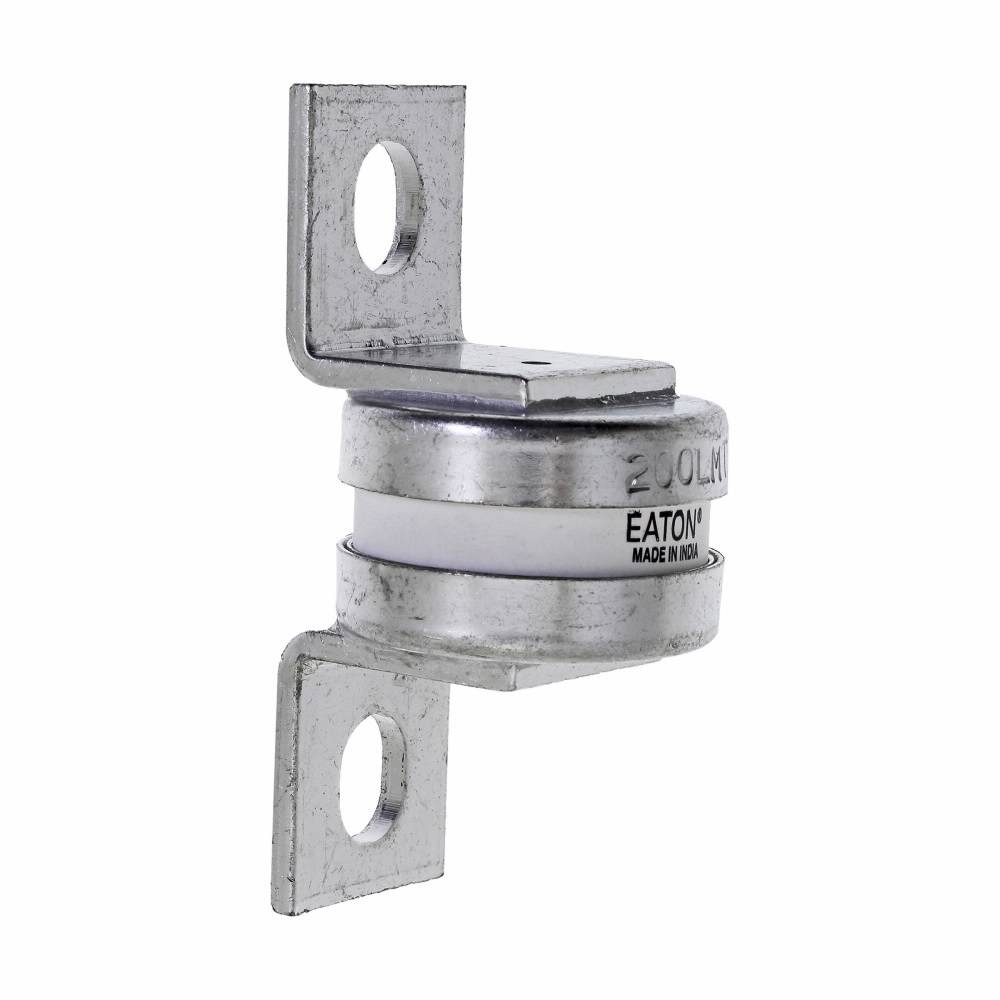

Bussmann 200LMT British Style High Speed Fuse, 200 A, 690 VAC/500 VDC, 200 kA Interrupt, Class: AR, Cartridge Body

Short Description

Eaton's Bussmann British standard BS88 fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current and voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.

Bussmann High Speed Fuse, British Style, Series: LMT, Indicating/Non-Indicating: Non-Indicating, 200 A, 690 VAC/500 VDC, 200 kA Interrupt, Class: AR, Blade Terminal, Stud Mount, Cartridge Body Type, 84 mm L x 38.1 mm W x 41 mm H Body Size
MFG #: 200LMT

EECO #: BU200LMT

Brand: Bussmann
UPC #: 051712832205
Attributes
Features
Documents
Product Information
Attributes
Class
AR
UNSPSC
39121625
Application
Aftermarket, Control Panels for Machines, Panel Builders, OEMs, Electrical Assemblies, Panels, Power Distribution and Control, DC Common Bus, AC/DC Drives, Power Converters/Rectifiers and Reduced Voltage Starter, Safety and Security Systems
Mounting Type
Stud
Terminal Type
Blade
Voltage Rating
690 VAC/500 VDC
Type
British Style
Series
LMT
Amperage Rating
200
Features
  • Excellent cycling capability
  • Excellent DC performance
  • Low arc voltage and low energy let through
  • BS88 style bolted tags high speed fuse
  • Low wattage loss in a compact size
  • 200 kA at 240 VAC, 40 kA at 150 VDC for IEC, 200 kA at 250 VAC, 50 kA at 150 VDC for UL interrupt rating
  • 28 W power loss
