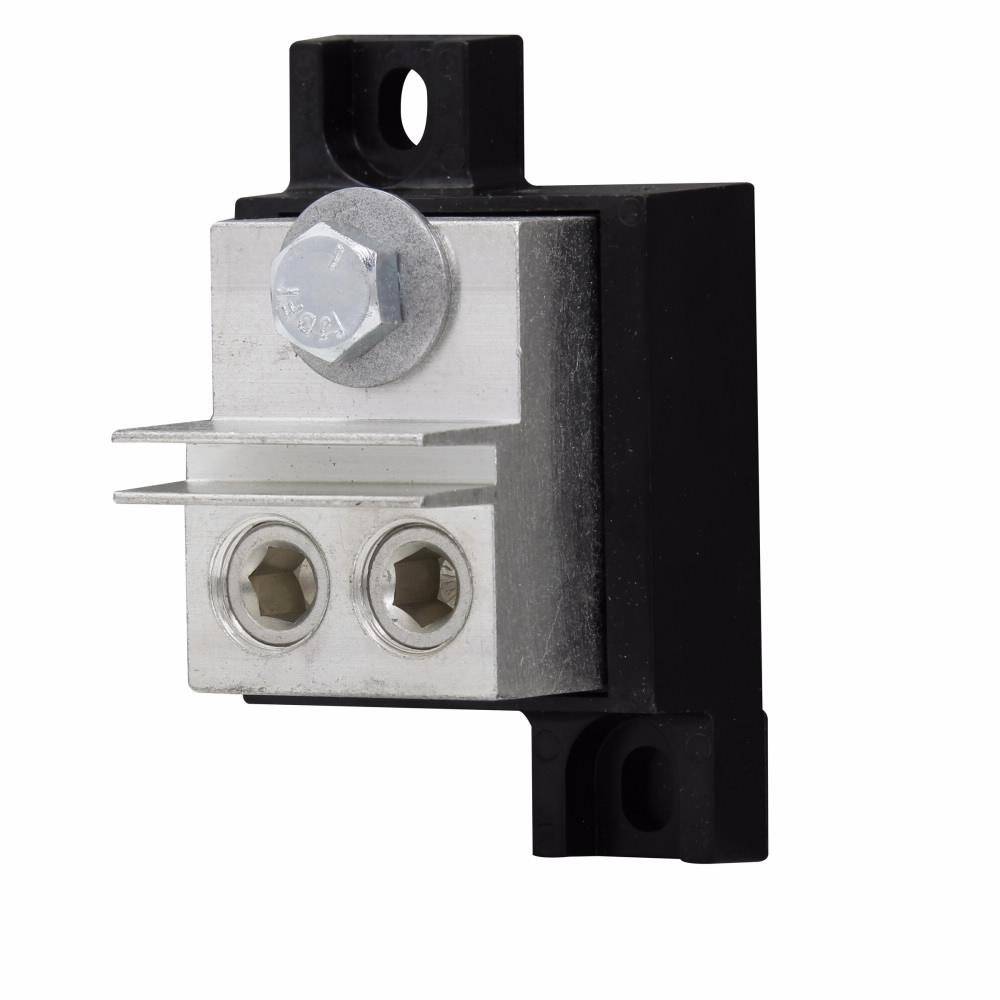

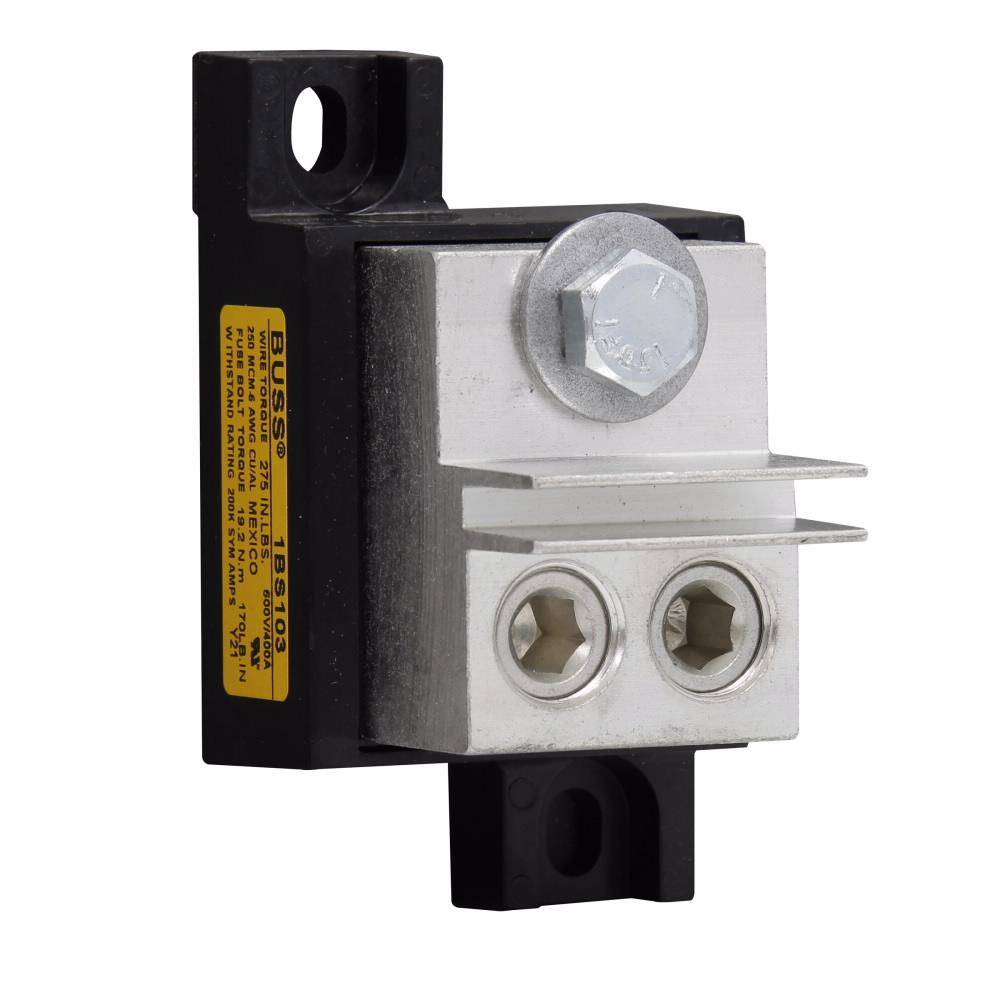

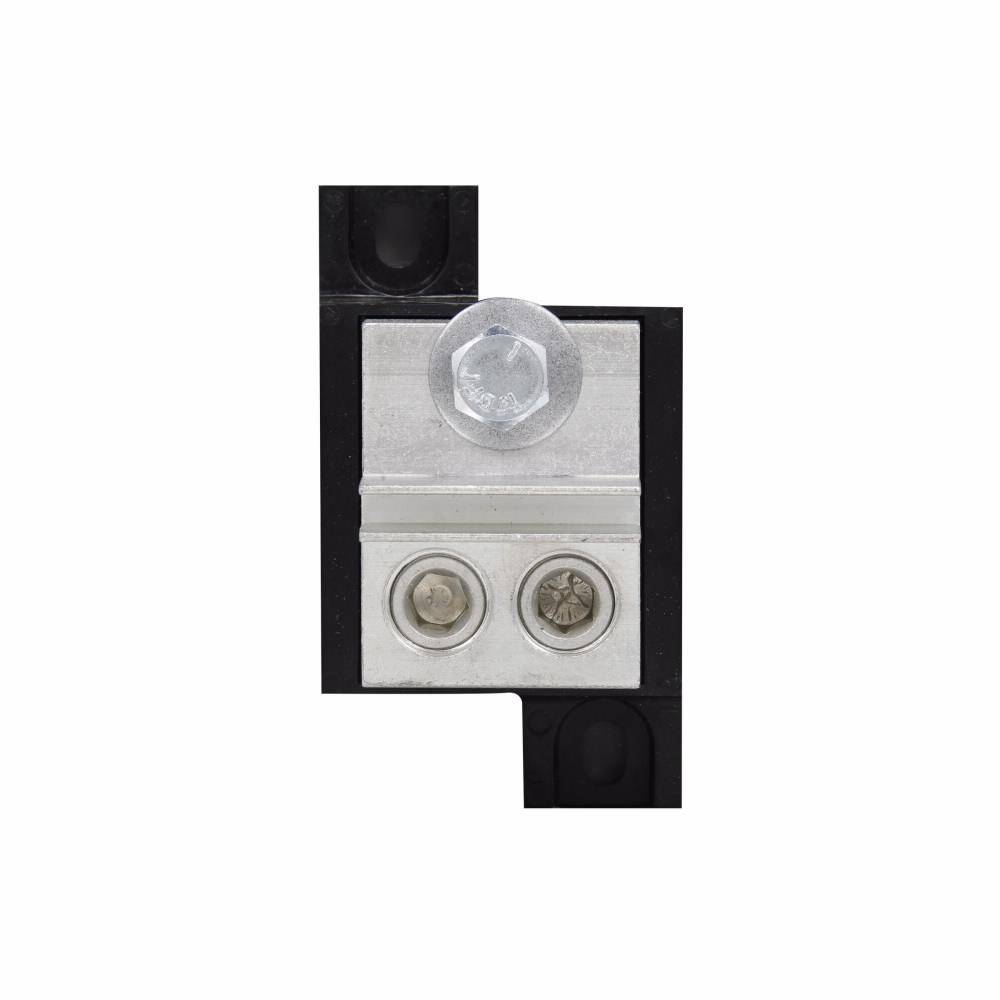

EATON 1BS103 Modular Universal Fuse Block, 600 VAC, 400 A, 6 AWG to 250 kcmil Wire, 1 Pole

Short Description

Bussmann series modular fuse block for bolt-on high speed, and 300 VAC and 600 VAC class T (225-400 A) and select CSA and BS88 fuses.

EATON Fuse Block, Modular Universal, 600 VAC, 400 A, 1 Pole, Setscrew Connection, 6 AWG to 250 kcmil Wire, Stud Mounting, 150 deg C, Phenolic, Black, 2.53 in H x 2.25 in W Dimensions
MFG #: 1BS103

EECO #: BU1BS103

Brand: Eaton
UPC #: 051712135016
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121624
Material
Phenolic
Wire Size
6 AWG to 250 kcmil
Application
Electrical Assemblies, Panels and OEMs Applications
Mounting Type
Stud
Voltage Rating
600
Connection Type
Setscrew
Temperature Rating
150
Type
Modular Universal
Series
1BS10x
Includes
275 in-lb Torque Conductor Setscrew and 170 in-lb Torque Fuse Mounting Bolt
Dimensions
2.53 in H x 2.25 in W
Amperage Rating
400
Suitable For Use With
300/600 VAC Class T High Speed Fuse
Features
  • 200 kA RMS symmetrical interrupt rating, 275 in-lb torque conductor set screw, 170 in-lb fuse mounting bolt
  • 6 AWG to 250 kcmil Copper/Aluminum
