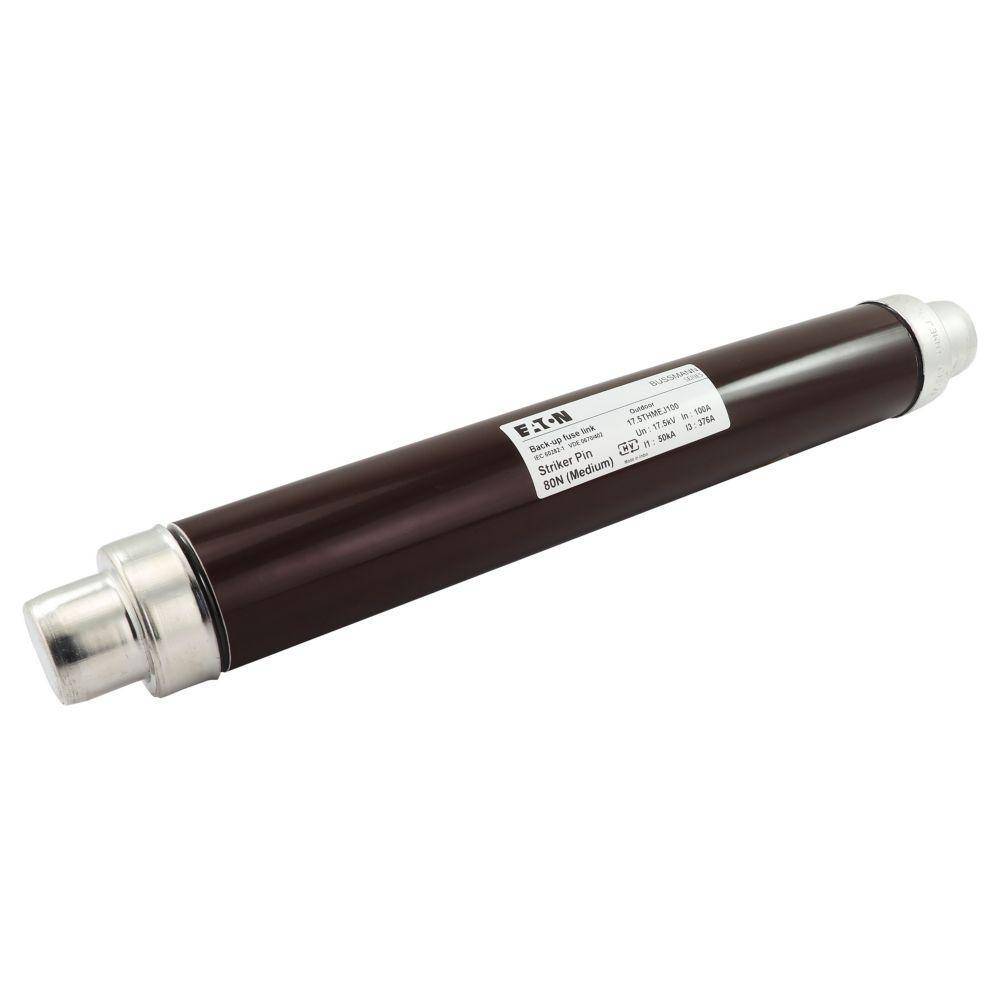

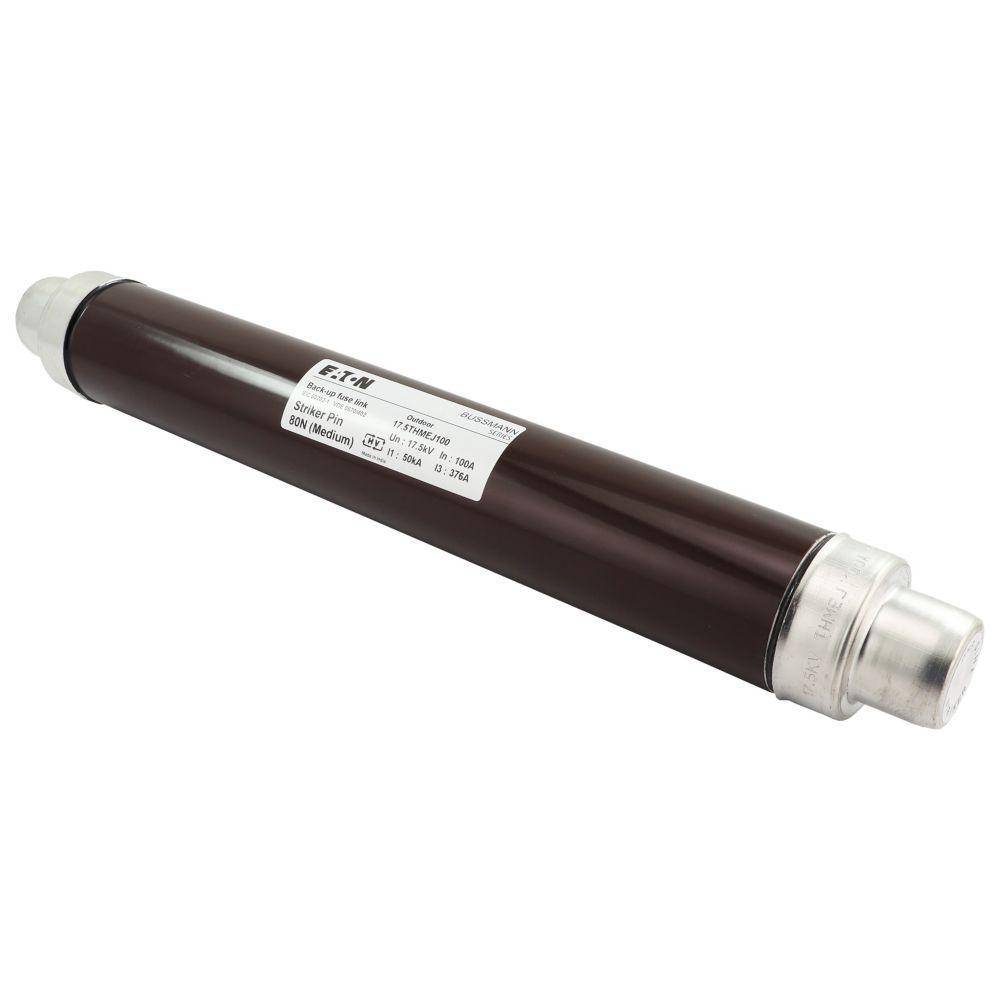

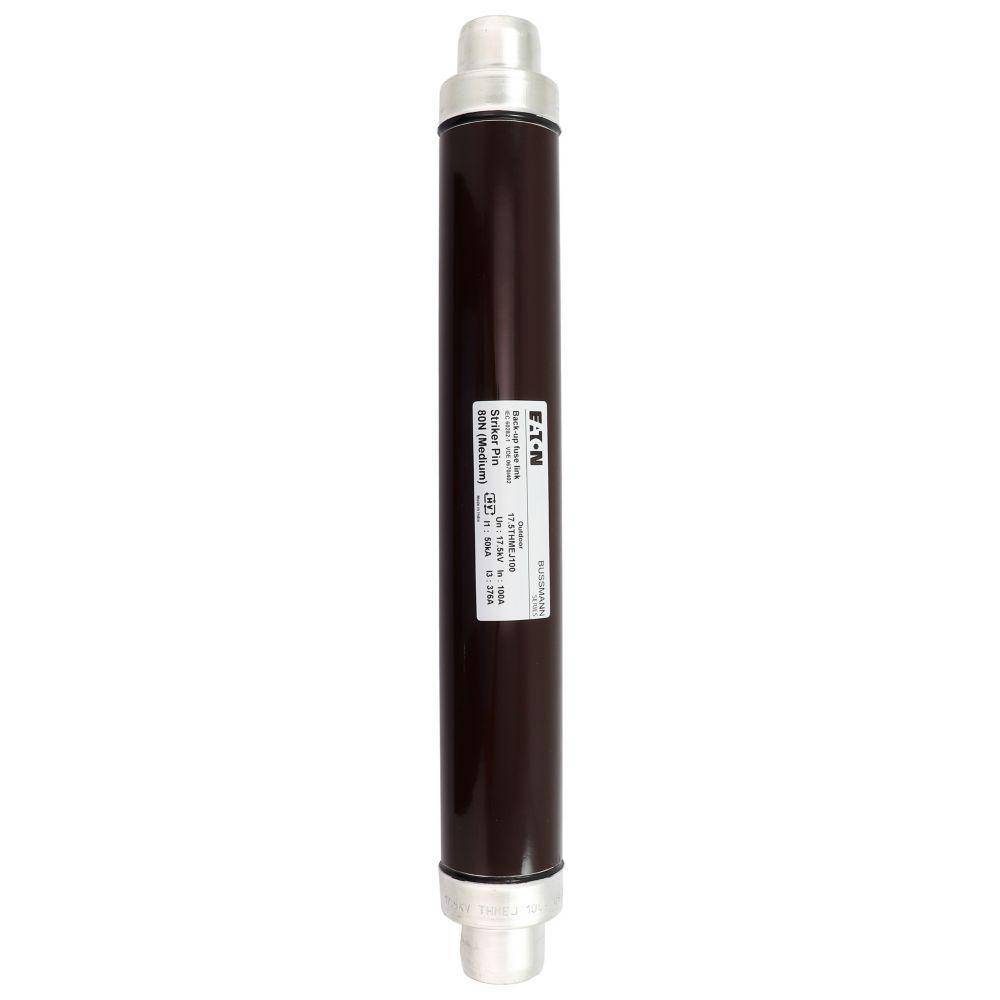

Bussmann 17.5THMEJ100 Medium Voltage Current Limiting Power Fuse, 17.5 kV, 100 A

Short Description

Eaton's Bussmann medium voltage DIN full range and back-up fuses offer an excellent transformer protection. They are available with or without striker. They comply to the dimensional standard DIN 43625, VDE 0670 and IEC 60282-1. They are suitable for indoor and outdoor use.

Bussmann Current Limiting Power Fuse, Medium Voltage, 17.5 kV, 100 A, Rated Breaking Capacity: 50 kA, 64 mm DIa x 442 mm L
MFG #: 17.5THMEJ100

EECO #: BU17.5THMEJ100

Brand: Bussmann
UPC #: 051712186261
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121626
Application
For used with primary side transformer protection, fuse switch combination unit, fuse bases, fuse switches, outdoor and indoor applications
Voltage Rating
17.5
Type
Medium Voltage
Dimensions
64 mm DIa x 442 mm L
Amperage Rating
100
Features
  • Dimensions: 64 mm Dia x 442 mm L
Edison_175TDLSJ315_Catalog
Bussmann_17_5THMEJ100_Specification_Sheet
