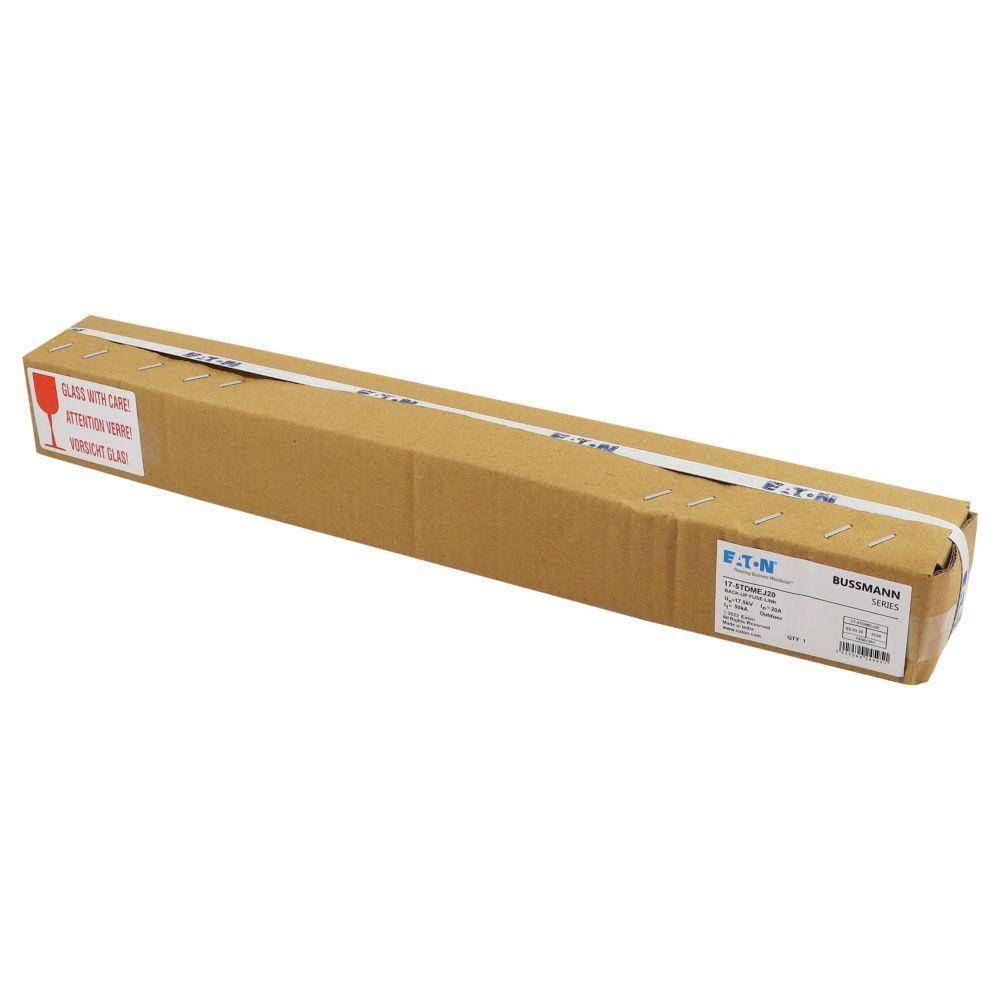

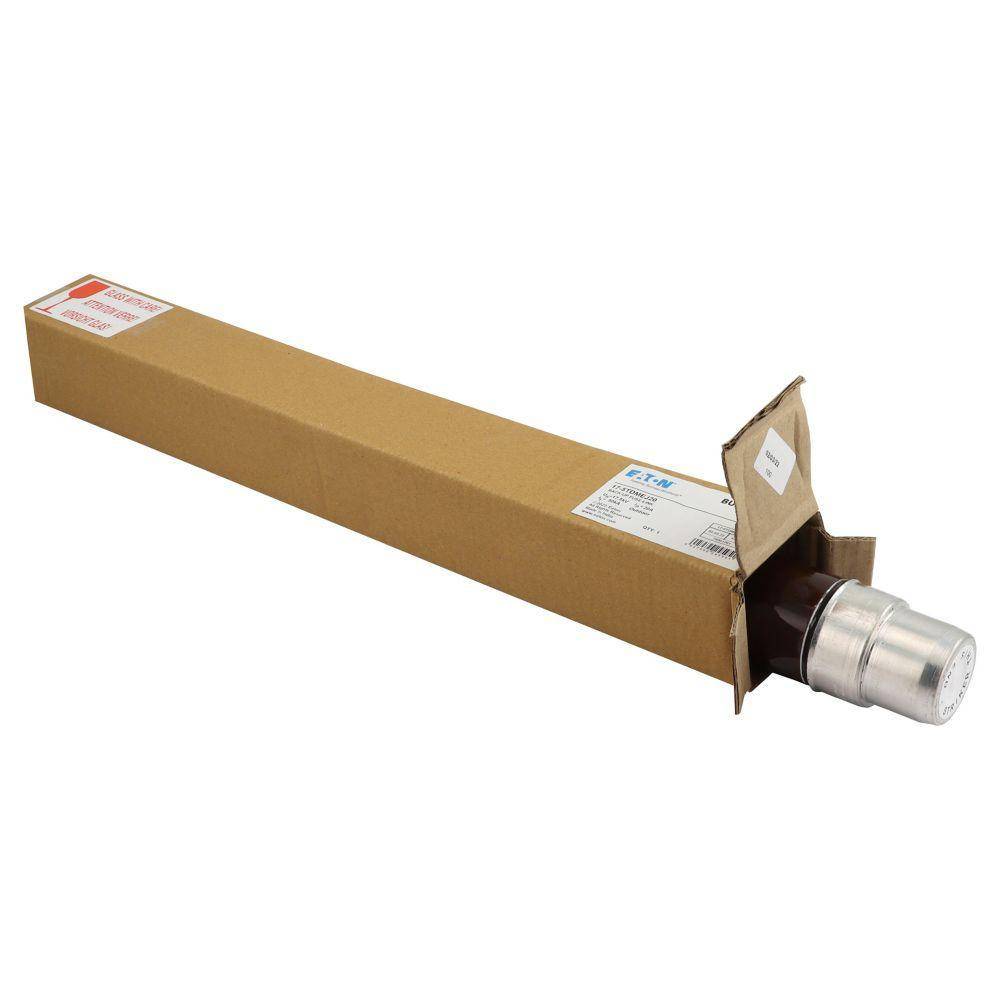

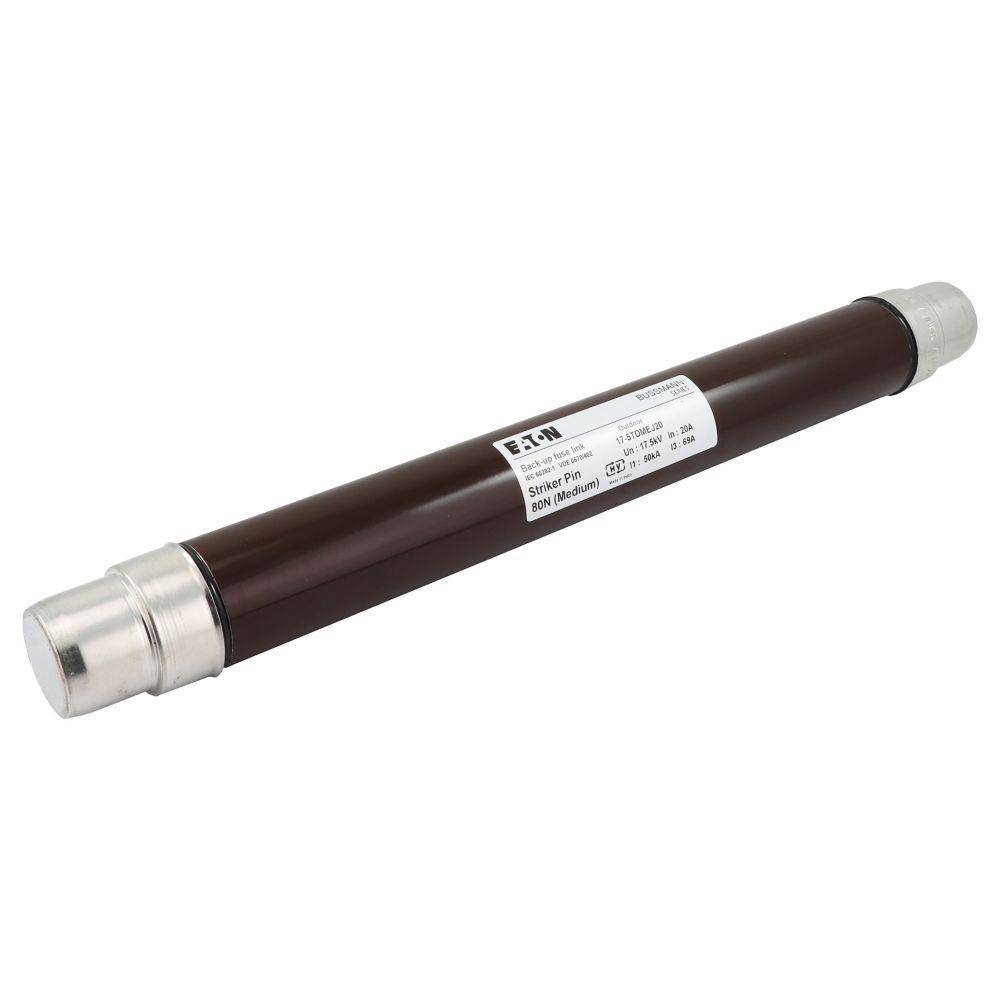

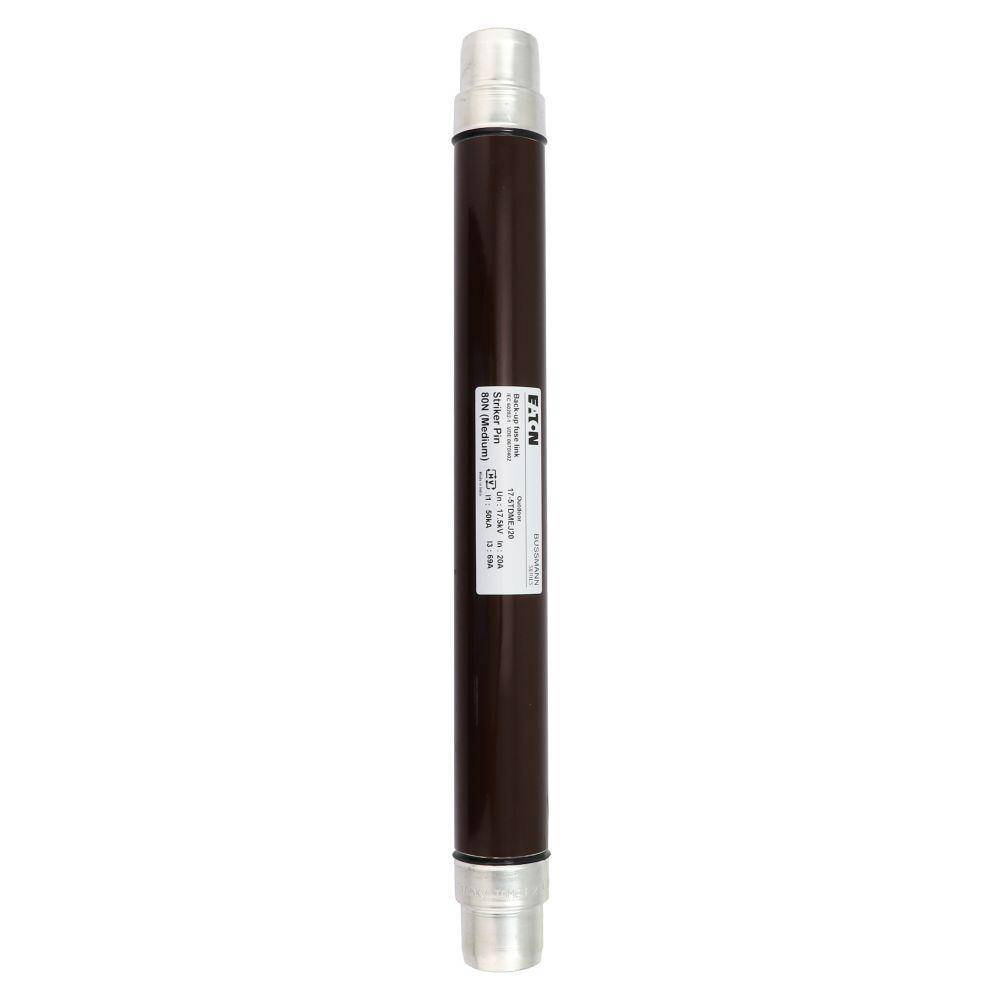

Edison 17.5TDMEJ20 T-Range Back-Up Medium Voltage Current Limiting Fuse Link, 17.5 kV, 20 A

Name: Edison 17.5TDMEJ20 T-Range Back-Up Medium Voltage Current Limiting Fuse Link, 17.5 kV, 20 A
Brand: Eaton
SKU: BU17.5TDMEJ20
Availability: InStock

Short Description

A range of medium voltage DIN Fuse links, complete with sealed striker, suitable for transformer protection. The fuse links can be used even when there is no secondary low voltage protection, provided they are used with fuse switches fitted with instantaneous striker tripping.

Edison Current Limiting Fuse Link, T-Range Back-Up Medium Voltage, 17.5 kV, 20 A, Rated Breaking Capacity: 50 kA, 51 mm Dia x 442 mm L

MFG #: 17.5TDMEJ20

EECO #: BU17.5TDMEJ20 BU17.5TDMEJ20

Brand: Edison

UPC #: 051712186209

Attributes

Features

Documents

Product Information

Attributes

Color

Brown

UNSPSC

39121626

Application

For used with primary side transformer protection, fuse switch combination unit, fuse bases, fuse switches, outdoor and indoor applications

Voltage Rating

17.5

Frequency Rating

50/60

Type

T-Range Back-Up Medium Voltage

Series

TDMEJ

Dimensions

51 mm Dia x 442 mm L

Amperage Rating

Features

Cool running, low watts loss and power dissipation thanks to the m-effect ensuring high levels of substation utilization
Silver elements ensuring high conductivity and low power (revenue) loss
100% X-Ray, all our medium voltage fuse links are X-Rayed ensuring the highest possible standards are maintained
