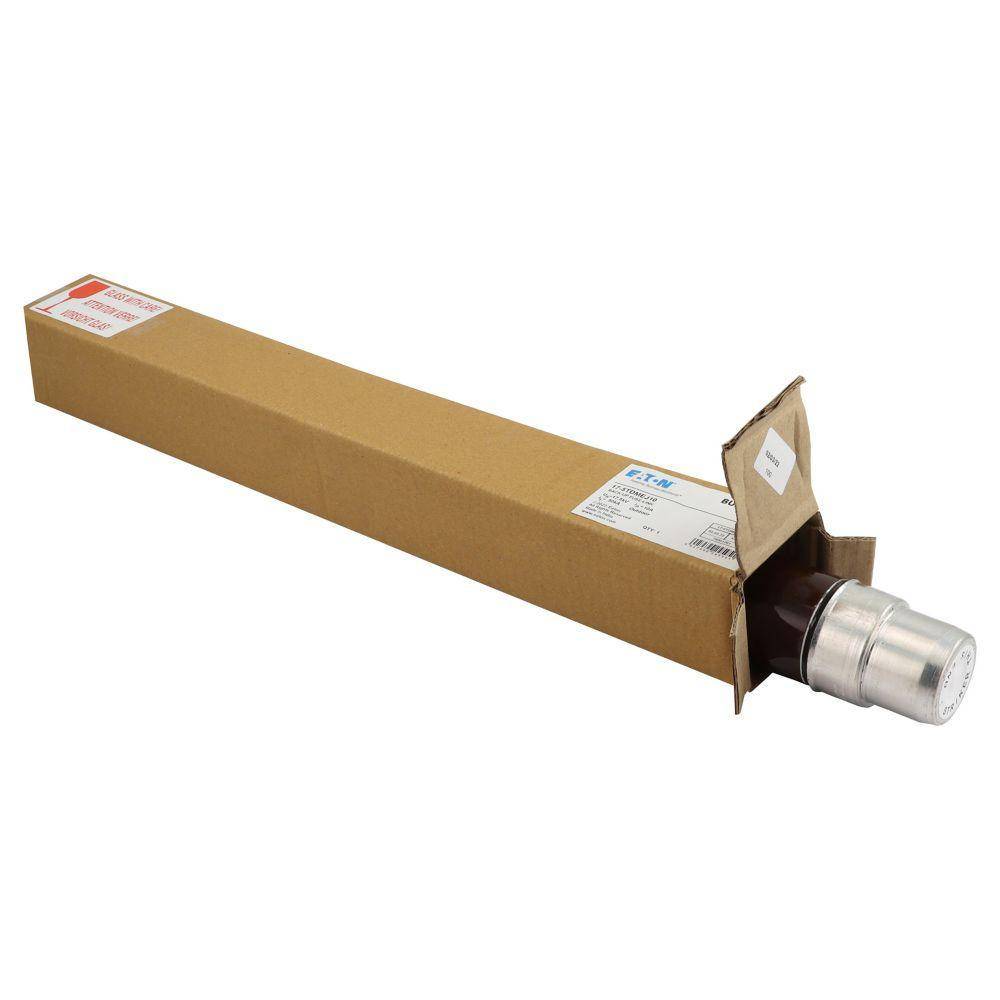

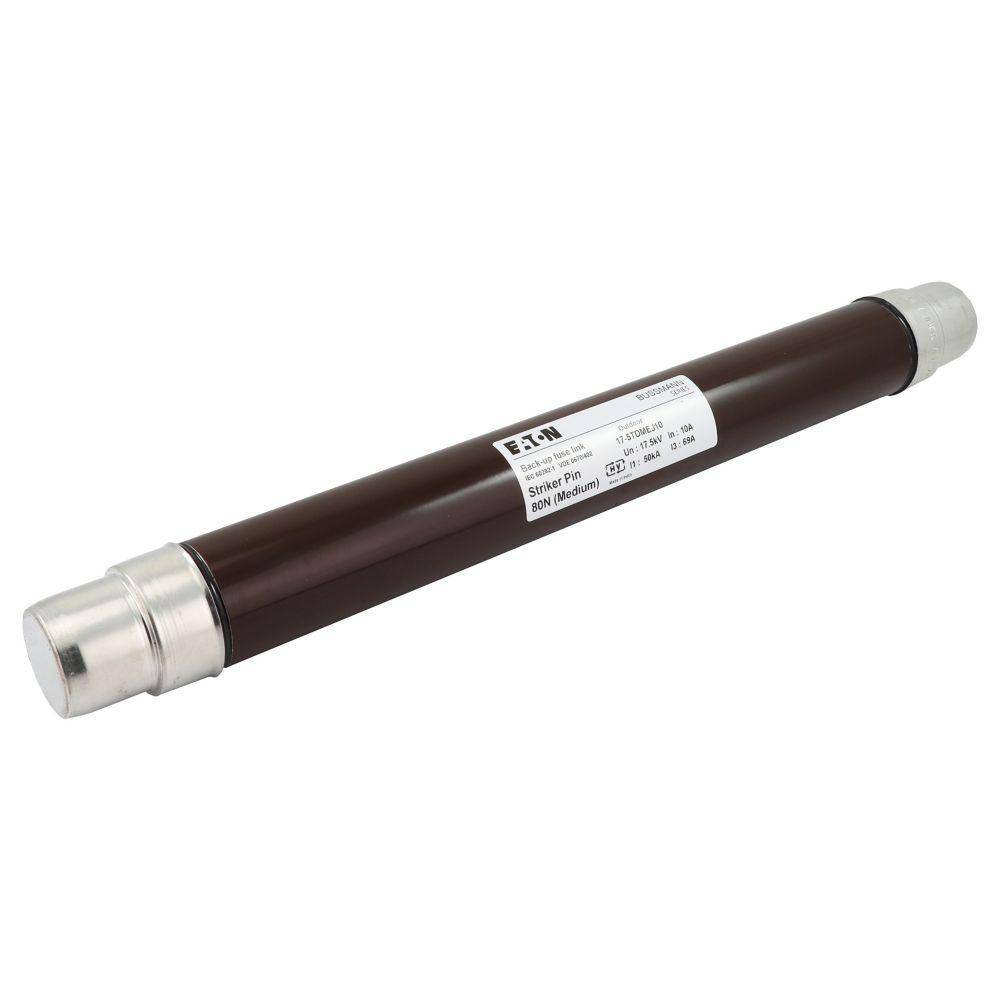

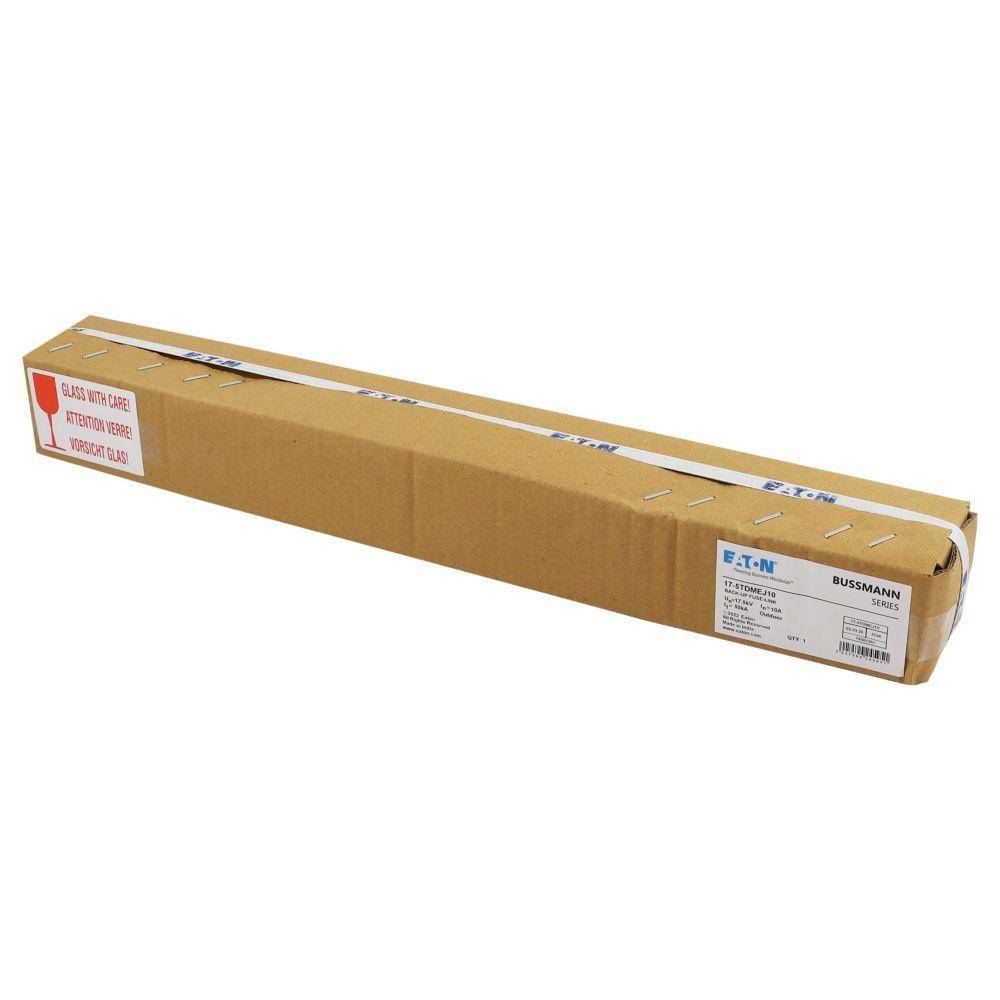

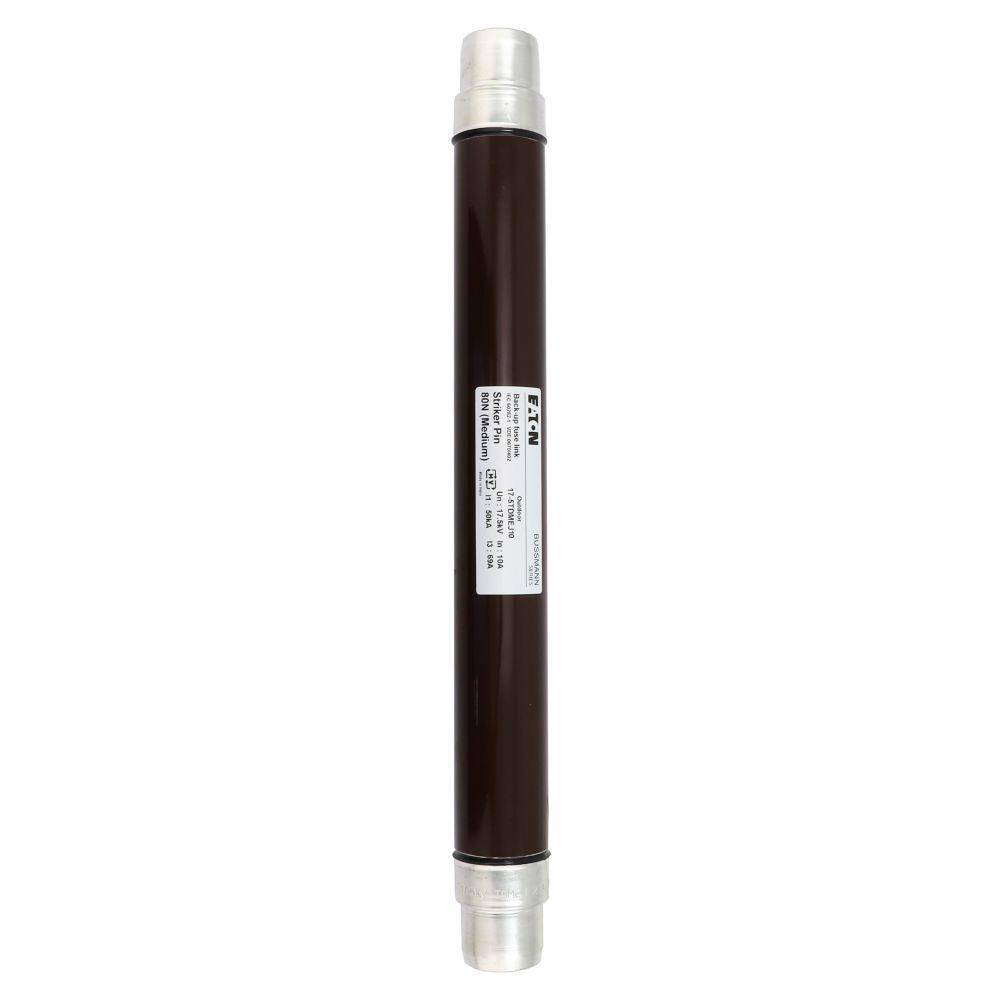

Edison 17.5TDMEJ10 T-Range Back-Up Medium Voltage Current Limiting Fuse Link, 17.5 kV, 10 A

Short Description

A range of medium voltage DIN Fuse links, complete with sealed striker, suitable for transformer protection. The fuse links can be used even when there is no secondary low voltage protection, provided they are used with fuse switches fitted with instantaneous striker tripping.

Edison Current Limiting Fuse Link, T-Range Back-Up Medium Voltage, 17.5 kV, 10 A, Rated Breaking Capacity: 50 kA, 51 mm Dia x 442 mm L
MFG #: 17.5TDMEJ10

EECO #: BU17.5TDMEJ10

Brand: Edison
UPC #: 051712186186
Attributes
Features
Documents
Product Information
Attributes
Color
Brown
UNSPSC
39121626
Application
For used with primary side transformer protection, fuse switch combination unit, fuse bases, fuse switches, outdoor and indoor applications
Voltage Rating
17.5
Frequency Rating
50/60
Type
T-Range Back-Up Medium Voltage
Series
TDMEJ
Dimensions
51 mm Dia x 442 mm L
Amperage Rating
10
Features
  • Cool running, low watts loss and power dissipation thanks to the m-effect ensuring high levels of substation utilization
  • Silver elements ensuring high conductivity and low power (revenue) loss
  • 100% X-Ray, all our medium voltage fuse links are X-Rayed ensuring the highest possible standards are maintained
