Eaton

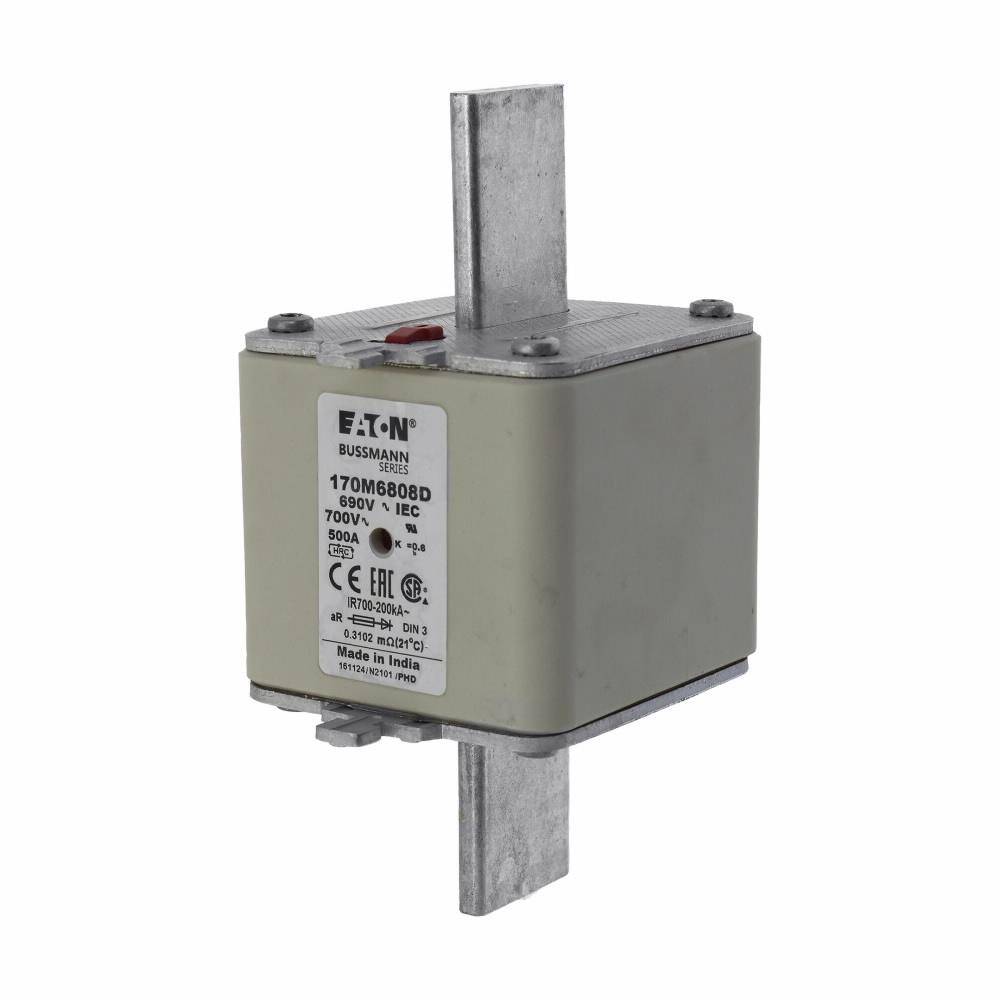

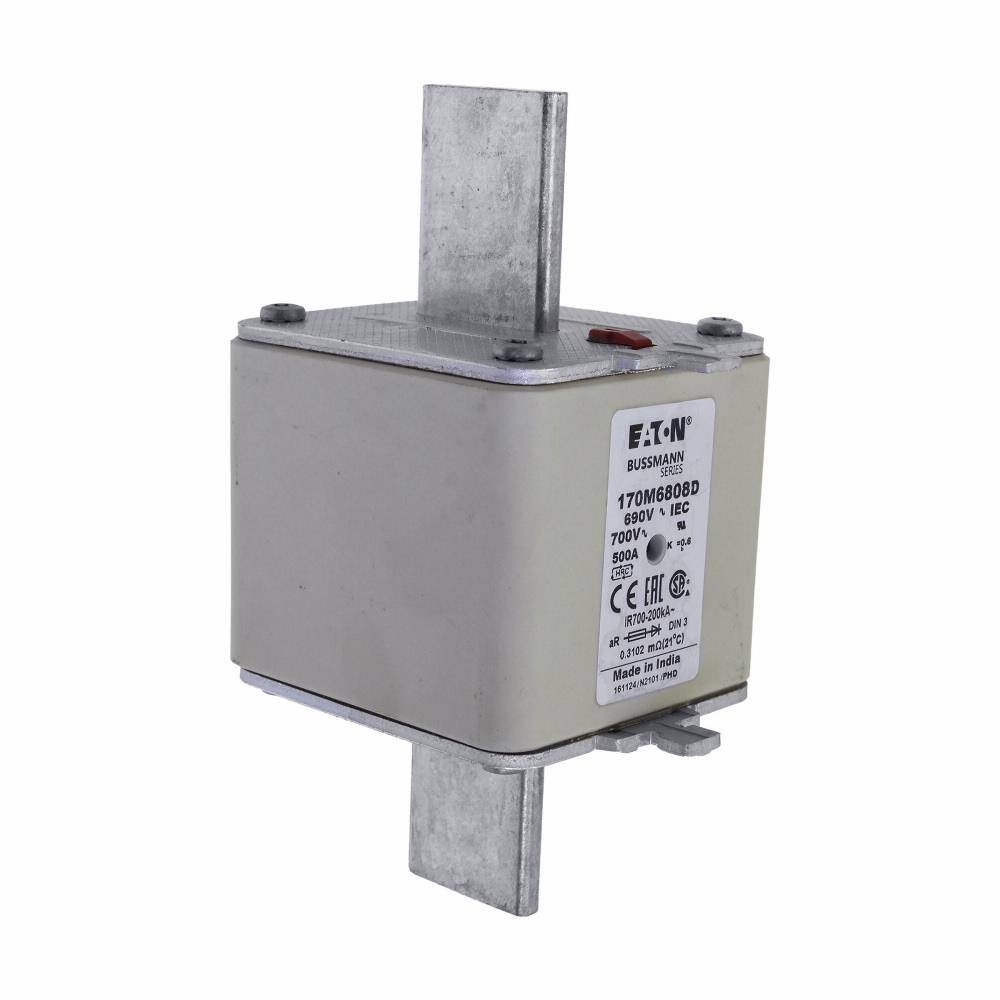

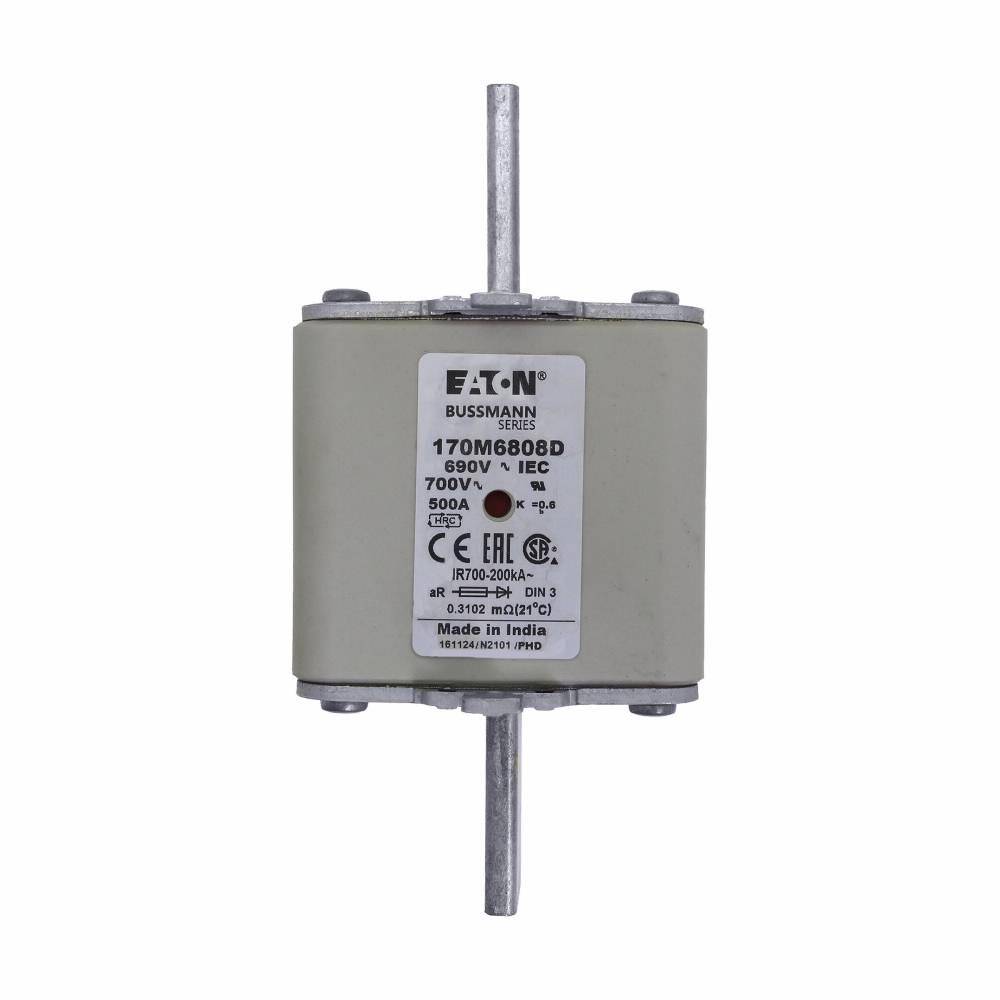

Edison 170M6808D High Speed Fuse, 500 A, 700 V, 200 kA Interrupt, Class: aR, Square Body

Short Description

Square body DIN 43620 blade high speed fuses with dual indicator system: one indicator in the fuse body and another one in the metallic end plate. Interchangeable with existing high speed DIN 43620 fuses for the protection of UPS, soft starters, solid state relays, variable speed drives, rectifiers and inverters.

Edison High Speed Fuse, Series: 170M, Indicating/Non-Indicating: Non-Indicating, 500 A, 700 V, 200 kA Interrupt, Class: aR, Square Body, 150 mm L x 71 mm W Body Size
MFG #: 170M6808D

EECO #: BU170M6808D

Brand: Edison
UPC #: 051712335218
Attributes
Features
Documents
Product Information
Attributes
Class
AR
UNSPSC
39121625
Application
For the protection of UPS, soft starters, solid state relays, variable speed drives, rectifiers and inverters
Terminal Type
Din 43 620 Blade
Voltage Rating
700
Type
Semi-Conductor
Series
170M
Amperage Rating
500
Features
  • Dual indicator fuses
  • DIN type T indicator for microswitch
170M3813D_RoHS_01
170M6808D_Specification_Sheet_01
