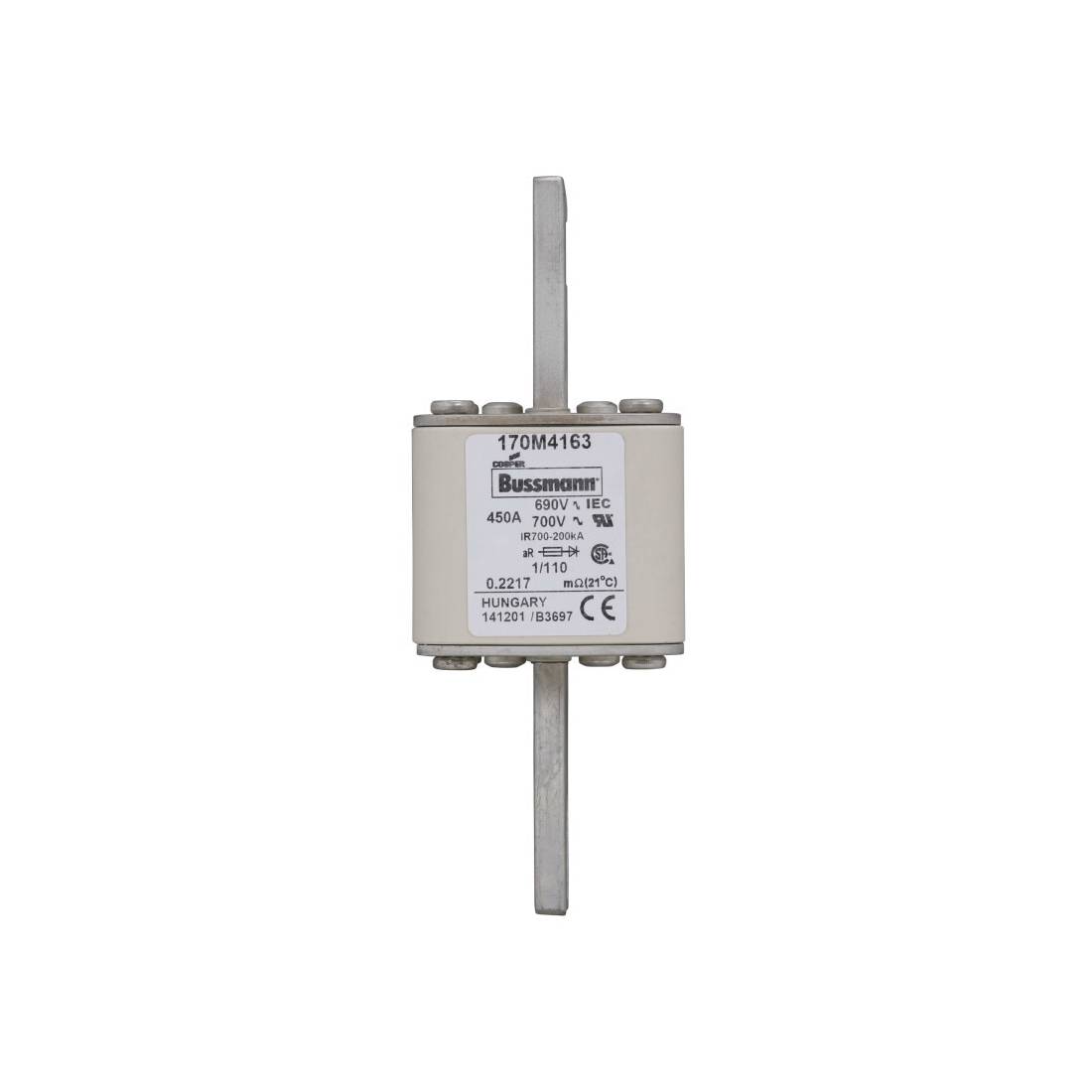

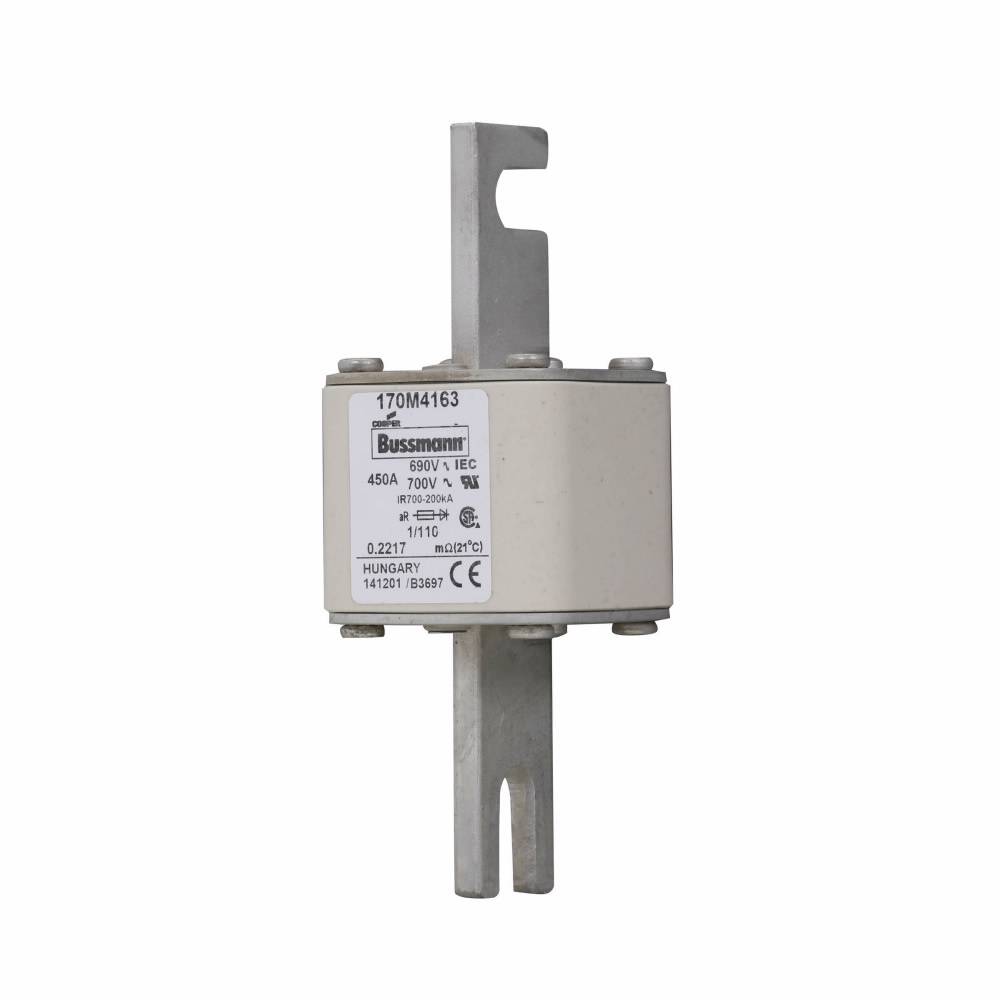

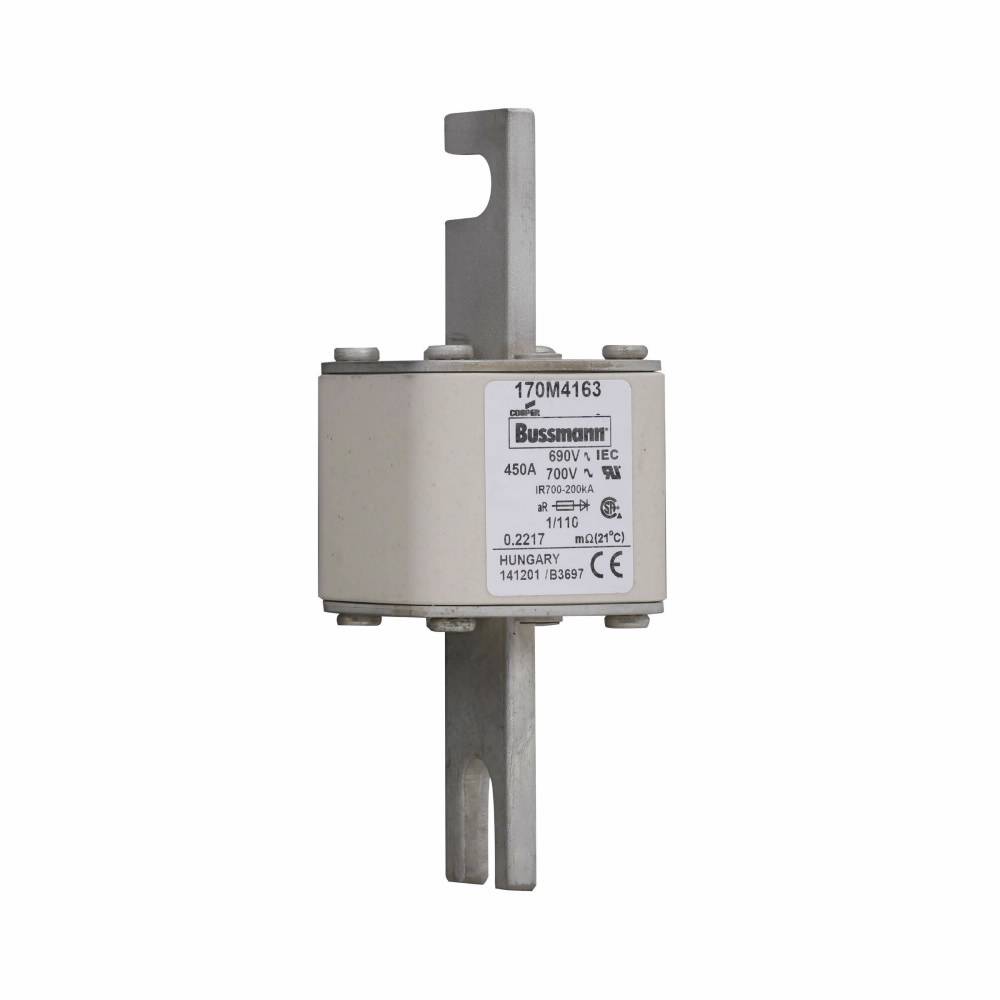

Bussmann 170M4163 Type 110 High Speed Fuse, 450 A, 690 V, 200 kA Interrupt, Class: aR, Square Body
Bussmann 170M4163 Type 110 High Speed Fuse, 450 A, 690 V, 200 kA Interrupt, Class: aR, Square Body
Bussmann 170M4163 Type 110 High Speed Fuse, 450 A, 690 V, 200 kA Interrupt, Class: aR, Square Body
Bussmann 170M4163 Type 110 High Speed Fuse, 450 A, 690 V, 200 kA Interrupt, Class: aR, Square Body
Bussmann 170M4163 Type 110 High Speed Fuse, 450 A, 690 V, 200 kA Interrupt, Class: aR, Square Body
Bussmann 170M4163 Type 110 High Speed Fuse, 450 A, 690 V, 200 kA Interrupt, Class: aR, Square Body
Bussmann 170M4163 Type 110 High Speed Fuse, 450 A, 690 V, 200 kA Interrupt, Class: aR, Square Body
Bussmann 170M4163 Type 110 High Speed Fuse, 450 A, 690 V, 200 kA Interrupt, Class: aR, Square Body
Bussmann 170M4163 Type 110 High Speed Fuse, 450 A, 690 V, 200 kA Interrupt, Class: aR, Square Body
Bussmann 170M4163 Type 110 High Speed Fuse, 450 A, 690 V, 200 kA Interrupt, Class: aR, Square Body
Bussmann 170M4163 Type 110 High Speed Fuse, 450 A, 690 V, 200 kA Interrupt, Class: aR, Square Body
Bussmann 170M4163 Type 110 High Speed Fuse, 450 A, 690 V, 200 kA Interrupt, Class: aR, Square Body
Share Share Print Print
Eaton

Bussmann 170M4163 Type 110 High Speed Fuse, 450 A, 690 V, 200 kA Interrupt, Class: aR, Square Body

Short Description

690/700 VAC, 450 A, Blade Terminal, Square, High Speed Fuse

Bussmann High Speed Fuse, Type 110, Series: 170M, Indicating, 450 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade End Terminal, Busbar Mounting, Square Body, Ceramic, 138 mm L x 53 mm W x 66 mm H Body
MFG #: 170M4163

EECO #: BU170M4163

Brand: Bussmann
UPC #: 051712257893
Attributes
Features
Documents
Product Information
Attributes
Class
AR
UNSPSC
39121625
Approval
UL, CSA, CCC, CE
Material
Ceramic
Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power
Mounting Type
Busbar
Terminal Type
Blade End
Current Rating
450 Amp
Voltage Rating
690
Characteristics
High Speed
Frequency Rating
45 to 1000
Interrupting Rating
200 Kiloamp (Symmetrical)
Type
Type 110
Series
170M
Amperage Rating
450
Features
  • Excellent DC performance
  • Low arc voltage and low energy let-through
  • Low wattage loss
  • Superior cycling capability
