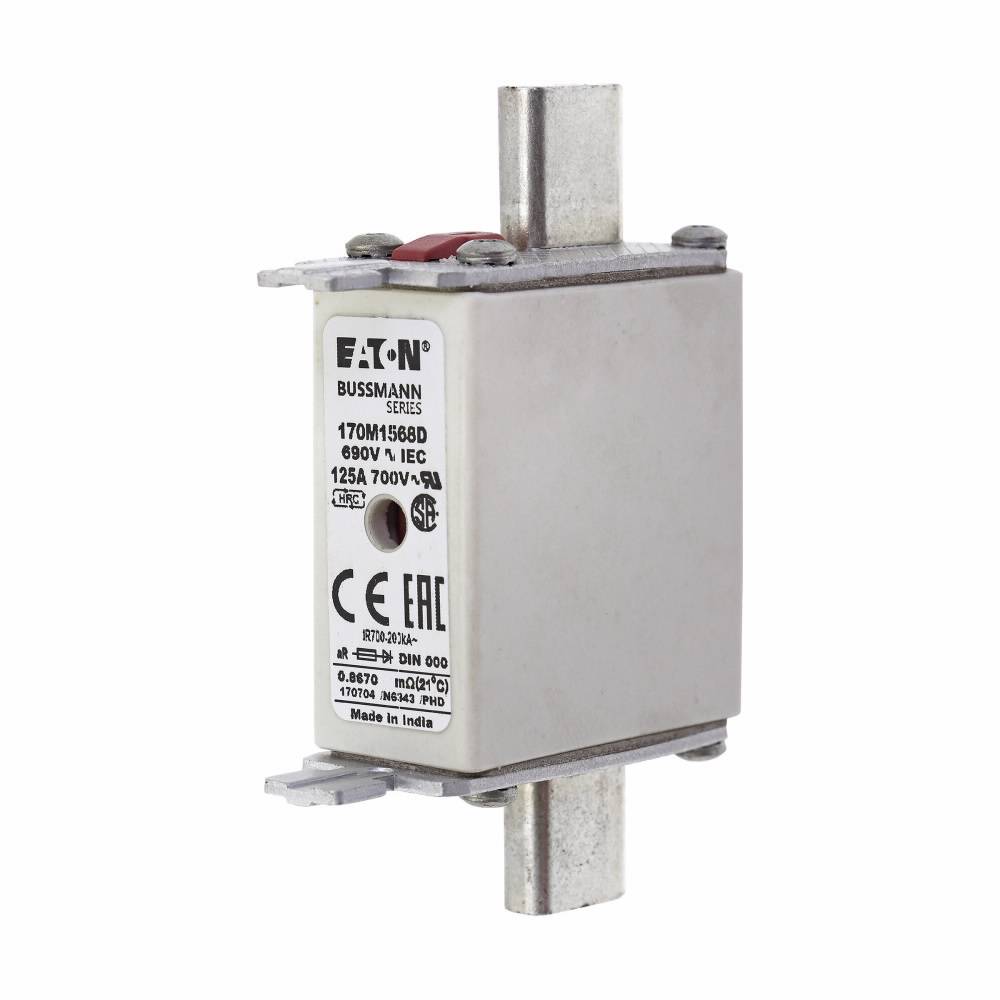

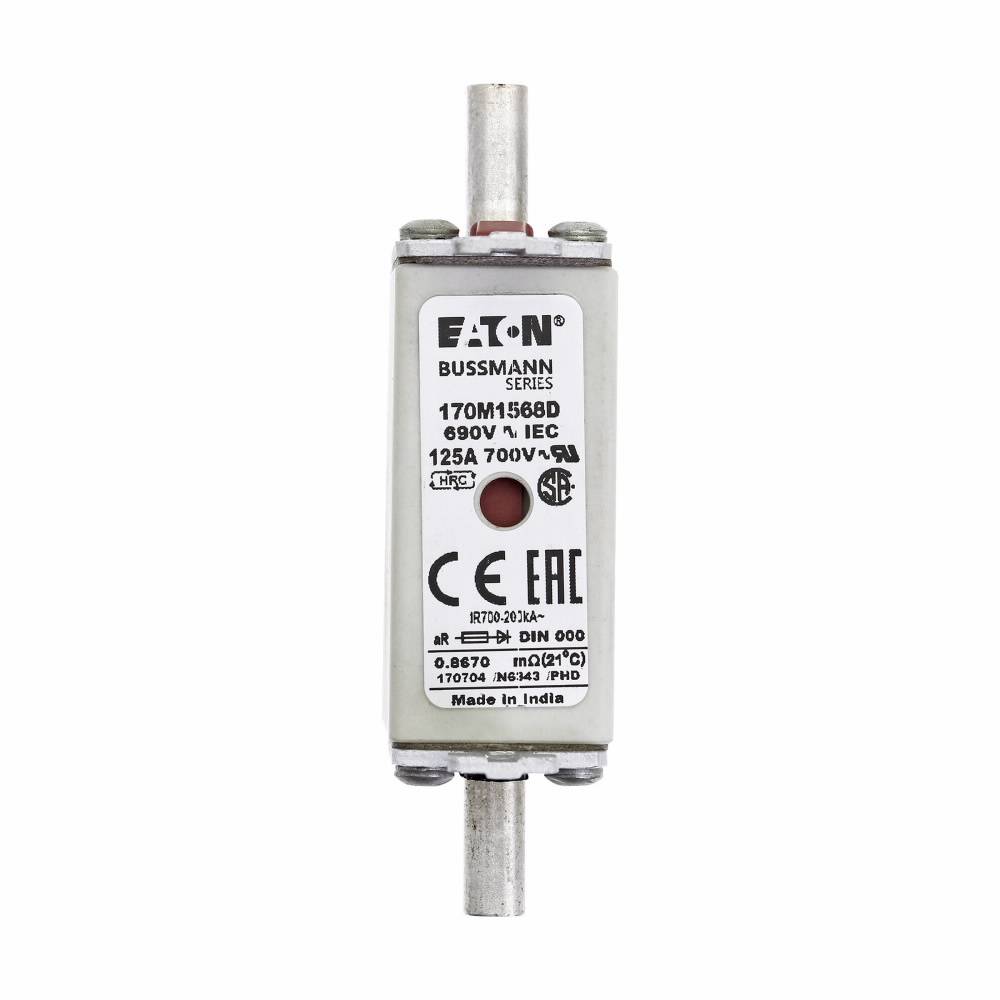

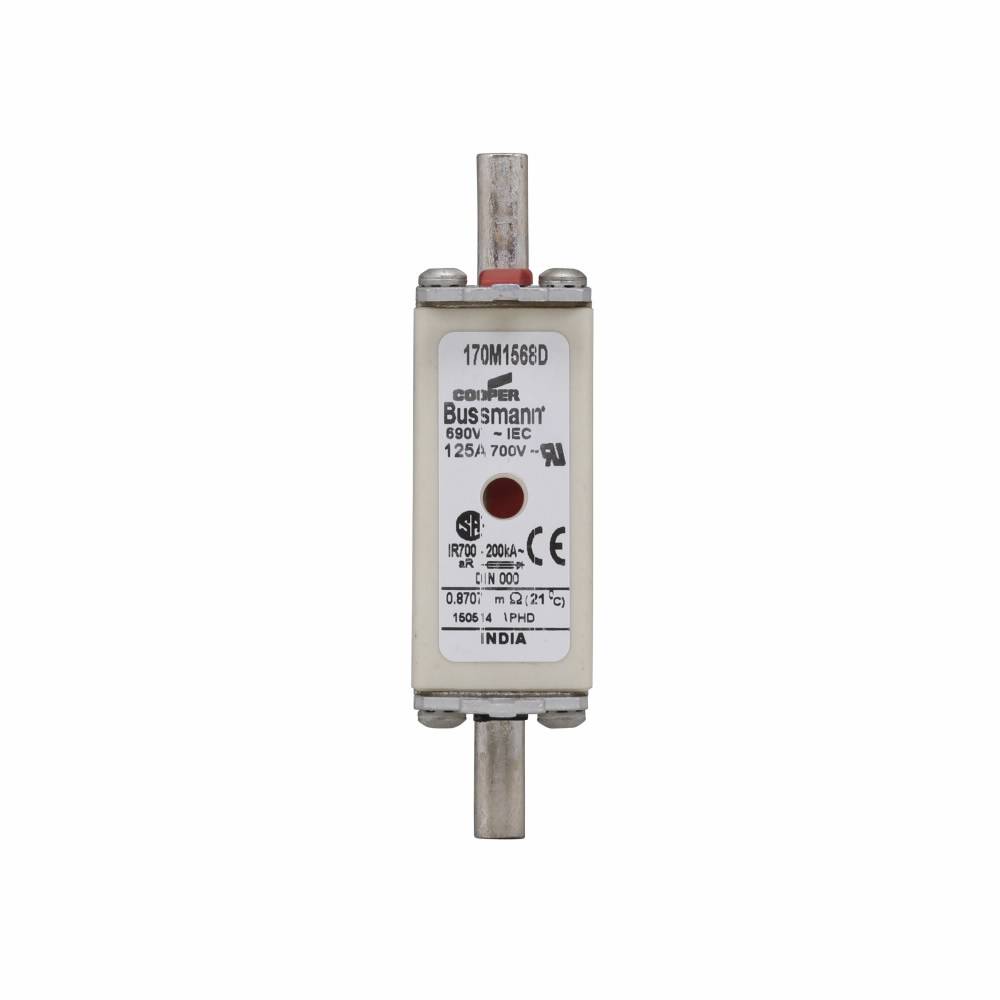

Edison 170M1568D High Speed Fuse, 125 A, 690 VAC, 200 kA Interrupt, Class: AR, Square Body

Short Description

690/700 VAC, 125 A, Blade Terminal, Square, High Speed Fuse

Edison High Speed Fuse, 125 A, 690 VAC, 200 kA Interrupt, Class: AR, Blade Terminal, Stud Mounting, Square Body, 79 mm L x 21 mm W x 48 mm H Body

MFG #: 170M1568D

EECO #: BU170M1568D

Brand: Edison
UPC #: 051712334532
Attributes
Features
Documents
Product Information
Attributes
Class
AR
UNSPSC
39121625
Approval
UL, CSA, CE
Material
Ceramic
Application
DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications
Mounting Type
Stud
Terminal Type
Blade
Current Rating
125 Amp
Voltage Rating
690
Characteristics
High Speed
Frequency Rating
45 to 1000
Interrupting Rating
200 Kiloamp (Symmetrical)
Type
Square Body Type T
Series
170M
Amperage Rating
125
Features
  • Excellent DC performance
  • Low arc voltage
  • Superior cycling capability
  • Designated size 00
