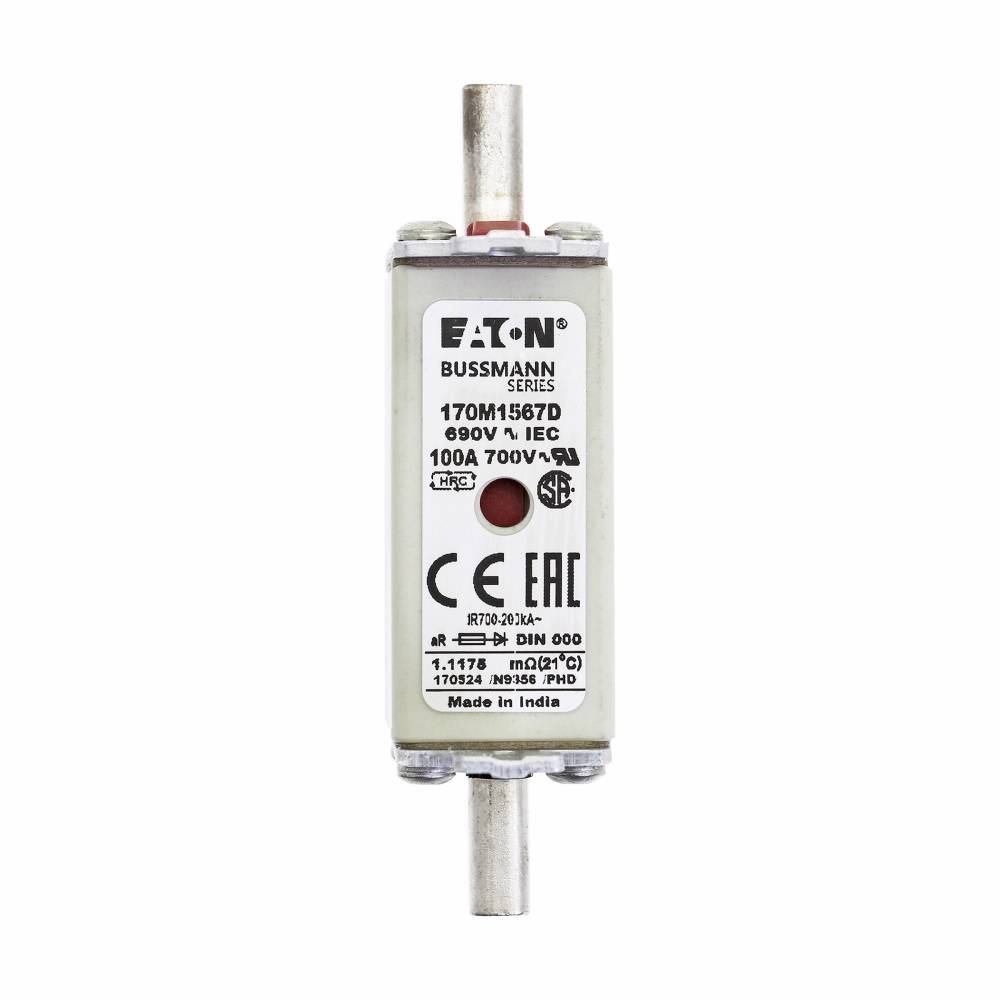

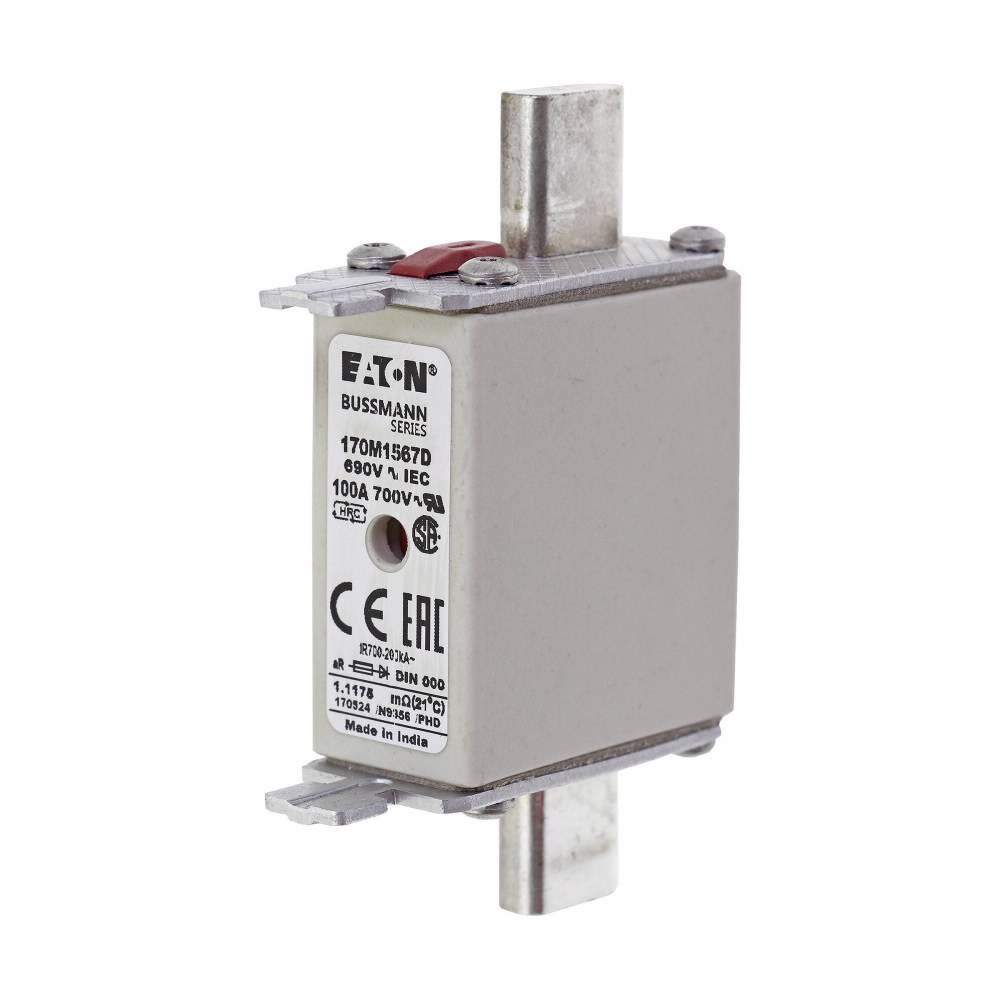

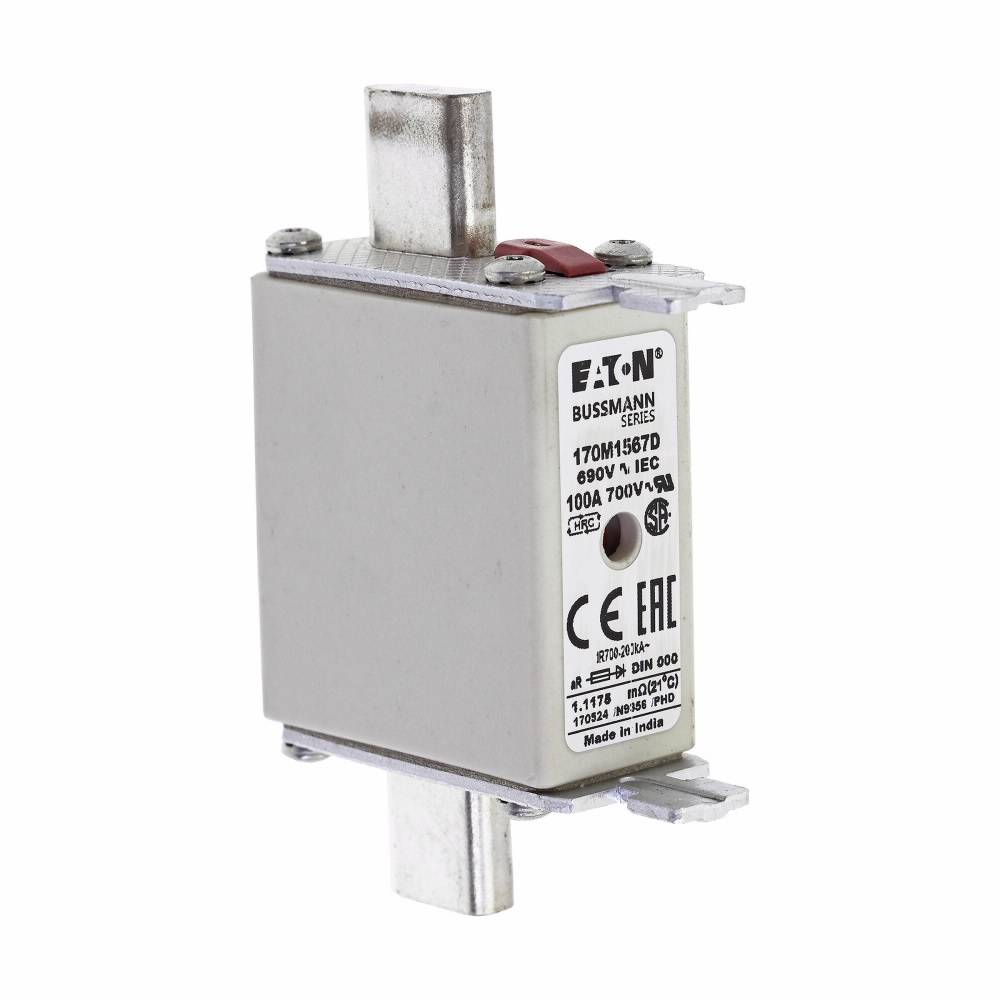

Edison 170M1567D High Speed Fuse, 100 A, 690 VAC, 200 kA Interrupt, Class: AR, Square Blade Body

Short Description

690/700 VAC, 100 A, Blade Terminal, Square, High Speed Fuse

Edison High Speed Fuse, 100 A, 690 VAC, 200 kA Interrupt, Class: AR, Bolted-Down Terminal, Stud Mounting, Square Blade Body, 79 mm L x 21 mm W x 48 mm H Body

MFG #: 170M1567D

EECO #: BU170M1567D

Brand: Edison
UPC #: 051712334860
Attributes
Features
Documents
Product Information
Attributes
Class
AR
UNSPSC
39121625
Approval
UL, CSA, CE
Material
Ceramic
Application
DC Common Bus, DC Drives, Power Converters/Rectifiers and Reduced Voltage Starters Applications
Mounting Type
Stud
Terminal Type
Bolted-Down
Current Rating
100 Amp
Voltage Rating
690
Characteristics
High Speed
Frequency Rating
45 to 1000
Interrupting Rating
200 Kiloamp (Symmetrical)
Type
Square Body Type T
Series
170M
Amperage Rating
100
Features
  • Excellent DC performance
  • Low arc voltage and low energy let through
  • Low watts loss
  • Superior cycling capability
