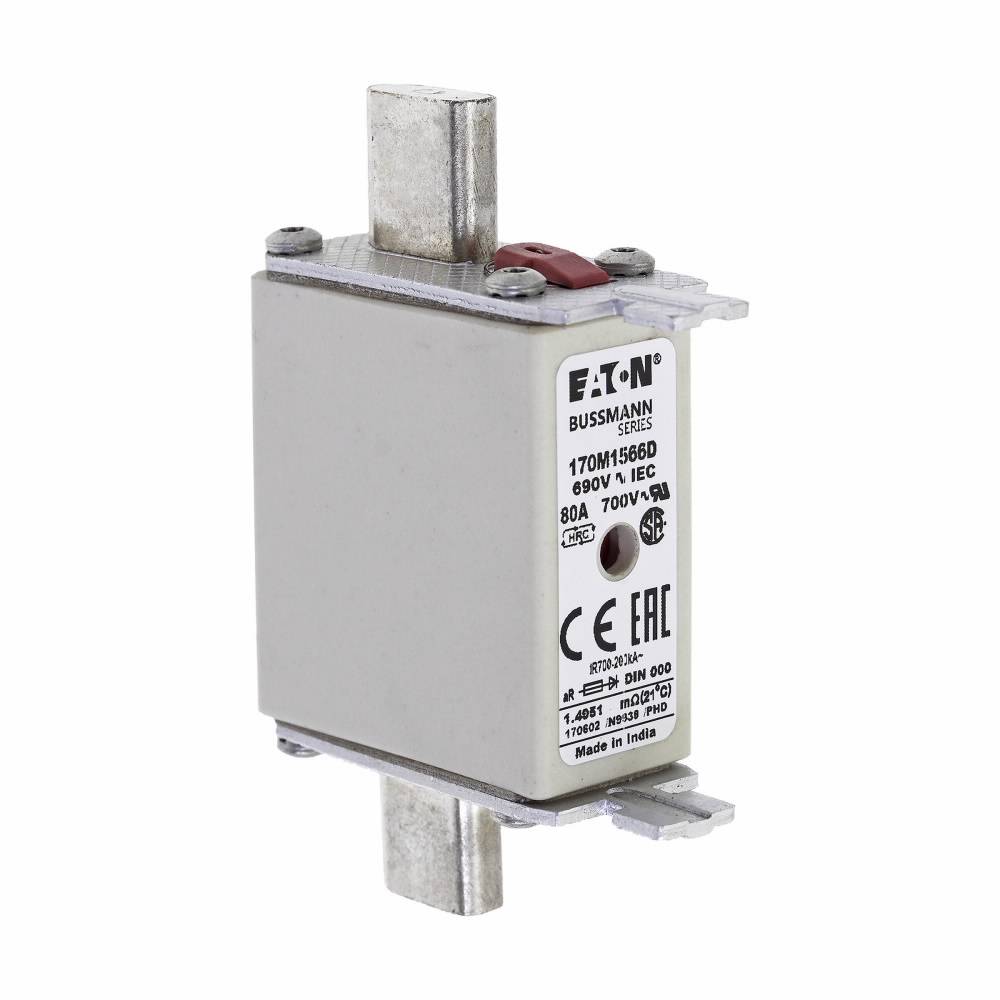

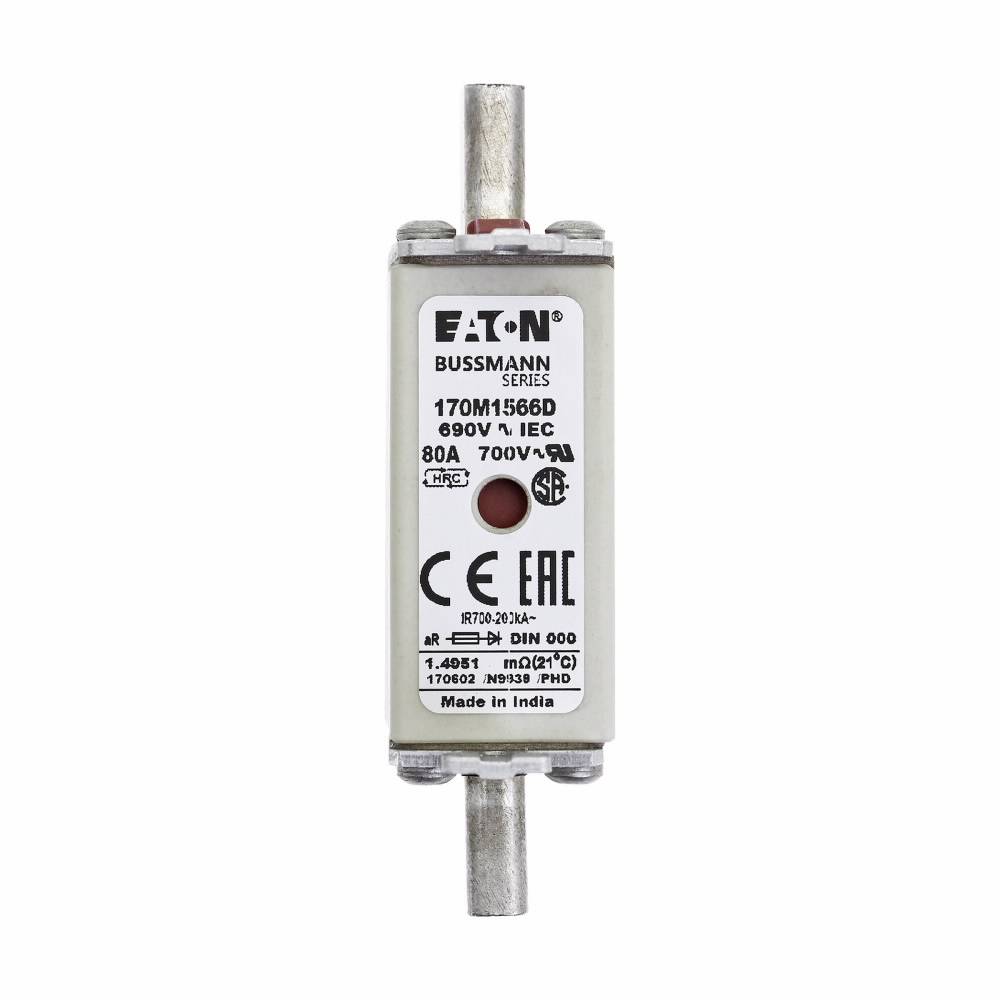

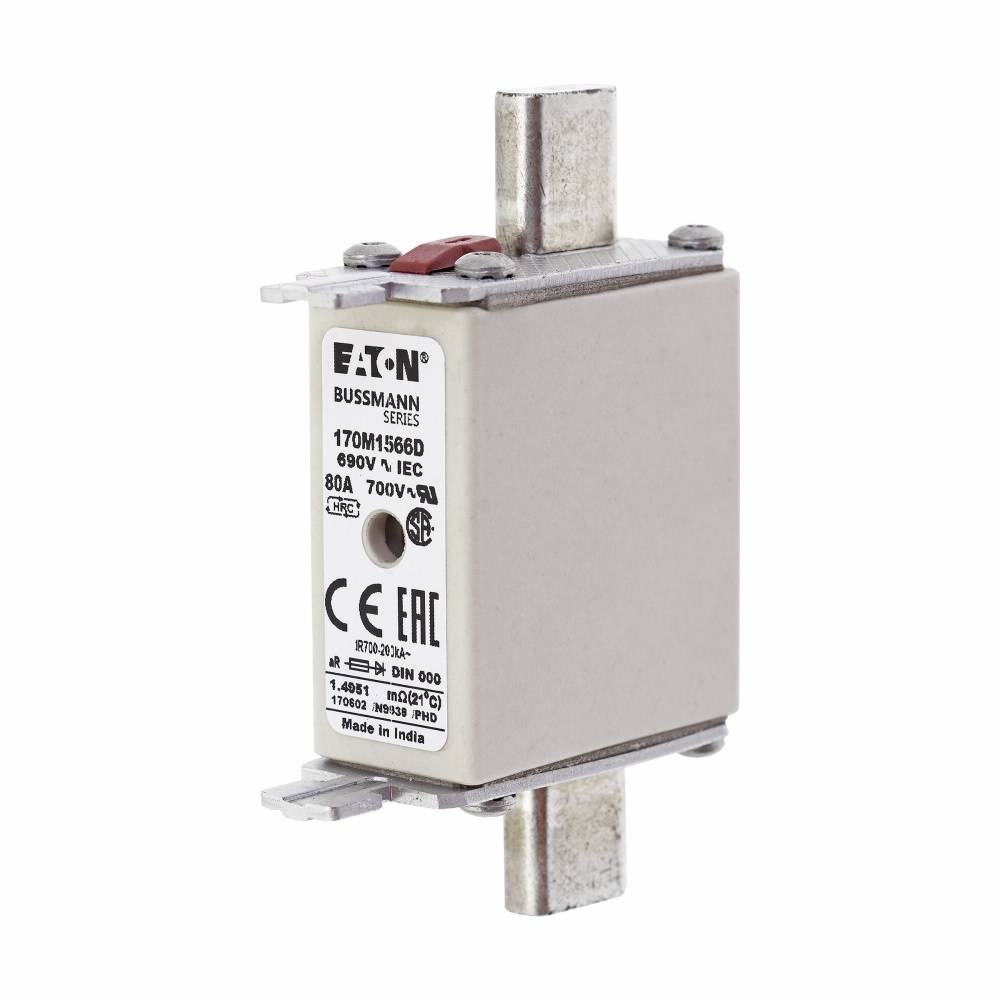

Edison 170M1566D Type T High Speed Fuse, 80 A, 690/700 VAC, 200 kA Interrupt, Class: AR, Square Body

Short Description

690/700 VAC, 80 A, Blade Terminal, Square, High Speed Fuse

Edison High Speed Fuse, Type T, Series: 170M, Non-Indicating, 80 A, 690/700 VAC, 200 kA Interrupt, Class: AR, Blade Terminal, Stud Mount, Square Body Type, Dual Element, 79 mm L x 21 mm W x 49.7 mm H Body Size

MFG #: 170M1566D

EECO #: BU170M1566D

Brand: Edison
UPC #: 051712334976
Attributes
Features
Documents
Product Information
Attributes
Class
AR
UNSPSC
39121625
Approval
UL, CSA, CE
Material
Ceramic
Application
DC Common Bus, DC Drives, Power Converters/Rectifiers and Reduced Voltage Starters Applications
Mounting Type
Stud
Terminal Type
Blade
Current Rating
80 Amp
Voltage Rating
690/700
Characteristics
High Speed
Frequency Rating
45 to 1000
Interrupting Rating
200 Kiloamp (Symmetrical)
Type
Type T
Series
170M
Amperage Rating
80
Features
  • Excellent DC performance
  • Low arc voltage and low energy let through
  • Low watts loss
  • Superior cycling capability
  • Designated size 00
  • Square body DIN 43620 blade high speed fuses with dual indicator system one indicator in the fuse body and another one in the metallic end plate
  • Interchangeable with existing high speed DIN 43620 fuses for the protection of UPS, soft starters, solid state relays, variable speed drives, rectifiers and inverters
