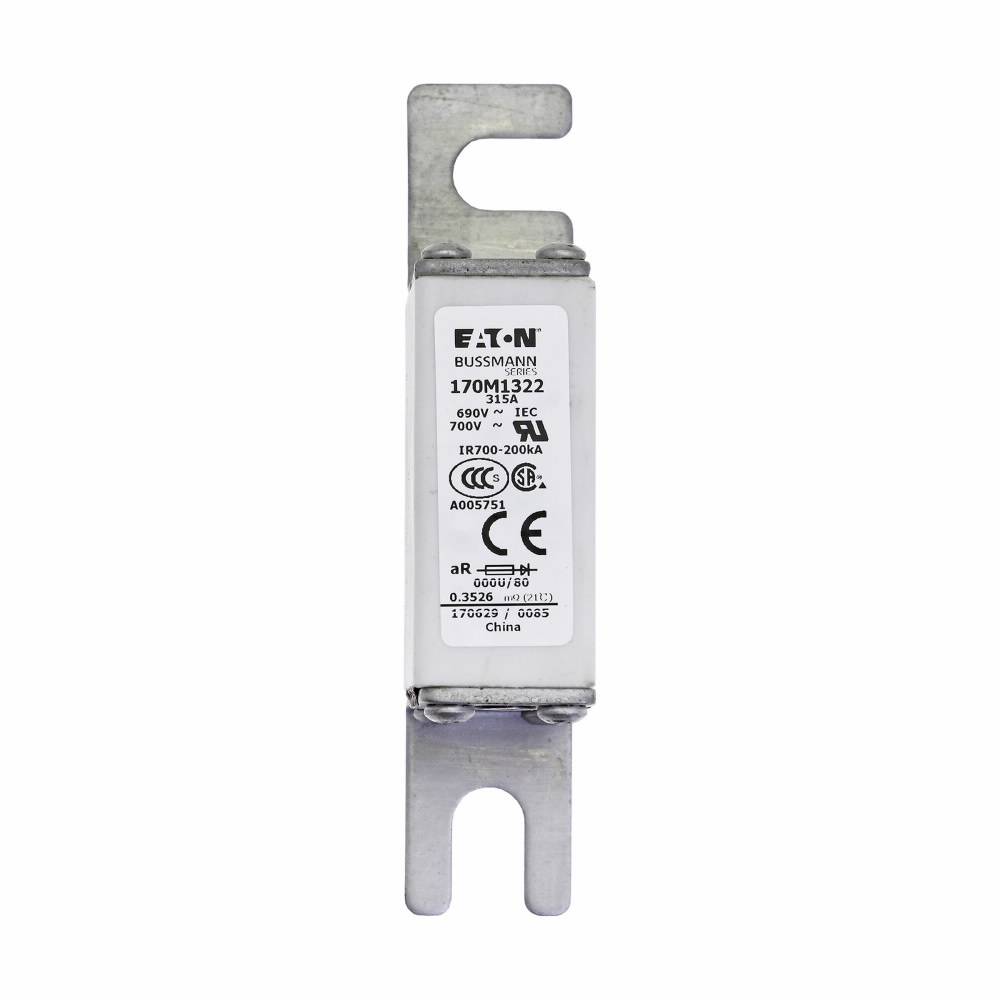

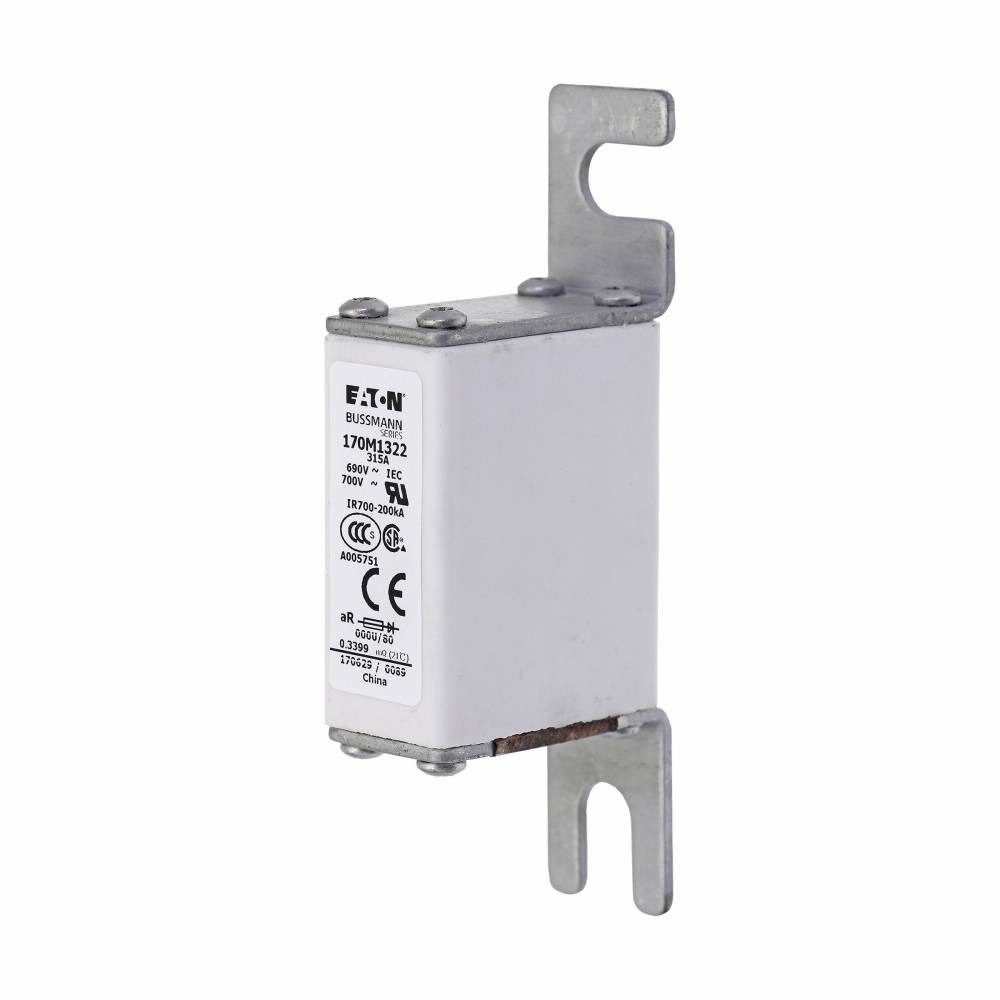

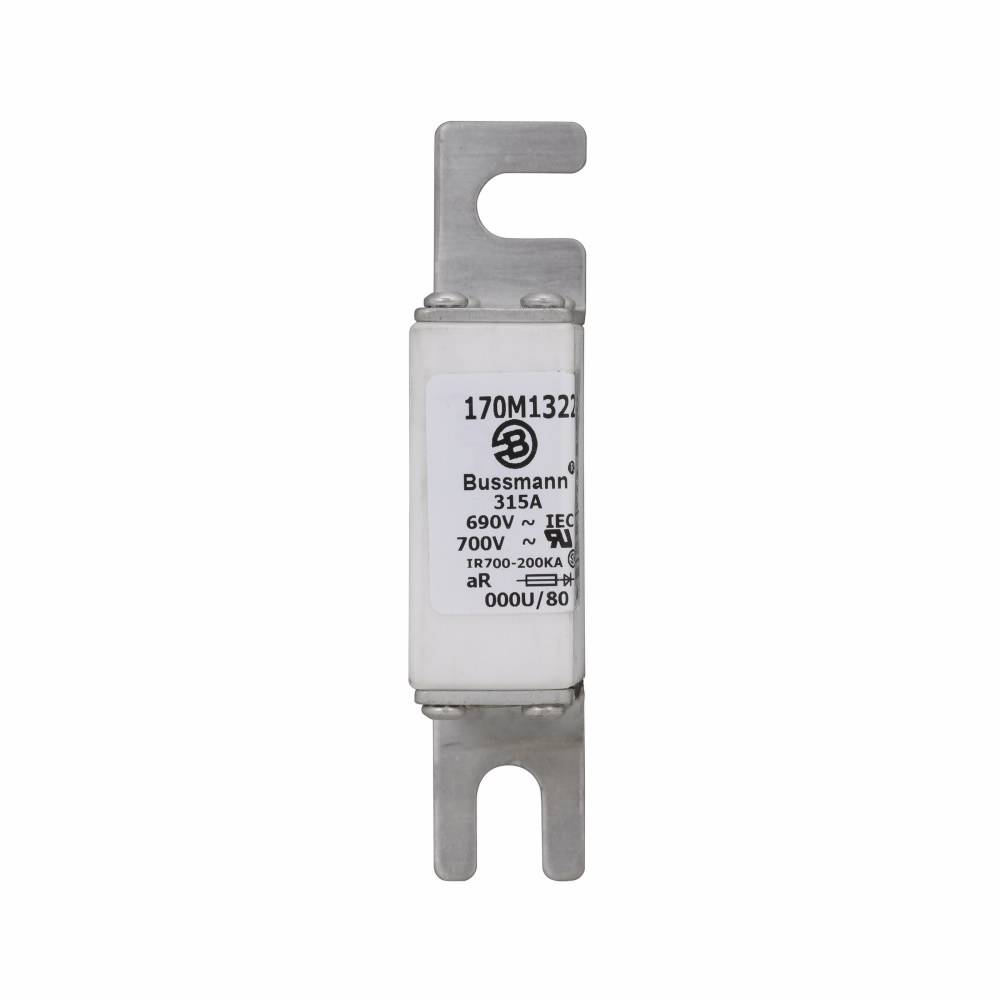

Bussmann 170M1322 Type U/80 High Speed Fuse, 315 A, 690 VAC, 200 kA Interrupt, Class: aR, Square Body

Short Description

690 VAC, 700 VAC/VDC, 315 A, Blade Terminal, Square, Semiconductor, High Speed Fuse

Bussmann High Speed Fuse, Type U/80, Series: 170M, Indicating/Non-Indicating: Non-Indicating, 315 A, 690 VAC, 200 kA Interrupt, Class: aR, 45 to 1000 Hz, Blade End Terminal, DIN 43 620 Mount, Square Body, Ceramic, 100 mm L x 21 mm W x 40 mm H Body Size

MFG #: 170M1322

EECO #: BU170M1322

Brand: Bussmann
UPC #: 051712216586
Attributes
Features
Documents
Product Information
Attributes
Class
AR
UNSPSC
39121625
Approval
UL, CSA, CCC, CE
Material
Ceramic
Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power
Mounting Type
DIN 43 620
Terminal Type
Blade End
Current Rating
315 Amp
Voltage Rating
690
Characteristics
High Speed
Frequency Rating
45 to 1000
Interrupting Rating
50 Kiloamp at 700 Volt DC
Type
Type U/80
Series
170M
Amperage Rating
315
Features
  • Excellent DC performance
  • Low arc voltage and low energy let-through
  • Low wattage loss
  • Superior cycling capability
