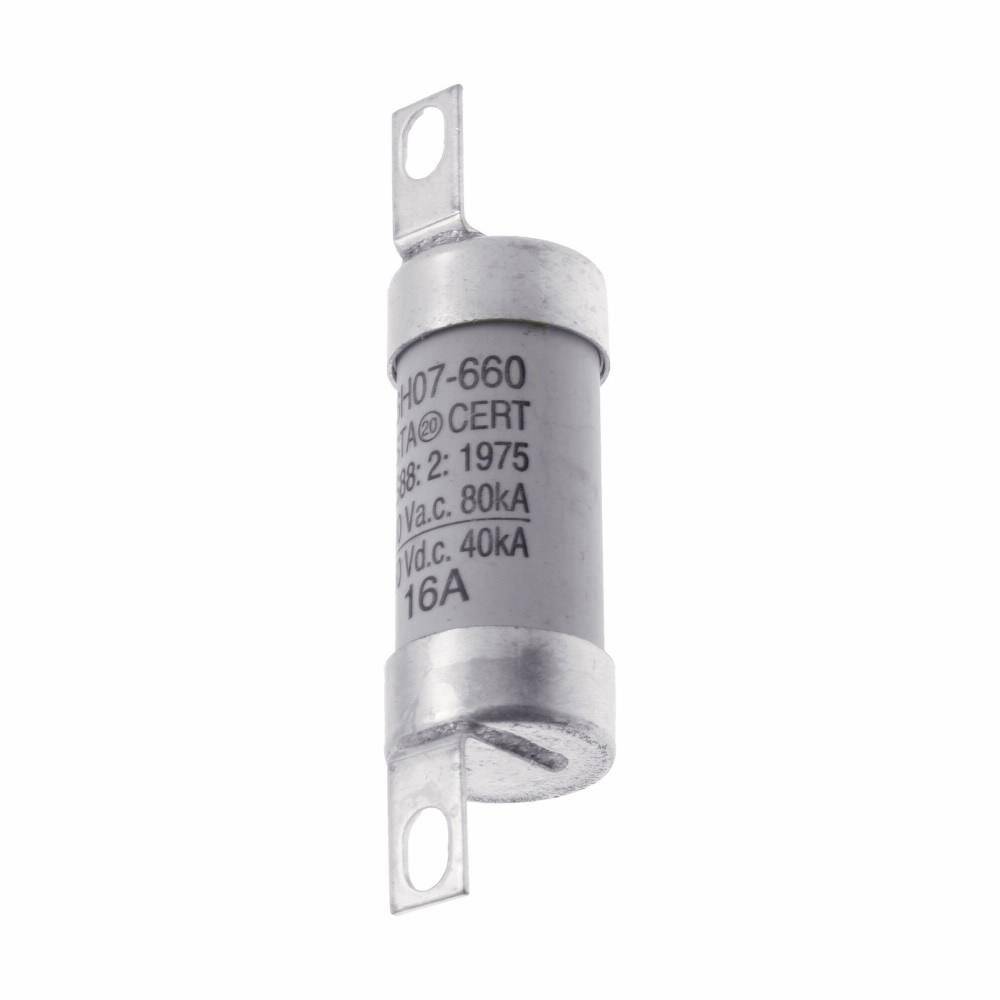

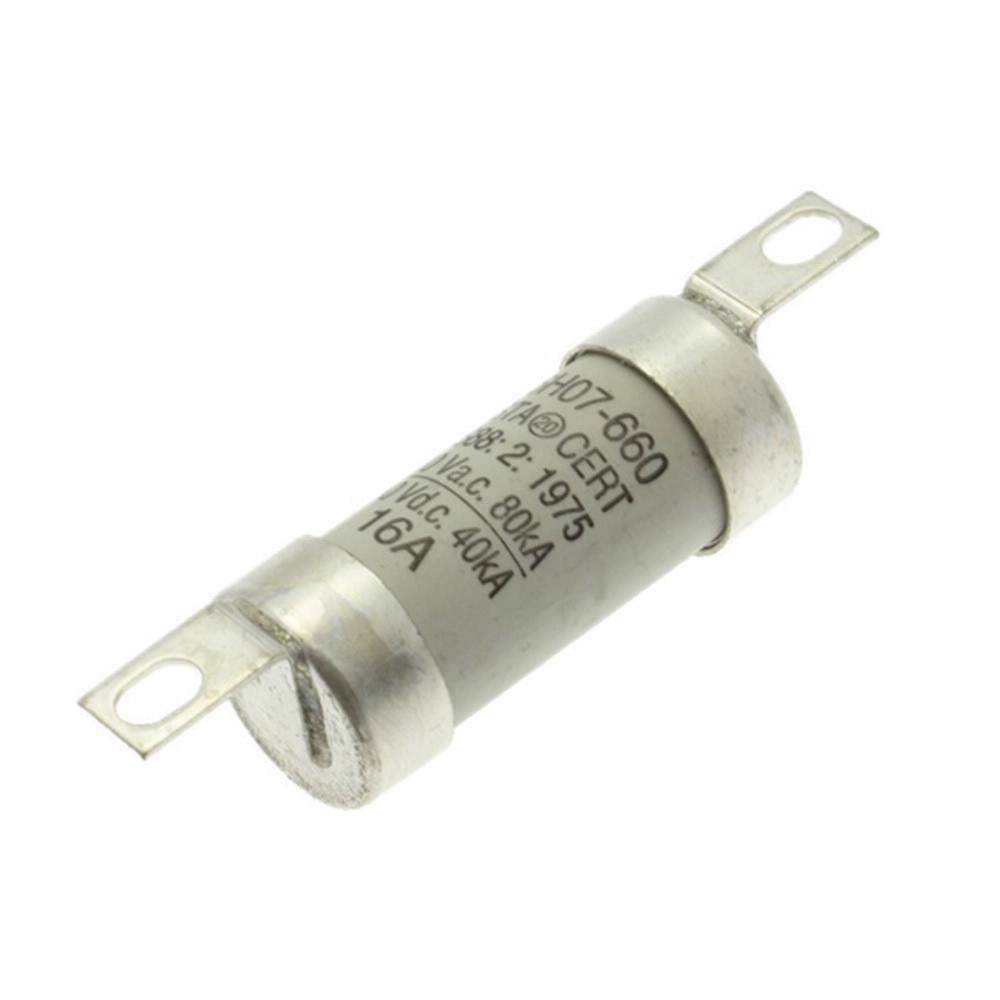

Edison 16H07-660 HRC Fuse Link, 690 VAC, 16 A

Short Description

Eaton's Bussmann British standard fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current, voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.

Edison HRC Fuse Link, 690 VAC, 16 A, Rated Breaking Capacity: 80 kA, 22 mm Dia x 82.3 mm L
MFG #: 16H07-660

EECO #: BU16H07660

Brand: Edison
UPC #: 051712674362
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121626
Application
Industrial Applications
Mounting Type
Stud
Voltage Rating
690
Type
Industrial
Series
H07-660
Dimensions
22 mm Dia x 82.3 mm L
Amperage Rating
16
Features
  • Good peak let-through current limitation
  • 1:1:6 selective coordination ratio between "minor" and "major" fuse
  • gG characteristics for cable protection and general purpose applications
  • Power loss values well within the limits of IEC 60269-2
  • RS32H red spot/CM32F CAMaster fuse holders sold separately
25H07_660_RoHS_01
25H07_660_Specification_Sheet_02
