Eaton

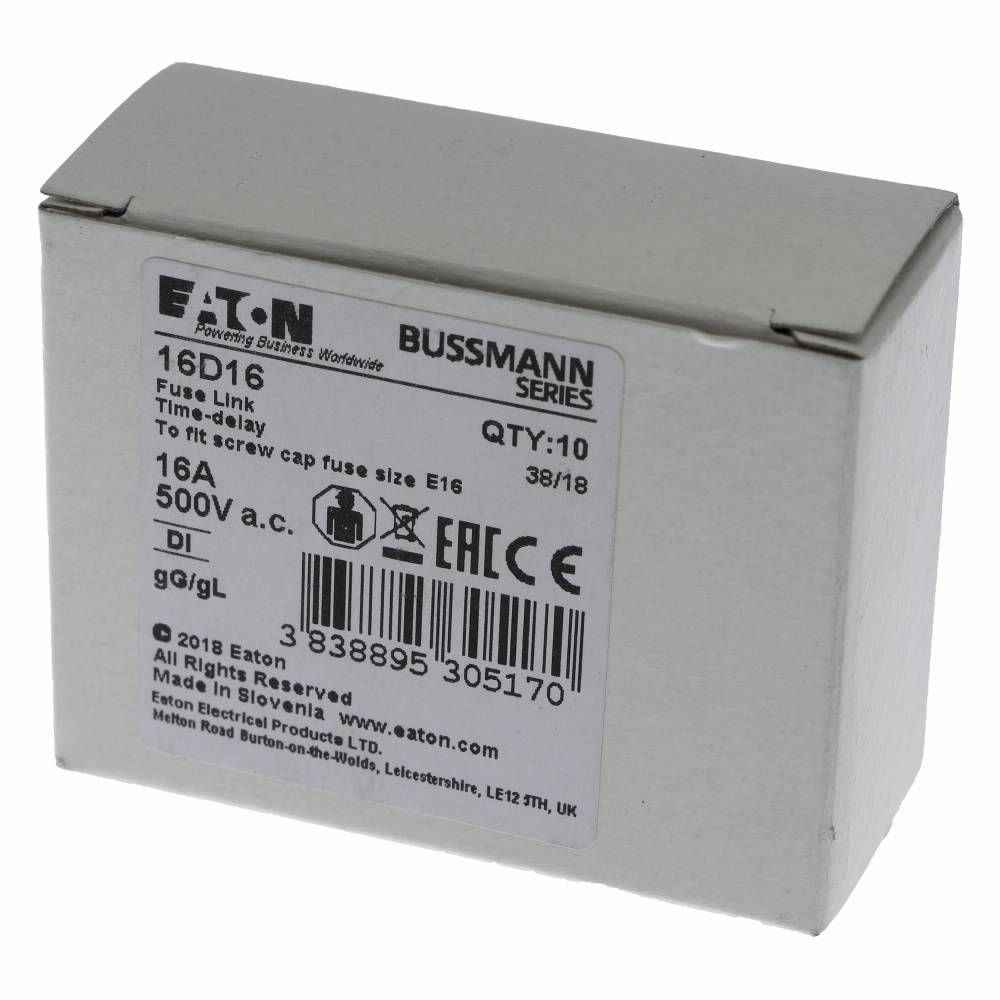

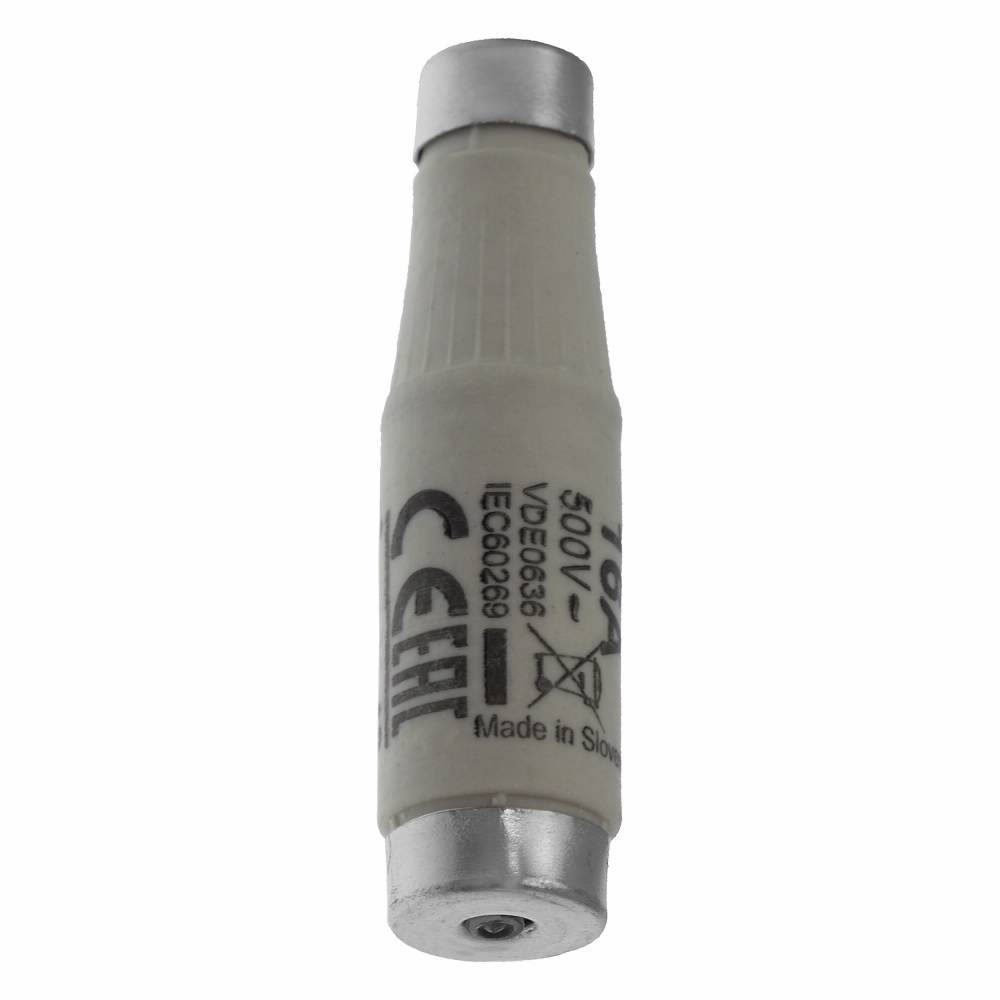

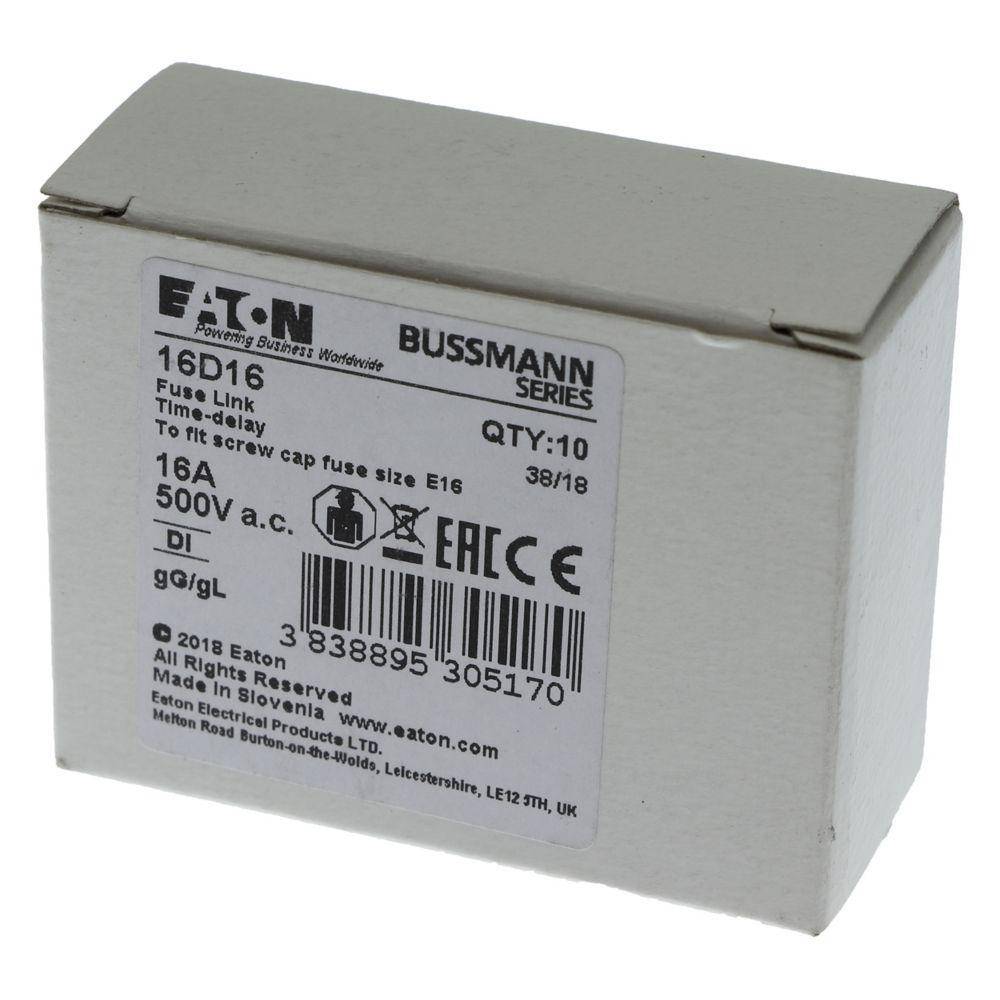

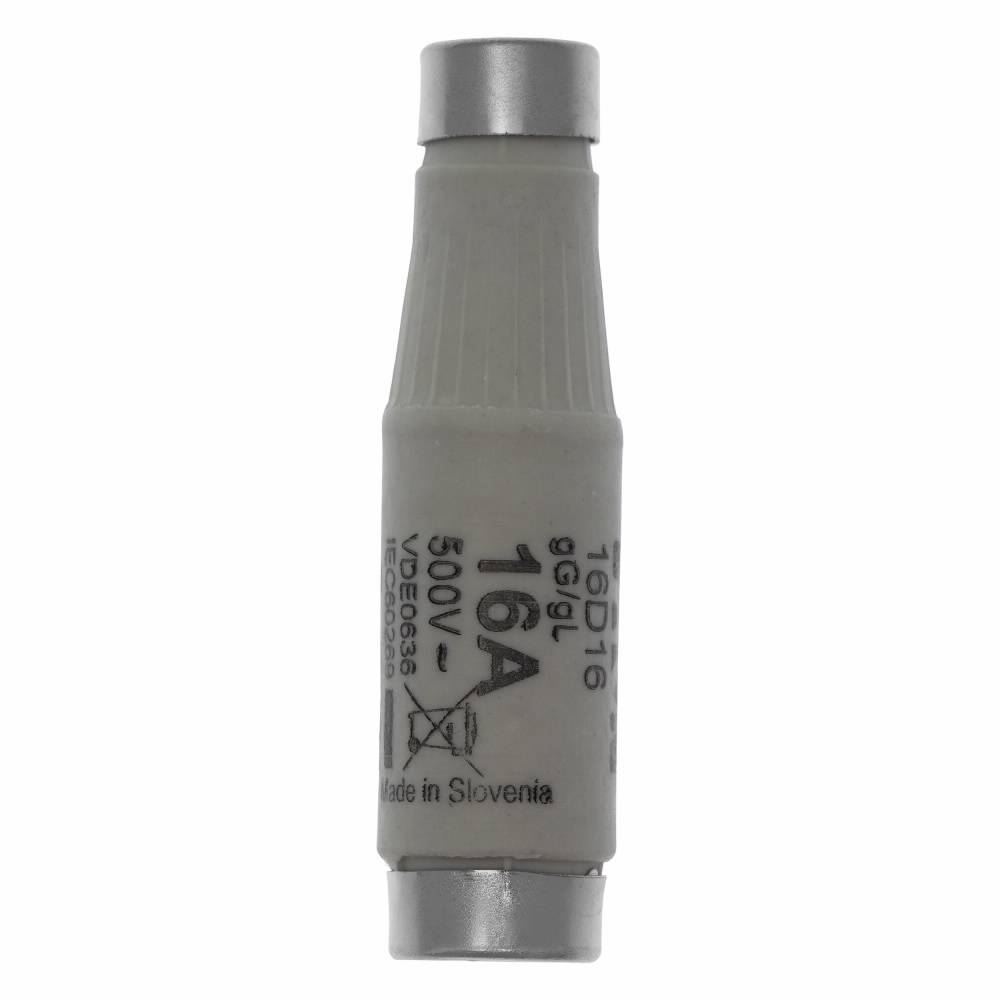

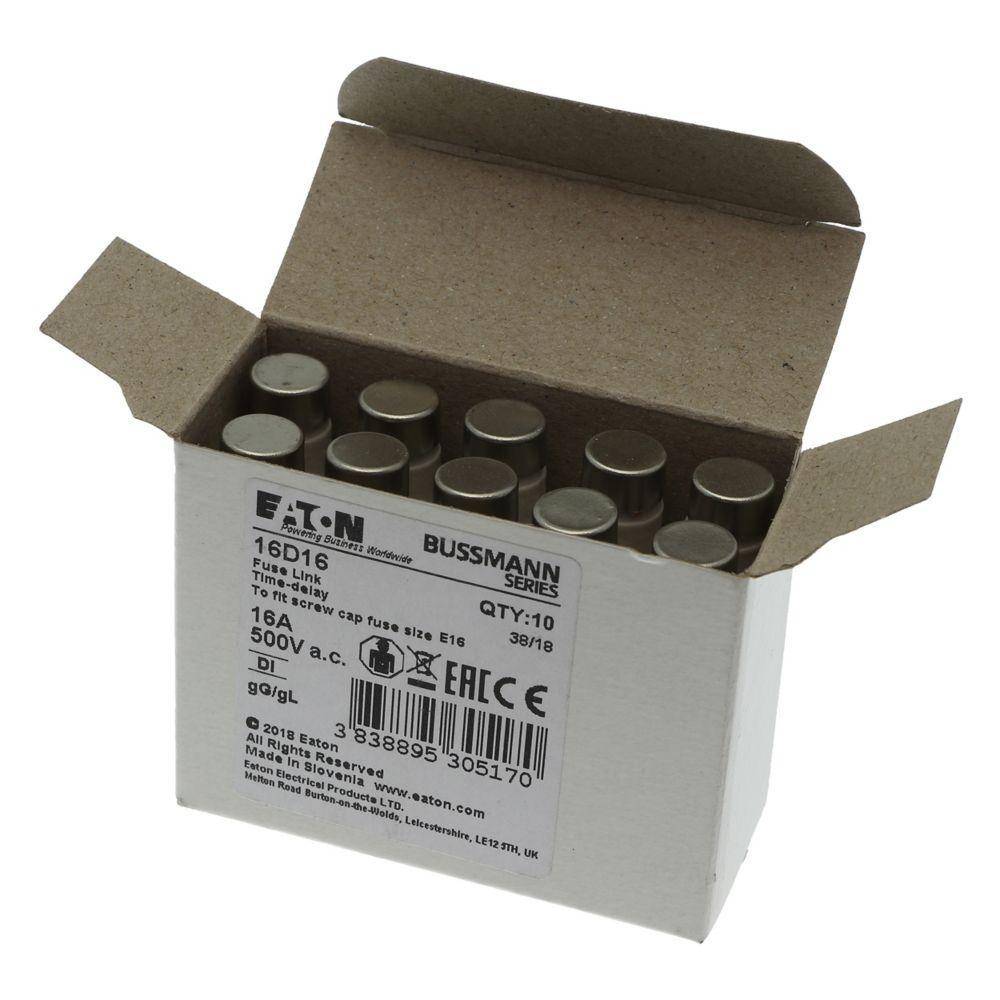

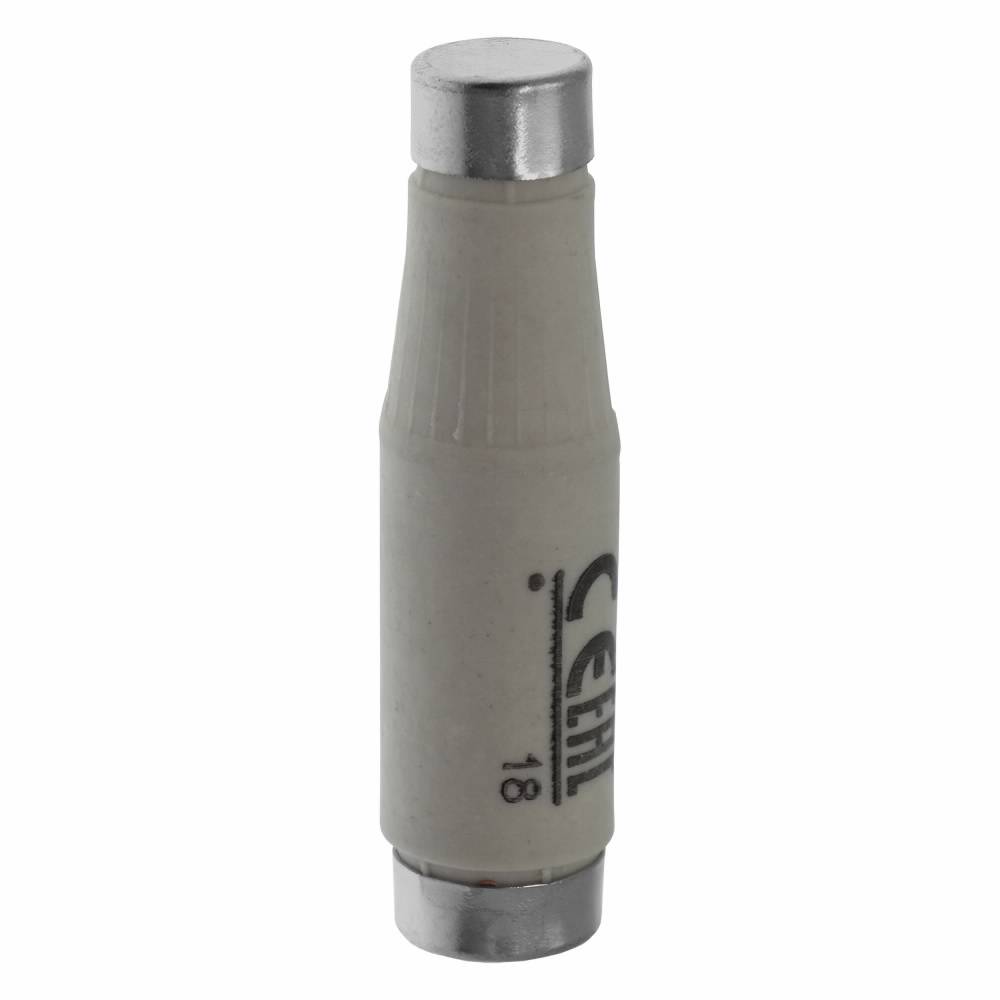

Edison 16D16 Type D Diazed Low Voltage Time Delay Time-Delay Fuse Link, 16 A, 500 VAC, 100 A Interrupt, Class: gG/gL, Round Body

Short Description

EATON's Bussmann® series Type D and D0 fuse links are specifically designed for the protection of general industrial applications such as power distribution and cable protection. Both types D and D0 are available in three operating characteristics: Time-delay, Fast-acting and Ultra-rapid versions that fit into screw cap fuse link carriers for mounting in 1 or 3-pole DIN-Rail or screw fixing.

Edison Time-Delay Fuse Link, Type D Diazed Low Voltage Time Delay, Indicating/Non-Indicating: Non-Indicating, 16 A, 500 VAC, 100 A Interrupt, Class: gG/gL, Cartridge Terminal, Round Body, Ceramic, Gray, 13.2 mm Dia x 50 mm H Body Size
MFG #: 16D16

EECO #: BU16D16

Brand: Edison
UPC #: 051712831680
Attributes
Features
Documents
Product Information
Attributes
Class
gG/gL
Color
Gray
UNSPSC
39121626
Material
Ceramic
Application
For used with the protection of general industrial applications such as power distribution and cable protection
Mounting Type
Holder
Terminal Type
Cartridge
Voltage Rating
500
Type
Type D Diazed Low Voltage Time Delay
Amperage Rating
16
Features
  • Characteristics to suit the protection needs of inductive and resistive loads
  • Fast troubleshooting with easily visible fuse operated pin indicator
  • Historically reliable range
  • To fit E16 size fuse base
  • DI size fuse link
  • Grey gauge ring color
IDW_DOCUMENT_c3a2cedd8dac429401d067e81210a00d922d2fb648d8724b2fb02bb42df744cf
Bussmann_16D16_Specification_Sheet
63GD33_RoHS_02
63GD33_Specification_Sheet
