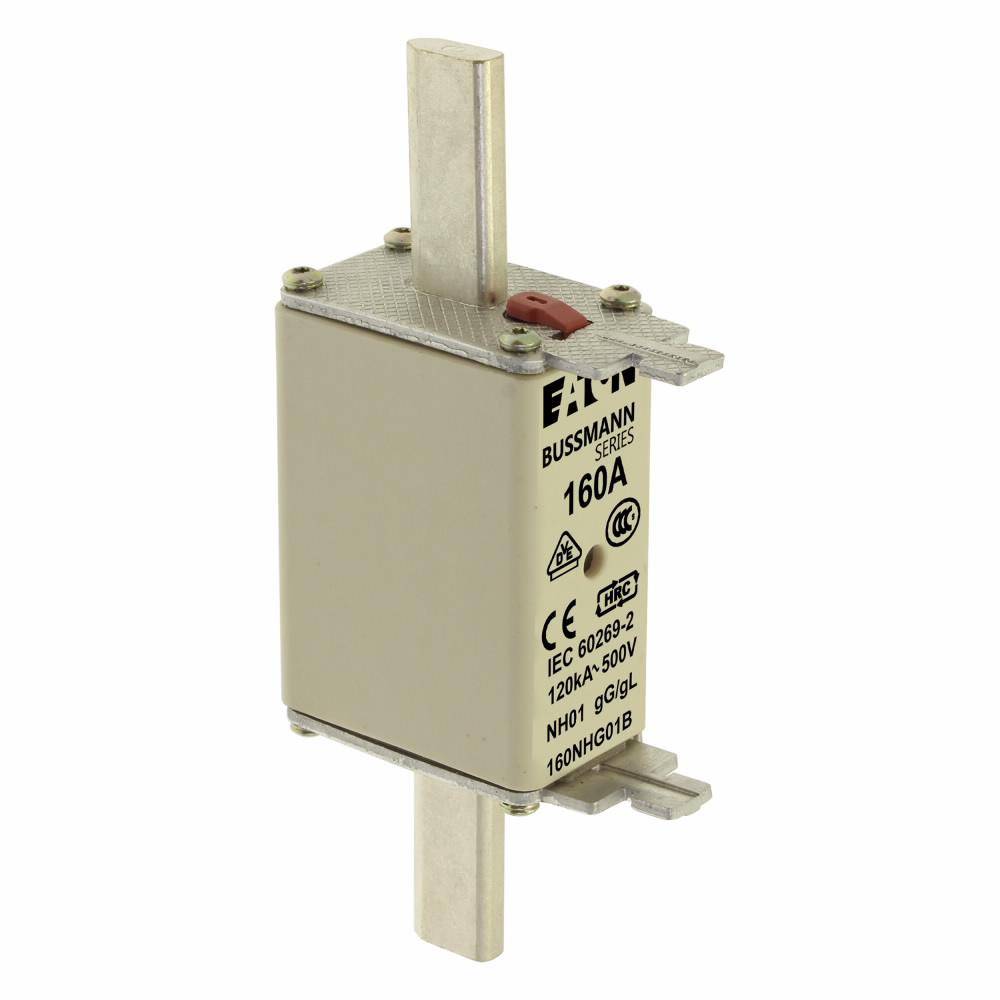

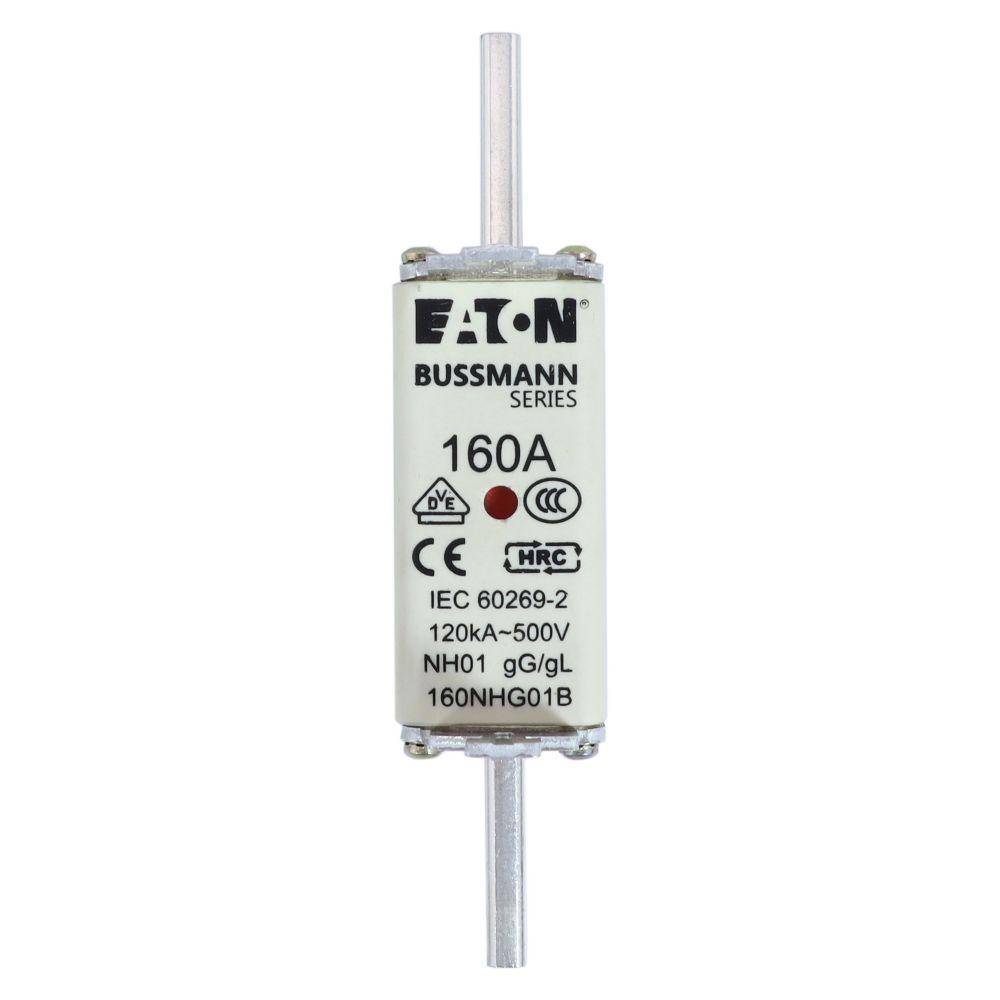

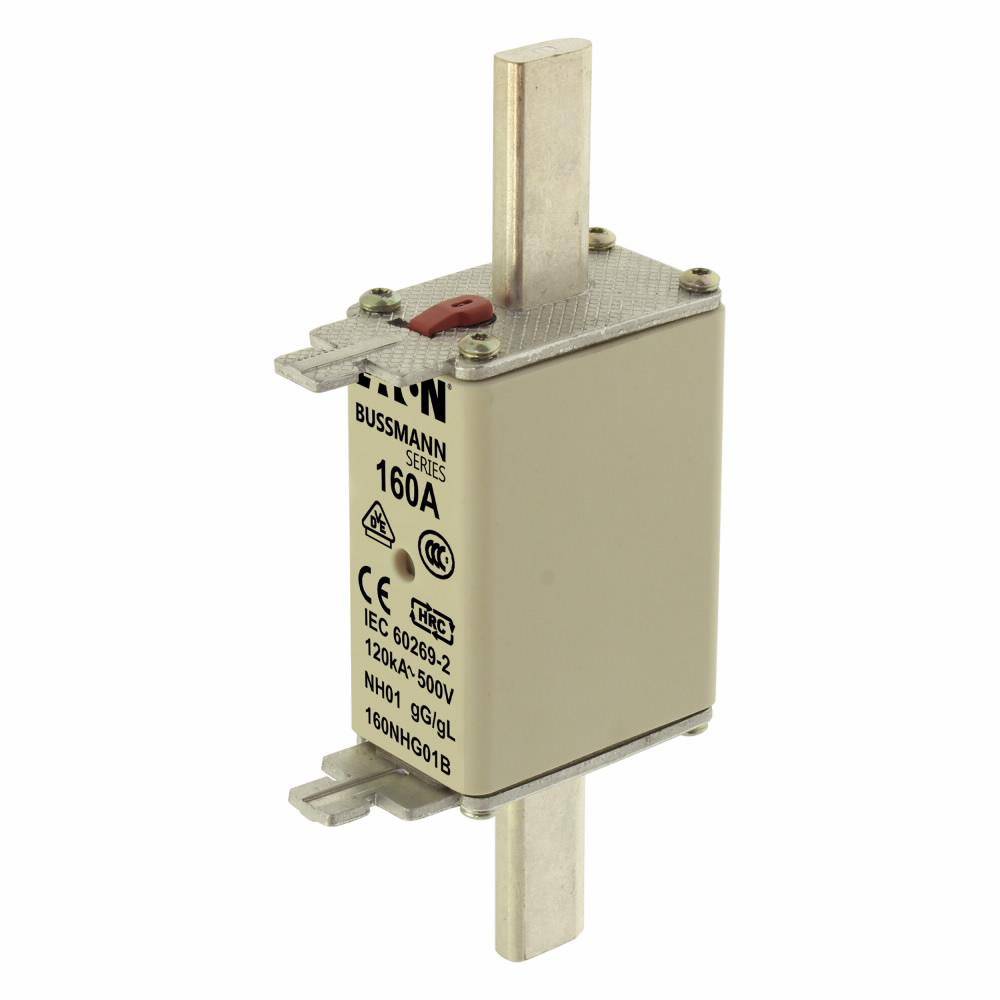

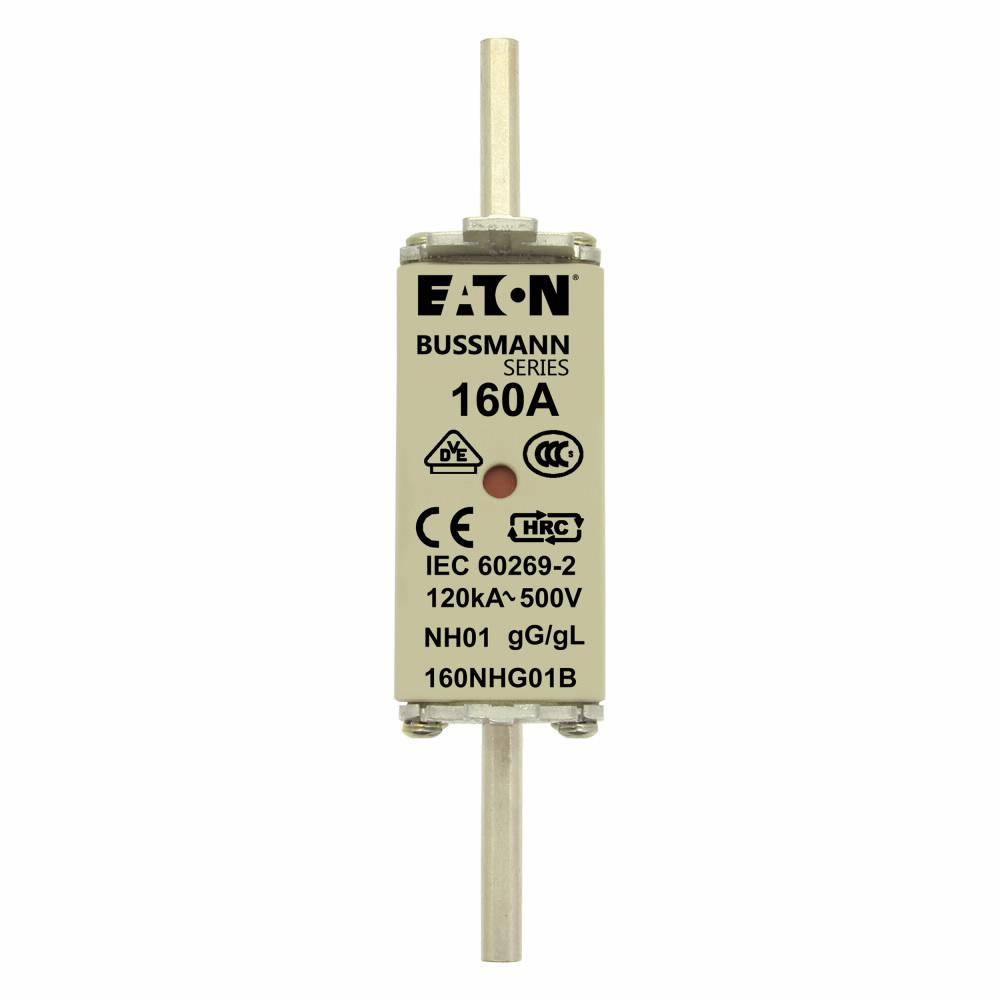

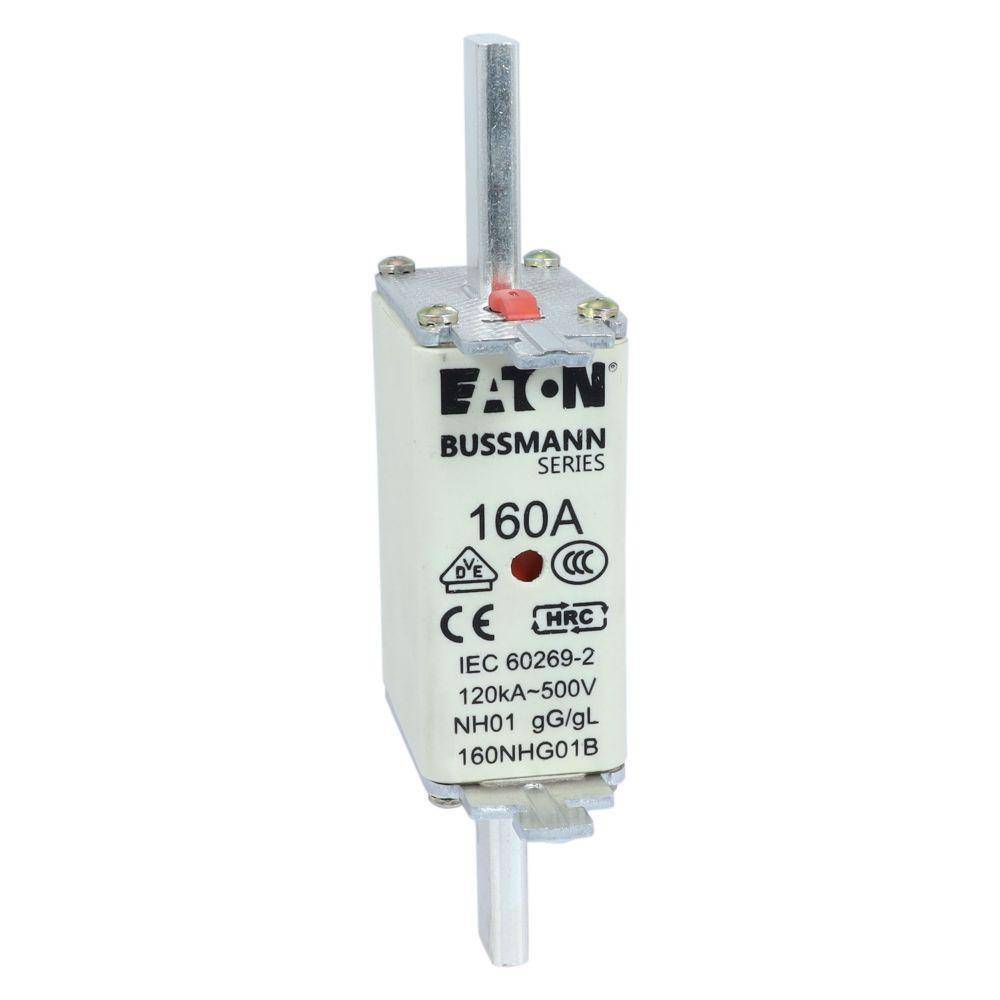

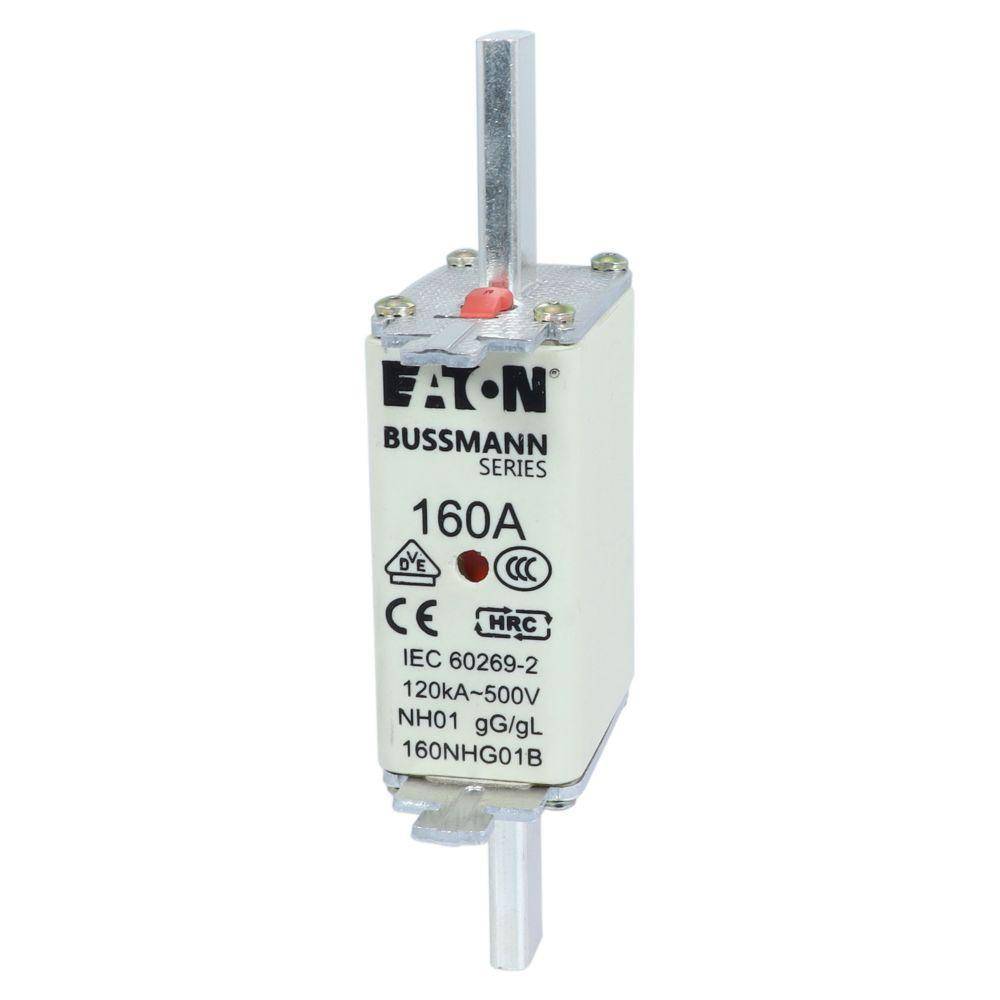

Edison Bussmann 160NHG01B NH Fuse Link, 500 VAC, 160 A, For Use With Class C gG/gL Fuse, Ceramic

Short Description

Bussmann's range of 500 V NH square bodied industrial fuse links is suitable for a wide variety of applications.

Edison Bussmann NH Fuse Link, Series: NHG, 500 VAC, 160 A, 45 to 62 Hz Frequency, Rated Breaking Capacity: 120 kA, For Use With: Class C gG/gL Fuse, Ceramic, 29.55 mm D x 135 mm H Dimensions
MFG #: 160NHG01B

EECO #: BU160NHG01B

Brand: Edison
UPC #: 051712626026
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121626
Material
Ceramic
Application
Safety and Security Systems, Industrial Facilities and Factories Facility, Power Distribution and Control, Electrical Assemblies, Panels and EOEM, Aftermarket, Panel Builders and Control Panels for Machines Applications
Mounting Type
Holder
Voltage Rating
500
Frequency Rating
45 to 62
Type
Size 01 Dual Indicator Low Voltage
Series
NHG
Dimensions
29.55 mm D x 135 mm H
Amperage Rating
160
Suitable For Use With
Class C gG/gL Fuse
Features
  • Reliable dual indicator system
  • Low temperature rise
  • Compatible with Eaton's Bussmann® series NH fuse bases and NH fuse gear
  • 01 size NH fuse body
  • GG/gL class of operation
  • Live gripping lugs
