Eaton

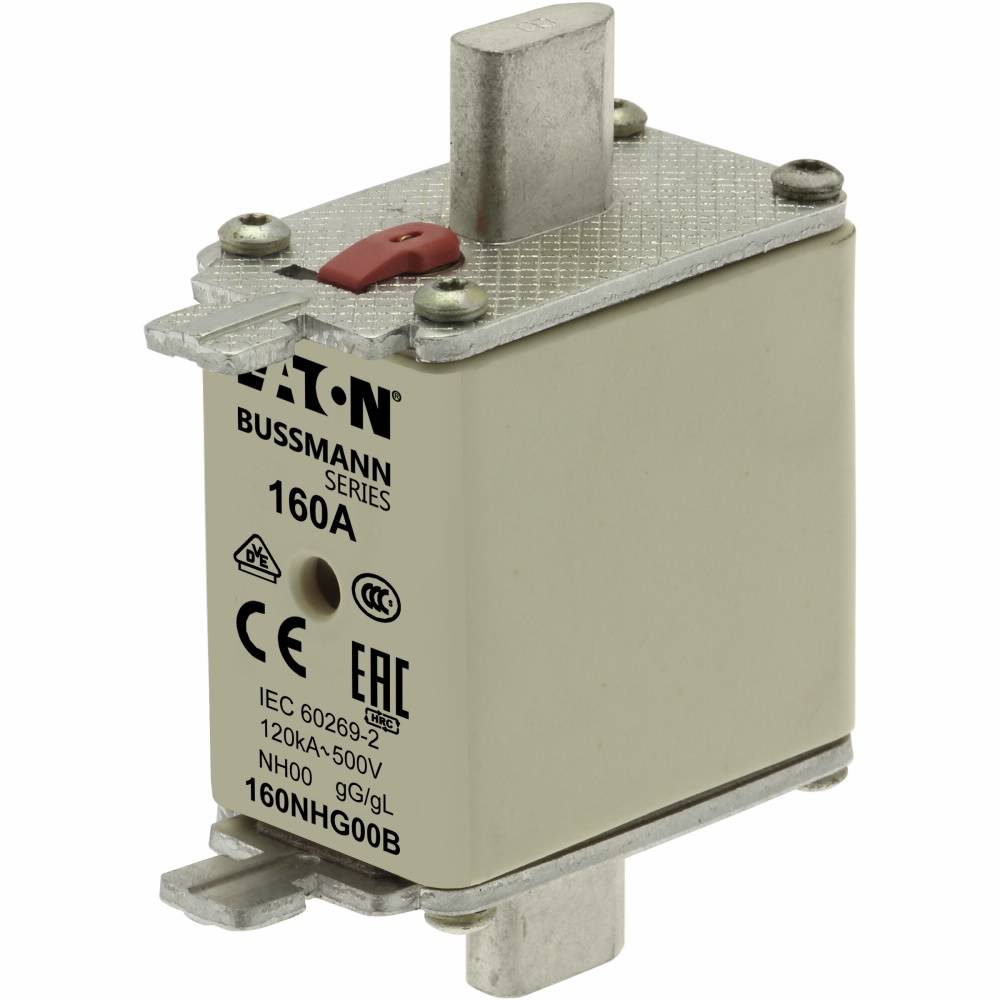

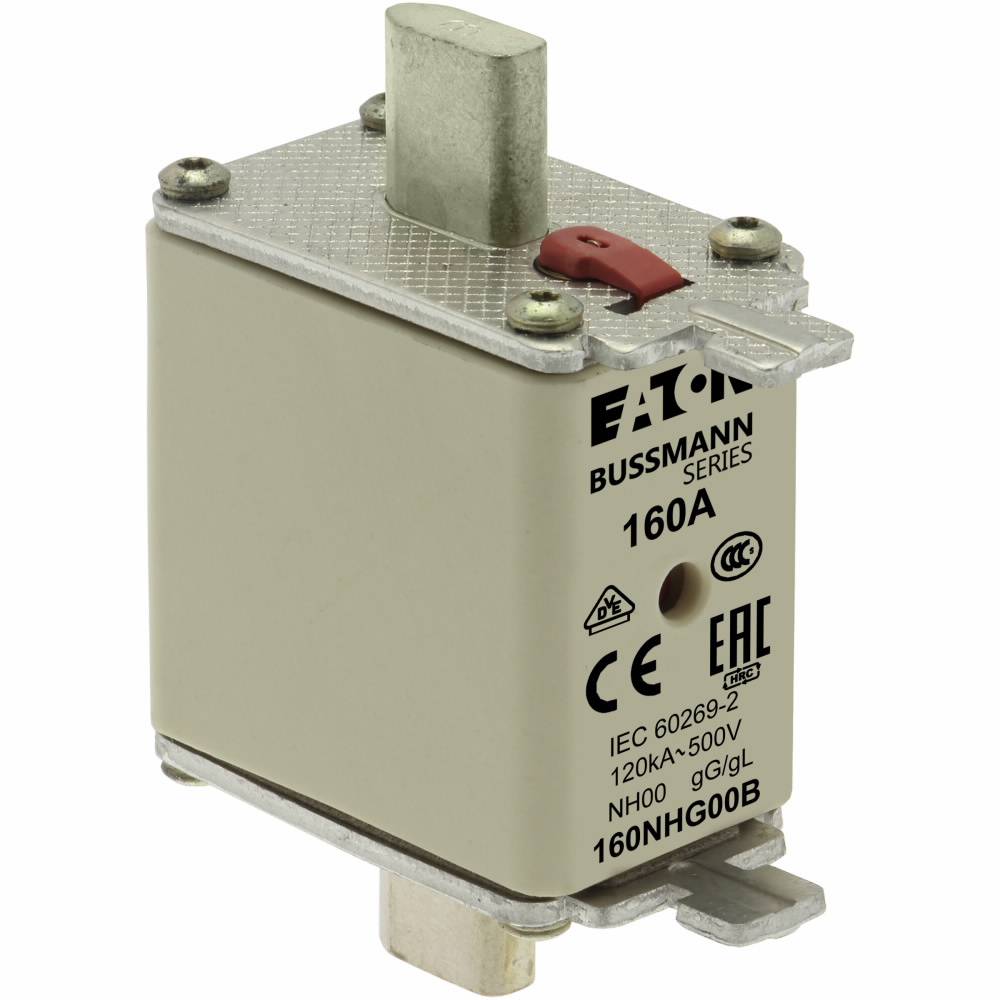

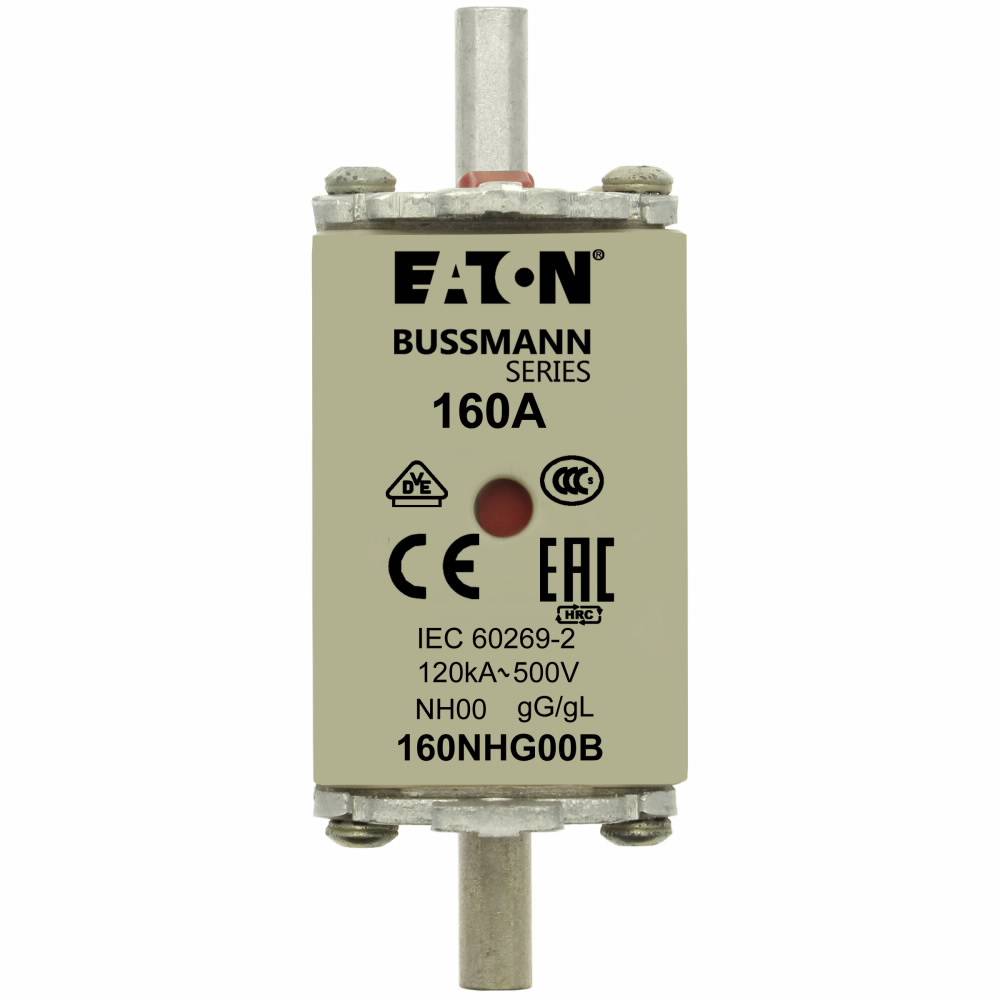

Bussmann 160NHG00B Size 00 Dual Indicator Low Voltage NH Fuse Link, 500 V, 160 A, For Use With NH Series Class C gG/gL Fuse, Ceramic

Short Description

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.

Bussmann NH Fuse Link, Size 00 Dual Indicator Low Voltage, Series: NHG, 500 V, 160 A, 45 to 62 Hz Frequency, Rated Breaking Capacity: 120 kA, Holder Mounting, For Use With: NH Series Class C gG/gL Fuse, Ceramic, 78.5 mm L x 30 mm W Dimensions
MFG #: 160NHG00B

EECO #: BU160NHG00B

Brand: Bussmann
UPC #: 051712625883
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121626
Material
Ceramic
Application
Electrical Assemblies, Panels and EOEMs, Control Panels for Machines, Aftermarket, Panel Builders, Industrial Facilities and Factories, Power Distribution and Control, Safety and Security Systems and Low Voltage Fuse Applications
Power Rating
11.2
Mounting Type
Holder
Voltage Rating
500
Frequency Rating
45 to 62
Type
Size 00 Dual Indicator Low Voltage
Series
NHG
Dimensions
78.5 mm L x 30 mm W
Amperage Rating
160
Suitable For Use With
NH Series Class C gG/gL Fuse
Features
  • Reliable dual indicator system
  • Low temperature rise
  • Live gripping lugs
IDW_DOCUMENT_565ef4a6f466bbb9b4346c0a619a988d28bb31ef80e9e488ff9b8d227dcffbef
Bussmann_160NHG00B_Specification_Sheet_CA
