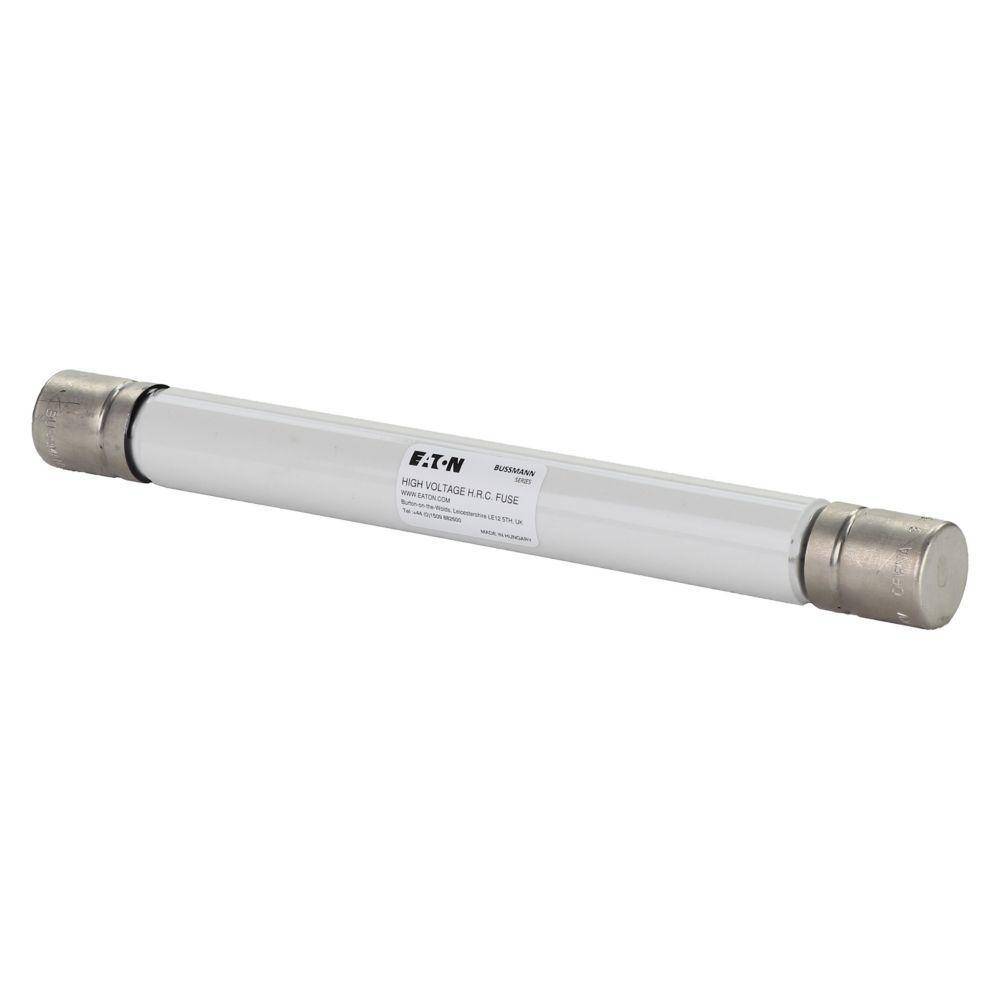

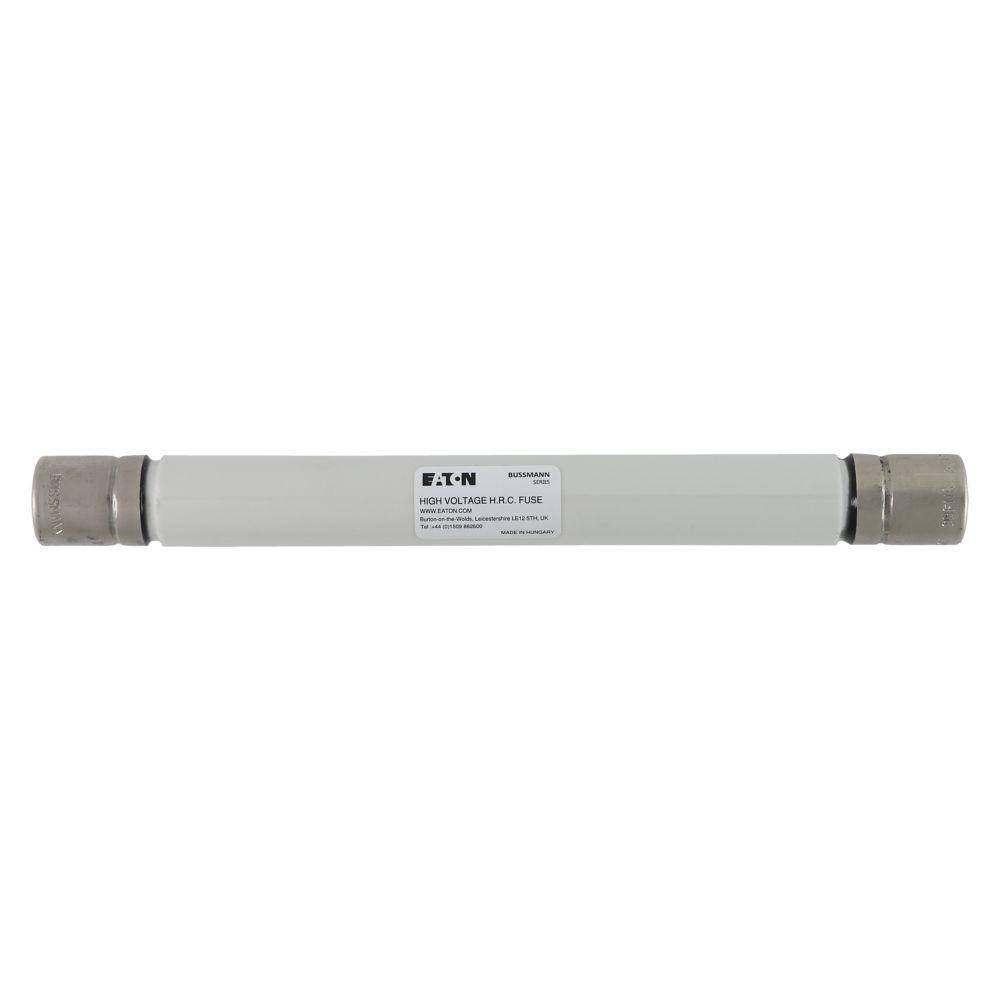

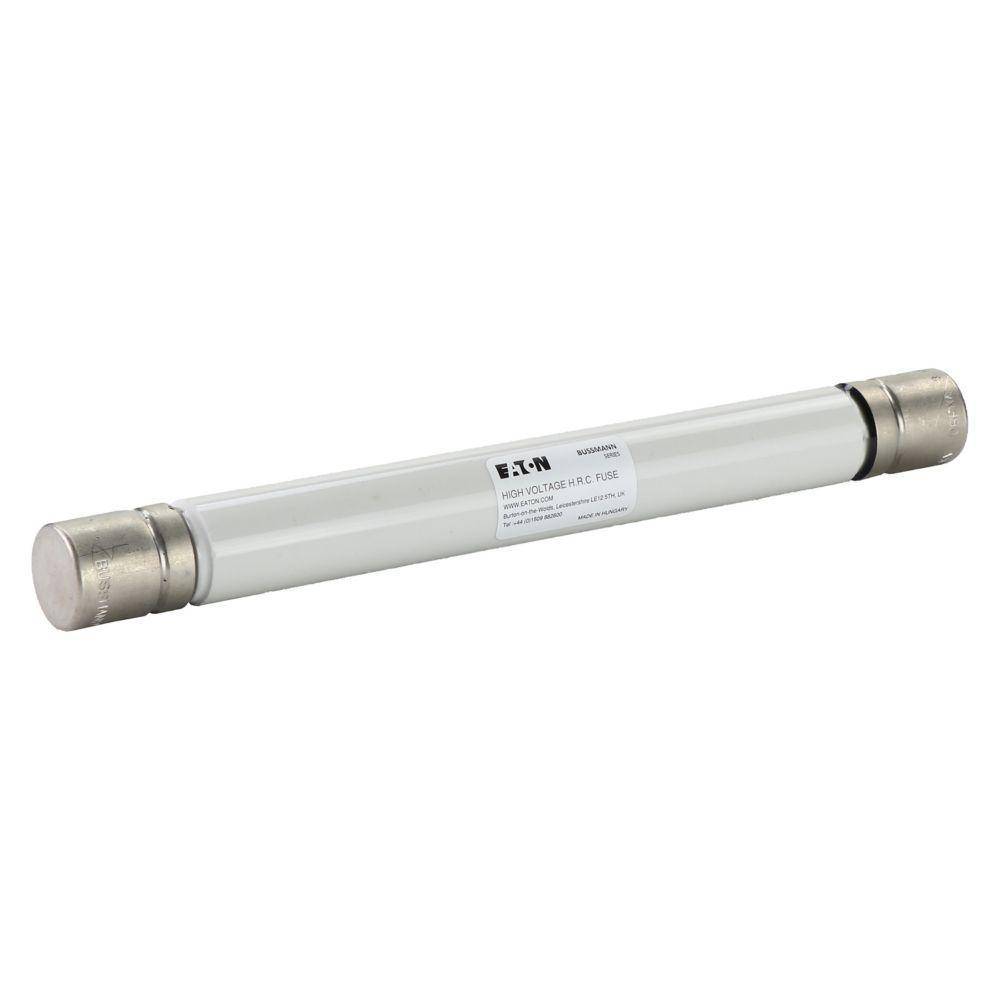

Edison 15.5OBFNA3.15 Fuse Link, 15.5 kV, 3.15 A, For Use With Voltage Transformer

Short Description

Eaton's Bussmann series medium voltage auxiliary transformers fuses are specifically designed for use in the primary side of voltage transformers. They comply with BS 2692-1 and IEC 60282-1 standards.

Edison Fuse Link, 15.5 kV, 3.15 A, Rated Breaking Capacity: 32 kA, For Use With: Voltage Transformer, 25.4 mm Dia x 254 mm L
MFG #: 15.5OBFNA3.15

EECO #: BU15.5OBFNA3.15

Brand: Edison
UPC #: 051712831215
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121626
Application
For used with the protection of auxiliary transformers
Voltage Rating
15.5
Type
Medium Voltage Oiltight
Dimensions
25.4 mm Dia x 254 mm L
Amperage Rating
3.15
Suitable For Use With
Voltage Transformer
Features
  • Cool running, low watts loss and power dissipation thanks to the m-effect ensuring high levels of substation utilization
  • Silver elements ensuring high conductivity and low power (revenue) loss
  • 100% X-Ray, all our medium voltage fuse links are X-Rayed ensuring the highest possible standards are maintained
