Edison 15.5CAVH0.5E CAVH Single Barrel Medium Voltage Fuse, 0.5 A, 15.5 kV, 80 kA Interrupt, Class: E

Short Description

Eaton's Bussmann series medium voltage auxiliary transformers fuses are specifically designed for use in the primary side of voltage transformers. They comply with BS 2692-1 and IEC 60282-1 standards.

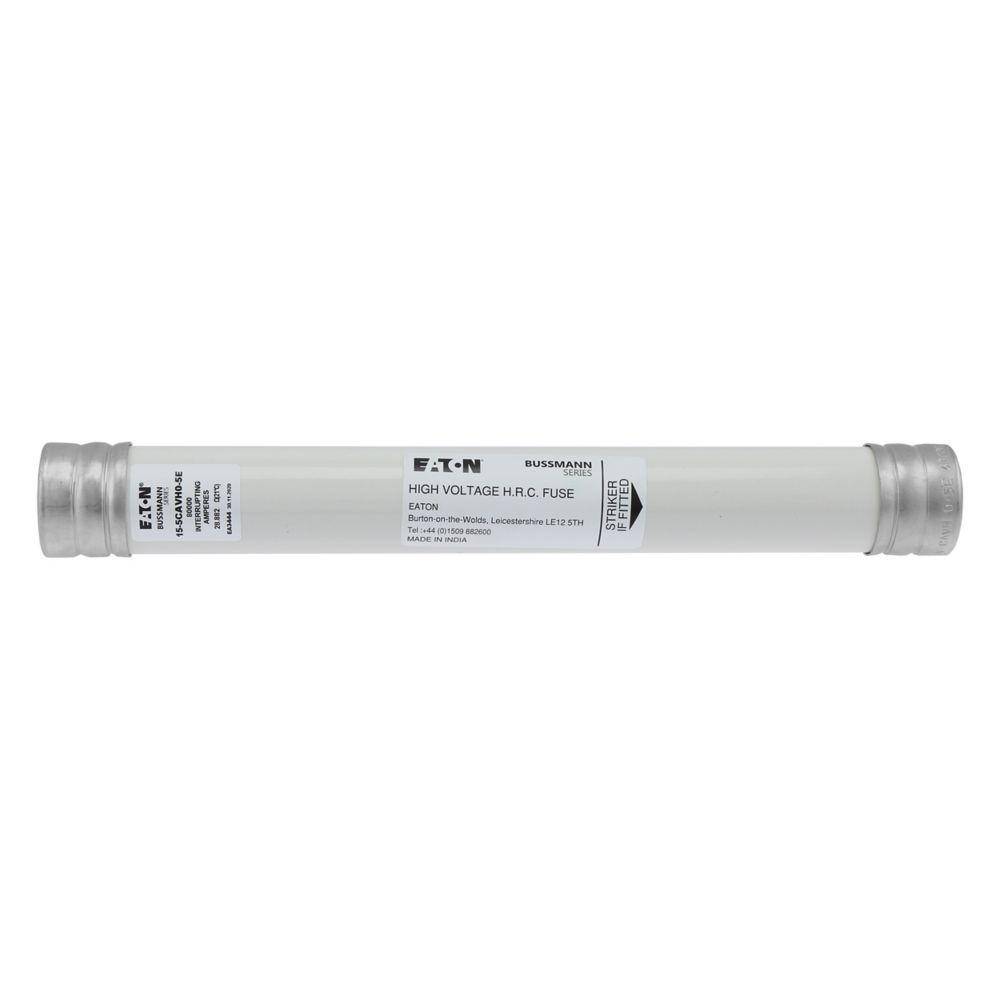

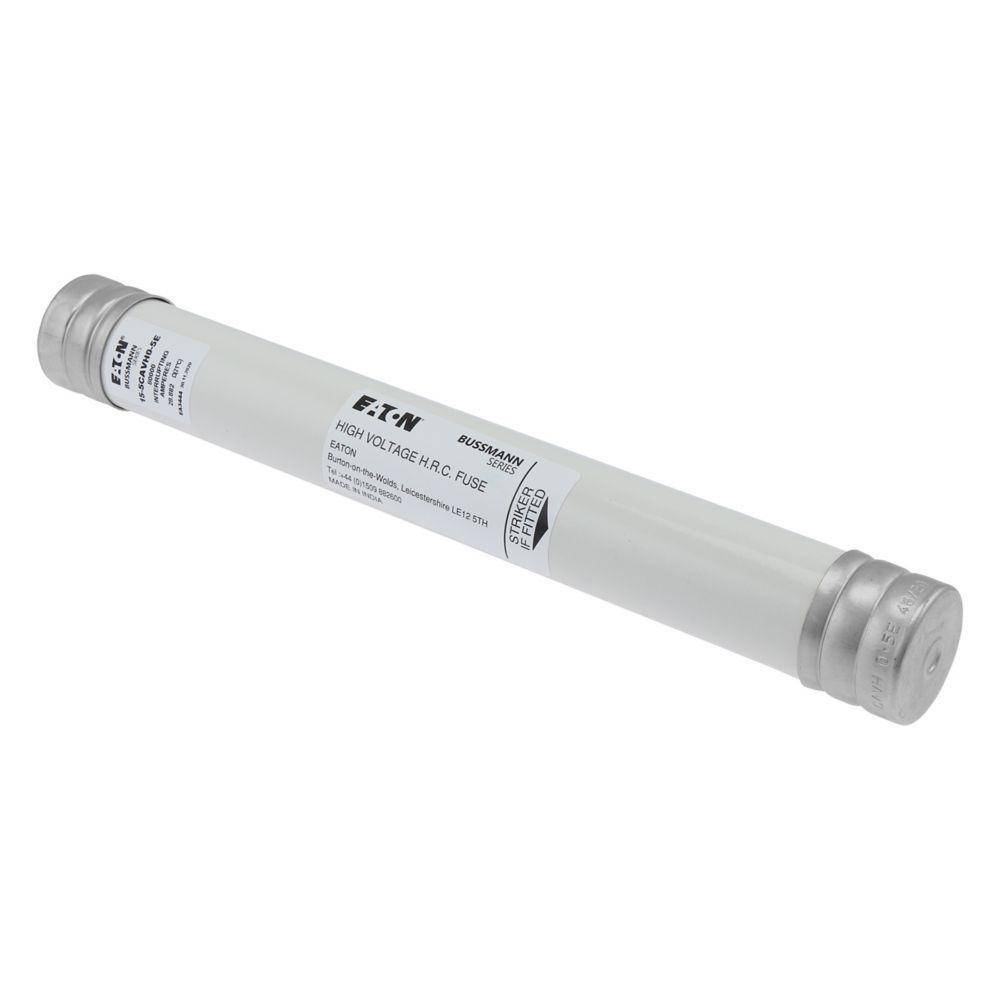

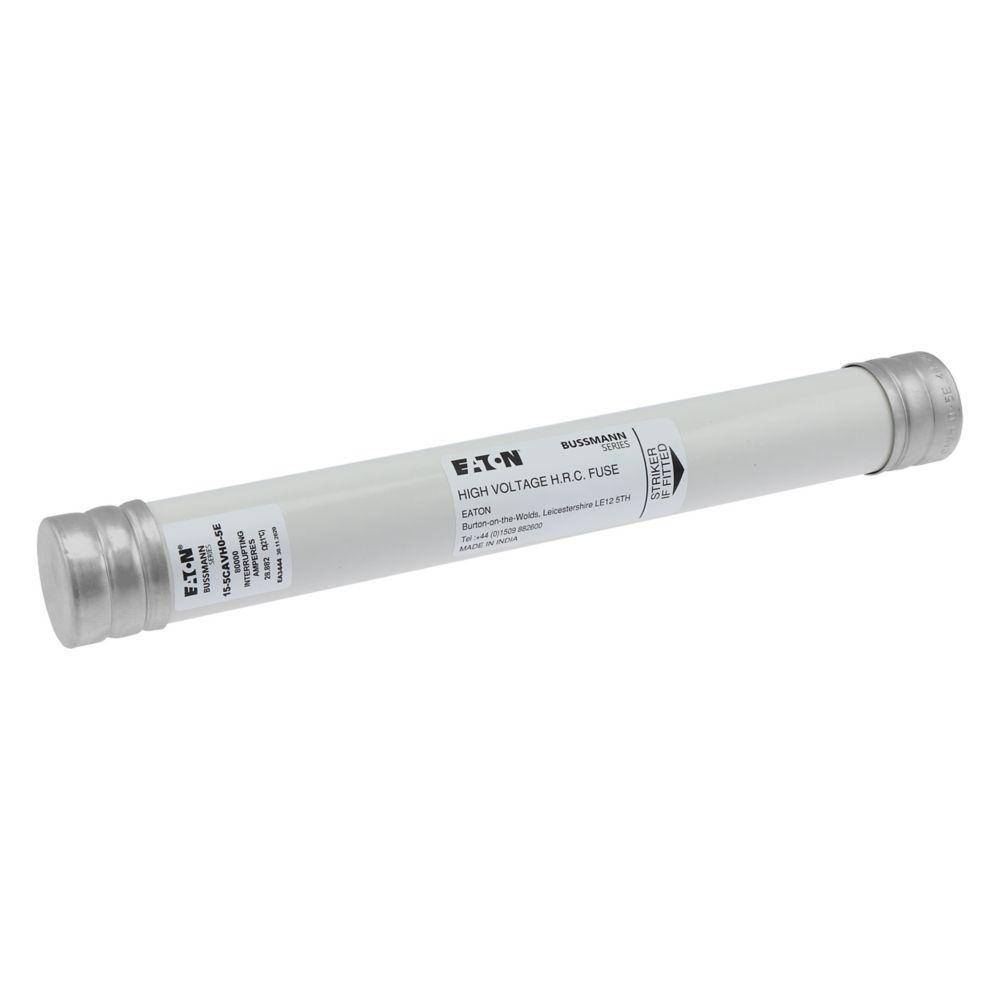

Edison Medium Voltage Fuse, Single Barrel, Series: CAVH, Indicating, 0.5 A, 15.5 kV, 80 kA Interrupt, Class: E, Ferrule Terminal, Bolted-On Mounting, 1.63 in Dia x 12.87 in L Body
MFG #: 15.5CAVH0.5E

EECO #: BU15.5CAVH0.5E

Brand: Edison
UPC #: 051712831154
Attributes
Features
Documents
Product Information
Attributes
Class
E
UNSPSC
39121626
Application
For primary protection of medium voltage potential transformers and small medium voltage service/control transformers
Mounting Type
Bolted-On
Terminal Type
Ferrule
Voltage Rating
15.5
Type
Single Barrel
Series
CAVH
Amperage Rating
0.5
Features
  • Low amp, current limiting e-rated PT medium voltage fuses are general purpose fuses defined by their melting time current characteristic that permit their electrical interchangeability with other fuses of the same E-rating
  • E-rated general purpose fuses must have a current responsive element that will melt in 300 sec at an rms current within the range of 200% to 240% of the fuses nameplate current rating, fuse refill or link per ANSI C37.46 for fuses rated 100E or less
  • PT fuses are physically dimensioned for easy installation in existing hardware
  • Space saving size eases design considerations for new installations
  • Current limiting fuses provide positive interruption even on low fault currents
  • The fuse limits the magnitude of electromechanical stresses in the protected apparatus
  • These fuses are in a self-contained, non-venting package for installation indoors or outdoors in an enclosure
  • Open fuse indicator speeds troubleshooting by providing a positive visual indication of fuse operation
  • Fitted with a striker pin for indication
