Eaton

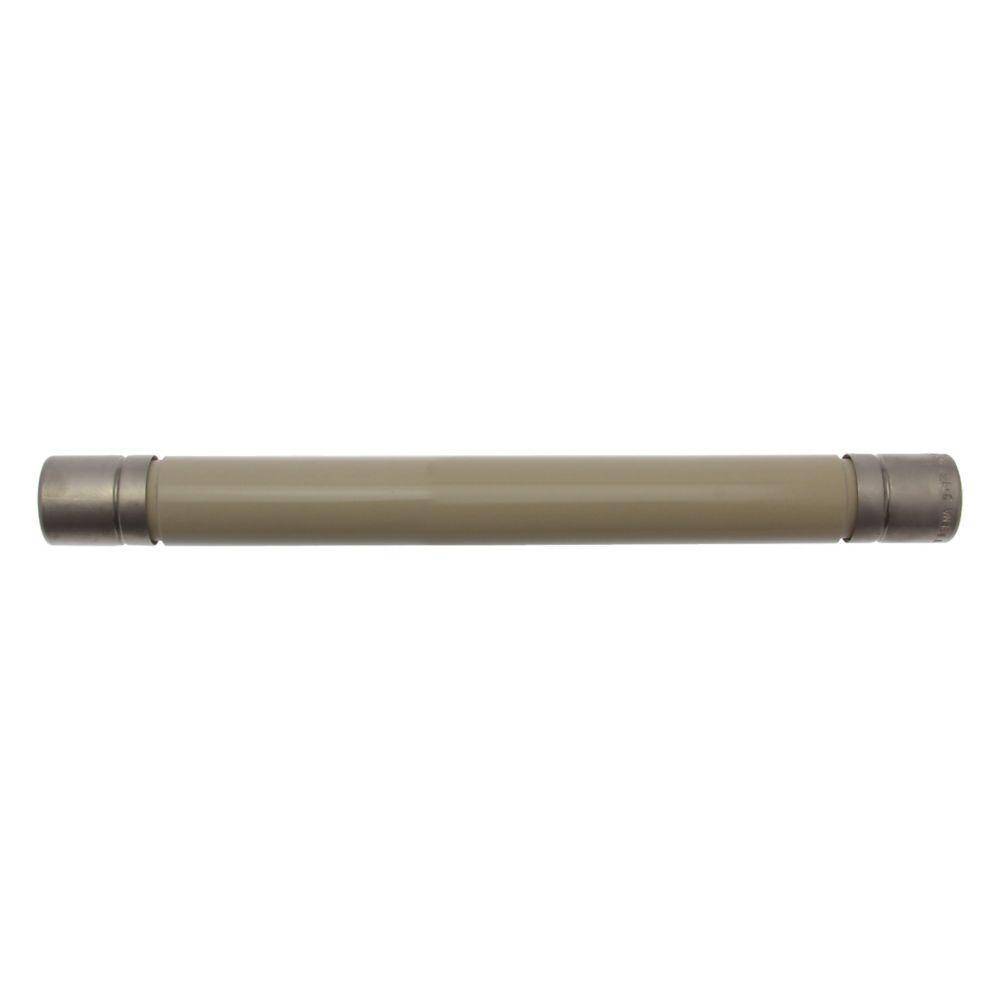

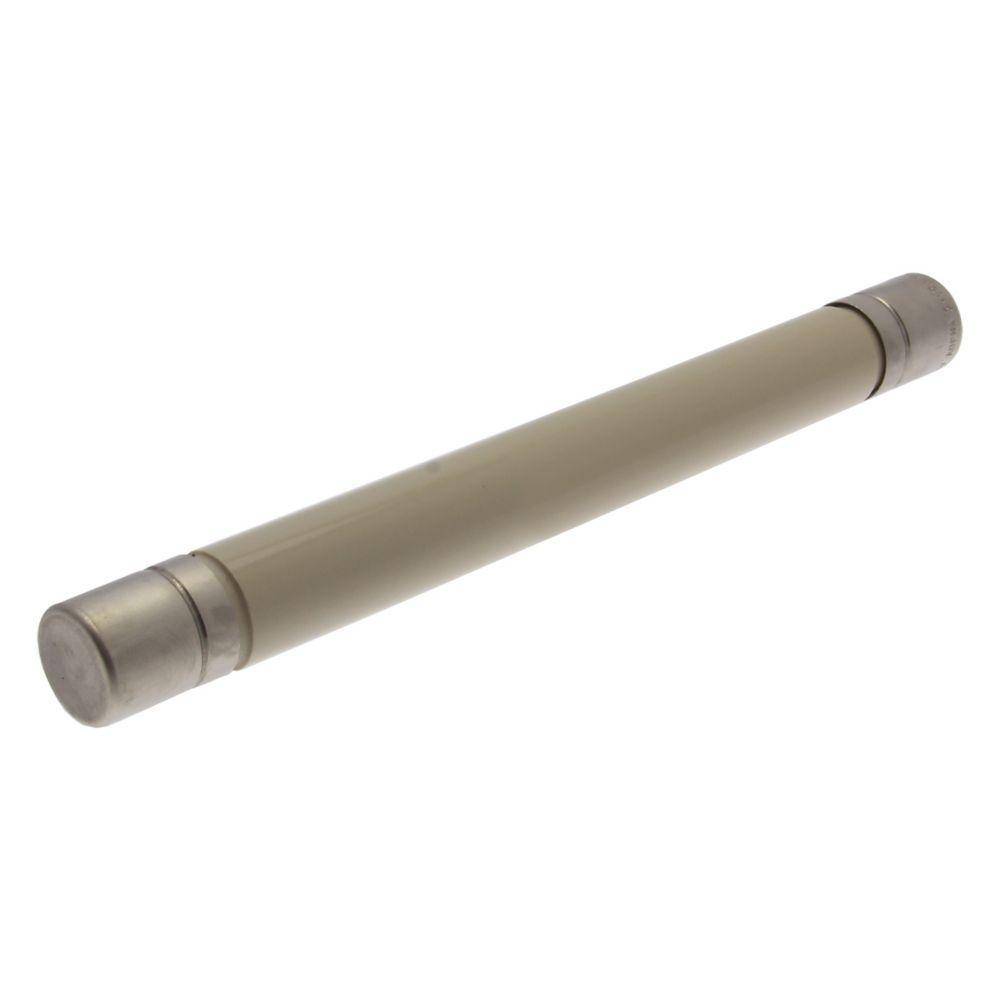

Bussmann 15.5ABFNA3.15 AB Series British Style Potential Transformer Fuse, 15.5 kV, 3.15 A, Fiberglass

Short Description

British Standard VT fuses with low current ratings for use in voltage transformers or operating transformers to provide isolation of the associated system in the event of faults in the transformer circuit.

Bussmann 15.5ABFNA3.15 Potential Transformer Fuse, British Style, Series: AB Series, 15.5 kV, 3.15 A, Bolted-On Mounting, Fiberglass, 1 in Dia x 10 in L Dimensions
MFG #: 15.5ABFNA3.15

EECO #: BU15.5ABFNA3.15

Brand: Bussmann
UPC #: 051712831048
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121626
Material
Fiberglass
Application
Medium Voltage Potential Transformers, Small Medium Voltage Service Transformers and Small Medium Voltage Control Transformers
Mounting Type
Bolted-On
Voltage Rating
15.5
Type
British Style
Series
AB Series
Dimensions
1 in Dia x 10 in L
Amperage Rating
3.15
Features
  • PT fuses are physically dimensioned for easy installation in existing hardware
  • Space saving size eases design considerations for new installations
  • Current limiting fuses provide positive interruption even on low fault currents
  • The fuse limits the magnitude of electromechanical stresses in the protected apparatus
  • These fuses are in a self-contained, non-venting package for installation indoors or outdoors in an enclosure
