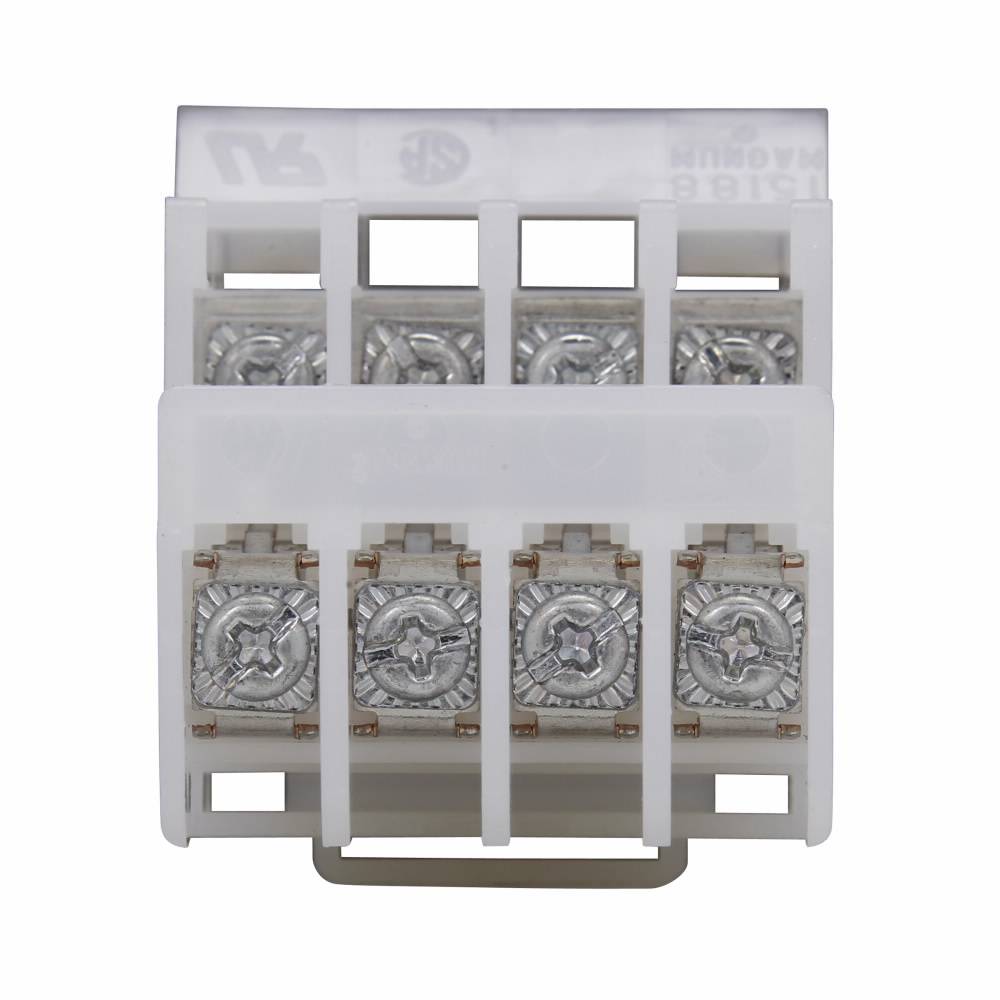

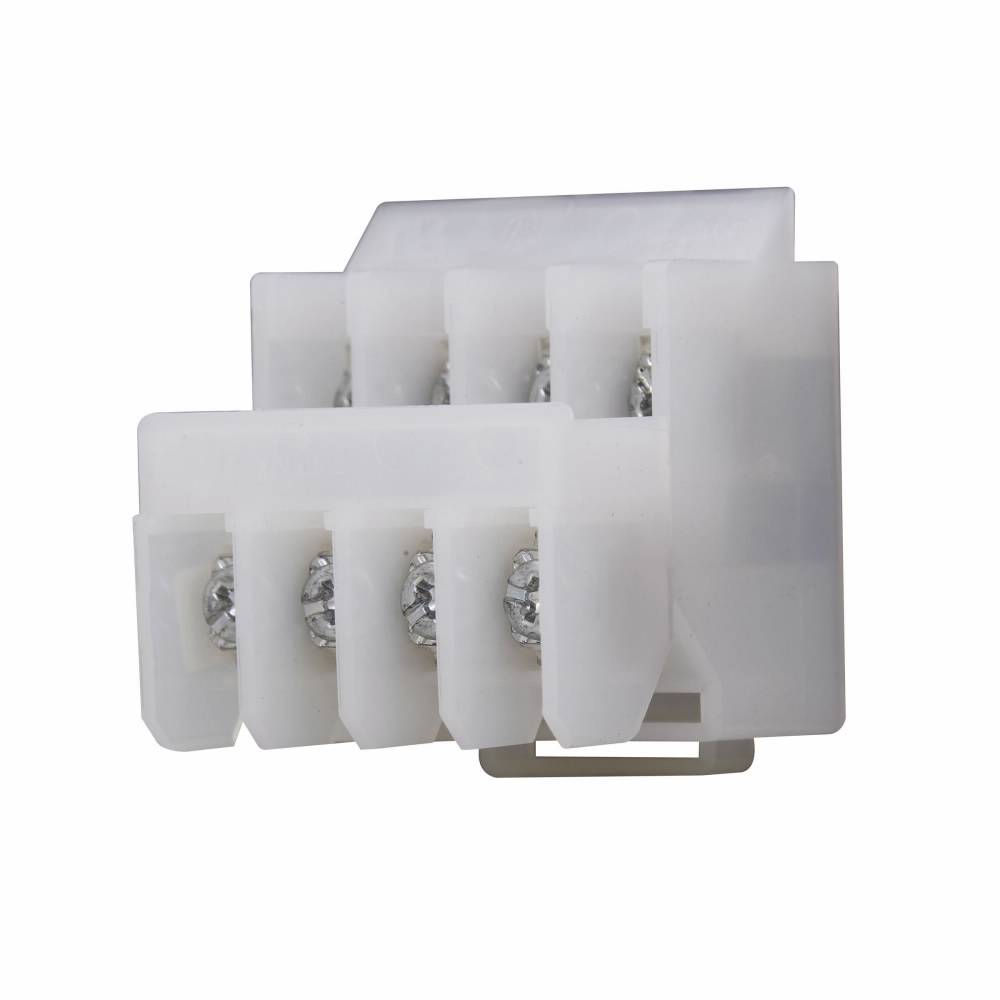

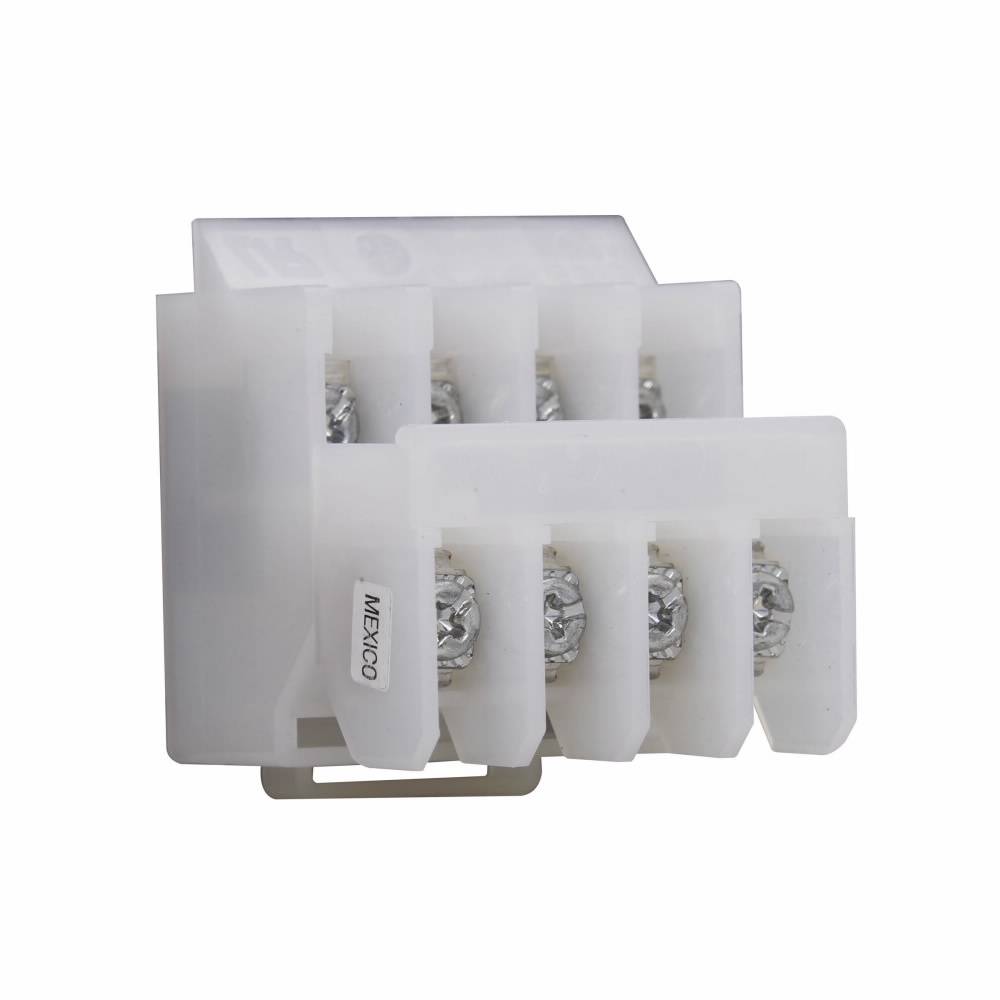

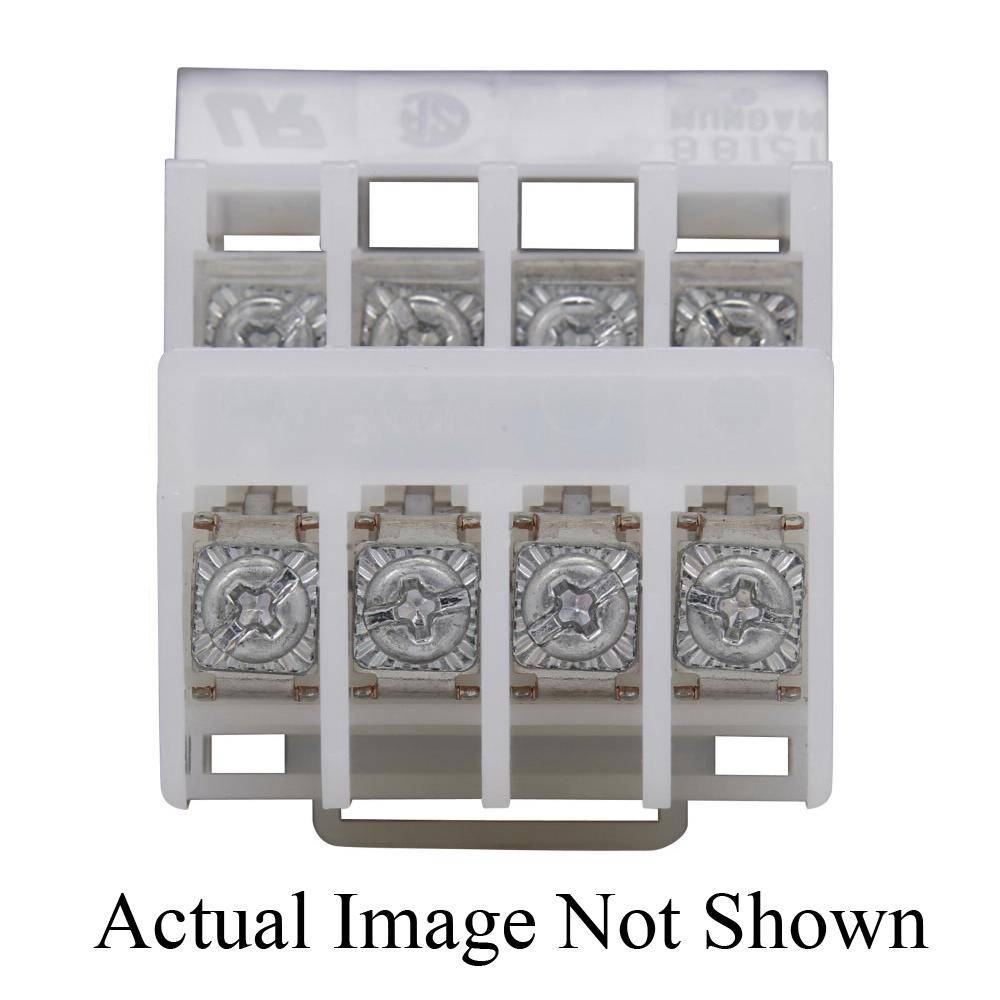

Bussmann 15188-3R Depluggable Reverse Wiring Disconnect Terminal Block, 600 VAC, 30 A, 16 to 12 AWG Copper Wire, 3 Poles, DIN Rail Mount
Bussmann 15188-3R Depluggable Reverse Wiring Disconnect Terminal Block, 600 VAC, 30 A, 16 to 12 AWG Copper Wire, 3 Poles, DIN Rail Mount
Bussmann 15188-3R Depluggable Reverse Wiring Disconnect Terminal Block, 600 VAC, 30 A, 16 to 12 AWG Copper Wire, 3 Poles, DIN Rail Mount
Bussmann 15188-3R Depluggable Reverse Wiring Disconnect Terminal Block, 600 VAC, 30 A, 16 to 12 AWG Copper Wire, 3 Poles, DIN Rail Mount
Bussmann 15188-3R Depluggable Reverse Wiring Disconnect Terminal Block, 600 VAC, 30 A, 16 to 12 AWG Copper Wire, 3 Poles, DIN Rail Mount
Bussmann 15188-3R Depluggable Reverse Wiring Disconnect Terminal Block, 600 VAC, 30 A, 16 to 12 AWG Copper Wire, 3 Poles, DIN Rail Mount
Bussmann 15188-3R Depluggable Reverse Wiring Disconnect Terminal Block, 600 VAC, 30 A, 16 to 12 AWG Copper Wire, 3 Poles, DIN Rail Mount
Bussmann 15188-3R Depluggable Reverse Wiring Disconnect Terminal Block, 600 VAC, 30 A, 16 to 12 AWG Copper Wire, 3 Poles, DIN Rail Mount
Share Share Print Print
Eaton

Bussmann 15188-3R Depluggable Reverse Wiring Disconnect Terminal Block, 600 VAC, 30 A, 16 to 12 AWG Copper Wire, 3 Poles, DIN Rail Mount

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

Eaton's Bussmann series panel mount terminal blocks are available in double row terminal blocks and multi-pole terminal blocks. Double row terminal blocks are made up to 36-poles and available in a variety of voltage and ampacity ratings. Multi-pole panel mount terminal blocks provide a compact, high density circuit connection solution without the necessity of a mounting rail. These products are designed to be nested together to form one string of circuit connections.

Bussmann Disconnect Terminal Block, Depluggable Reverse Wiring, Series: 15188, 600 VAC, 30 A, 3 Pole, 16 to 12 AWG Copper Wire, Tin Plated Copper Alloy Terminal, 3/8 in Spacing, 12 in-lb, DIN Rail Mount, #6-32 Screw, 105 deg C, Thermoplastic, White, 1.19 in H x 1.94 in W
MFG #: 15188-3R

EECO #: BU151883R

Brand: Bussmann
UPC #: 051712348621
Discontinued
Attributes
Features
Documents
Product Information
Attributes
Color
White
UNSPSC
39121410
Material
Thermoplastic
Wire Size
16 to 12 AWG Copper
Mounting Type
DIN Rail
Terminal Type
Tin Plated Copper Alloy
Torque Rating
12
Voltage Rating
600
Connection Type
#6-32 Screw
Temperature Rating
105
Type
Depluggable Reverse Wiring
Series
15188
Spacing
3/8
Dimensions
1.19 in H x 1.94 in W
Amperage Rating
30
Features
  • These depluggable terminal blocks provide a simple depluggable option for panel wiring applications with the convenience of quick, easy, snap-on installation
  • #6-32 TPI zinc plated steel phillips slot screw
