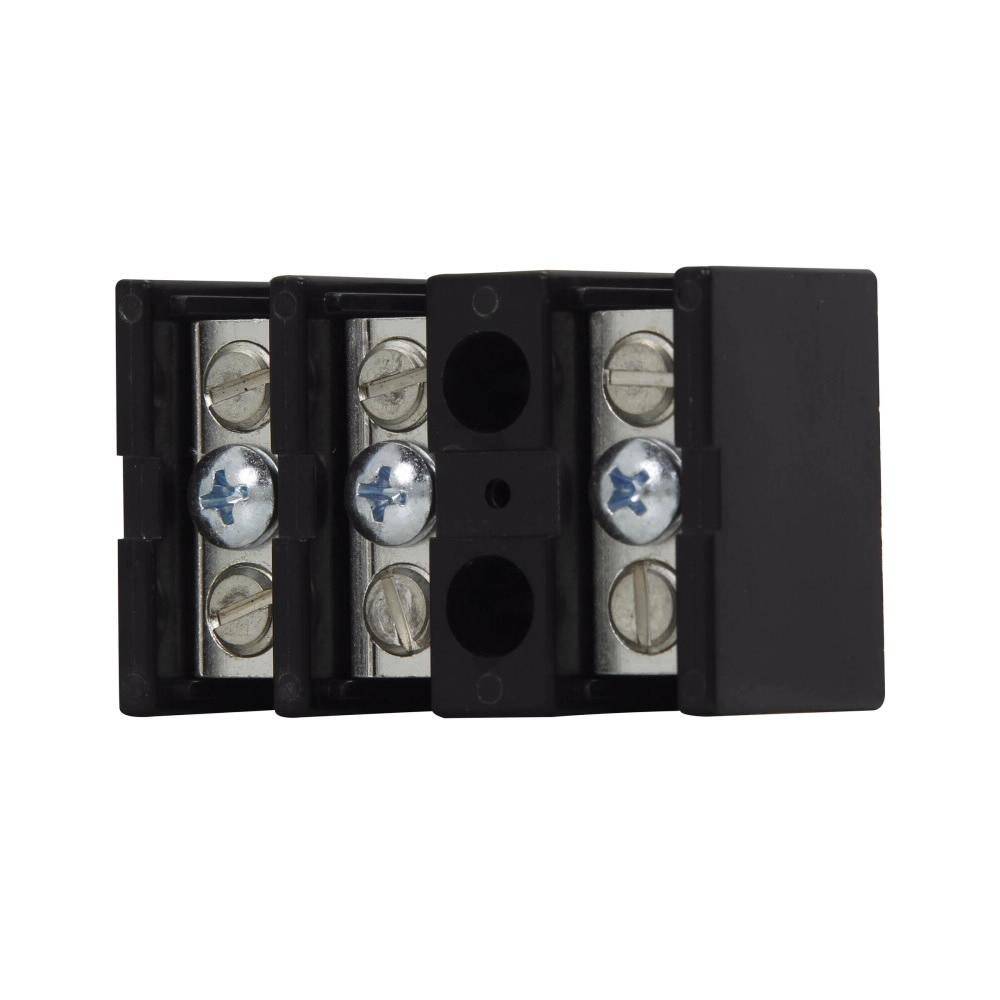

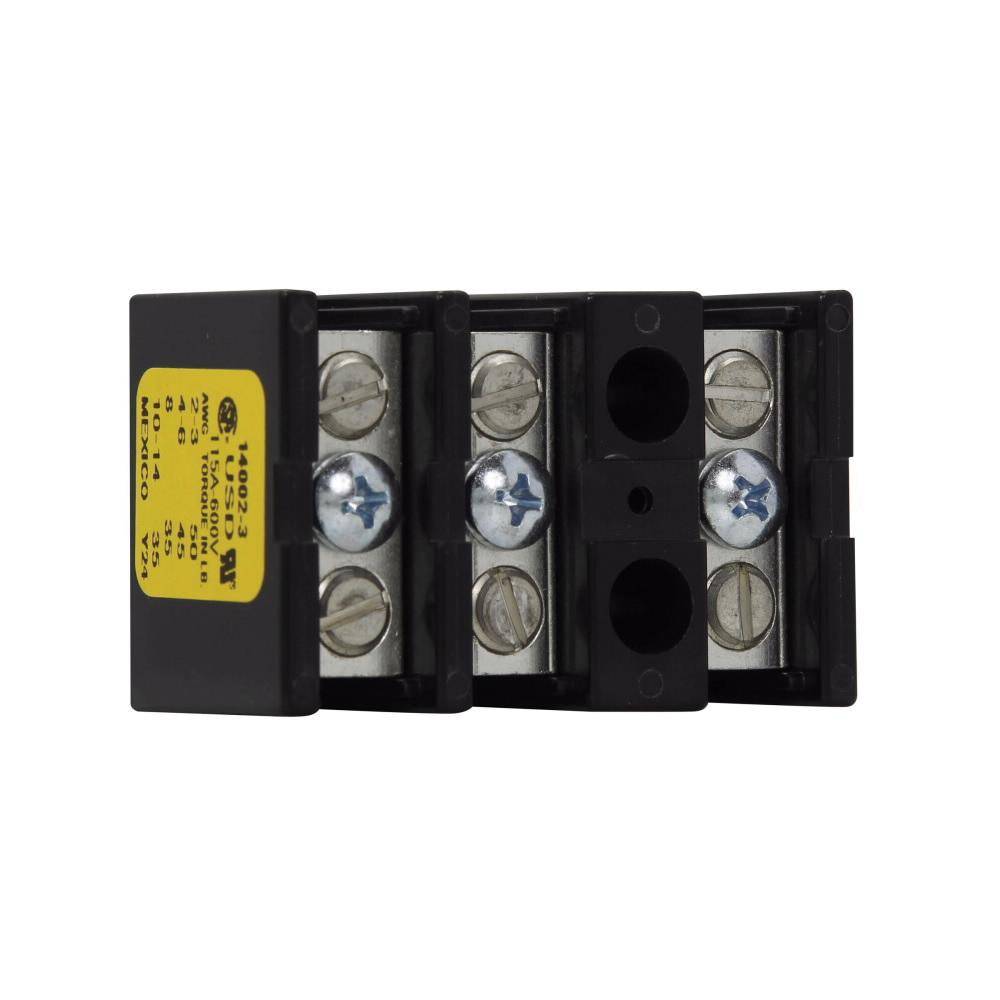

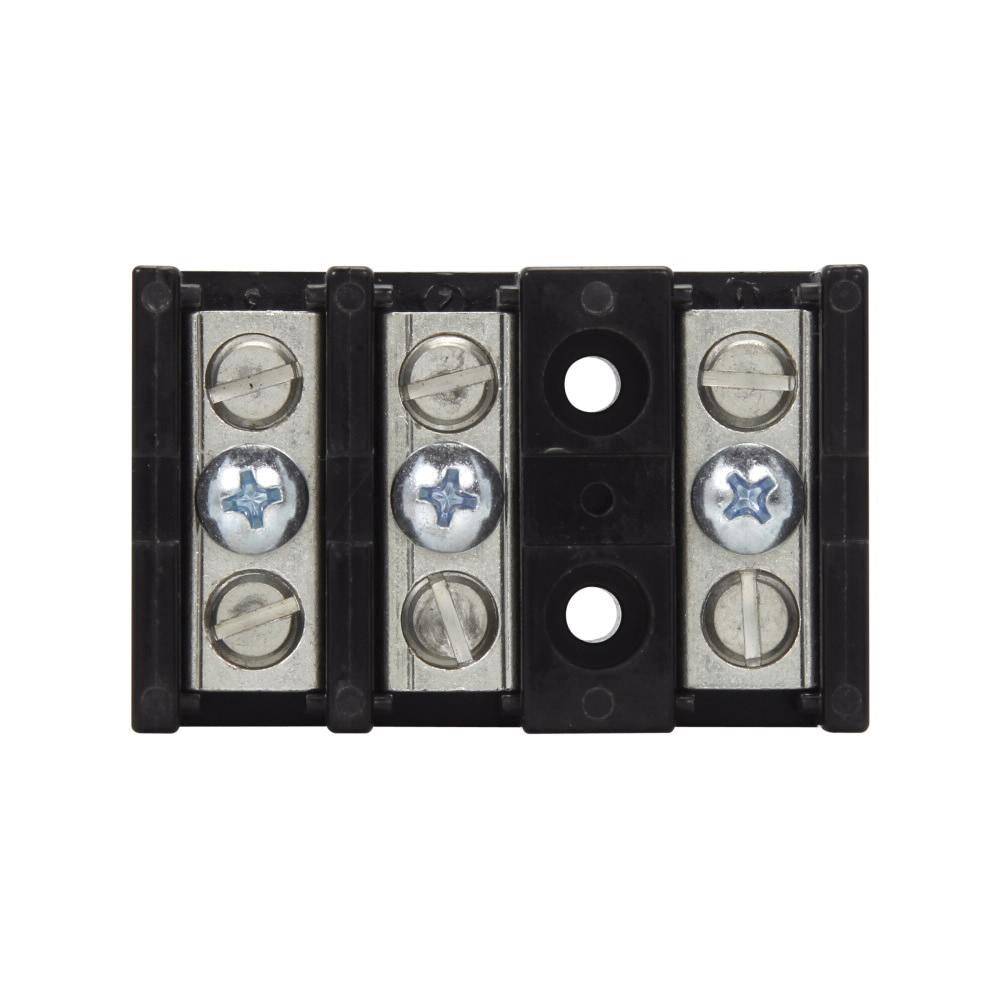

Bussmann 14002-3A Barrier Power Terminal Block, 600 VAC/VDC, 115 A, 3 Poles, 2 to 14 AWG Cu, 8 AWG Al Wire

Short Description

Bussmann provides the broadest offering of UL listed Cable Limiters, Welder Limiters, Circuit Limiters and accessories. With products rated for AC or DC applications to suit your specific application requirements.

Bussmann Power Terminal Block, Barrier, Series: 14002, 600 VAC/VDC, 115 A, 3 Pole, 2 to 14 AWG Cu, 8 AWG Al Wire, 10 kA Short Circuit Current Rating, 1.49 in L x 2.38 in W x 1.25 in H
MFG #: 14002-3A

EECO #: BU140023A

Brand: Bussmann
UPC #: 051712944618
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121629
Wire Size
2 to 14 AWG Cu, 8 AWG Al
Application
Electrical Assemblies, Panels and EOEMs Applications
Torque Rating
4.5
Voltage Rating
600
Temperature Rating
150
Type
Barrier
Series
14002
Dimensions
1.49 in L x 2.38 in W x 1.25 in H
Amperage Rating
115
Features
  • Model: Bussmann 14002-3A
  • Type: Barrier Power Terminal Block
  • Voltage Rating: 600 VAC/VDC
  • Current Rating: 115 A
  • Number of Poles: 3
  • Wire Size Compatibility: 2 to 14 AWG Copper, 8 AWG Aluminum
  • Short Circuit Current Rating: 10 kA
  • Dimensions: 1.49 in L x 2.38 in W x 1.25 in H

Enhanced by AI

14002_3A_Specification_Sheet
