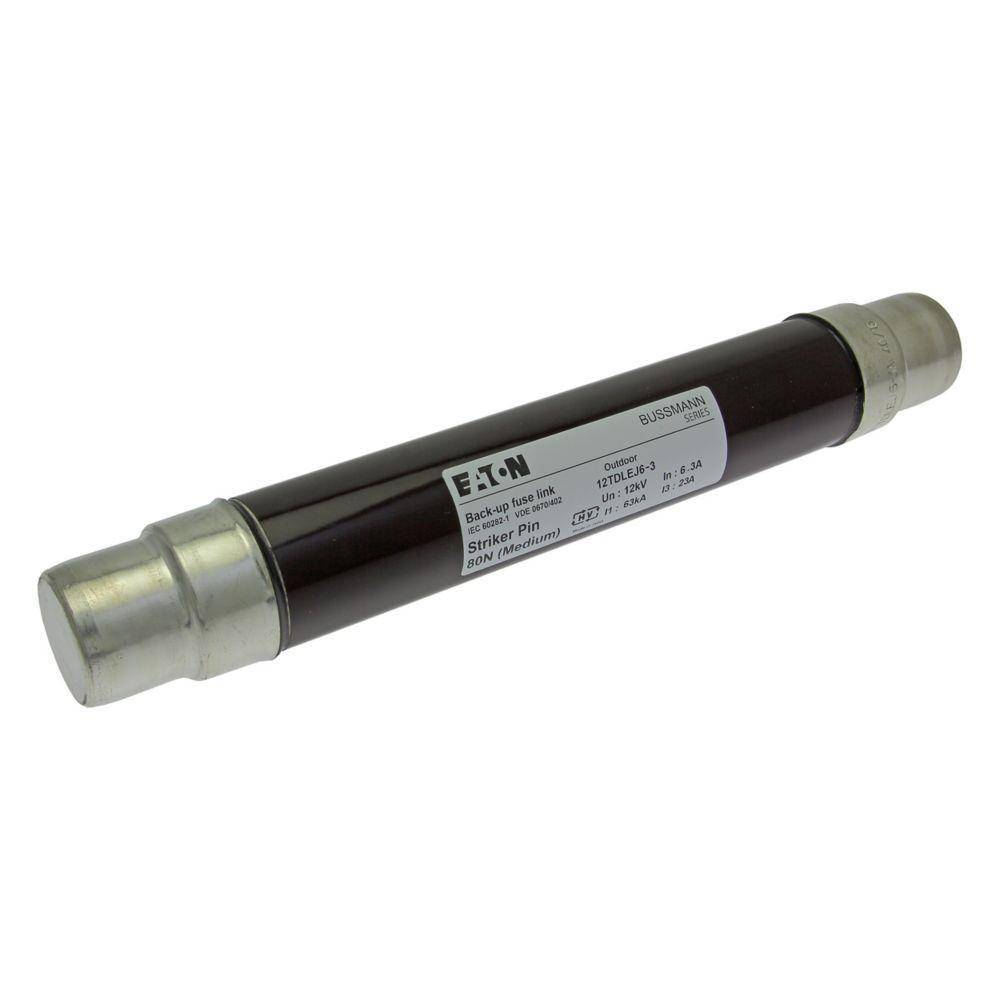

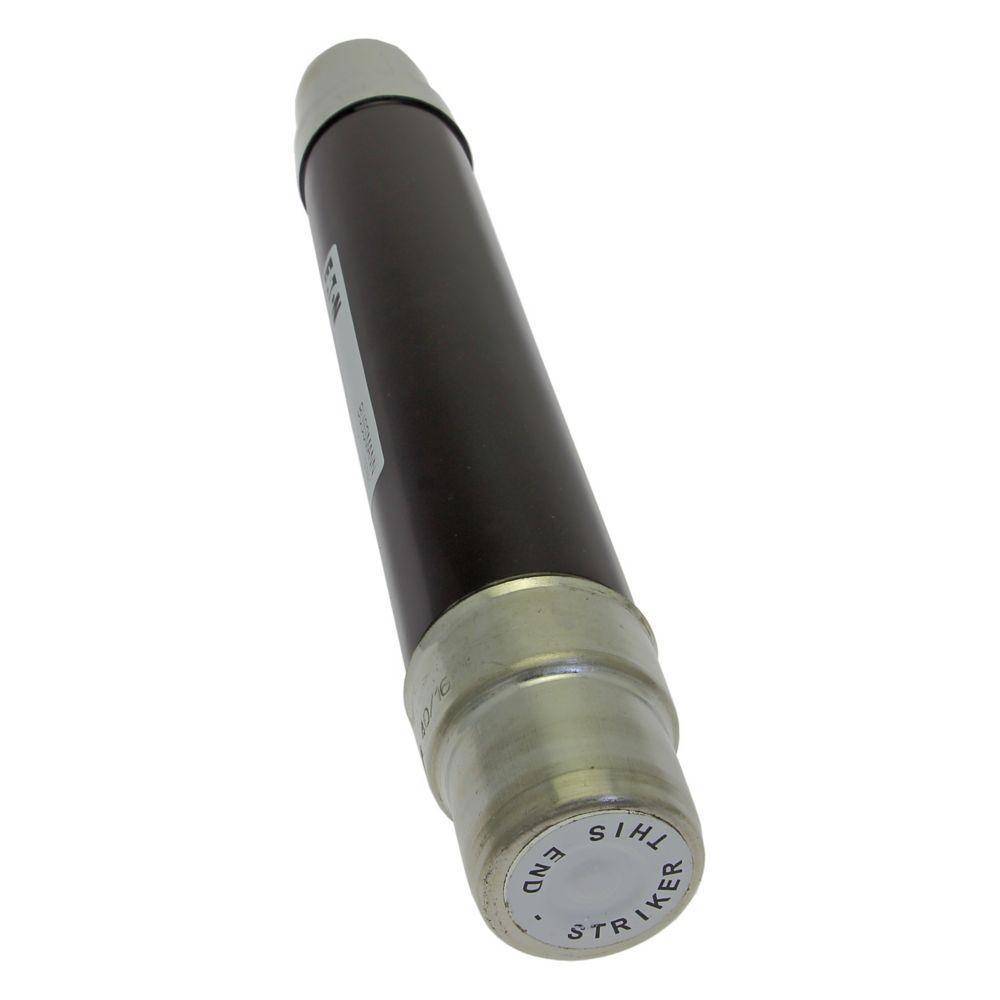

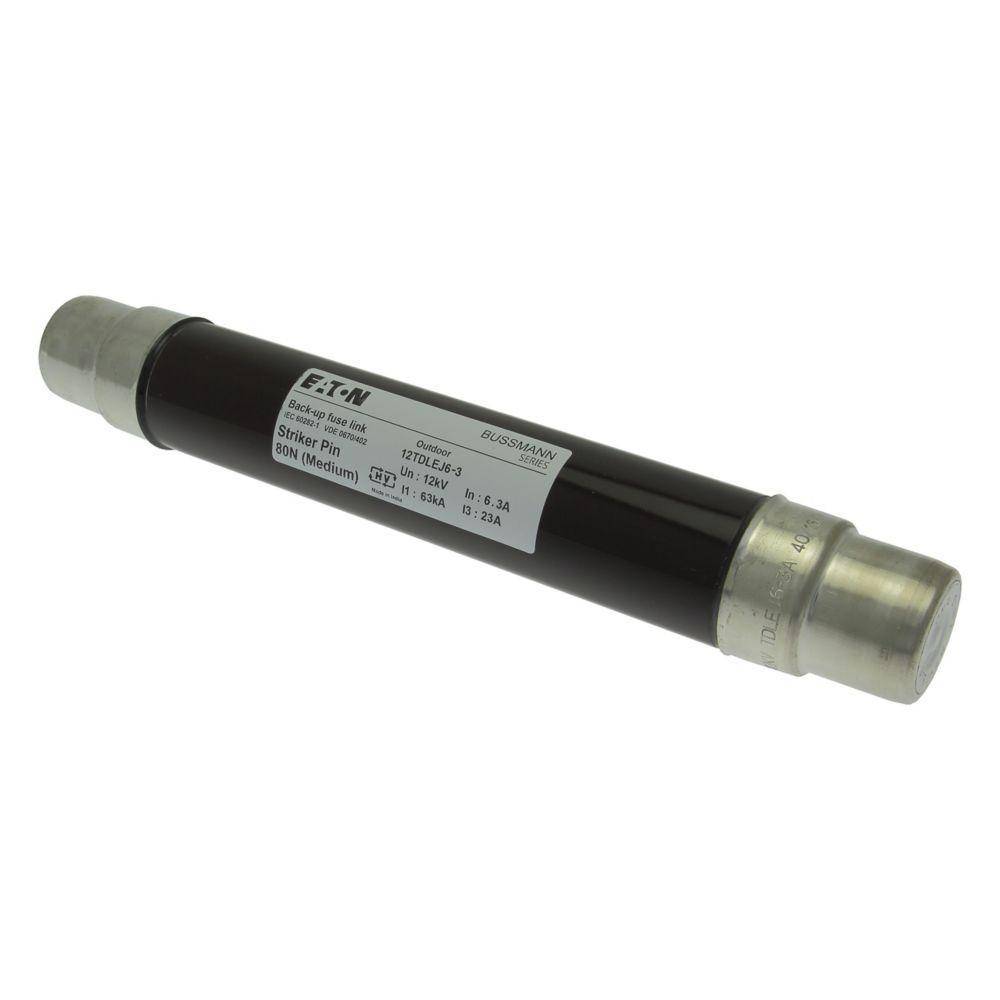

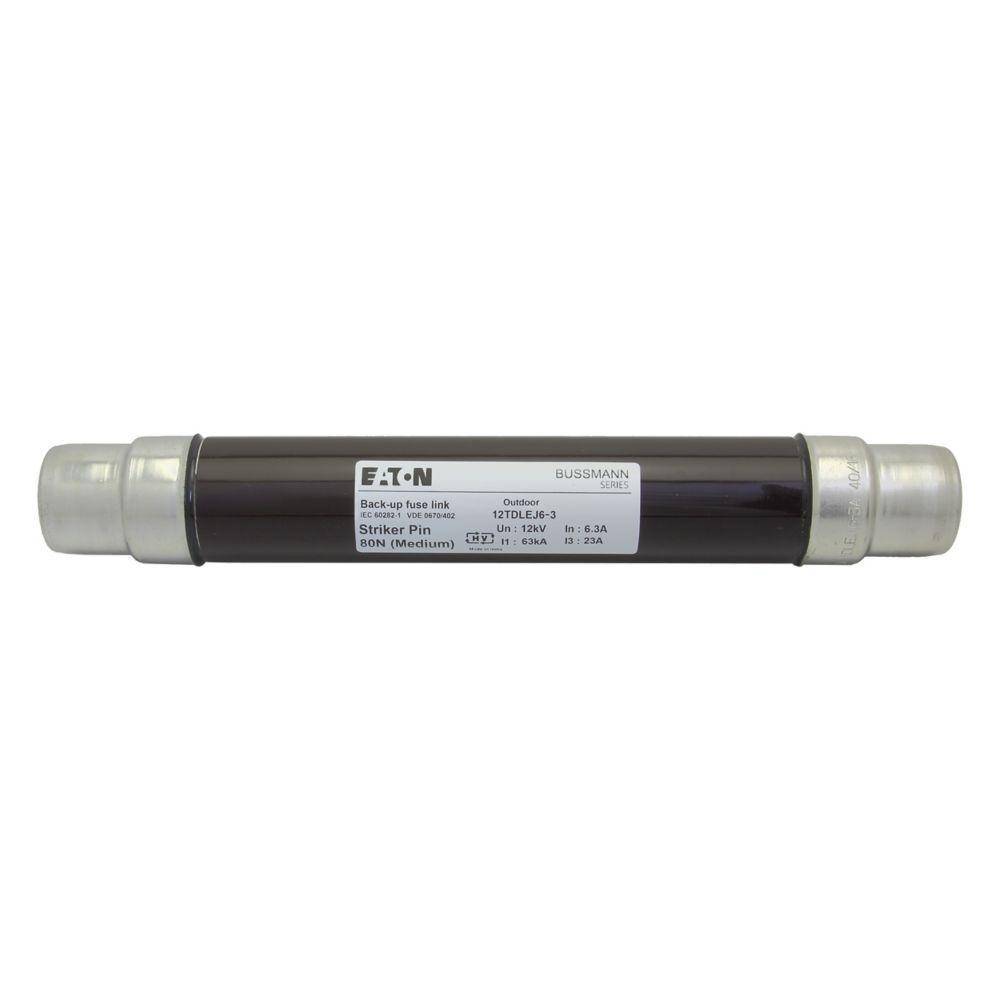

Edison 12TDLEJ6.3 Medium Voltage A and T Range Resin Seal Fuse Link, 12 kV, 6.3 A

Short Description

A range of medium voltage DIN Fuse links, complete with sealed striker, suitable for transformer protection. The fuse links can be used even when there is no secondary low voltage protection, provided they are used with fuse switches fitted with instantaneous striker tripping.

Edison Resin Seal Fuse Link, Medium Voltage A and T Range, 12 kV, 6.3 A, 50 Hz, Rated Breaking Capacity: 63 kA, 51 mm Dia x 292 mm L
MFG #: 12TDLEJ6.3

EECO #: BU12TDLEJ6.3

Brand: Edison
UPC #: 051712186032
Attributes
Features
Documents
Product Information
Attributes
Color
Brown
UNSPSC
39121626
Application
Primary Side Transformer Protection, Fuse Switch Combination Unit, Fuse Bases and Fuse Switches
Voltage Rating
12
Frequency Rating
50
Type
Medium Voltage A and T Range
Series
TDLEJ
Dimensions
51 mm Dia x 292 mm L
Amperage Rating
6.3
Suitable For Use With
Medium Voltage Current Limiting Fused Circuit
Features
  • Cool running, low watts loss and power dissipation thanks to the m-effect ensuring high levels of substation utilization
  • Silver elements ensuring high conductivity and low power (revenue) loss
  • 100% X-Ray, all our medium voltage fuse links are X-Rayed ensuring the highest possible standards are maintained
  • 2 in resin seal fuse link
