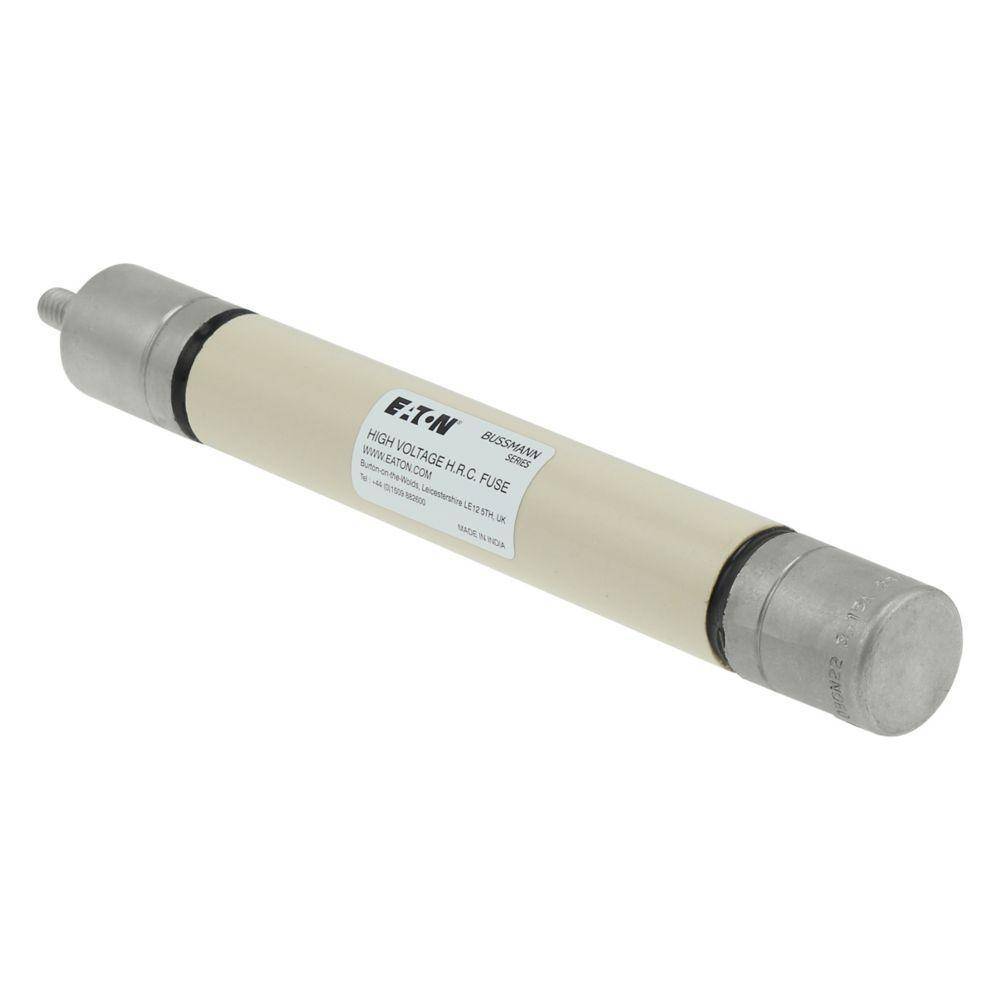

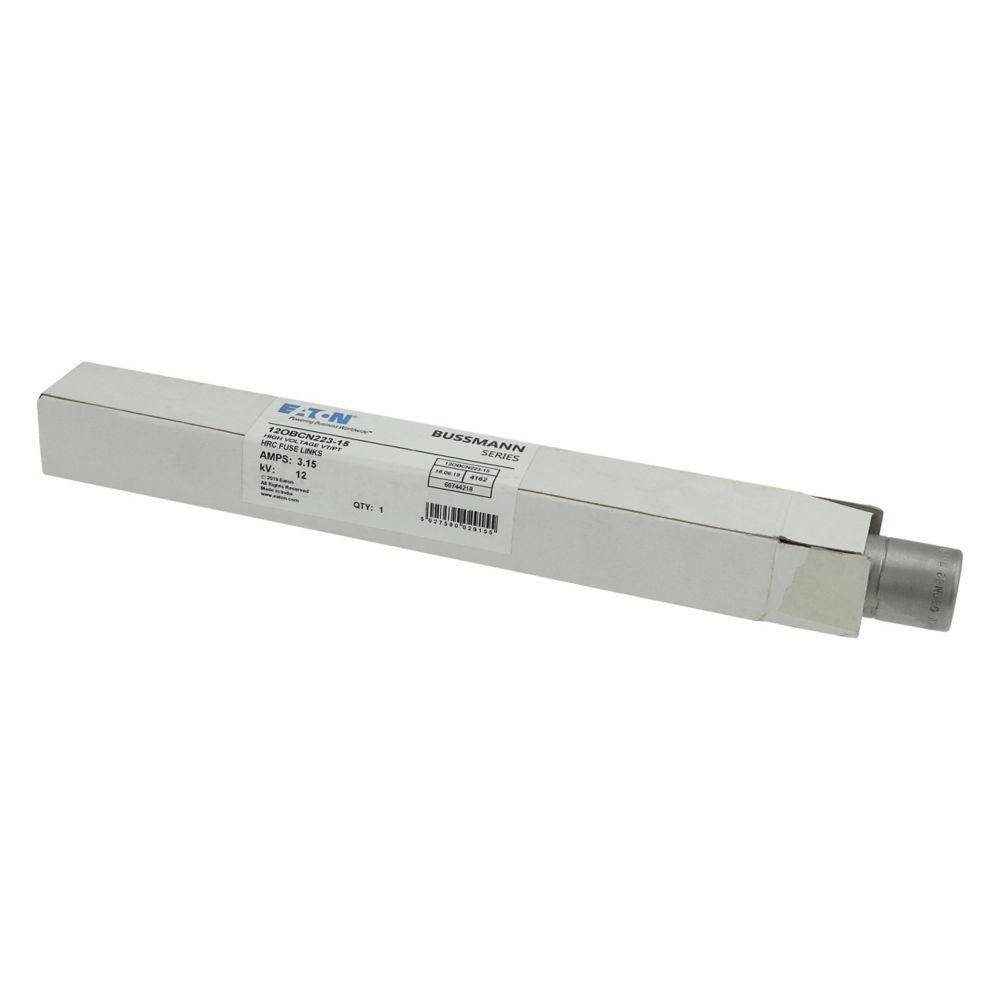

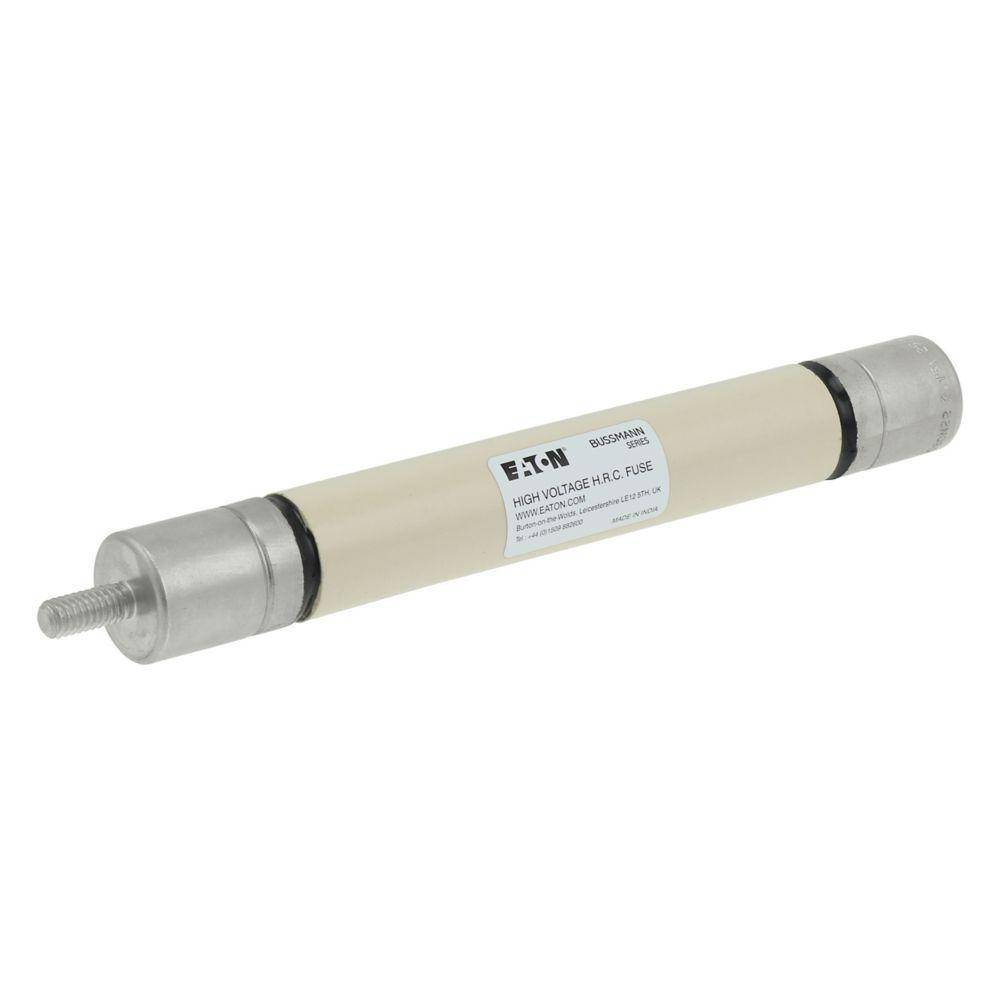

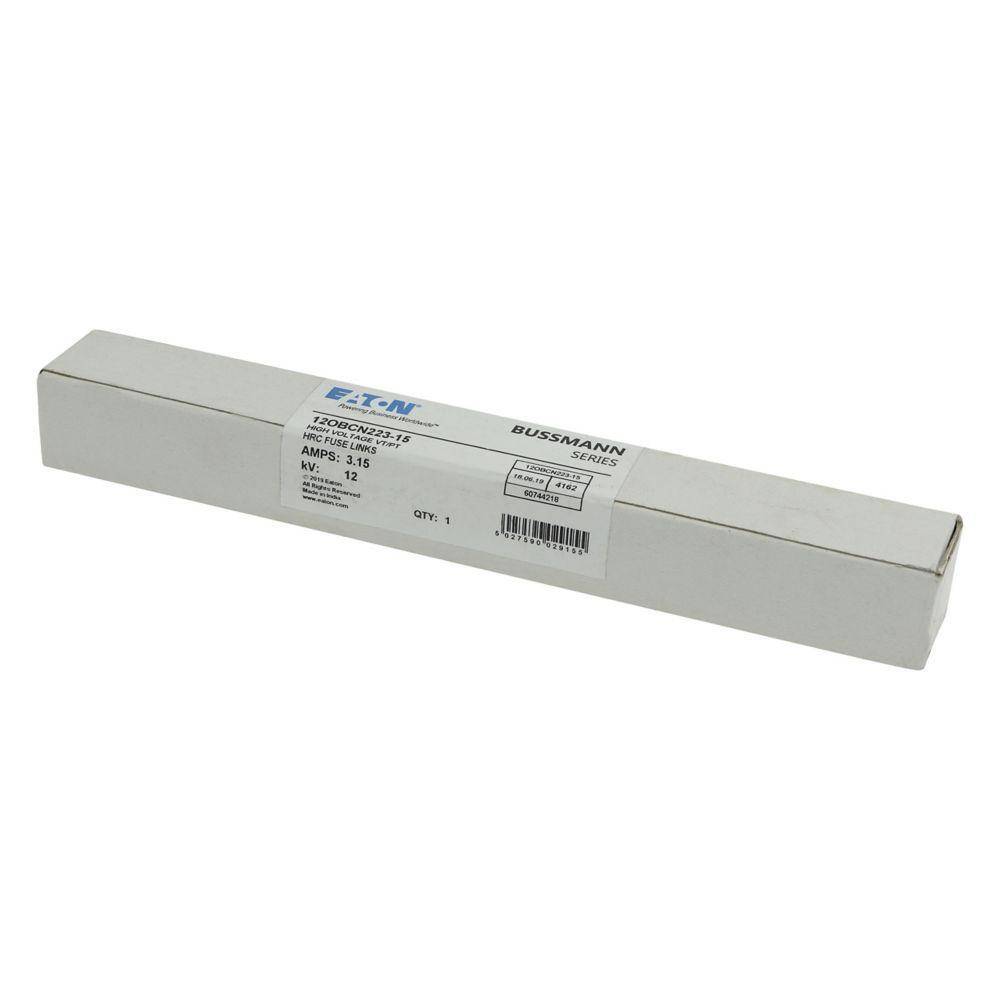

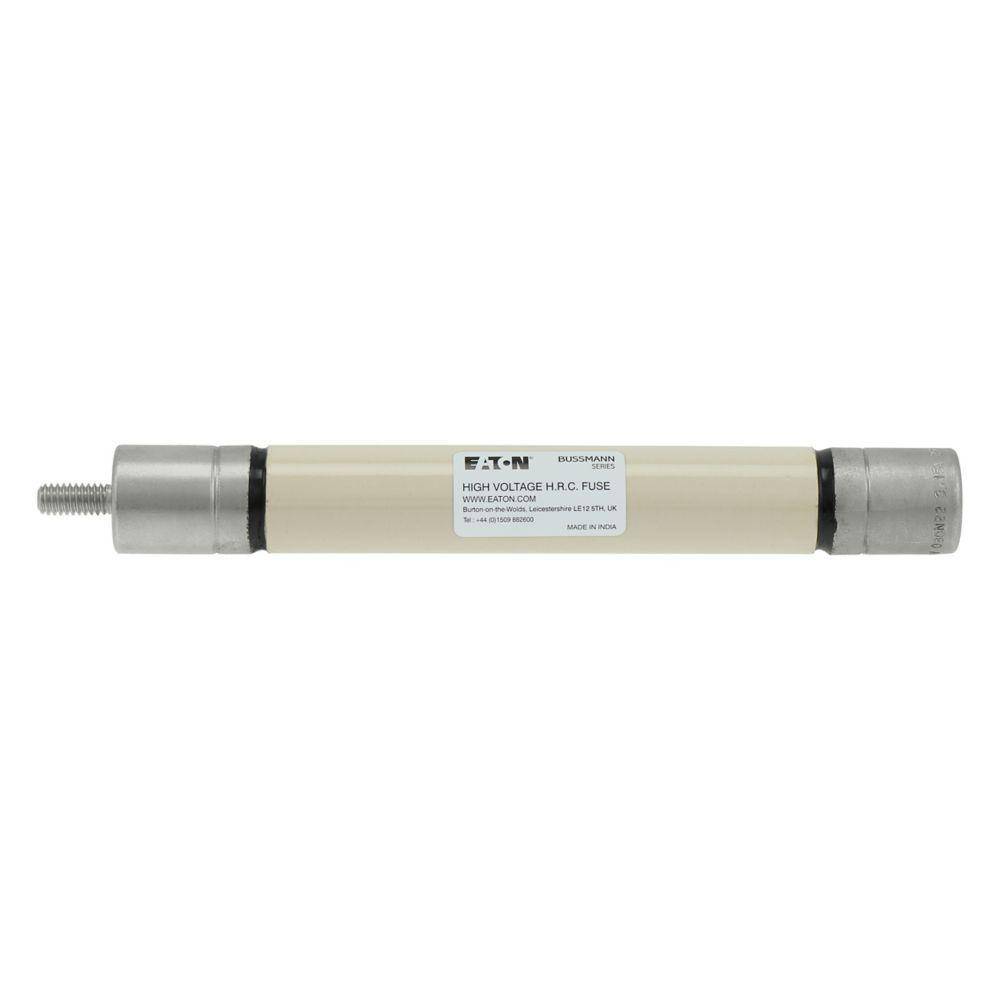

Edison 12OBCN223.15 Full Range Current Limiting Fuse Link, 12 kV, 3.15 A

Short Description

Eaton's Bussmann series medium voltage auxiliary transformers fuses are specifically designed for use in the primary side of voltage transformers. They comply with BS 2692-1 and IEC 60282-1 standards.

Edison Current Limiting Fuse Link, Full Range, 12 kV, 3.15 A
MFG #: 12OBCN223.15

EECO #: BU12OBCN223.15

Brand: Edison
UPC #: 051712830768
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121626
Mounting Type
Stud
Voltage Rating
12
Type
Full Range
Dimensions
25.4 mm Dia x 403 mm L
Amperage Rating
3.15
Features
  • Type: Full Range Current Limiting Fuse Link
  • Voltage Rating: 12 kV
  • Current Rating: 3.15 A
  • Manufacturer: Edison
