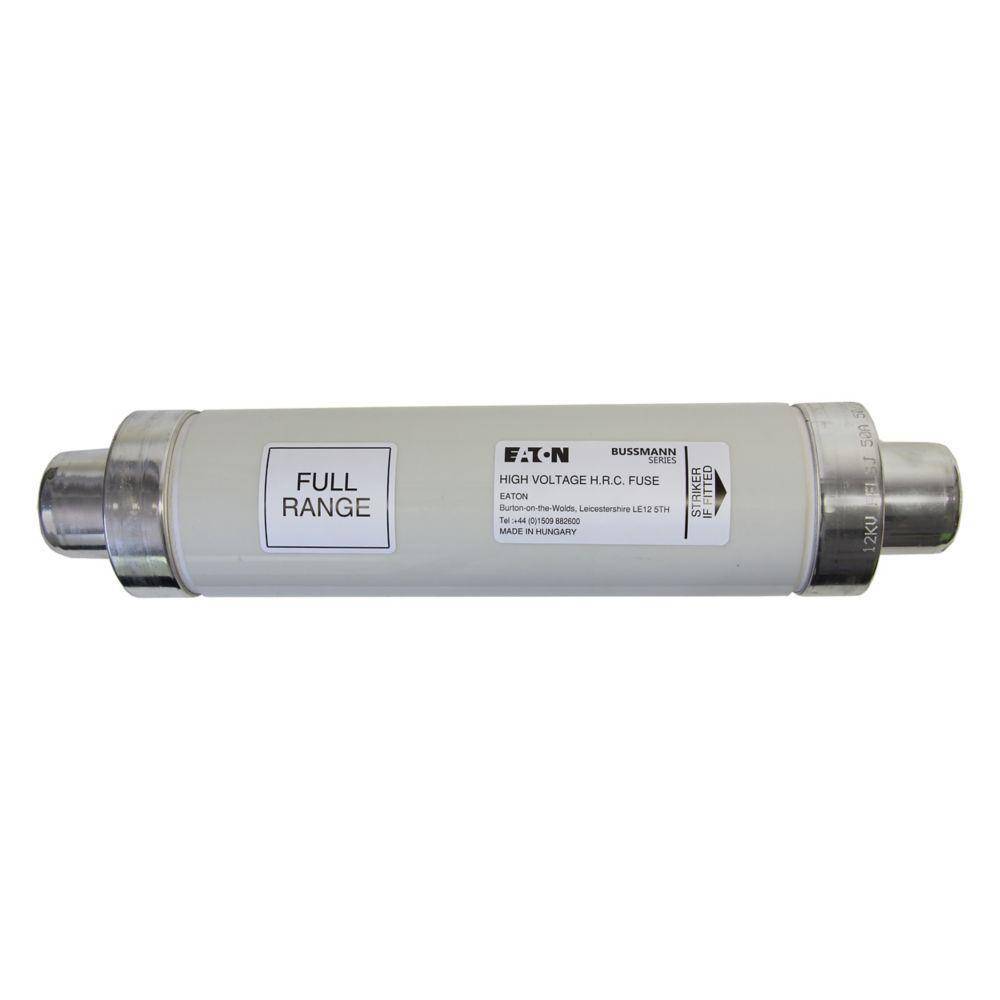

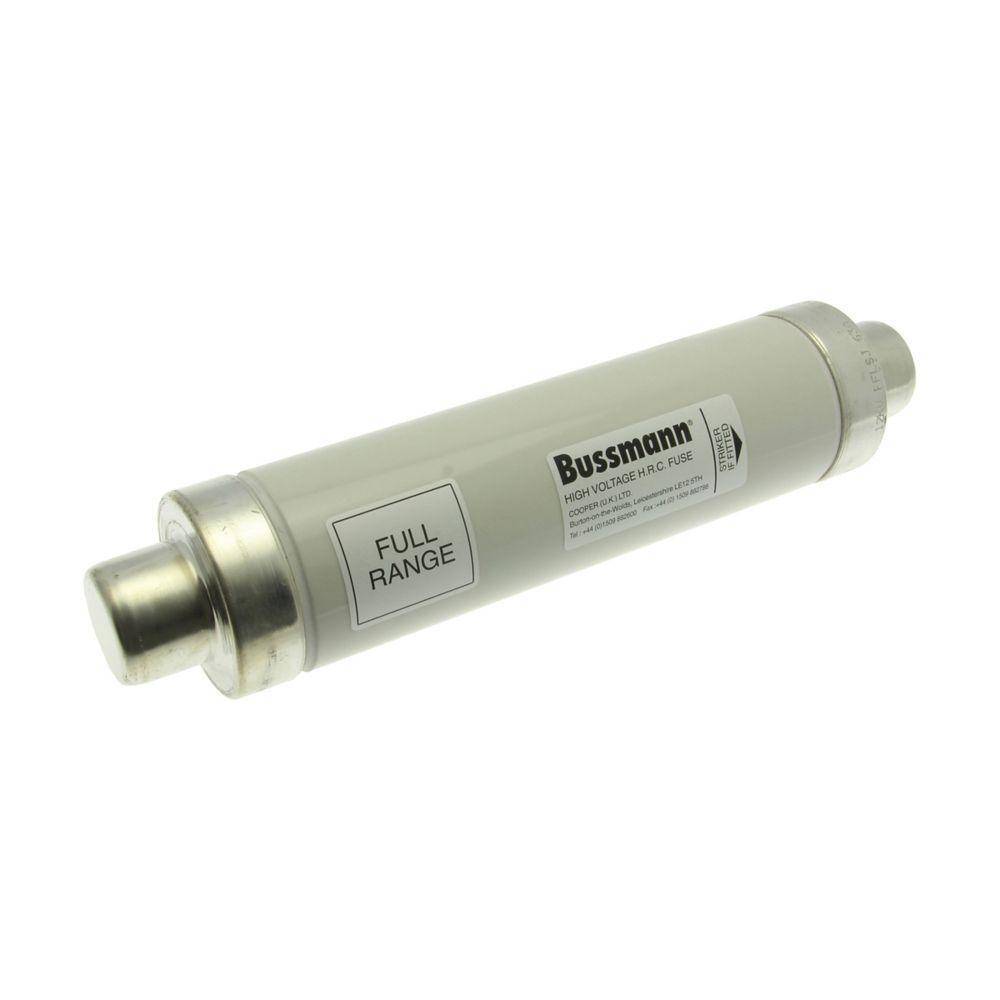

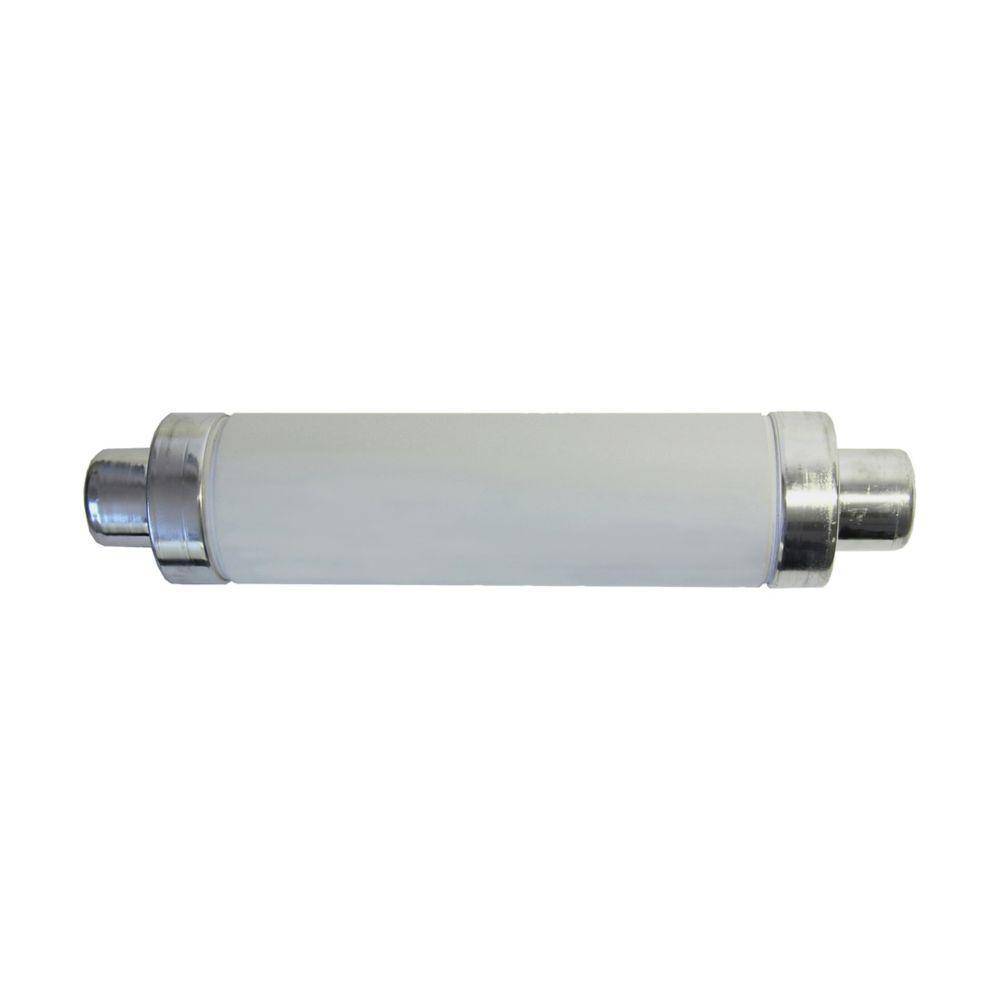

Edison 12FFLSJ63 Full Range Current Limiting Fuse Link, 12 kV, 63 A

Short Description

A range of medium voltage DIN Fuse links, complete with sealed striker, suitable for transformer protection. Cooper Bussmann F range provide full range protection.

Edison Current Limiting Fuse Link, Full Range, 12 kV, 63 A, Rated Breaking Capacity: 50 kA, 76.2 mm Dia x 292 mm L
MFG #: 12FFLSJ63

EECO #: BU12FFLSJ63

Brand: Edison
UPC #: 051712794237
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121626
Application
Primary Side Transformer Protection, Fuse Switch Combination Unit, Fuse Bases Without Instantaneous Striker Tripping and Fuse Switches
Mounting Type
Bolt-On
Voltage Rating
12
Type
Full Range
Dimensions
76.2 mm Dia x 292 mm L
Amperage Rating
63
Features
  • Cool running, low watts loss and power dissipation thanks to the m-effect ensuring high levels of substation utilization
  • Silver elements ensuring high conductivity and low power (revenue) loss
  • 100% X-Ray, all our medium voltage fuse links are X-Rayed ensuring the highest possible standards are maintained
  • Our full range of MV fuse links can interrupt any current below the rated breaking capacity
  • 3 in fuse link
Bussmann_12FFLSJ63_Specification_Sheet
12FFLSJ63_Specification_Sheet_01
