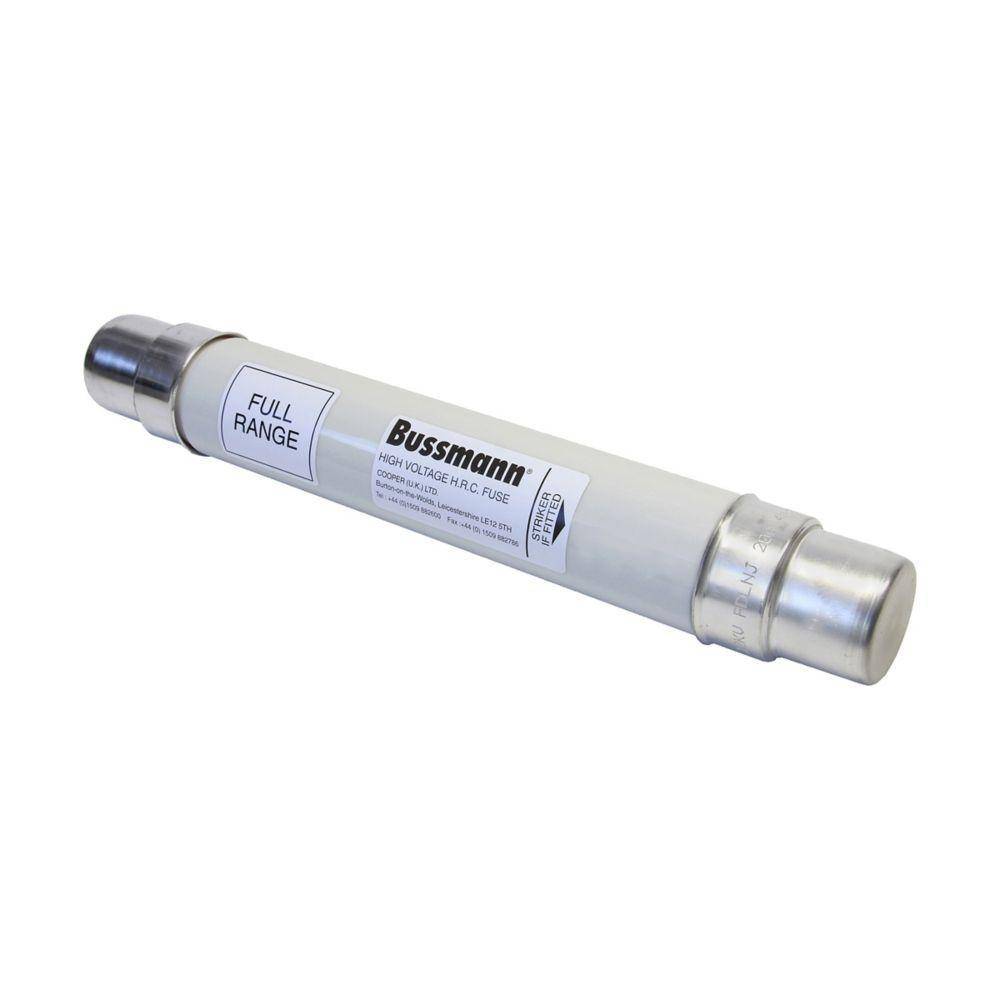

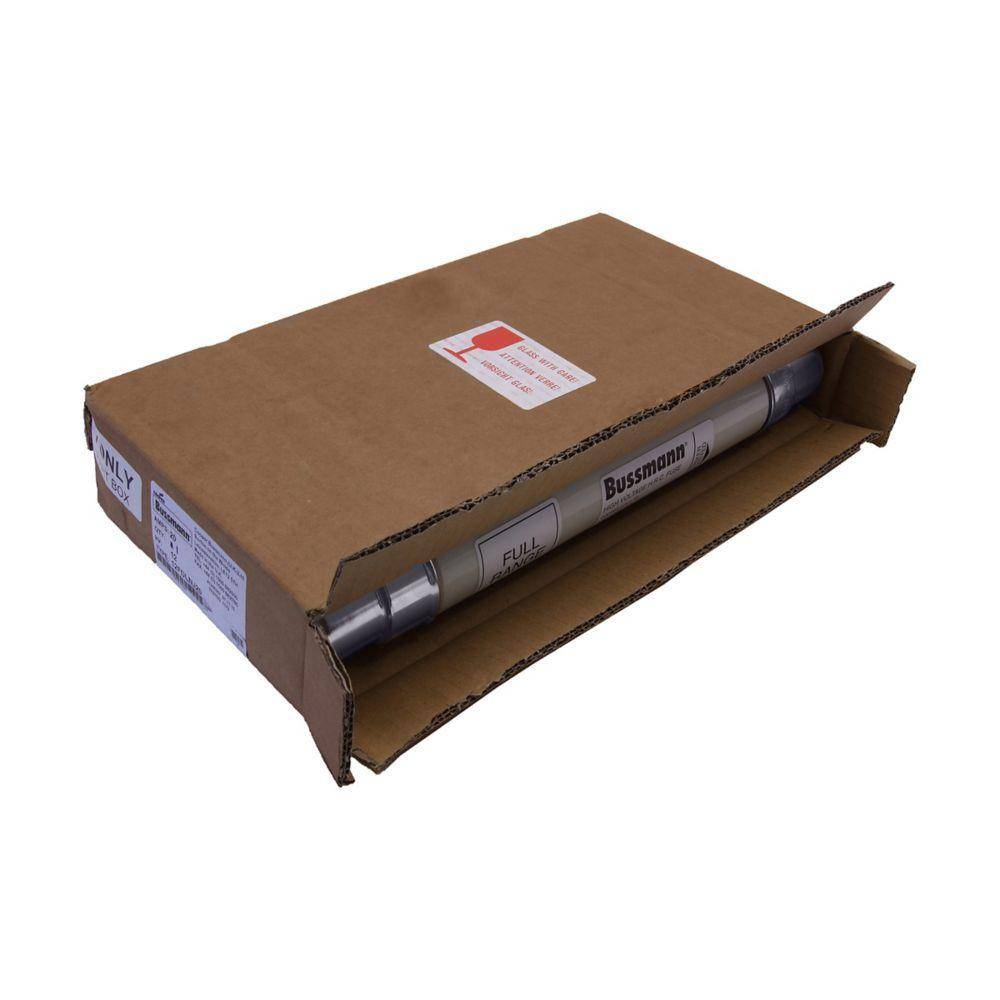

Bussmann 12FDLSJ6.3 FDLSJ Type F Current Limiting Medium Voltage Full Range Fuse Link, 6.3 A, 12 kV, Cartridge Body

Short Description

Eaton's Bussmann medium voltage DIN full range and back-up fuses offer an excellent transformer protection. They are available with or without striker. They comply to the dimensional standard DIN 43625, VDE 0670 and IEC 60282-1. They are suitable for indoor and outdoor use.

Bussmann Full Range Fuse Link, Type F Current Limiting Medium Voltage, Series: FDLSJ, Non-Indicating, 6.3 A, 12 kV, Bolted-On Terminal, Cartridge Body, 51 mm Dia x 292 mm L Body
MFG #: 12FDLSJ6.3

EECO #: BU12FDLSJ6.3

Brand: Bussmann
UPC #: 051712664578
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121626
Application
Primary Side Transformer Protection, Oil Filled Fuse Switch Combination Unit, Fuse Bases Without Instantaneous Striker Tripping and Fuse Switches
Terminal Type
Bolted-On
Voltage Rating
12
Type
Type F Current Limiting Medium Voltage
Series
FDLSJ
Amperage Rating
6.3
Features
  • Cool running, low watts loss and power dissipation thanks to the M-effect ensuring high levels of substation utilization
  • Silver elements ensuring high conductivity and low power (revenue) loss
  • 100% X-ray, all our medium voltage fuse links are X-rayed ensuring the highest possible standards are maintained
  • Full range MV fuse links can interrupt any current below the rated breaking capacity
