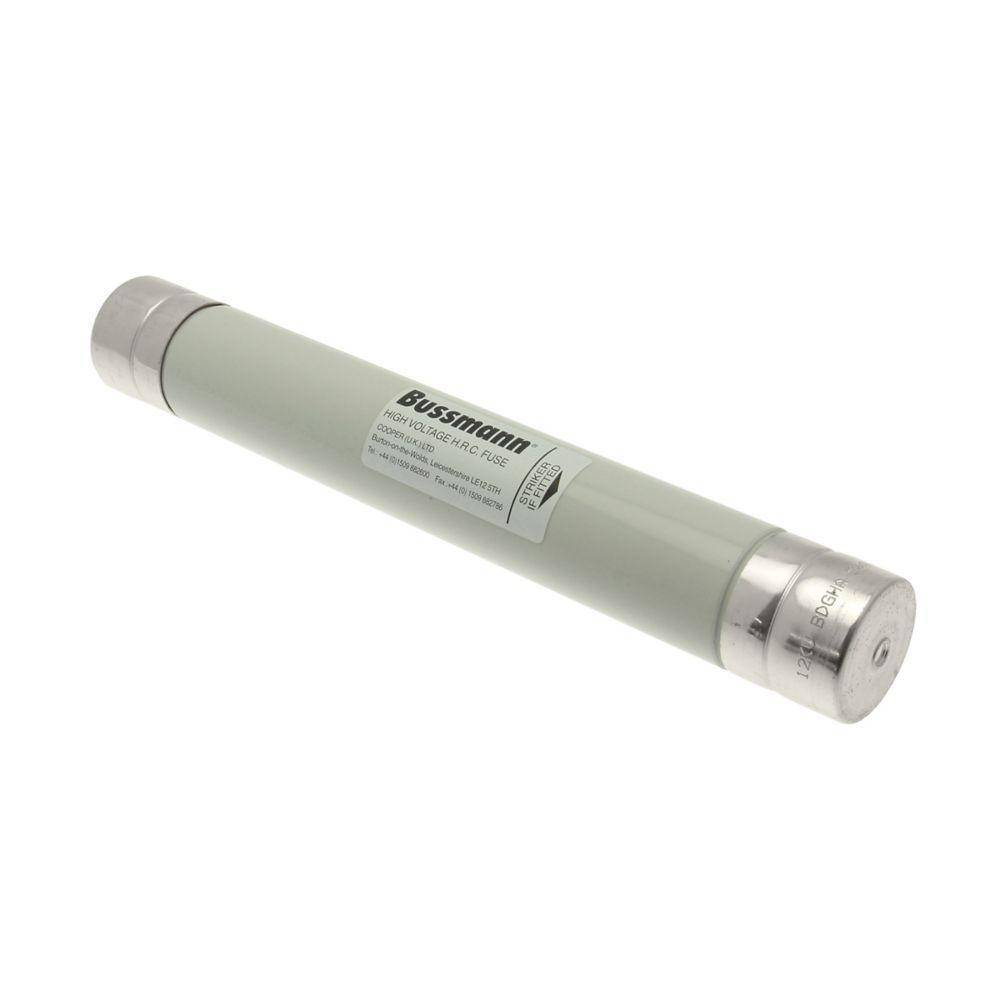

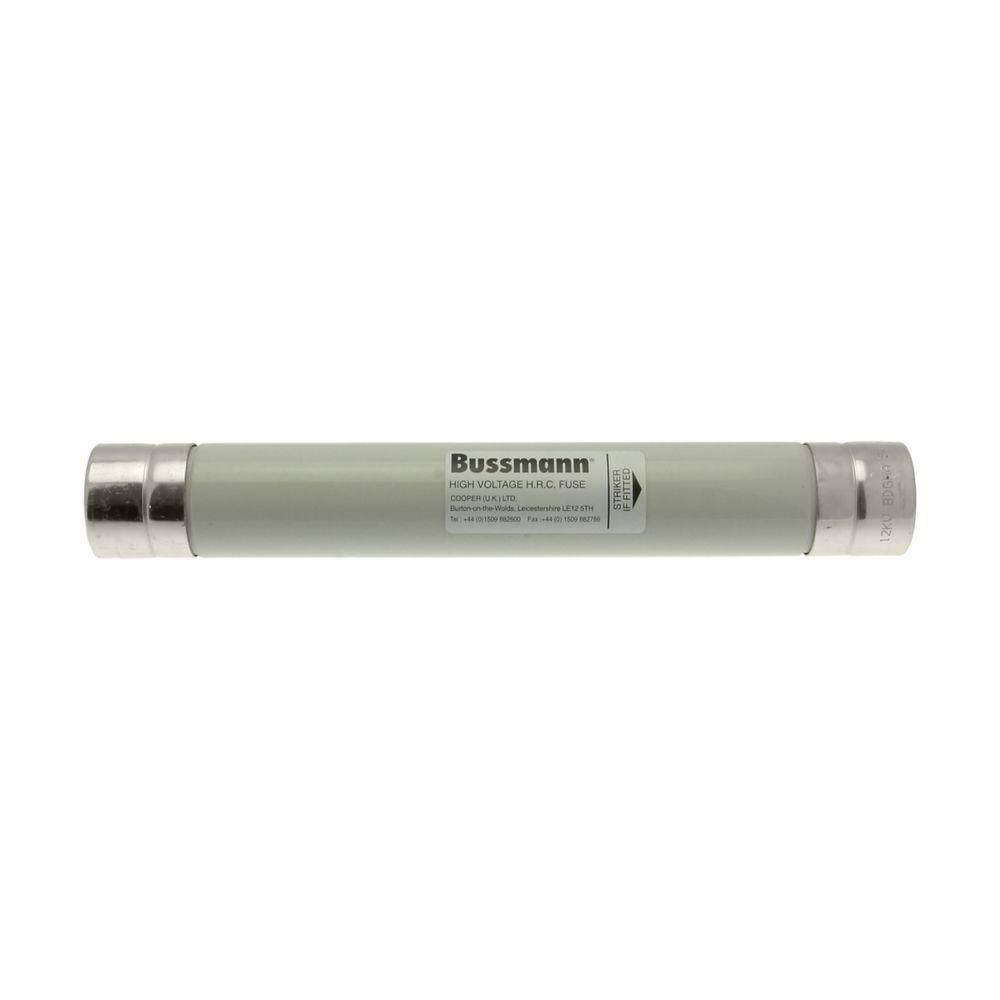

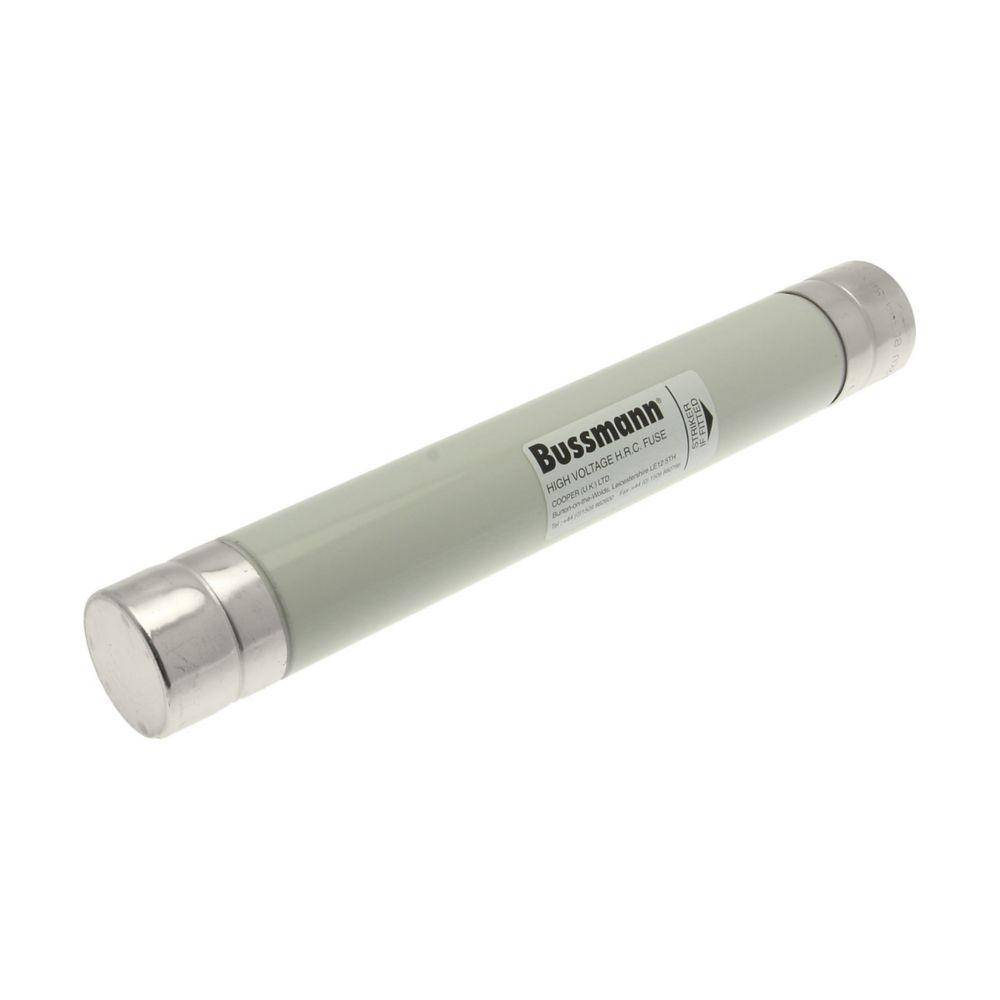

Bussmann 12BDGHA35.5 BDGHA Type A British Standard Medium Voltage Air Fuse Link, 35.5 A, 12 kV

Name: Bussmann 12BDGHA35.5 BDGHA Type A British Standard Medium Voltage Air Fuse Link, 35.5 A, 12 kV
Brand: Eaton
SKU: BU12BDGHA35.5
Availability: InStock

Short Description

Eaton's Bussmann medium voltage DIN full range and back-up fuses offer an excellent transformer protection. They are available with or without striker. They comply to the dimensional standard DIN 43625, VDE 0670 and IEC 60282-1. They are suitable for indoor and outdoor use.

Bussmann Air Fuse Link, Type A British Standard Medium Voltage, Series: BDGHA, Non-Indicating, 35.5 A, 12 kV, Bolted-On Terminal, Stud Mounting, 51 mm Dia x 359 mm L Body

MFG #: 12BDGHA35.5

EECO #: BU12BDGHA35.5 BU12BDGHA35.5

Brand: Bussmann

UPC #: 051712240994

Attributes

Features

Documents

Product Information

Attributes

UNSPSC

39121626

Application

Primary Side Transformer Protection, Oil Filled Fuse Switch Combination Unit, Fuse Bases and Fuse Switches

Mounting Type

Stud

Terminal Type

Bolted-On

Voltage Rating

Type

Type A British Standard Medium Voltage

Series

BDGHA

Amperage Rating

35.5

Features

Cool running, low watts loss and power dissipation thanks to the M-effect ensuring high levels of substation utilization
Silver elements ensuring high conductivity and low power (revenue) loss
100% X-ray, all our medium voltage fuse links are X-rayed ensuring the highest possible standards are maintained

Bussmann_12BDGHA35_5_Specification_Sheet
