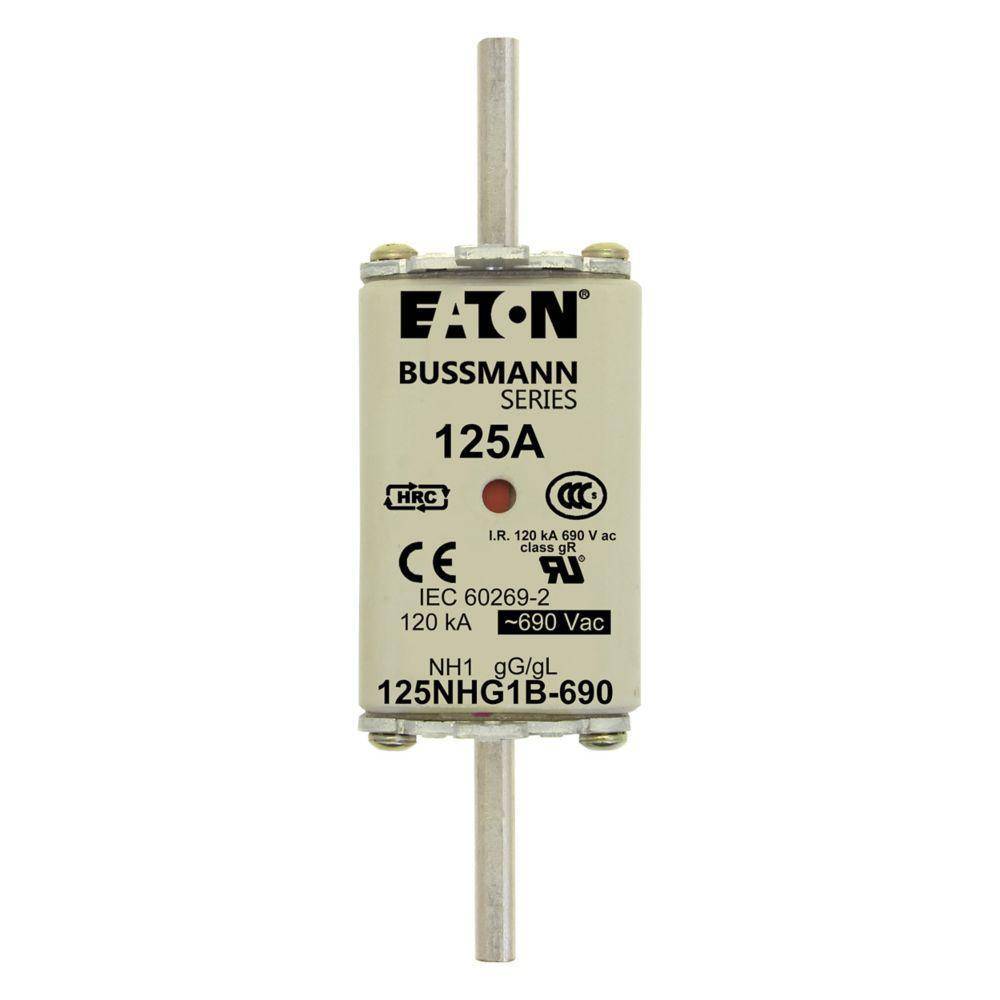

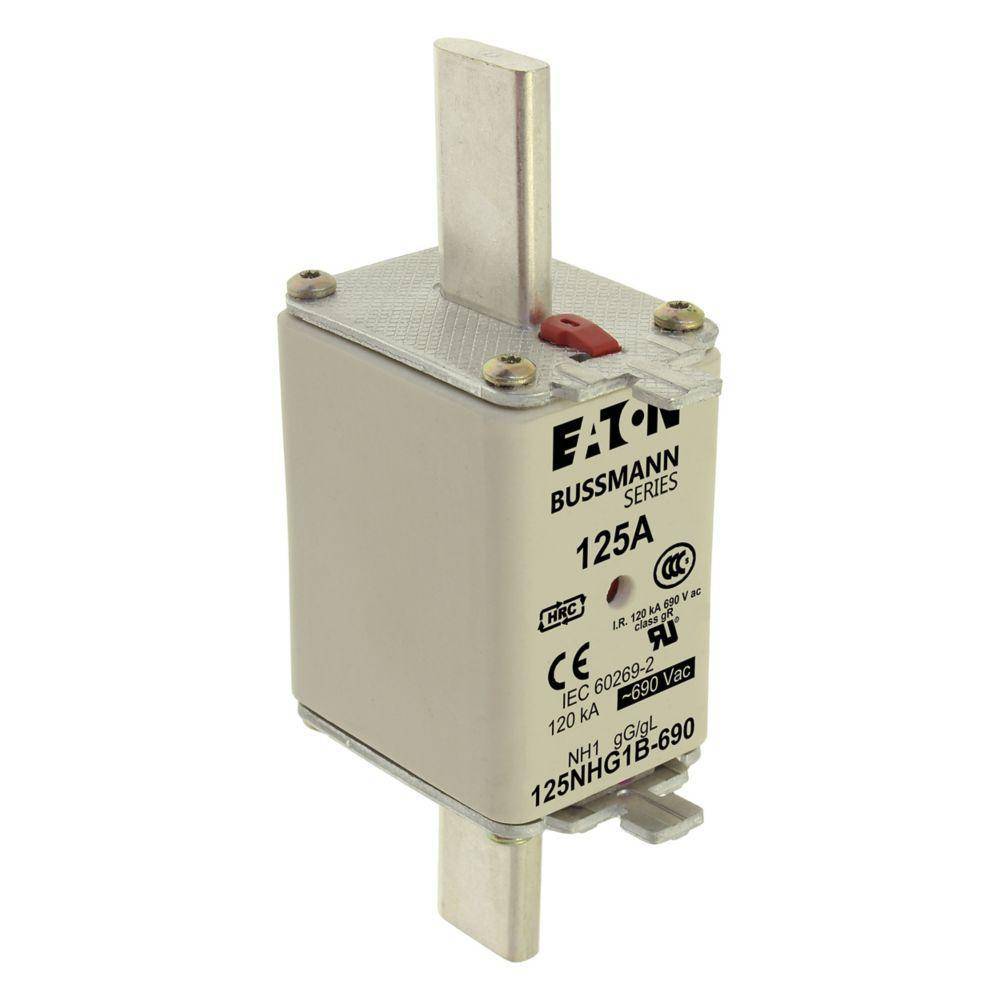

Bussmann 125NHG1B-690 Size 1 Dual Indicator Low Voltage NH Fuse Link, 690 V, 125 A, For Use With Class C gG/gL Fuse, Ceramic

Short Description

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.

Bussmann NH Fuse Link, Size 1 Dual Indicator Low Voltage, Series: NHG, 690 V, 125 A, 45 to 62 Hz Frequency, Rated Breaking Capacity: 120 kA, Holder Mounting, For Use With: Class C gG/gL Fuse, Ceramic
MFG #: 125NHG1B-690

EECO #: BU125NHG1B690

Brand: Bussmann
UPC #: 051712188296
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121626
Material
Ceramic
Application
Electrical Assemblies, Panels and EOEMs, Control Panels for Machines, Aftermarket, Panel Builders, Industrial Facilities and Factories, Power Distribution and Control, Safety and Security Systems Applications
Mounting Type
Holder
Voltage Rating
690
Frequency Rating
45 to 62
Type
Size 1 Dual Indicator Low Voltage
Series
NHG
Amperage Rating
125
Suitable For Use With
Class C gG/gL Fuse
Features
  • Live gripping lugs
  • Square body with knife blade contact
125NHG1B_690_Specification_Sheet
Bussmann_125NHG1B_690_Specification_Sheet
