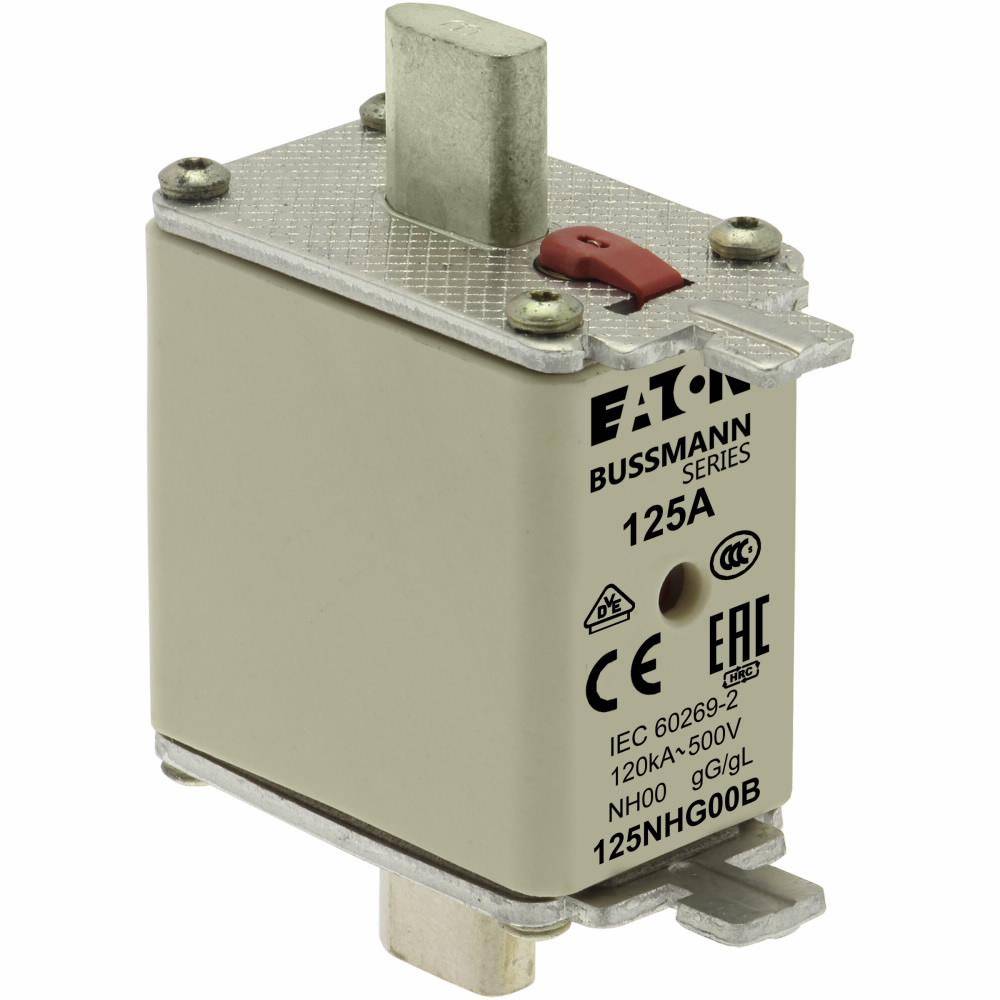

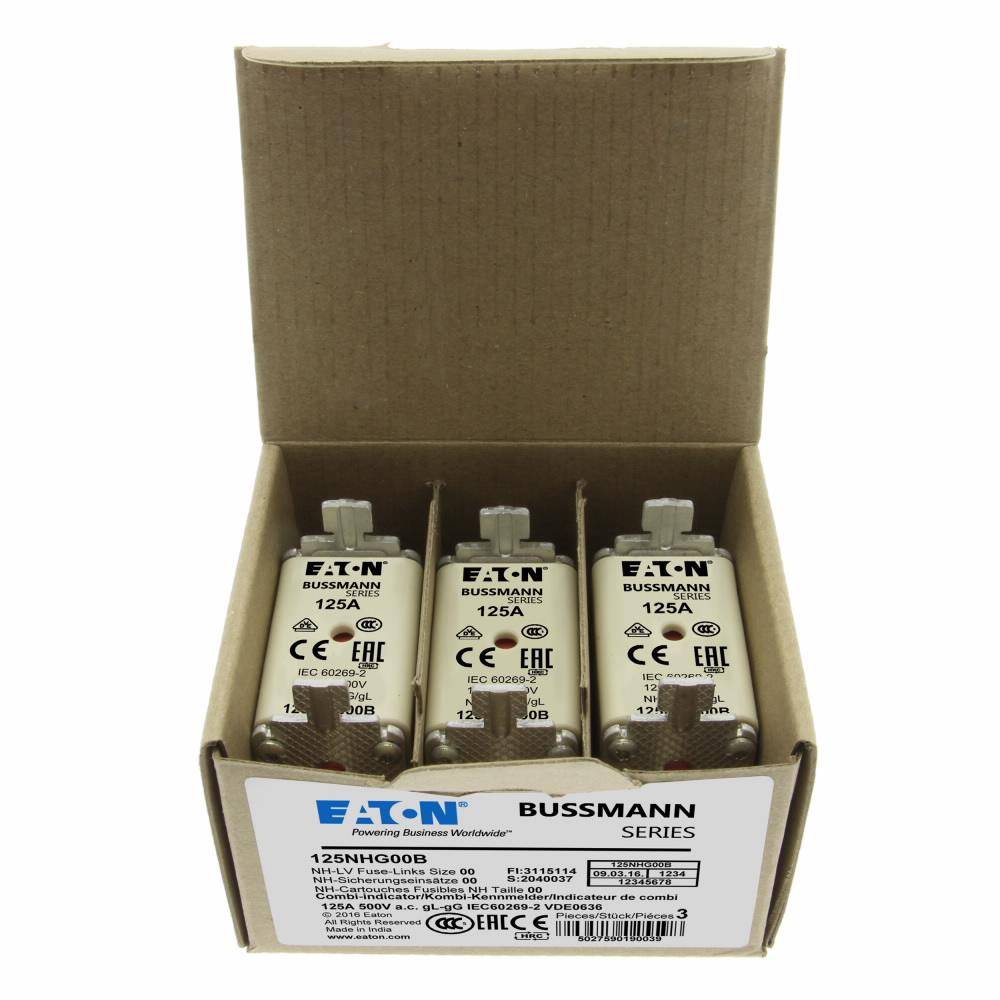

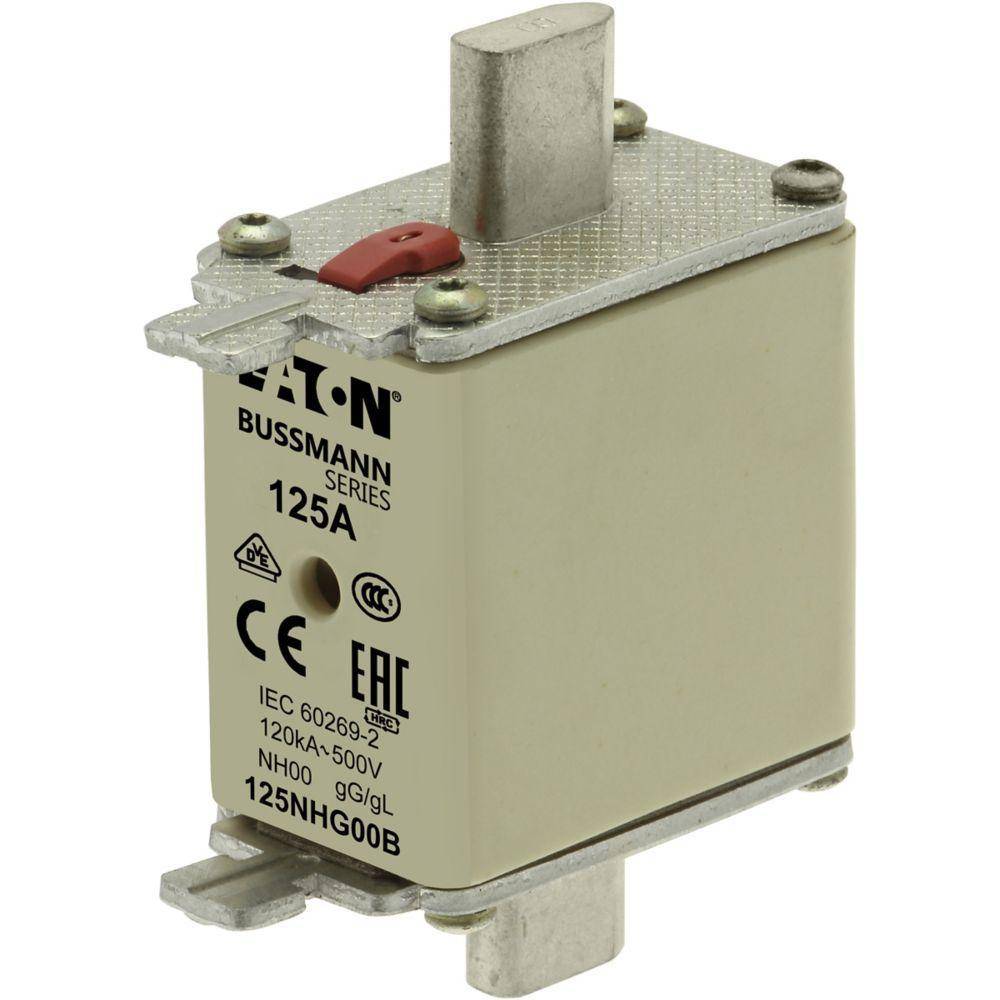

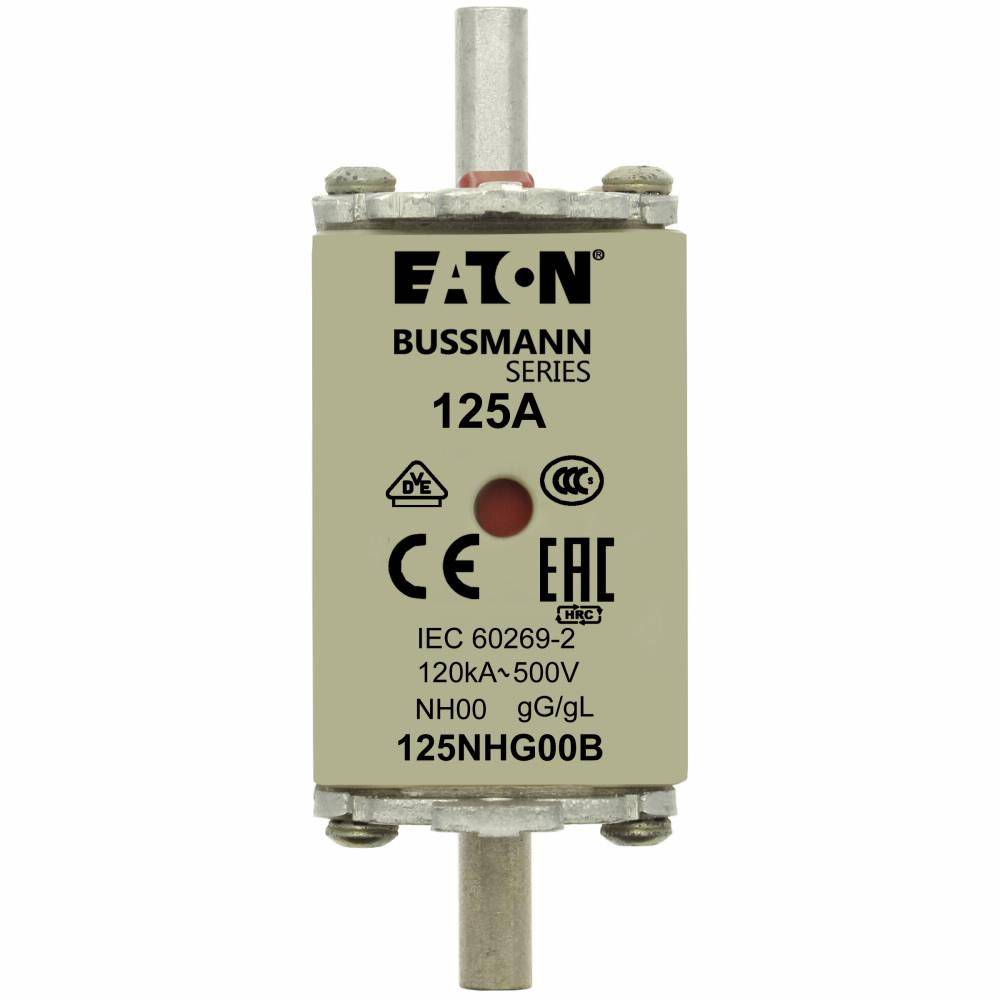

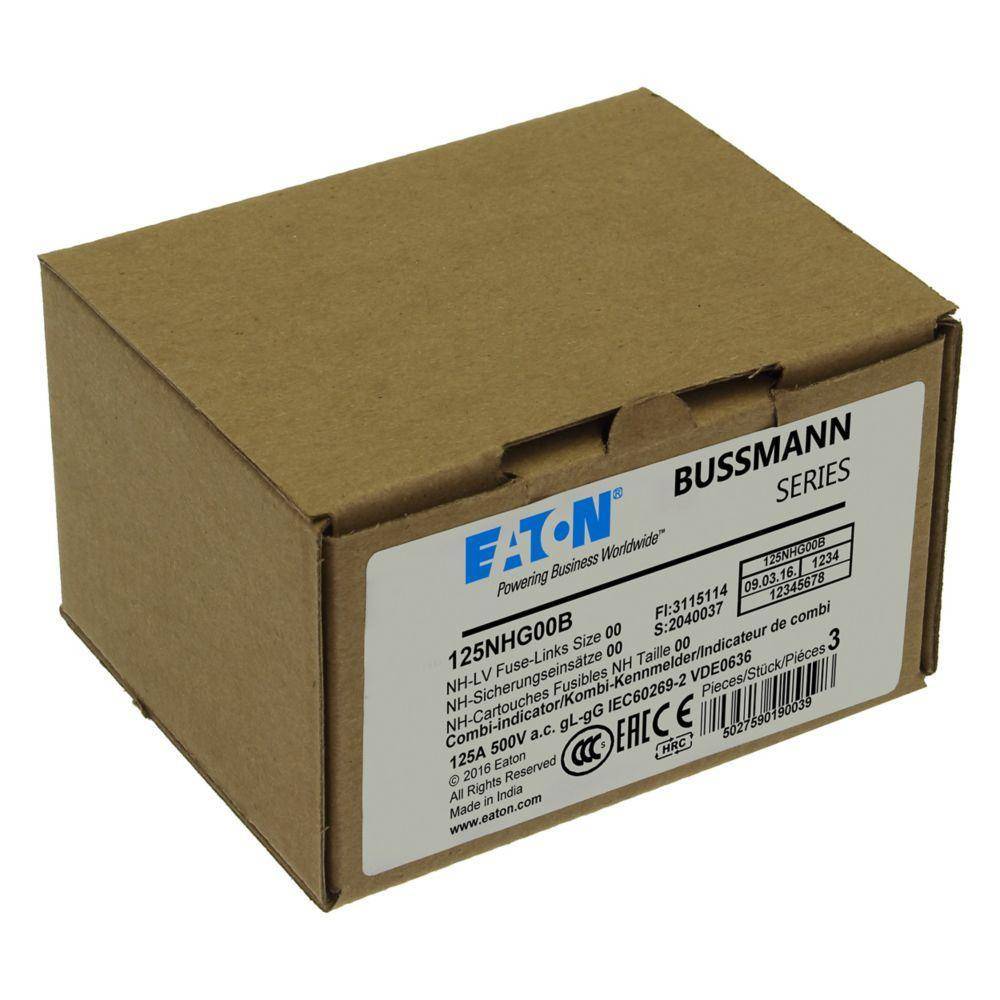

EATON Bussmann Edison 125NHG00B Size 00 Dual Indicator NH Fuse Link, 500 V, 125 A, For Use With Bussmann NH Size Photovoltaic Fuse, Class C gG/gL Fuse, Ceramic

Short Description

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.

EATON Bussmann Edison NH Fuse Link, Size 00 Dual Indicator, Series: NHG, 500 V, 125 A, 45 to 62 Hz Frequency, Rated Breaking Capacity: 120 kA, Holder Mounting, For Use With: Bussmann NH Size Photovoltaic Fuse, Class C gG/gL Fuse, Ceramic, 78.5 mm L x 30 mm W x 58 mm H Dimensions
MFG #: 125NHG00B

EECO #: BU125NHG00B

Brand: Edison
UPC #: 051712625876
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121626
Material
Ceramic
Application
Safety and Security Systems, Electrical Assemblies, Panels and EOEM, Power Distribution and Control, Control Panels for Machines, Panel Builders, Industrial Facilities and Factories Facility, Aftermarket and Low Voltage Industrial Fuses Applications
Mounting Type
Holder
Voltage Rating
500
Frequency Rating
45 to 62
Type
Size 00 Dual Indicator
Series
NHG
Dimensions
78.5 mm L x 30 mm W x 58 mm H
Amperage Rating
125
Suitable For Use With
Bussmann NH Size Photovoltaic Fuse, Class C gG/gL Fuse
Features
  • Eaton's Bussmann® series 500 VAC NH square bodied industrial fuse links are suitable for a wide variety of applications
  • Reliable dual indicator system
  • Low temperature rise
  • Steatite insulator, corrosion proof (aluminum) metal parts with full contact, silver plated copper blade construction
  • Live gripping lugs
