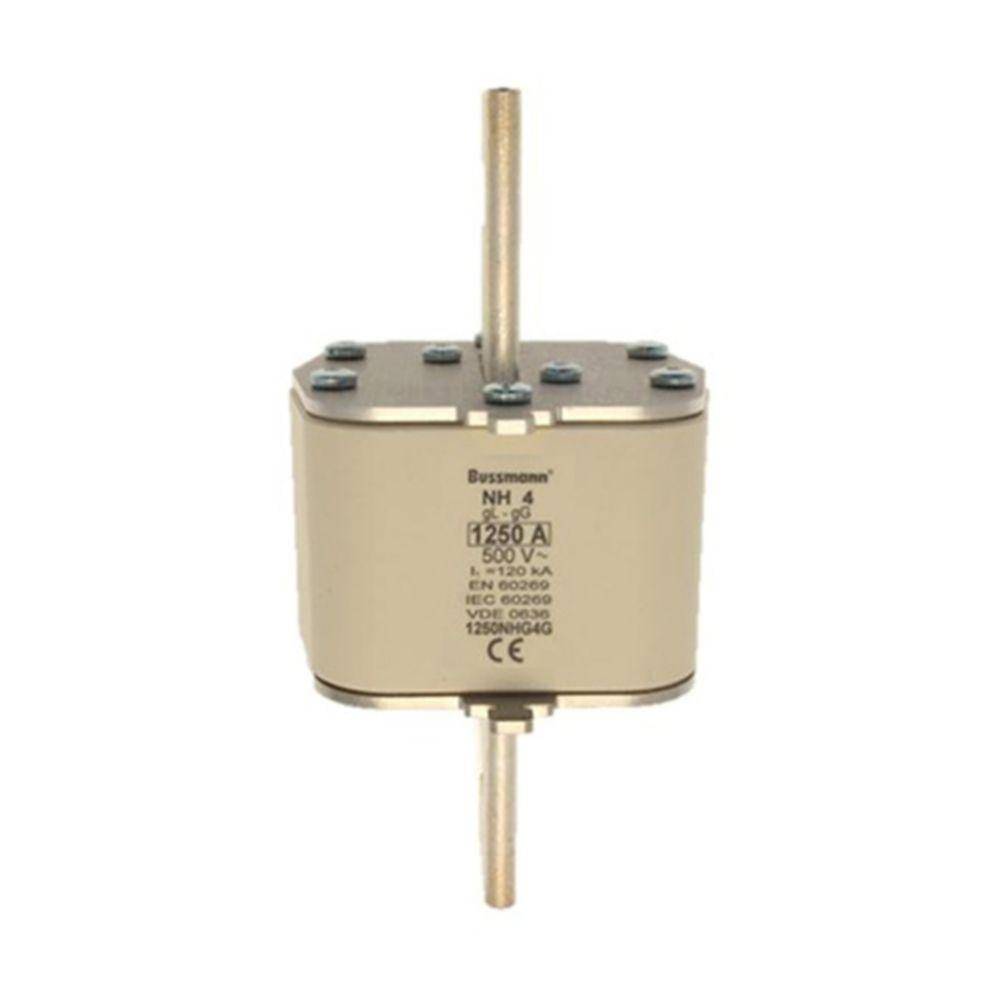

Bussmann 1250NHG4G HRC Low Voltage Non-Indicating NH Fuse Link, 1250 A, 500 VAC, 120 kAIC Interrupt, Class: GL/GG/C
Share Share Print Print
Eaton

Bussmann 1250NHG4G HRC Low Voltage Non-Indicating NH Fuse Link, 1250 A, 500 VAC, 120 kAIC Interrupt, Class: GL/GG/C

Short Description

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.

Bussmann NH Fuse Link, HRC Low Voltage Non-Indicating, 1250 A, 500 VAC, 120 kAIC Interrupt, Class: GL/GG/C, 45 to 62 Hz, 52.362 in L x 44.094 in H Body Size
MFG #: 1250NHG4G

EECO #: BU1250NHG4G

Brand: Bussmann
UPC #: 051712295611
Attributes
Features
Documents
Product Information
Attributes
Class
GL/GG/C
UNSPSC
39121626
Application
Industrial Facilities and Factory Facilities, Safety and Security Systems, Power Distribution and Control Applications
Voltage Rating
500
Frequency Rating
45 to 62
Type
HRC Low Voltage Non-Indicating
Amperage Rating
1250
Features
  • Package Type: Standard
  • Width: 8.661 in
  • Weight: 4.884 lbs
  • Height: 44.094 in
  • Indicator: Non-Indicating
Bussmann_1250NHG4G_Specification_Sheet
