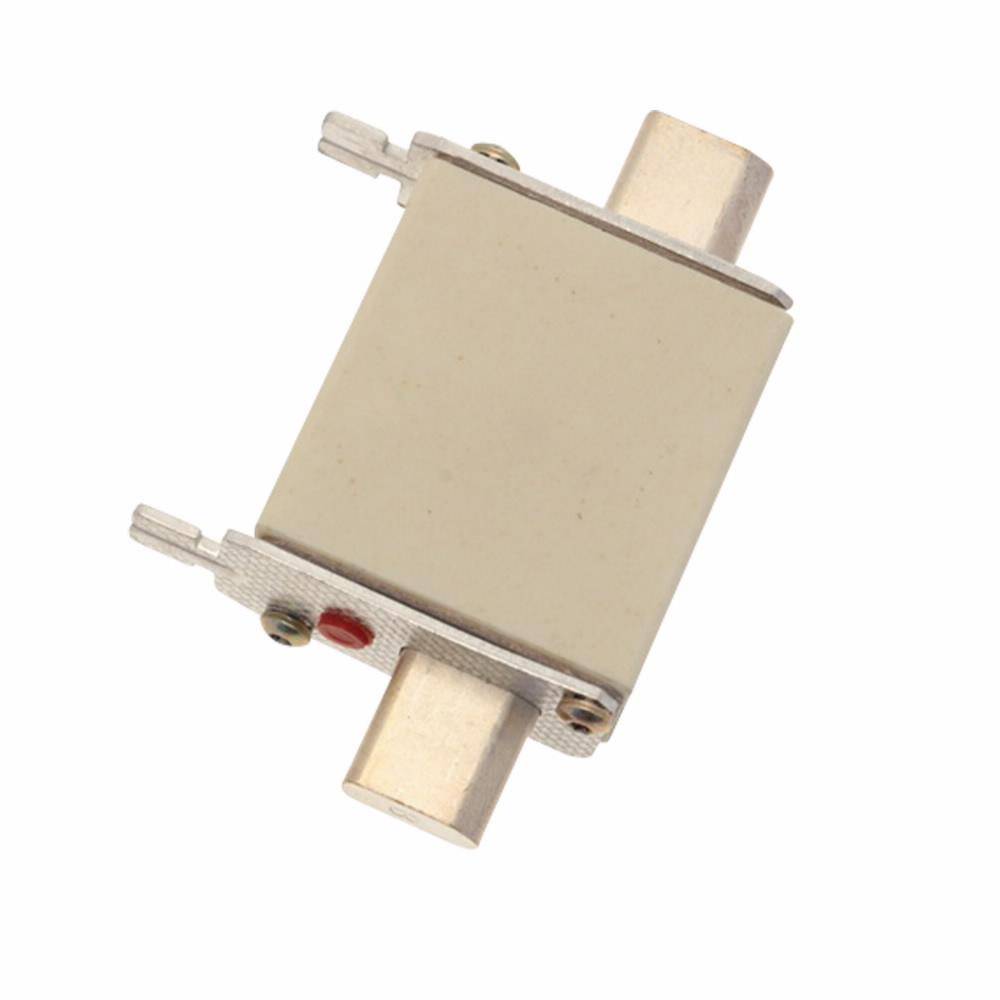

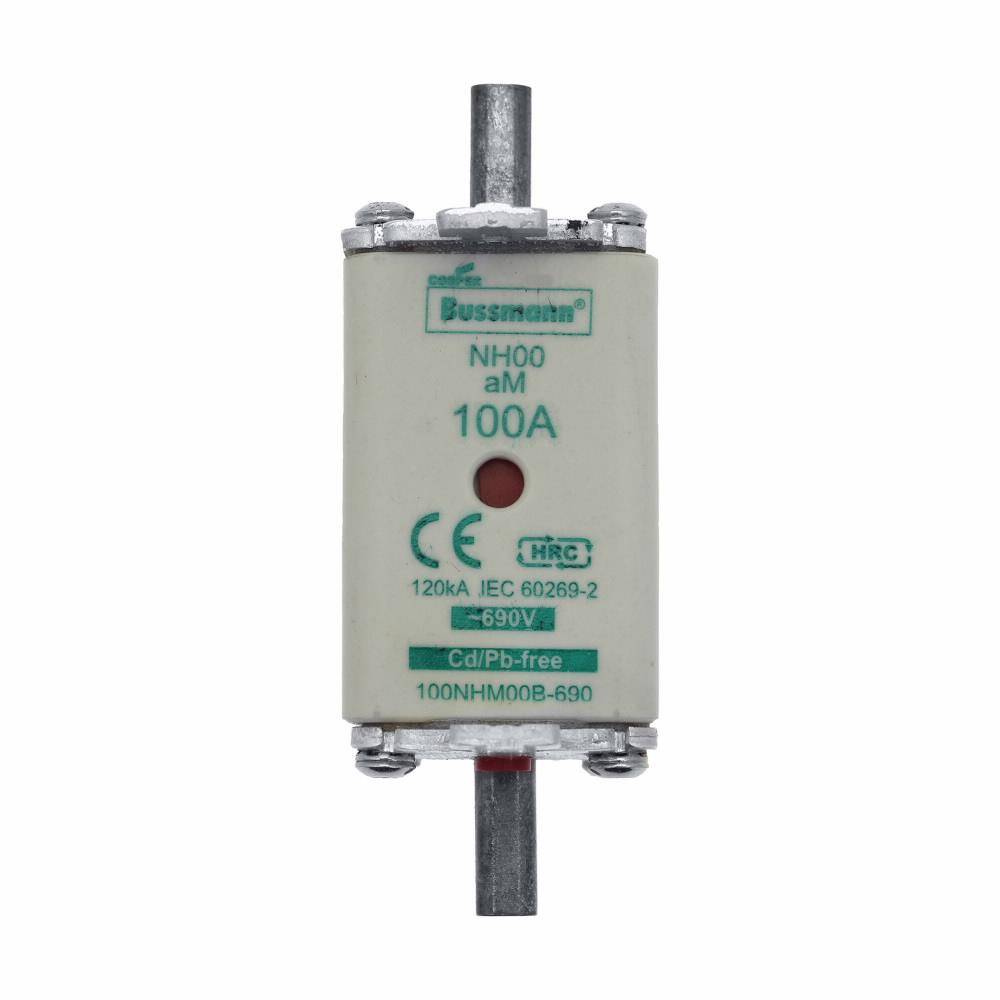

Bussmann 100NHM00B-690 Size 00 Low Voltage NH Fuse Link, 690 V, 100 A, For Use With Class aM Fuse
Bussmann 100NHM00B-690 Size 00 Low Voltage NH Fuse Link, 690 V, 100 A, For Use With Class aM Fuse
Bussmann 100NHM00B-690 Size 00 Low Voltage NH Fuse Link, 690 V, 100 A, For Use With Class aM Fuse
Bussmann 100NHM00B-690 Size 00 Low Voltage NH Fuse Link, 690 V, 100 A, For Use With Class aM Fuse
Bussmann 100NHM00B-690 Size 00 Low Voltage NH Fuse Link, 690 V, 100 A, For Use With Class aM Fuse
Bussmann 100NHM00B-690 Size 00 Low Voltage NH Fuse Link, 690 V, 100 A, For Use With Class aM Fuse
Bussmann 100NHM00B-690 Size 00 Low Voltage NH Fuse Link, 690 V, 100 A, For Use With Class aM Fuse
Bussmann 100NHM00B-690 Size 00 Low Voltage NH Fuse Link, 690 V, 100 A, For Use With Class aM Fuse
Share Share Print Print
Eaton

Bussmann 100NHM00B-690 Size 00 Low Voltage NH Fuse Link, 690 V, 100 A, For Use With Class aM Fuse

Short Description

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.

Bussmann NH Fuse Link, Size 00 Low Voltage, Series: NHM, 690 V, 100 A, 45 to 62 Hz, Rated Breaking Capacity: 120 kAIC, For Use With: Class aM Fuse
MFG #: 100NHM00B-690

EECO #: BU100NHM00B690

Brand: Bussmann
UPC #: 051712393355
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121606
Application
Electrical Assemblies, Panels, EOEMs, Control Panels for Machines, Panel Builders, Industrial Facilities and Factories, Power Distribution and Control, Safety and Security Systems
Voltage Rating
690
Frequency Rating
45 to 62
Type
Size 00 Low Voltage
Series
NHM
Amperage Rating
100
Suitable For Use With
Class aM Fuse
Features
  • Combination fuse status indicator
315NHM2B_690_RoHS_02
100NHM00B_690_Specification_Sheet_01
