Eaton

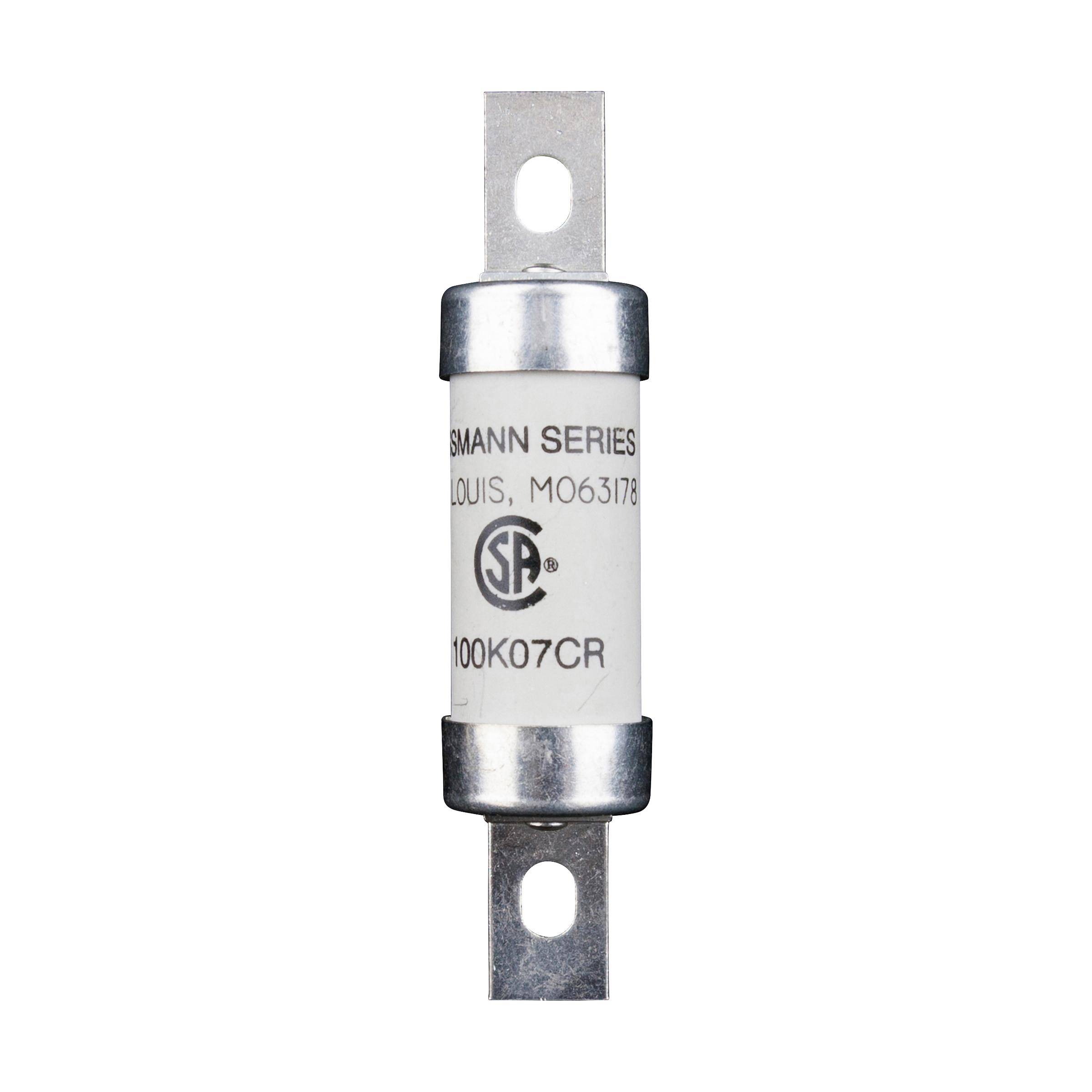

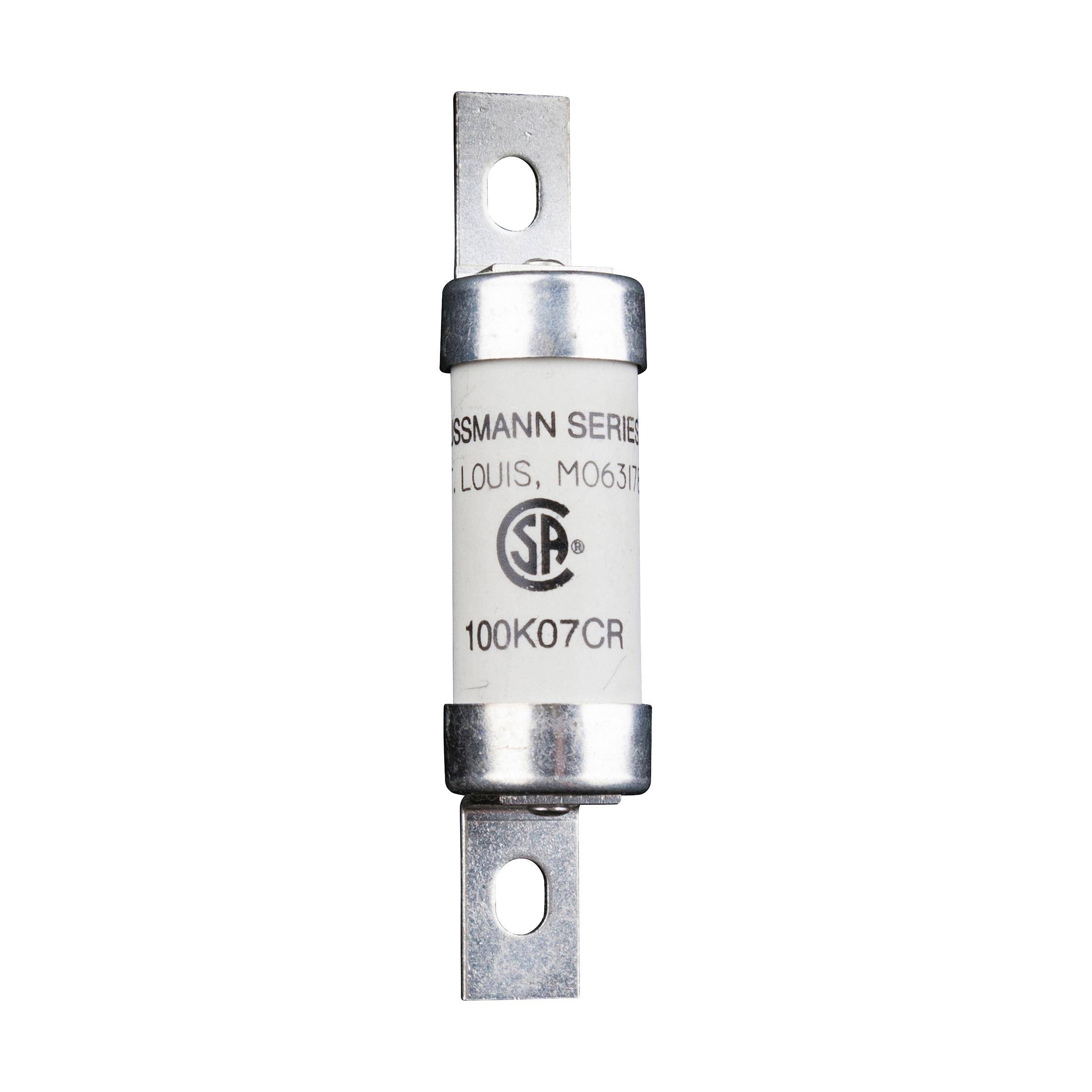

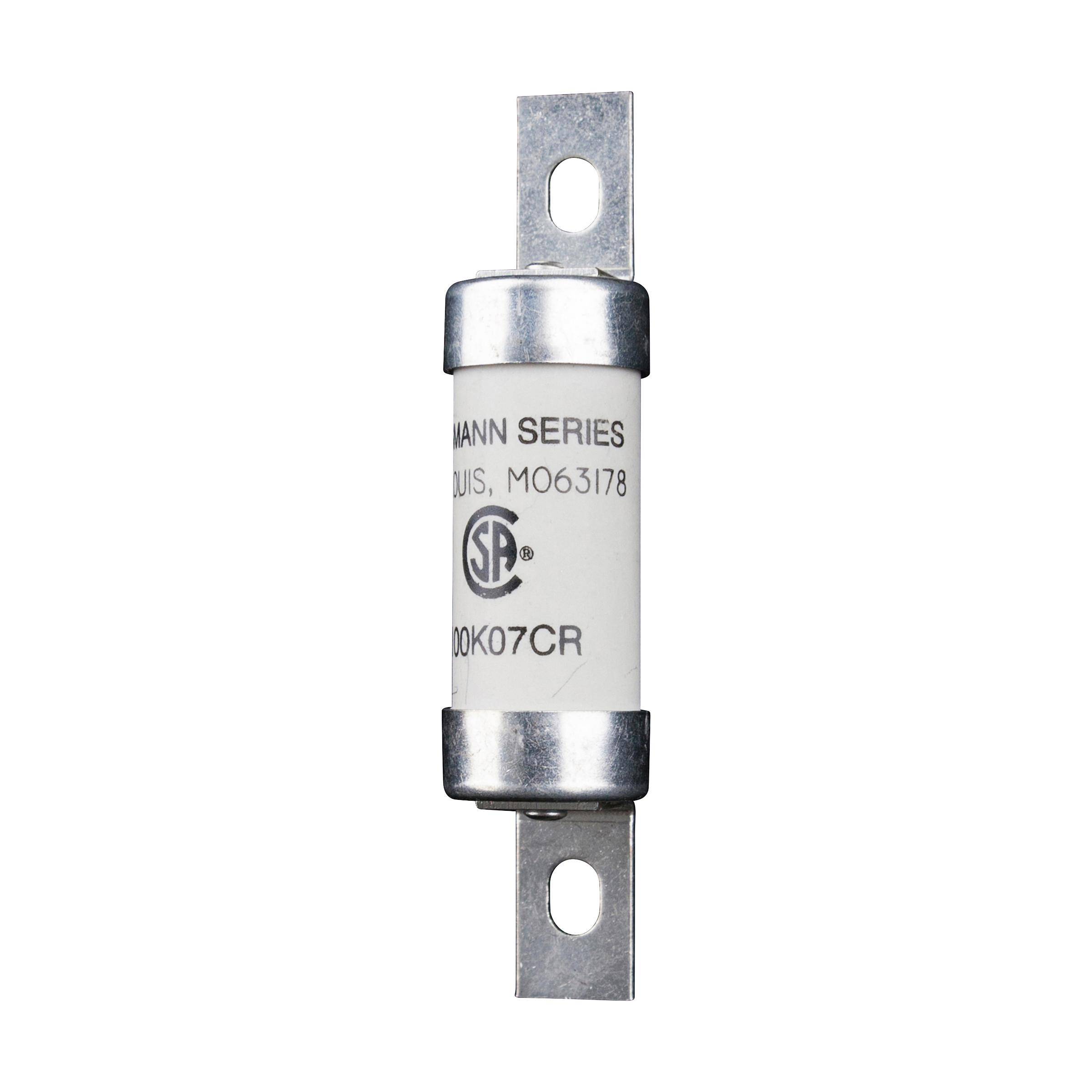

Bussmann 100K07CR HRC Form II Canadian Current Limiting Fuse, 100 A, 600 VAC/250 VDC, 200 kA Interrupt, Cartridge Body

Short Description

Eaton's Bussmann British standard fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current, voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.

Bussmann Fuse, HRC Form II Canadian Current Limiting, Series: K07CR, 100 A, 600 VAC/250 VDC, 200 kA Interrupt, Offset Blade Terminal, Stud Mounting, Cartridge Body, Ceramic, 0.88 in Dia x 3.75 in L Body
MFG #: 100K07CR

EECO #: BU100K07CR

Brand: Bussmann
UPC #: 051712588911
Attributes
Features
Documents
Product Information
Attributes
Class
gG/gL
UNSPSC
39121627
Material
Ceramic
Application
Protect motor control circuits, together with contactors and overload protection relays
Mounting Type
Stud
Terminal Type
Offset Blade
Voltage Rating
600 VAC/250 VDC
Type
HRC Form II Canadian Current Limiting
Series
K07CR
Amperage Rating
100
Features
  • Package Type: Standard
  • Width: 0.75 in
  • Weight: 0.117 lbs
  • Dimensions: 0.88 in Dia x 3.75 in L
  • Length: 0.75 in
  • Height: 3.625 in
  • Indicator: Non-Indicating
Bussmann_100K07CR_Specification_Sheet
100K07CR_Specification_Sheet
