BRK Brands Inc. SC9120B Smoke/Carbon Alarm

Short Description

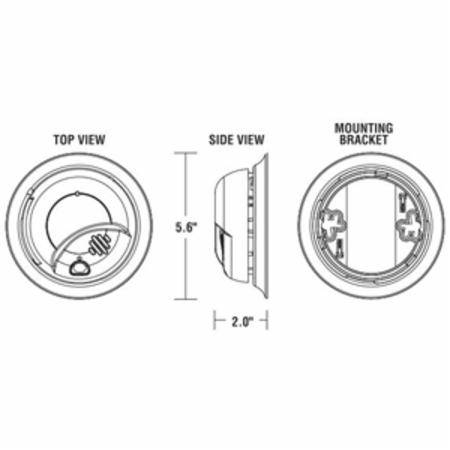

5.6" x 2", 120 VAC, 0.09 A, 85 dB at 10' Horn, Smoke/Carbon Alarm

Smoke/Carbon Alarm; Type Smoke/Carbon; Operation Type Dual Ionization (Smoke Sensor), Electrochemical (CO Sensor); Voltage Rating/Source 120 Volt AC at 60 Hertz with 9 Volt Alkaline Battery Backup; LED/Strobe Type Constant/Intermittent Green/Red LED; Horn Type 85 Decibel at 10 Foot; Number of Interconnections 18 (First Alert or BRK Smoke, CO and Heat Alarm), 12 (Smoke Alarm); Approval UL 217/2034, CSFM, NFPA 72/720, ICC; Current Rating 0.09 Amp; Overall Dimension 5.6 Inch Diameter x 2 Inch Height; Temperature Rating 40 to 100 Deg F; Humidity Range 10 to 95 Percent

MFG #: SC9120B

EECO #: BRKSC9120B

Brand: BRK
UPC #: 029054513069
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
46191501
Approval
UL 217/2034, CSFM, NFPA 72/720, ICC
Type
Smoke/Carbon
Horn Type
85 Decibel at 10 Foot
Operation Type
Dual Ionization (Smoke Sensor), Electrochemical (CO Sensor)
LED/Strobe Type
Constant/Intermittent Green/Red LED
Voltage Rating/Source
120 Volt AC at 60 Hertz with 9 Volt Alkaline Battery Backup
Number of Interconnections
18 (First Alert or BRK Smoke, CO and Heat Alarm), 12 (Smoke Alarm)
Features
  • Capable of Self Restoring
  • The Unit Shall Perform Self Diagnostic Tests and Issue a Malfunction Warning
  • A Visual Power-On Indicator to Confirm Unit is Receiving AC Power or has Switched to Battery Backup Mode, Separate LED to Indicate a Smoke or CO Alarm
  • The CO Sensor is Adjusted Not to Detect CO Levels Below 30 PPM and will Not Alarm When Exposed to Constant Levels of 30 PPM for 30 Days, it will Alarm at the Following Levels: 400 PPM CO Between 4 and 15 Minutes, 150 PPM CO Between 10 and 50 Minutes and 70 PPM CO Between 60 and 240 Minutes
  • Two Latching Alarm Latch to Easily Identify Initiating Alarm after Alarm Condition has Subsided
  • Tamper Resistant Locking Pins that Lock Battery Drawer and/or Alarm to Mounting Bracket
