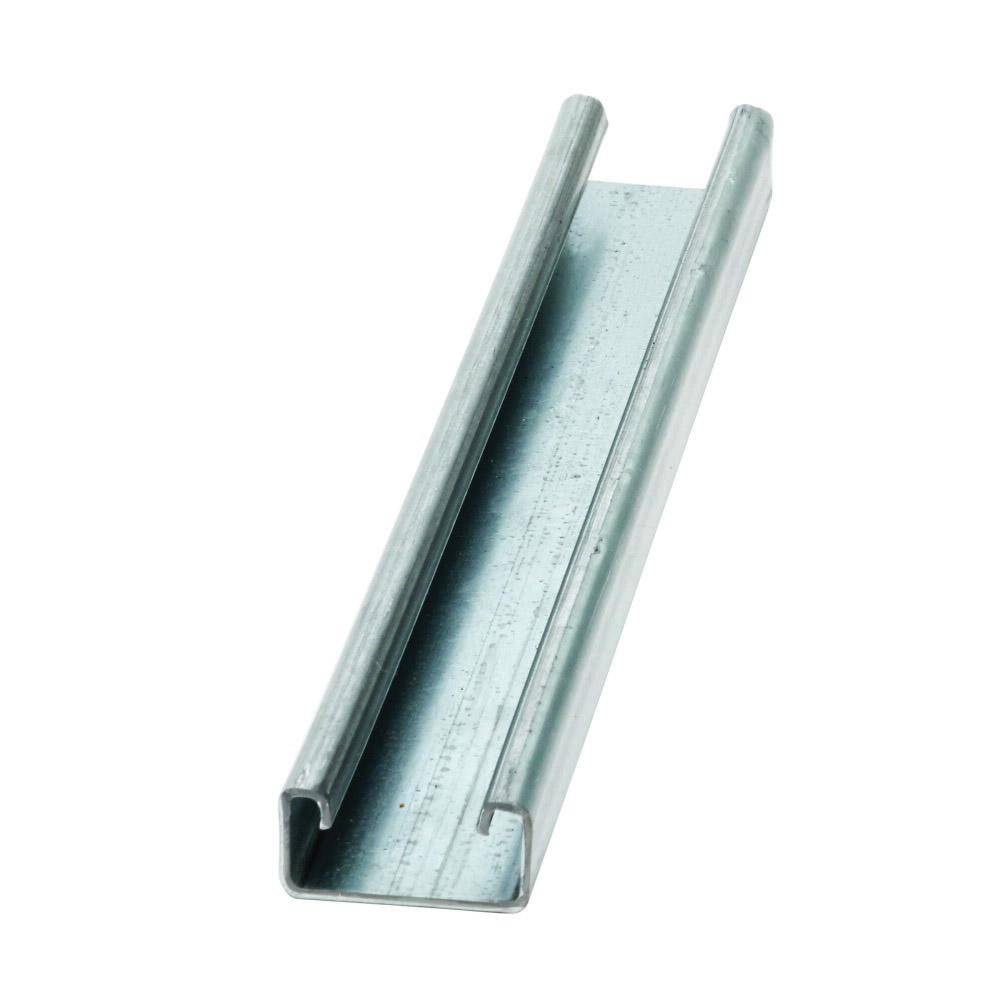

B-Line B54-120YZN Single Solid Metal Framing Channel, 120 in L 1-5/8 in W 13/16 in D 14 ga THK, Carbon Steel, Zinc Plated, Import

Short Description

Metal framing channel is cold formed on our modern rolling mills from 12, 14 and 16 ga low carbon steel strips. A continuous slot with inturned lips provides the ability to make attachments at any point.

B-Line, B54-120YZN, Metal Framing Channel, Single Solid, 1-5/8 in Width, 13/16 in Depth, 120 in Length, 14 ga Thickness, Carbon Steel, Zinc Plated, Yellow, Import
MFG #: B54-120YZN

EECO #: BLB54120YZN

Brand: B-Line
UPC #: 781011027087
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
Finish
Zinc Plated
Length
120
UNSPSC
30101804
Material
Carbon Steel
Application
Strut Systems/Bolted Framing
Number of Channels
1
Type
Single Solid
Depth
13/16
Width
1-5/8
Height
13/16 Inch
Weight
1.016 Pound per Foot
Process
Cold/Roll Formed
Warranty
Limited
Thickness
14
Deflection
2.703 Inch
Configuration
Solid
Beam Load Rating
93 Pound
Column Load Rating
336 Pound (Slot Face), 655 Pound (0.65 Load Factor)
Cross Section Area
0.299 Square Inch
Features
  • +/- 1/8 in on 10 ft and +/- 3/16 in on 20 ft for all channel tolerances excluding SH style
  • Bolted frame
  • 13/16 in height
