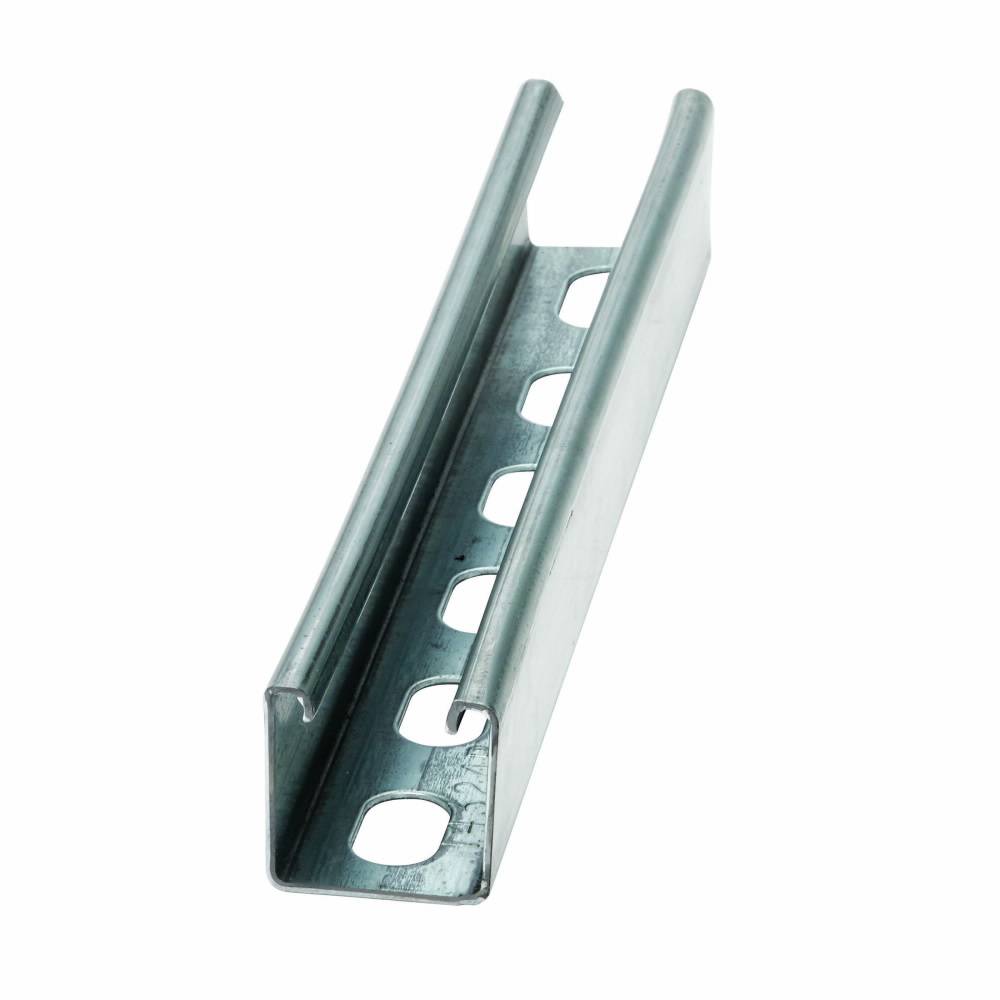

B-Line B24SH-120GLV Slotted Single Metal Framing Channel, 10 ft L 1-5/8 in W 1-5/8 in D 14 ga THK, Cold Formed Low Carbon Steel, Pre-Galvanized, Import

Short Description

Eaton metal framing support system provides an economical solution for electrical, mechanical and industrial supports and is designed with many time-saving features. They are fully adjustable and reusable, with a complete line of channels, fittings and accessories for multi-purpose applications. Channel and fittings can be taken apart for reuse as quickly as they were assembled, producing substantial savings in time and labor, yet they provide the strength of welded construction.

B-Line, B24SH-120GLV, Metal Framing Channel, Slotted Single, 1-5/8 in Width, 1-5/8 in Depth, 10 ft Length, 14 ga Thickness, 9/16 x 1-1/8 in Slot, 2 in Slot Spacing, Cold Formed Low Carbon Steel, Pre-Galvanized, Import
MFG #: B24SH-120GLV

EECO #: BLB24SH120GLV

Brand: B-Line
UPC #: 781011222307
Attributes
Features
Documents
Product Information
Attributes
Color
Metallic
Finish
Pre-Galvanized
Length
10
UNSPSC
30101804
Material
Cold Formed Low Carbon Steel
Application
Strut Systems and Bolted Framing Applications
Number of Channels
1
Type
Slotted Single
Depth
1-5/8
Width
1-5/8
Height
1-5/8 Inch
Weight
1.34 Pound per Foot
Process
Cold/Roll Formed
Warranty
Limited
Slot Size
9/16 x 1-1/8
Thickness
14
Deflection
1.419 Inch
Configuration
Slotted
Load Capacity
276
Center Spacing
2 Inch
Hole/Slot Size
1-1/8 Inch Length x 9/16 Inch Width
Beam Load Rating
276 Pound
Column Load Rating
1236 Pound (CG), 942 Pound (Slot Face)
Cross Section Area
0.424 Square Inch
Features
  • A continuous slot with in turned lips provides the ability to make attachments at any point
  • +/- 1/4 in ON 10 ft for SH channels tolerances
  • Slotted series of channels offer full flexibility
  • A variety of pre-punched slot patterns eliminate the need for precise field measuring for hole locations
  • Slots offer wide adjustments in the alignment and bolt sizing
