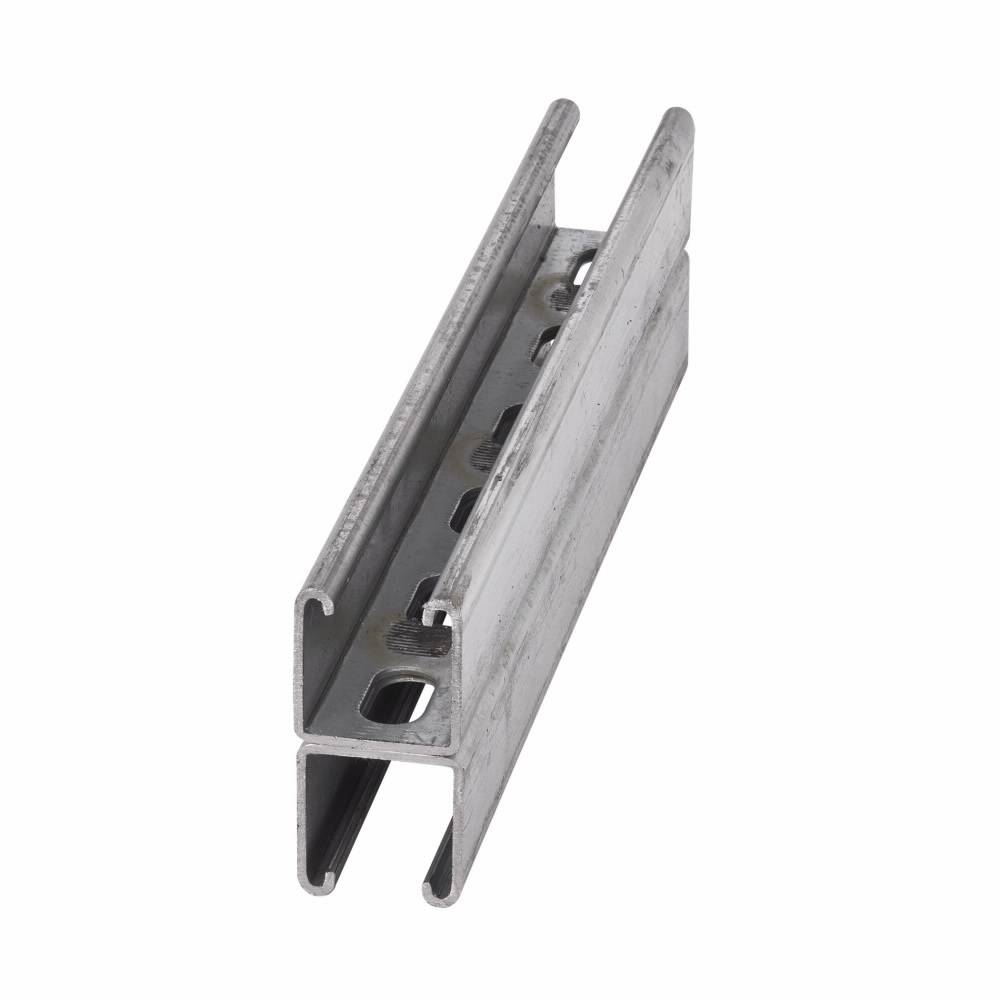

B-Line B22SHA-120GLV Back to Back Slotted Metal Framing Channel, 10 ft L 1-5/8 in W 1-5/8 in D 12 ga THK, Cold Formed Low Carbon Steel, Pre-Galvanized, Import

Short Description

Eaton metal framing support system provides an economical solution for electrical, mechanical and industrial supports and is designed with many time-saving features. They are fully adjustable and reusable, with a complete line of channels, fittings and accessories for multi-purpose applications. Channel and fittings can be taken apart for reuse as quickly as they were assembled, producing substantial savings in time and labor, yet they provide the strength of welded construction.

B-Line, B22SHA-120GLV, Metal Framing Channel, Back to Back Slotted, 1-5/8 in Width, 1-5/8 in Depth, 10 ft Length, 12 ga Thickness, 9/16 x 7/8 in Slot, 2 in Slot Spacing, Cold Formed Low Carbon Steel, Pre-Galvanized, Import
MFG #: B22SHA-120GLV

EECO #: BLB22SHA120GLV

Brand: B-Line
UPC #: 781011034450
Attributes
Features
Documents
Product Information
Attributes
Finish
Pre-Galvanized
Length
10
UNSPSC
30101804
Material
Cold Formed Low Carbon Steel
Application
Strut Systems and Bolted Framing Applications
Number of Channels
2
Type
Back to Back Slotted
Depth
1-5/8
Width
1-5/8
Height
1-5/8 Inch
Weight
3.64 Pound per Foot
Process
Cold/Roll Formed
Warranty
Limited
Slot Size
9/16 x 7/8
Thickness
12
Deflection
1.403 Inch
Configuration
Slotted
Center Spacing
2 Inch
Hole/Slot Size
1-3/8 Inch Length x 9/16 Inch Width
Beam Load Rating
340 Pound
Column Load Rating
2680 Pound (0.65 Load factor)
Features
  • A continuous slot with in turned lips provides the ability to make attachments at any point
  • +/- 1/4 in ON 10 ft for SH channels tolerances
  • Slotted series of channels offer full flexibility
  • A variety of pre-punched slot patterns eliminate the need for precise field measuring for hole locations
  • Slots offer wide adjustments in the alignment and bolt sizing
