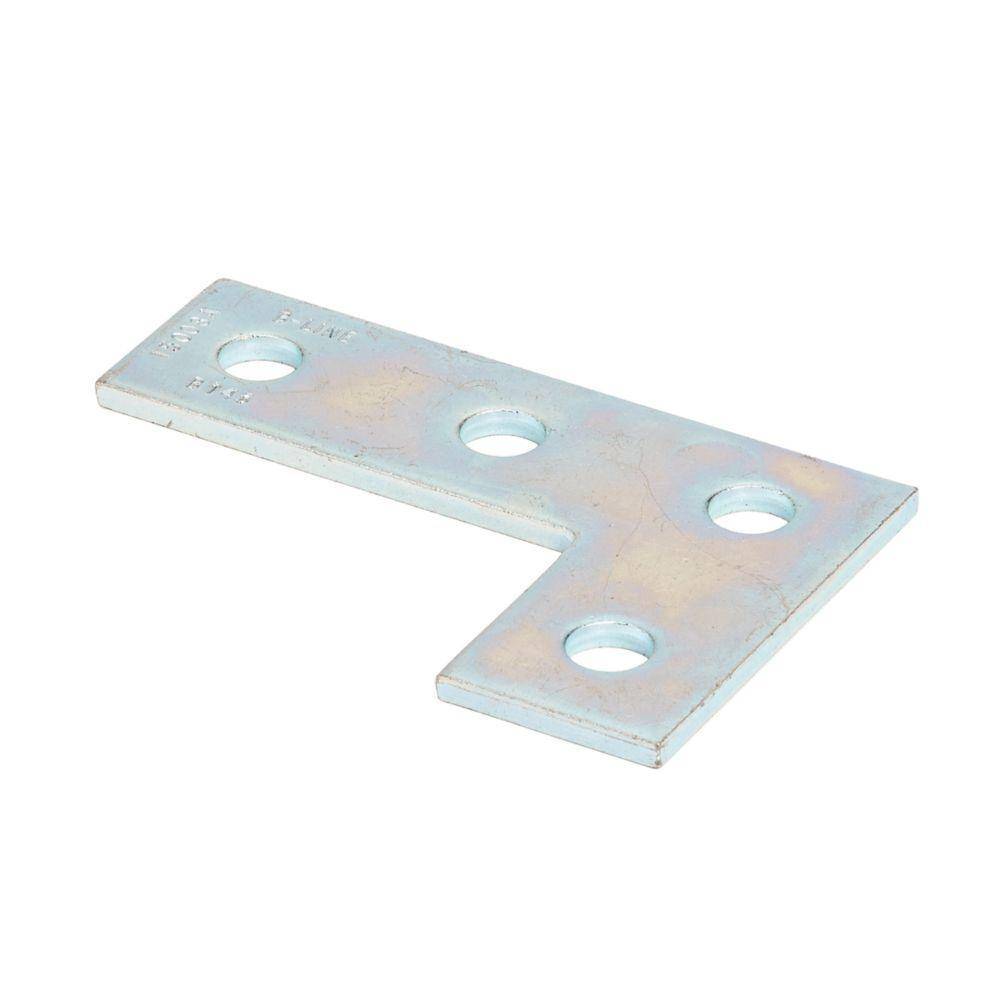

B-Line B143ZN Flat Corner Plate, 4 Holes, 3-1/2 in L x 1-5/8 in W x 1/4 in THK, Steel
B-Line B143ZN Flat Corner Plate, 4 Holes, 3-1/2 in L x 1-5/8 in W x 1/4 in THK, Steel
B-Line B143ZN Flat Corner Plate, 4 Holes, 3-1/2 in L x 1-5/8 in W x 1/4 in THK, Steel
B-Line B143ZN Flat Corner Plate, 4 Holes, 3-1/2 in L x 1-5/8 in W x 1/4 in THK, Steel
B-Line B143ZN Flat Corner Plate, 4 Holes, 3-1/2 in L x 1-5/8 in W x 1/4 in THK, Steel
B-Line B143ZN Flat Corner Plate, 4 Holes, 3-1/2 in L x 1-5/8 in W x 1/4 in THK, Steel
Share Share Print Print
Eaton

B-Line B143ZN Flat Corner Plate, 4 Holes, 3-1/2 in L x 1-5/8 in W x 1/4 in THK, Steel

Short Description

B-Line series strut fitting complete the full line of our strut system and include many time and material saving solutions. These accessories are available in a variety of materials, finishes and configurations to work with B-Line series strut channel

B-Line Corner Plate, Flat, 4 Holes, 3-1/2 in Length, 1-5/8 in Width, 5-3/8 in Depth, 1/4 in Thickness, 9/16 in Dia Hole, 1-7/8 in Hole Spacing, For Use With: Strut and BF-Fittings, Steel, Zinc Plated
MFG #: B143ZN

EECO #: BLB143ZN

Brand: B-Line
UPC #: 781011504632
Attributes
Features
Documents
Product Information
Attributes
Finish
Zinc Plated
Length
3-1/2
UNSPSC
30101804
Material
Steel
Application
Commercial, Institutional Buildings, Structures, Aftermarket, Datacenters, IT Space, Enterprise, Server Room, Network Closet, Generation - Conventional Energy, Renewable Energy, Alternative Energy, Industrial Facilities, Factories Facility, Other IT and Datacom - Other Infrastructures, Residential Buildings and Facilities, Utility, Water and Wastewater Systems, Strut Systems, Bolted Framing and Flat Plate Fittings Applications
Channel Width
1-5/8 Inch
Type
Flat
Depth
5-3/8
Width
1-5/8
Warranty
Limited
Hole Size
9/16 in Dia
Thickness
1/4
Hole/Slot Size
9/16 Inch Diameter
Number of Holes
4
Suitable For Use With
Strut and BF-Fittings
Features
  • It is the Process by Which a Coating of Zinc is Deposited on the Steel by Electrolysis from a Bath of Zinc Salts
  • When Exposed to Air and Moisture, Zinc Forms a Tough, Adherent, Protective Film Consisting of a Mixture of Zinc Oxides, Hydroxides and Carbonates
  • This Film is in Itself a Barrier Coating Which Slows Subsequent Corrosive Attack on the Zinc
  • This Coating is Usually Recommended for Indoor Use in Relatively Dry Areas, as it Provides Ninety-Six Hours Protection in Salt Spray
BLINESE01571_5_6_73_74
IDW_DOCUMENT_67d828f2cab5da73cdc33f79e3c4fd9133f9c52b94f6785a89e50905069edefa
IDW_DOCUMENT_77786a89165b04f92a7db4f7a6cb5e9153475947ff6fe64408ce6ad89718bc63
IDW_DOCUMENT_ad2b1fb995d1989a1e2e001fac85aea6d2e67971854a304647b6262ef3e311e5
B_Line_B143ZN_Specification_Sheet
Qty Unit price
C
1 $3,353.19

Ea
1 $33.5319

Slqt
1 $33.53

Stpk
1 $33.53

Unit
1 $33.53
