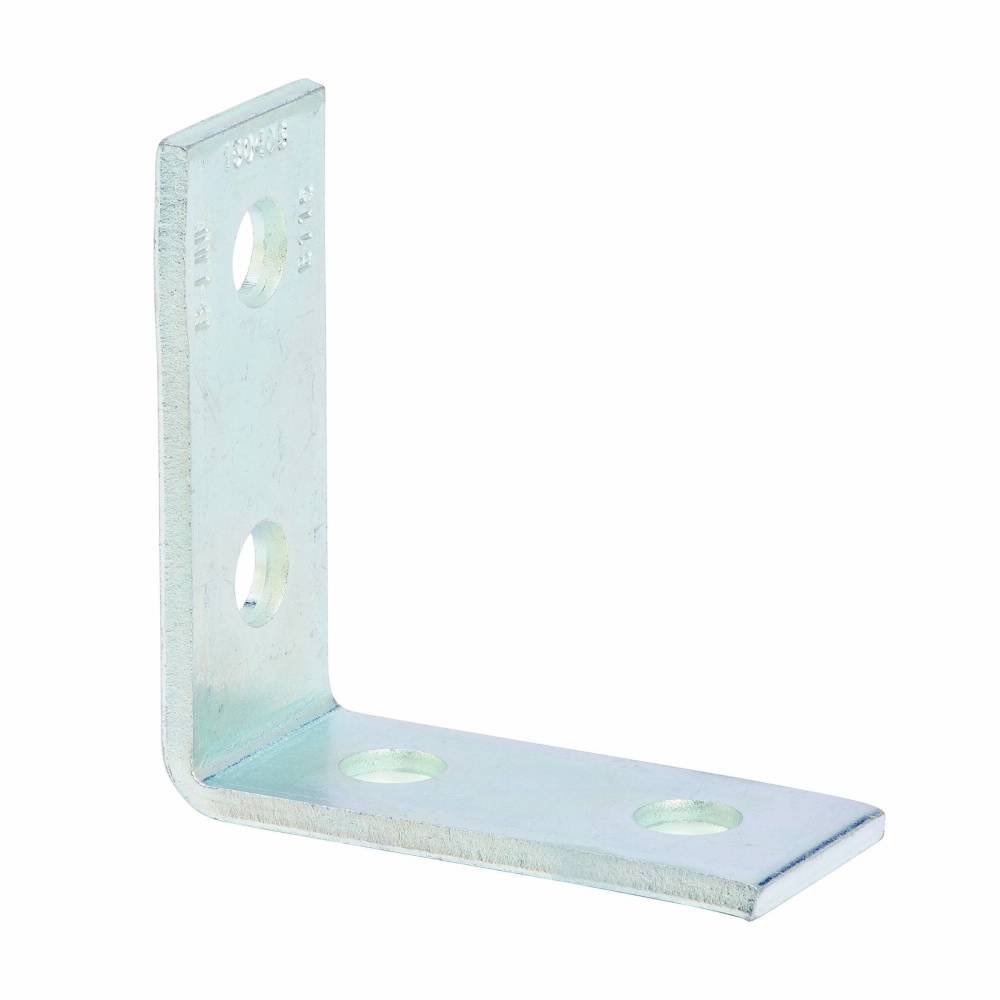

B-Line B115ZN 90 deg Corner Angle, 4 Holes, 3-15/16 in L x 3-3/4 in W x 7/32 in THK, Steel
B-Line B115ZN 90 deg Corner Angle, 4 Holes, 3-15/16 in L x 3-3/4 in W x 7/32 in THK, Steel
B-Line B115ZN 90 deg Corner Angle, 4 Holes, 3-15/16 in L x 3-3/4 in W x 7/32 in THK, Steel
B-Line B115ZN 90 deg Corner Angle, 4 Holes, 3-15/16 in L x 3-3/4 in W x 7/32 in THK, Steel
Share Share Print Print
Eaton

B-Line B115ZN 90 deg Corner Angle, 4 Holes, 3-15/16 in L x 3-3/4 in W x 7/32 in THK, Steel

Short Description

B-Line series strut fitting complete the full line of our strut system and include many time and material saving solutions. These accessories are available in a variety of materials, finishes and configurations to work with B-Line series strut channel

B-Line Corner Angle, 90 deg, 4 Holes, 3-15/16 in Length, 3-3/4 in Width, 3-3/4 in Depth, 7/32 in Thickness, 9/16 in Dia Hole, 13/16 in, 1-7/8 in Hole Spacing, Steel, Zinc Plated
MFG #: B115ZN

EECO #: BLB115ZN

Brand: B-Line
UPC #: 781011501839
Attributes
Features
Documents
Product Information
Attributes
Finish
Zinc Plated
Length
3-15/16
UNSPSC
39121311
Material
Steel
Application
4Dimension™ Strut Systems/Bolted Framing Applications
Channel Width
1-5/8 Inch
Type
90 deg
Depth
3-3/4
Width
3-3/4
Includes
Steel
Warranty
30 Days Limited
Hole Size
9/16 in Dia
Thickness
7/32
Hole/Slot Size
9/16 Inch Diameter
Number of Holes
4
Features
  • It is the Process by Which a Coating of Zinc is Deposited on the Steel by Electrolysis from a Bath of Zinc Salts
  • When Exposed to Air and Moisture, Zinc Forms a Tough, Adherent, Protective Film Consisting of a Mixture of Zinc Oxides, Hydroxides and Carbonates
  • This Film is in Itself a Barrier Coating Which Slows Subsequent Corrosive Attack on the Zinc
  • This Coating is Usually Recommended for Indoor Use in Relatively Dry Areas, as it Provides Ninety-Six Hours Protection in Salt Spray
