Eaton

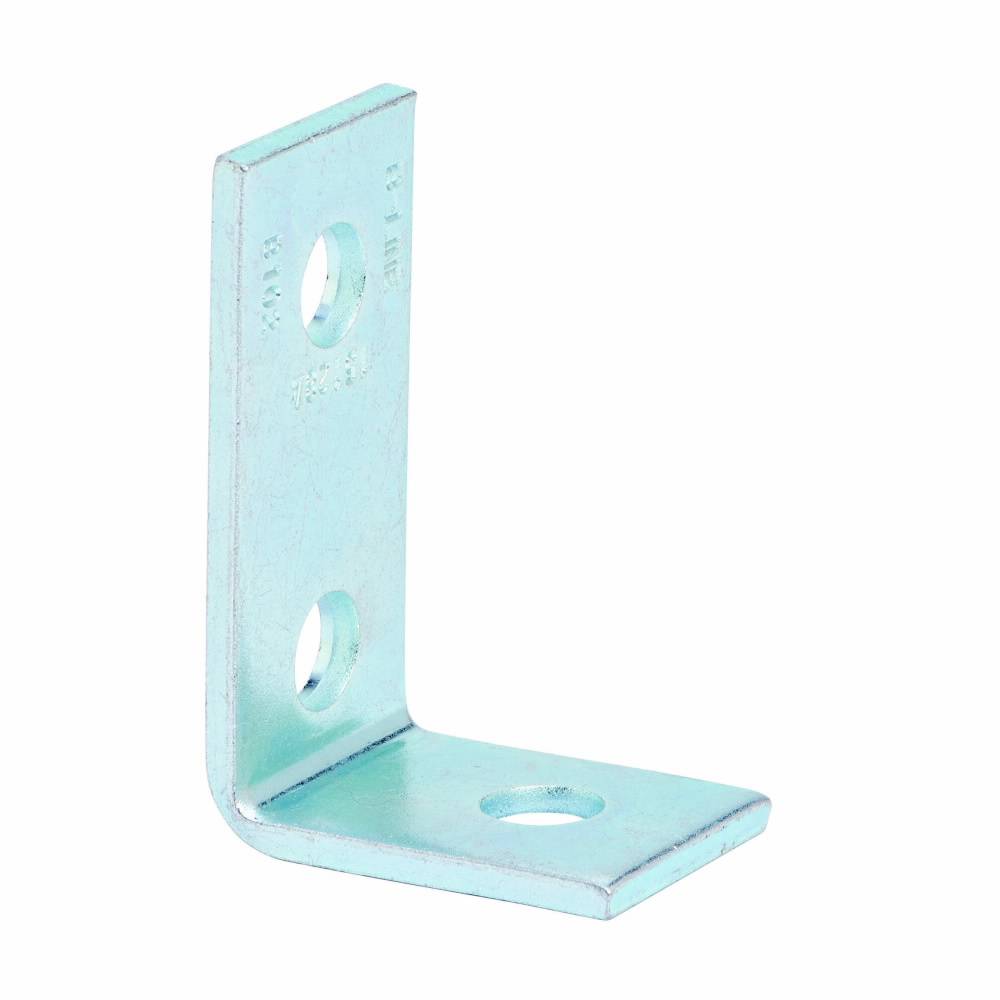

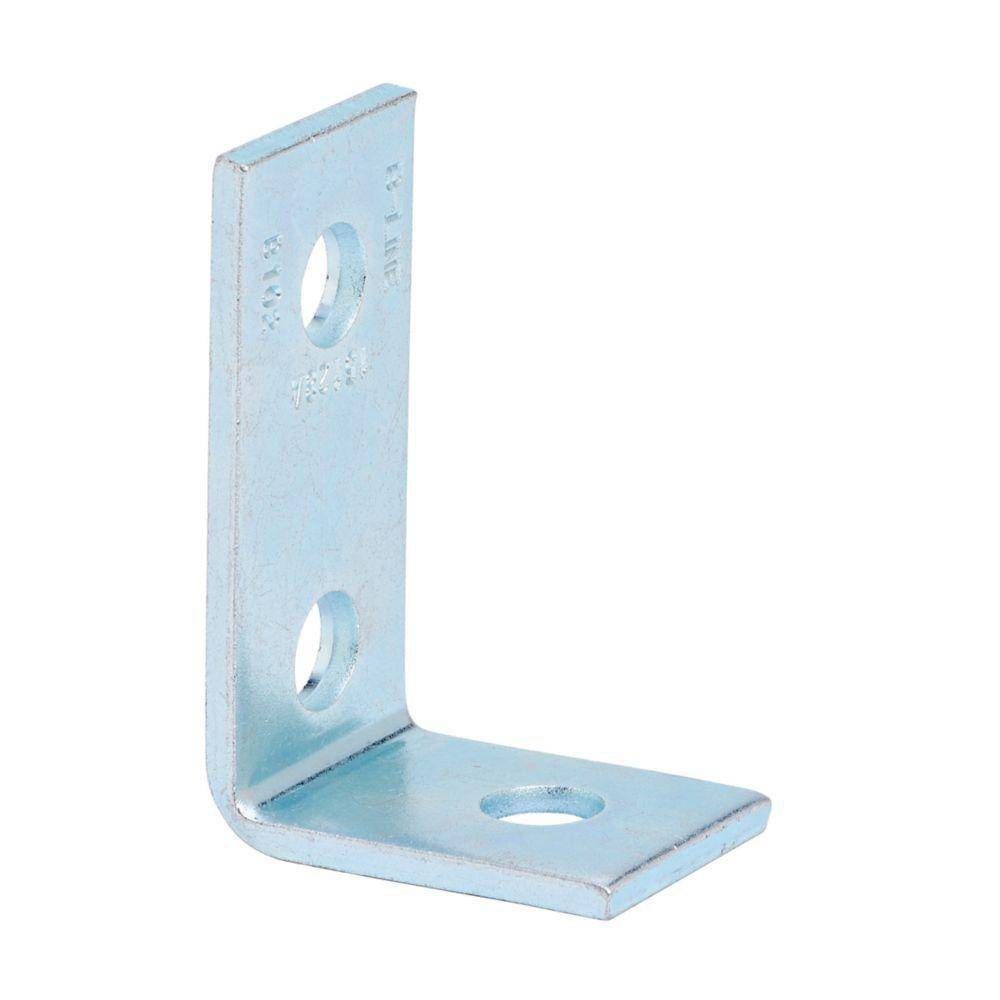

EATON B-Line B102ZN 90 deg Corner Angle, 3 Holes, 2-1/4 in L x 3-1/2 in W x 7/32 in THK, Steel

Short Description

B-Line series strut fitting complete the full line of our strut system and include many time and material saving solutions. These accessories are available in a variety of materials, finishes and configurations to work with B-Line series strut channel

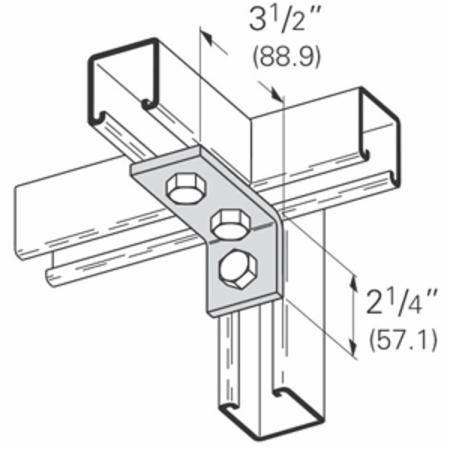

EATON B-Line Corner Angle, 90 deg, 3 Holes, 2-1/4 in Length, 3-1/2 in Width, 3-1/2 in Depth, 7/32 in Thickness, 9/16 in Dia Hole, 13/16 in, 1-7/8 in Hole Spacing, Steel, Zinc Plated
MFG #: B102ZN

EECO #: BLB102ZN

Brand: B-Line
UPC #: 781011500238
Attributes
Features
Documents
Product Information
Attributes
Finish
Zinc Plated
Length
2-1/4
UNSPSC
30101804
Material
Steel
Application
4Dimension™ Strut Systems and Bolted Framing Applications
Channel Width
1-5/8 Inch
Type
90 deg
Depth
3-1/2
Width
3-1/2
Includes
Steel
Warranty
30 Days Limited
Hole Size
9/16 in Dia
Thickness
7/32
Hole/Slot Size
9/16 Inch Diameter
Number of Holes
3
Features
  • It is the Process by Which a Coating of Zinc is Deposited on the Steel by Electrolysis from a Bath of Zinc Salts
  • When Exposed to Air and Moisture, Zinc Forms a Tough, Adherent, Protective Film Consisting of a Mixture of Zinc Oxides, Hydroxides and Carbonates
  • This Film is in Itself a Barrier Coating Which Slows Subsequent Corrosive Attack on the Zinc
  • This Coating is Usually Recommended for Indoor Use in Relatively Dry Areas, as it Provides Ninety-Six Hours Protection in Salt Spray
BLINESE01571_5_6_73_77
IDW_DOCUMENT_ad2b1fb995d1989a1e2e001fac85aea6d2e67971854a304647b6262ef3e311e5
IDW_DOCUMENT_07ba344bc832971f94d6e9c8d225ef2aa992c18a190a34ba265f62c7f98595a8
IDW_DOCUMENT_36a8fe596b95f1e9bc93ef34521b7f43b5c220b720c94d7320fc9d14910dd9a4
B102PAZN_Catalog_02
