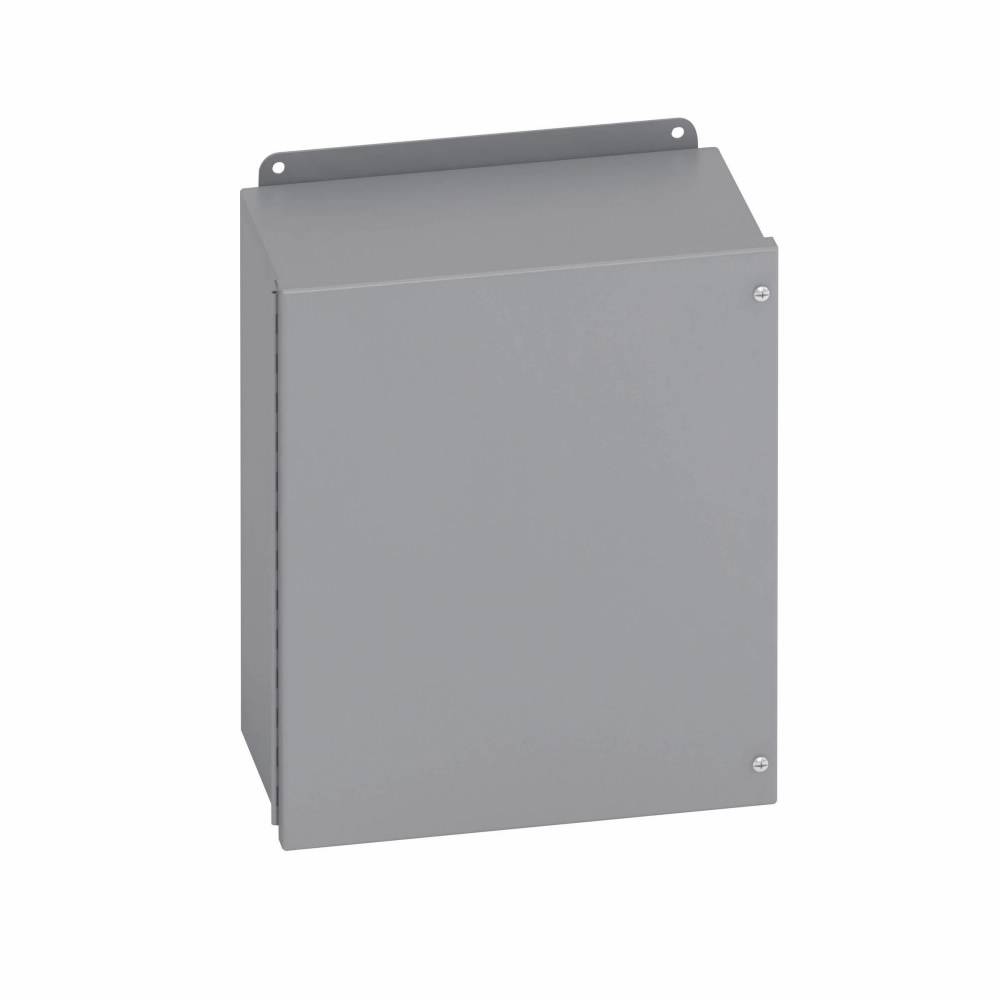

B-Line 886-12CHSC JIC Enclosure, 8 in W x 6 in D x 8 in H, NEMA 12/IP65 NEMA Rating, Carbon Steel

Short Description

8" x 8" x 6", NEMA 12/IP65, ANSI 61 Gray Polyester Powder Coated Over Phosphatized Surface, 16 Gauge Steel, Continuous Hinge, Gasketed, Screw-On, 1-Door, Panel Enclosure

B-Line JIC Enclosure, 8 in Width, 6 in Depth, 8 in Height, NEMA 12/IP65 NEMA Rating, Continuous Hinged/Screw Cover, 6.87 in W x 6.87 in H Panel, External Feet/Wall Mounting, Carbon Steel, Polyester Powder Coated/Phosphate Undercoat, Gray

MFG #: 886-12CHSC

EECO #: BL88612CHSC

Brand: B-Line
UPC #: 782051703023
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Polyester Powder Coated/Phosphate Undercoat
UNSPSC
39121324
Approval
UL 508, CSA C22.2, JIC EGP-1-1967
Material
Carbon Steel
Application
Commercial, Institutional Buildings, Structures - Critical Power, Lighting and Lighting Controls, Power Distribution and Controls, Industrial Facilities and Factories Facility, Automation and Monitoring, Critical Power, Safety and Security Systems, Manufacturing Process Electrification and Control, Utility - Substations, Transmission and Distribution, Electrical Control and Instrument Applications
Service Type
Indoor
Mounting Type
External Feet/Wall
Mounting
External Feet, Wall Mount
Material Specification
16 Gauge
Depth
6
Height
8
Warranty
Limited
Cover Type
Continuous Hinged/Screw
Panel Size
6.87 in W x 6.87 in H
Features
  • Enclosure and cover are fabricated from 16 ga steel
  • All continuous welded seams are finished smooth
  • Cover is secured to the body with a continuous hinge on one side and captive screws which thread into sealed well nuts on the opposite side
  • Cover has a fixed oil-resistant gasket
  • Ground stud provided on cover
  • External mounting feet are provided for secure wall mounting
  • Protects against circulating dust, falling dirt and dripping non-corrosive liquids
  • Continuous piano hinge, panel mount provided, plated screws
BLINESE01165_96_97_VII_X
Qty Unit price
Ea
1 $336.26

Slqt
1 $336.26

Stpk
1 $336.26

Unit
1 $336.26
